0-10 — CYLINDER HEAD COVER (#76850) — 84 parça

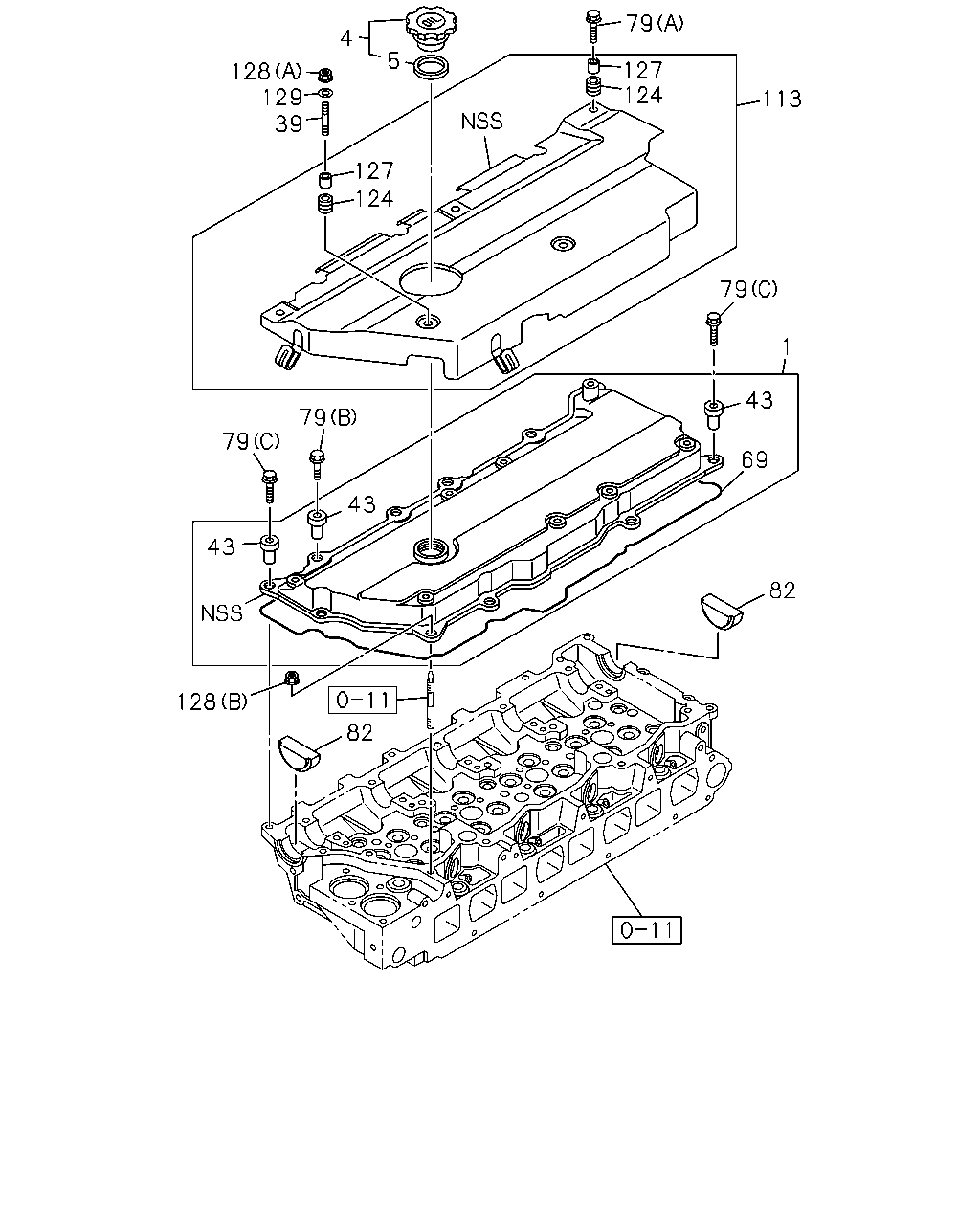

82 69 43 1 79 113 124 127 79 127 124 5 4 39 129 128 79 79 43 43 128 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1209-1305	●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1010-1108		●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1109-		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1010-1108		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1109-1208		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1209-	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1010-1108		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1109-1208		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1209-	●	●	●
39	00.413 STUD; COVER,HD M6X30 L=38	8-97372-795-0	01	1	1209-	●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	02	1	1010-1108		●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	02	1	1109-		●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1010-1108		●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1109-		●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	1209-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-359-1	01	1	1010-1108		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-359-1	01	1	1109-		●	●
79	00.293 BOLT; COVER 04.338 (D) M8X20 FLANGE	0-28050-820-0	05	1	1209-	●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1010-1108		●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1109-		●	●
79	00.293 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	07	1	1010-1108		●
79	00.293 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	07	1	1109-		●	●
79	00.293 BOLT; COVER 00.413 (A) M6X20	8-97127-607-0	03	1	1010-1108		●
79	00.293 BOLT; COVER 00.413 (A) M6X20	8-97127-607-0	03	1	1109-		●	●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1010-1108		●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1109-		●	●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1209-	●
113	00.386 COVER; CYL HEAD COVER	8-98115-676-0	01	1	1010-1108		●
113	00.386 COVER; CYL HEAD COVER	8-98115-676-0	01	1	1109-		●	●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	1209-	●
124	00.413 RUBBER; MTG,COVER	8-97226-908-0	05	1	1010-1108		●
124	00.413 RUBBER; MTG,COVER	8-97226-908-0	05	1	1109-		●	●
127	00.386 RETAINER; COVER	8-97092-314-0	05	1	1010-1108		●
127	00.386 RETAINER; COVER	8-97092-314-0	05	1	1109-		●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1010-1108		●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1109-		●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1010-1108		●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1109-		●	●
129	00.413 WASHER; COVER,CYL HEAD COVER ID=6.4 OD=18	0-91610-706-0	02	1	1010-1108		●
129	00.413 WASHER; COVER,CYL HEAD COVER ID=6.4 OD=18	0-91610-706-0	02	1	1109-		●	●

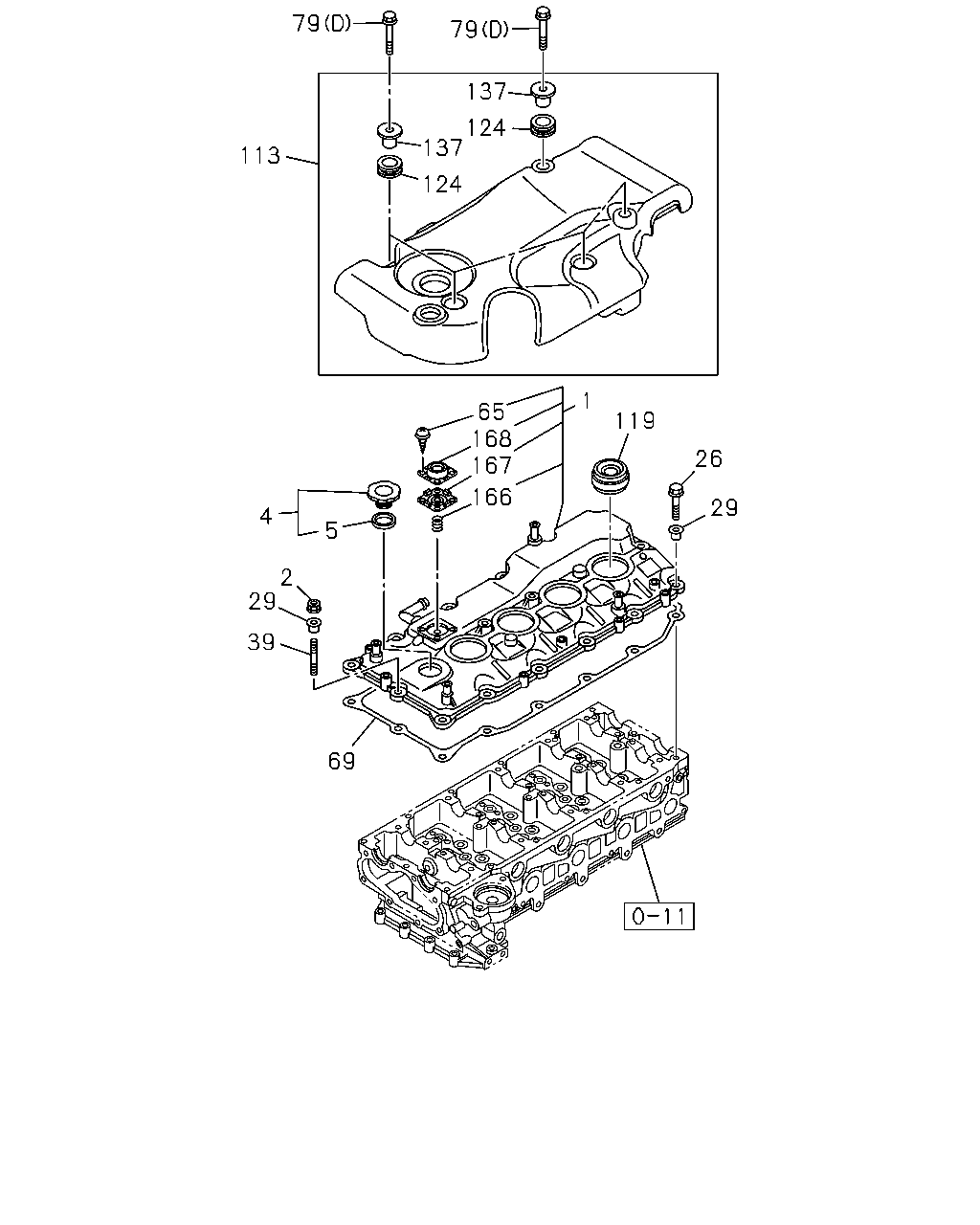

79 79 137 137 113 124 124 1 65 119 168 166 26 167 29 4 5 2 29 39 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1209-1305	●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505	●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1010-1108		●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1109-		●	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1209-	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1010-1108		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1109-1208		●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1209-	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1010-1108		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1109-1208		●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1209-	●	●	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	1209-	●
29	00.413 RUBBER; MTG,HD COVER	8-97381-524-0	14	1	1209-1408	●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	14	1	1409-	●
39	00.413 STUD; COVER,HD M6X30 L=38	8-97372-795-0	01	1	1209-	●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	02	1	1010-1108		●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	02	1	1109-		●	●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1209-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97945-338-0	01	1	1209-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-359-1	01	1	1010-1108		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-359-1	01	1	1109-		●	●
79	00.293 BOLT; COVER 04.338 (D) M8X20 FLANGE	0-28050-820-0	05	1	1209-	●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1010-1108		●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1109-		●	●
79	00.293 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	07	1	1010-1108		●
79	00.293 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	07	1	1109-		●	●
79	00.293 BOLT; COVER 00.413 (A) M6X20	8-97127-607-0	03	1	1010-1108		●
79	00.293 BOLT; COVER 00.413 (A) M6X20	8-97127-607-0	03	1	1109-		●	●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1209-	●
113	00.386 COVER; CYL HEAD COVER	8-98115-676-0	01	1	1010-1108		●
113	00.386 COVER; CYL HEAD COVER	8-98115-676-0	01	1	1109-		●	●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1209-	●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	1209-	●
124	00.413 RUBBER; MTG,COVER	8-97226-908-0	05	1	1010-1108		●
124	00.413 RUBBER; MTG,COVER	8-97226-908-0	05	1	1109-		●	●
137	00.413 BUSHING; MTG RUBBER,COVER	8-98036-120-0	05	1	1209-	●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1209-	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1209-1305	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1306-1505	●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1506-	●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1209-	●
