Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#7685) — 325 parça

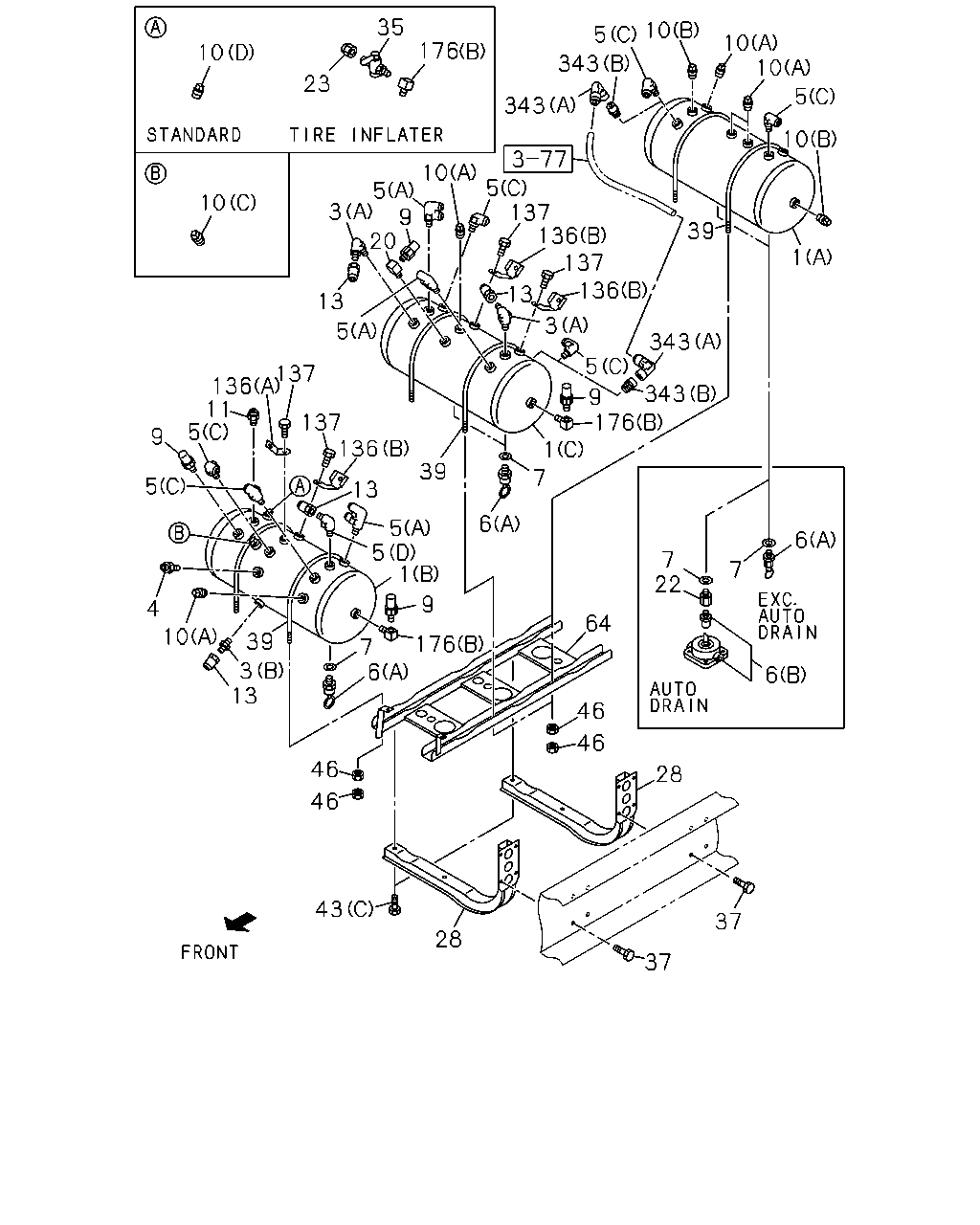

35 10 5 10 10 10 343 23 5 343 10 10 5 137 136 137 136 5 9 20 10 3 39 1 13 3 13 5 343 5 137 136 11 5 343 9 176 137 136 9 1 39 7 5 13 6 5 5 1 6 7 22 7 9 39 3 13 4 64 10 176 7 6 6 46 46 46 28 46 43 37 28 37 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR WHEEL BASE 3200MM(32W) (B)	1-48370-626-1	01	1	9905-0003	●
1	TANK ASM; AIR WHEEL BASE 3200MM(32W) (B)	1-48370-626-1	01	1	0004-	●	●
1	TANK ASM; AIR WHEEL BASE 3200MM(32W) (C)	1-48370-627-2	01	1	9905-0003	●
1	TANK ASM; AIR WHEEL BASE 3200MM(32W) (C)	1-48370-627-2	01	1	0004-	●	●
1	TANK ASM; AIR WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (A)	1-48370-482-0	01	1	9905-	●
1	TANK ASM; AIR WHEEL BASE 3500MM(35W)	1-48370-601-1	01	1	9902-9902	●
1	TANK ASM; AIR WHEEL BASE 3500MM(35W)	1-48370-885-0	01	1	9903-	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9902-0003	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3500MM(35W) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0004-	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3200MM(32W) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9905-0003	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3200MM(32W) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0004-	●	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (B)	1-48410-182-3	01	1	9905-0003	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (B)	1-48410-182-3	01	1	0004-	●	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9902-9904	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9905-	●
4	CONNECTOR; FLARE WHEEL BASE 3200MM(32W) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-0003	●
4	CONNECTOR; FLARE WHEEL BASE 3200MM(32W) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0004-	●	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) (D) M20 & PT3/4	1-09650-261-2	01	1	9905-0003	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) (D) M20 & PT3/4	1-09650-261-2	01	1	0004-	●	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	03	1	9905-	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0003-	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9905-0003	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0004-	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0004-		●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	9905-0003	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0004-	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0004-		●
5	UNION; AIR TANK WHEEL BASE 3500MM(35W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-	●
5	UNION; AIR TANK WHEEL BASE 3500MM(35W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9902-	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9902-	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9902-0003	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0004-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	0004-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) (A)	1-48312-015-0	03	1	9902-9904	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (A)	1-48312-015-0	05	1	9905-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) (A)	1-48312-015-0	03	1	9905-0003	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A)	1-48312-015-0	03	1	9905-0003	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A)	1-48312-015-0	03	1	0004-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) (A)	1-48312-015-0	03	1	0004-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (A)	1-48312-015-0	03	1	0004-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48312-015-0	02	1	0004-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9902-0003	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0004-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ID=14	1-09630-145-0	03	1	9902-9904	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) ID=14	1-09630-145-0	05	1	9905-	●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ID=14	1-09630-145-0	03	1	9905-0003	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) ID=14	1-09630-145-0	03	1	9905-0003	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) ID=14	1-09630-145-0	03	1	0004-	●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ID=14	1-09630-145-0	03	1	0004-	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> ID=14	1-09630-145-0	03	1	0004-		●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ID=14	1-09630-145-0	02	1	0004-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	04	1	9902-0003	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	04	1	0004-	●	●
10	PLUG; AIR TANK EXC. FULL FLOATING CAB<W16> (C) PT1/4	9-99204-513-0	01	1	9902-0003	●
10	PLUG; AIR TANK EXC. FULL FLOATING CAB<W16> (C) PT1/4	9-99204-513-0	01	1	0004-	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (D) PT3/8	9-09204-517-0	01	1	9902-0003	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (D) PT3/8	9-09204-517-0	01	1	0004-	●	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (A) PT3/8	9-09204-517-0	05	1	9905-9907	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) TAIWAN EQUIPMENT(WW5) (A) PT3/8	9-09204-517-0	05	1	9908-	●
10	PLUG; AIR TANK ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	9-09204-517-0	05	1	9908-	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (B) PT3/4	9-09204-526-0	02	1	9905-	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A) PT3/8	9-09204-517-0	03	1	9905-0003	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A) PT3/8	9-09204-517-0	03	1	0004-	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (A) PT3/8	9-09204-517-0	03	1	0004-		●
10	PLUG; AIR TANK WHEEL BASE 3500MM(35W) (E) PT3/8	9-09204-517-0	09	1	9902-9902	●
10	PLUG; AIR TANK WHEEL BASE 3500MM(35W) (E) PT3/8	9-09204-517-0	06	1	9903-9907	●
10	PLUG; AIR TANK WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) PT3/8	9-09204-517-0	06	1	9908-	●
10	PLUG; AIR TANK WHEEL BASE 3500MM(35W) (F) PT3/4	9-09204-526-0	03	1	9902-	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	9902-0003	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	0004-	●	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-0003	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3500MM(35W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0004-0007	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3500MM(35W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3200MM(32W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9905-0003	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3200MM(32W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	0004-0007	●	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3200MM(32W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-	●	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9905-0007	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9902-0003	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0004-	●	●
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9902-	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9902-0003	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0004-	●	●
28	BRACKET; AIR TANK WHEEL BASE 3200MM(32W)	1-48317-790-0	02	1	9905-0003	●
28	BRACKET; AIR TANK WHEEL BASE 3200MM(32W)	1-48317-790-0	02	1	0004-	●	●
28	BRACKET; AIR TANK WHEEL BASE 3500MM(35W)	1-48317-826-5	02	1	9902-	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9902-0003	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	0004-	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9902-0003	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	0004-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W)	1-48317-675-0	04	1	9902-9904	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5)	1-48317-675-0	06	1	9905-	●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W)	1-48317-675-0	04	1	9905-0003	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5)	1-48317-675-0	04	1	9905-0003	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5)	1-48317-675-0	04	1	0004-	●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W)	1-48317-675-0	04	1	0004-	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-48317-675-0	04	1	0004-		●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA)	1-48317-675-0	02	1	9908-	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3200MM(32W) (C) M12X25 FLANGE	0-28681-225-0	04	1	9905-0003	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3200MM(32W) (C) M12X25 FLANGE	0-28681-225-0	04	1	0004-	●	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3500MM(35W) (A) M12X30 FLANGE	0-28681-230-0	08	1	9902-	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28680-820-0	02	1	9908-	●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) M8	9-09110-408-0	16	1	9902-9904	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	24	1	9905-	●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) M8	9-09110-408-0	16	1	9905-0003	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	16	1	9905-0003	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	16	1	0004-	●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) M8	9-09110-408-0	16	1	0004-	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) AIR DRYER<PS7> M8	9-09110-408-0	16	1	0004-		●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-508-0	08	1	0004-	●
64	STAY; AIR TANK,MAIN WHEEL BASE 3200MM(32W)	1-48317-809-1	01	1	9905-0003	●
64	STAY; AIR TANK,MAIN WHEEL BASE 3200MM(32W)	1-48317-809-1	01	1	0004-	●	●
64	STAY; AIR TANK,MAIN WHEEL BASE 3500MM(35W)	1-48317-801-1	01	1	9902-	●
136	BRACKET; CLIP WHEEL BASE 3200MM(32W) (A)	1-47477-571-3	01	1	9905-0003	●
136	BRACKET; CLIP WHEEL BASE 3200MM(32W) (A)	1-47477-571-3	01	1	0004-	●	●
136	BRACKET; CLIP WHEEL BASE 3200MM(32W) (B)	1-47477-943-0	03	1	9905-0003	●
136	BRACKET; CLIP WHEEL BASE 3200MM(32W) (B)	1-47477-943-0	03	1	0004-	●	●
136	BRACKET; CLIP WHEEL BASE 3500MM(35W) (A) L=150 H=30	1-47477-629-2	01	1	9902-	●
136	BRACKET; CLIP WHEEL BASE 3500MM(35W) (B) L=100 H=30	1-47477-645-2	01	1	9902-	●
137	BOLT; BRKT WHEEL BASE 3200MM(32W) M8X20 FLANGE	0-28680-820-0	04	1	9905-0003	●
137	BOLT; BRKT WHEEL BASE 3200MM(32W) M8X20 FLANGE	0-28680-820-0	04	1	0004-	●	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	1-09664-210-0	02	1	9906-	●
176	ADAPTER WHEEL BASE 3200MM(32W) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	9905-0003	●
176	ADAPTER WHEEL BASE 3200MM(32W) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0004-	●	●
176	ADAPTER WHEEL BASE 3500MM(35W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9902-	●
343	CONNECTOR; SWIVEL WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (A) DIN12 ID=15.4 ELBOW	1-09661-079-1	02	1	0003-	●
343	CONNECTOR; SWIVEL WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (B) R3/8 OD=15.9	1-09661-082-0	02	1	0003-	●

126 176 107 102 102 101 335 100 126 104 109 103 101 104 335 100 103 126 176 100 335 109 100 107 102 102 126 335 101 103 101 103 104 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

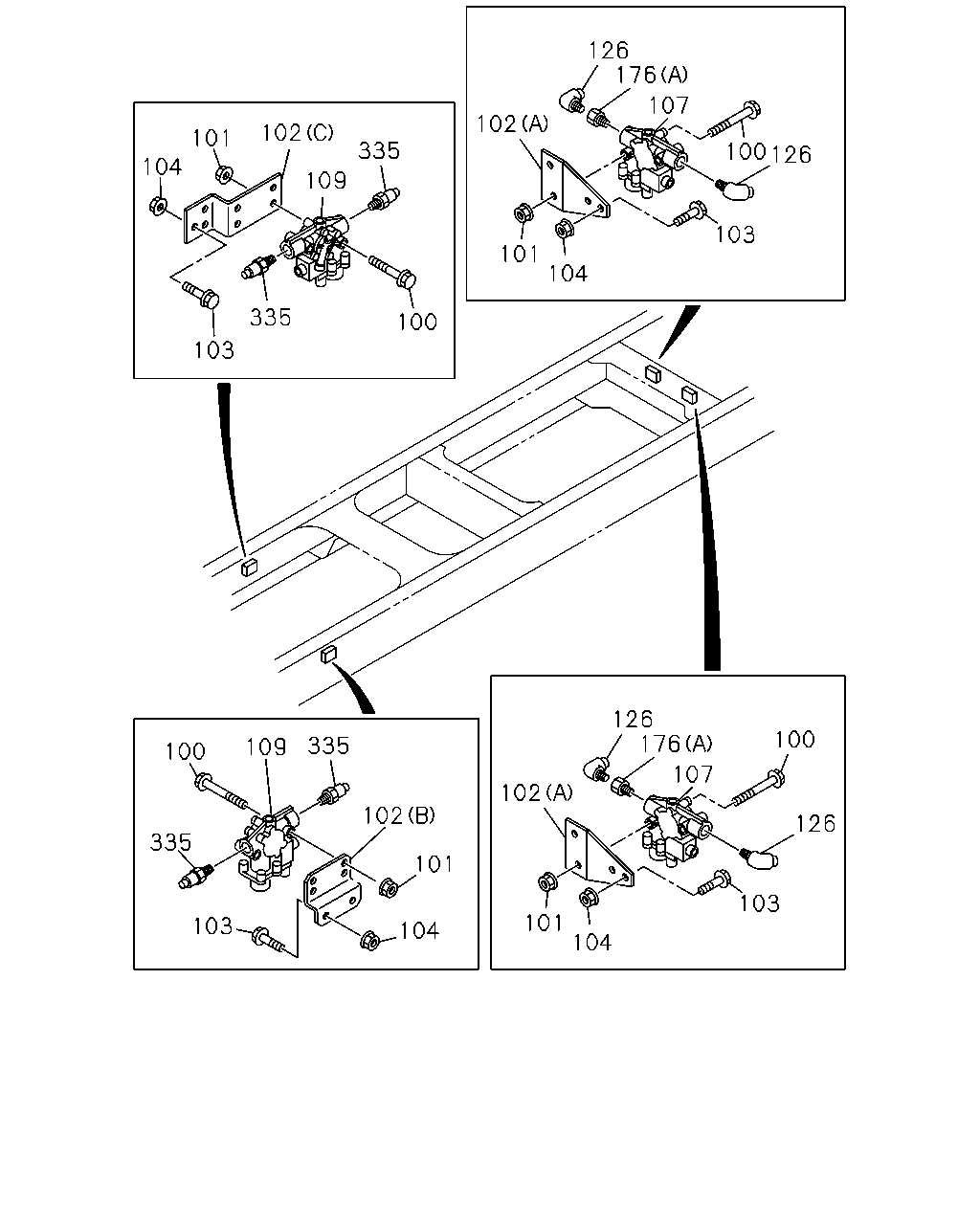

100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28080-880-0	08	1	9906-	●
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	12	1	9906-	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47478-304-0	02	1	9906-	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-47478-094-0	01	1	9906-	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47478-494-0	01	1	9906-	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28680-825-0	04	1	9906-	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE	0-28680-830-0	04	1	9906-	●
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	04	1	9906-	●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	1-48210-880-0	02	1	9906-	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-48210-880-0	02	1	9906-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9906-	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	1-09664-210-0	02	1	9906-	●
176	ADAPTER WHEEL BASE 3200MM(32W) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	9905-0003	●
176	ADAPTER WHEEL BASE 3200MM(32W) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0004-	●	●
176	ADAPTER WHEEL BASE 3500MM(35W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9902-	●
335	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	9906-	●

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	9902-0003	●
241	BOLT; SET,CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0004-	●
241	BOLT; SET,CONT VLV M8X30 W/LK&PL WASHER	0-50140-830-0	01	1	0004-		●

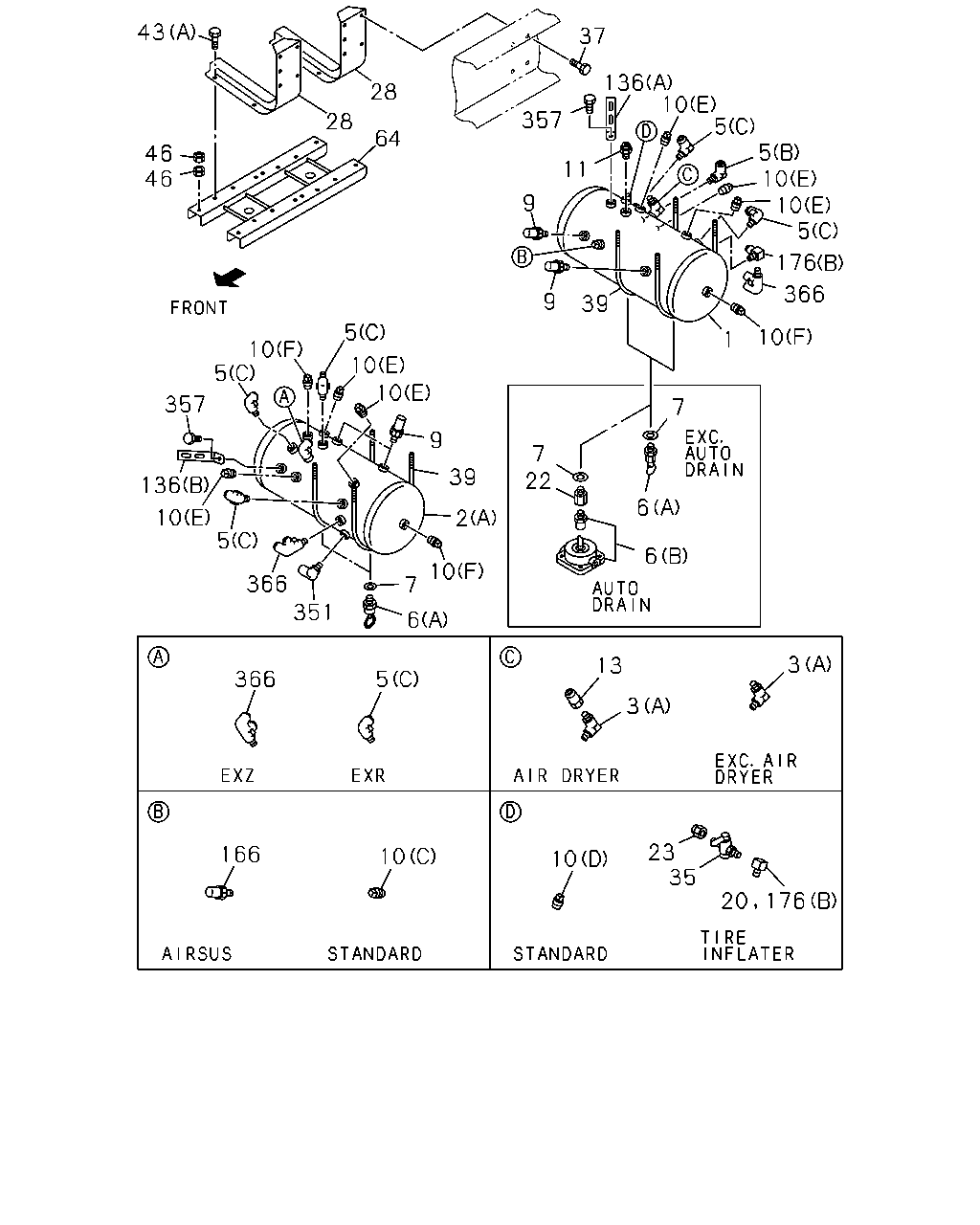

43 37 136 10 5 5 10 10 5 28 357 28 64 46 46 11 9 366 9 39 5 10 1 10 5 10 10 357 7 9 7 22 39 136 6 10 5 2 6 10 366 7 351 6 3 13 366 5 3 23 35 166 10 10 20 176 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR WHEEL BASE 3200MM(32W) (B)	1-48370-626-1	01	1	9905-0003	●
1	TANK ASM; AIR WHEEL BASE 3200MM(32W) (B)	1-48370-626-1	01	1	0004-	●	●
1	TANK ASM; AIR WHEEL BASE 3200MM(32W) (C)	1-48370-627-2	01	1	9905-0003	●
1	TANK ASM; AIR WHEEL BASE 3200MM(32W) (C)	1-48370-627-2	01	1	0004-	●	●
1	TANK ASM; AIR WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (A)	1-48370-482-0	01	1	9905-	●
1	TANK ASM; AIR WHEEL BASE 3500MM(35W)	1-48370-601-1	01	1	9902-9902	●
1	TANK ASM; AIR WHEEL BASE 3500MM(35W)	1-48370-885-0	01	1	9903-	●
2	TANK; AIR WHEEL BASE 3500MM(35W) (A)	1-48370-602-0	01	1	9902-9902	●
2	TANK; AIR WHEEL BASE 3500MM(35W) (A)	1-48370-884-0	01	1	9903-	●
2	TANK; AIR WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-48370-955-0	01	1	9908-	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9902-0003	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3500MM(35W) AIR DRYER<PS7> (A) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0004-	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3200MM(32W) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9905-0003	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3200MM(32W) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	0004-	●	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (B)	1-48410-182-3	01	1	9905-0003	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (B)	1-48410-182-3	01	1	0004-	●	●
3	VALVE; CHECK,AIR TANK WHEEL BASE 3500MM(35W) EXC. AIR DRYER<PS7> (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9902-9904	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7> (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	9905-	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) (D) M20 & PT3/4	1-09650-261-2	01	1	9905-0003	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) (D) M20 & PT3/4	1-09650-261-2	01	1	0004-	●	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	03	1	9905-	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0003-	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	9905-0003	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0004-	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0004-		●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	9905-0003	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0004-	●
5	UNION; AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0004-		●
5	UNION; AIR TANK WHEEL BASE 3500MM(35W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-	●
5	UNION; AIR TANK WHEEL BASE 3500MM(35W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	9902-	●
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9902-	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9902-0003	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0004-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	0004-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) (A)	1-48312-015-0	03	1	9902-9904	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (A)	1-48312-015-0	05	1	9905-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) (A)	1-48312-015-0	03	1	9905-0003	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A)	1-48312-015-0	03	1	9905-0003	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A)	1-48312-015-0	03	1	0004-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) (A)	1-48312-015-0	03	1	0004-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (A)	1-48312-015-0	03	1	0004-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48312-015-0	02	1	0004-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9902-0003	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0004-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ID=14	1-09630-145-0	03	1	9902-9904	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) ID=14	1-09630-145-0	05	1	9905-	●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ID=14	1-09630-145-0	03	1	9905-0003	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) ID=14	1-09630-145-0	03	1	9905-0003	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) ID=14	1-09630-145-0	03	1	0004-	●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ID=14	1-09630-145-0	03	1	0004-	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> ID=14	1-09630-145-0	03	1	0004-		●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ID=14	1-09630-145-0	02	1	0004-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	04	1	9902-0003	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA	1-48340-054-1	04	1	0004-	●	●
10	PLUG; AIR TANK EXC. FULL FLOATING CAB<W16> (C) PT1/4	9-99204-513-0	01	1	9902-0003	●
10	PLUG; AIR TANK EXC. FULL FLOATING CAB<W16> (C) PT1/4	9-99204-513-0	01	1	0004-	●	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (D) PT3/8	9-09204-517-0	01	1	9902-0003	●
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<W47> (D) PT3/8	9-09204-517-0	01	1	0004-	●	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (A) PT3/8	9-09204-517-0	05	1	9905-9907	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) TAIWAN EQUIPMENT(WW5) (A) PT3/8	9-09204-517-0	05	1	9908-	●
10	PLUG; AIR TANK ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	9-09204-517-0	05	1	9908-	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (B) PT3/4	9-09204-526-0	02	1	9905-	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A) PT3/8	9-09204-517-0	03	1	9905-0003	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A) PT3/8	9-09204-517-0	03	1	0004-	●
10	PLUG; AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (A) PT3/8	9-09204-517-0	03	1	0004-		●
10	PLUG; AIR TANK WHEEL BASE 3500MM(35W) (E) PT3/8	9-09204-517-0	09	1	9902-9902	●
10	PLUG; AIR TANK WHEEL BASE 3500MM(35W) (E) PT3/8	9-09204-517-0	06	1	9903-9907	●
10	PLUG; AIR TANK WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) PT3/8	9-09204-517-0	06	1	9908-	●
10	PLUG; AIR TANK WHEEL BASE 3500MM(35W) (F) PT3/4	9-09204-526-0	03	1	9902-	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	9902-0003	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-1	01	1	0004-	●	●
13	ADAPTER; NYLON TUBE AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9902-0003	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3500MM(35W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0004-0007	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3500MM(35W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3200MM(32W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	9905-0003	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3200MM(32W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	04	1	0004-0007	●	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3200MM(32W) AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	04	1	0008-	●	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	9905-0007	●
13	ADAPTER; NYLON TUBE WHEEL BASE 3200MM(32W) EXC. AIR DRYER<PS7> DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9902-0003	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<W47> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0004-	●	●
22	ADAPTER; AUTO DRAIN VLV AUTO DRAIN<J78>	1-48319-031-0	01	1	9902-	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	9902-0003	●
23	CAP; COCK,AIR TANK TIRE INFLATOR DEVICE<W47>	9-48319-102-0	01	1	0004-	●	●
28	BRACKET; AIR TANK WHEEL BASE 3200MM(32W)	1-48317-790-0	02	1	9905-0003	●
28	BRACKET; AIR TANK WHEEL BASE 3200MM(32W)	1-48317-790-0	02	1	0004-	●	●
28	BRACKET; AIR TANK WHEEL BASE 3500MM(35W)	1-48317-826-5	02	1	9902-	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	9902-0003	●
35	COCK; AIR,AIR TANK TIRE INFLATOR DEVICE<W47>	1-09680-036-0	01	1	0004-	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	9902-0003	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	08	1	0004-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W)	1-48317-675-0	04	1	9902-9904	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5)	1-48317-675-0	06	1	9905-	●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W)	1-48317-675-0	04	1	9905-0003	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5)	1-48317-675-0	04	1	9905-0003	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5)	1-48317-675-0	04	1	0004-	●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W)	1-48317-675-0	04	1	0004-	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-48317-675-0	04	1	0004-		●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA)	1-48317-675-0	02	1	9908-	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3200MM(32W) (C) M12X25 FLANGE	0-28681-225-0	04	1	9905-0003	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3200MM(32W) (C) M12X25 FLANGE	0-28681-225-0	04	1	0004-	●	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3500MM(35W) (A) M12X30 FLANGE	0-28681-230-0	08	1	9902-	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28680-820-0	02	1	9908-	●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) M8	9-09110-408-0	16	1	9902-9904	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	24	1	9905-	●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) M8	9-09110-408-0	16	1	9905-0003	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	16	1	9905-0003	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	16	1	0004-	●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) M8	9-09110-408-0	16	1	0004-	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) AIR DRYER<PS7> M8	9-09110-408-0	16	1	0004-		●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-508-0	08	1	0004-	●
64	STAY; AIR TANK,MAIN WHEEL BASE 3200MM(32W)	1-48317-809-1	01	1	9905-0003	●
64	STAY; AIR TANK,MAIN WHEEL BASE 3200MM(32W)	1-48317-809-1	01	1	0004-	●	●
64	STAY; AIR TANK,MAIN WHEEL BASE 3500MM(35W)	1-48317-801-1	01	1	9902-	●
136	BRACKET; CLIP WHEEL BASE 3200MM(32W) (A)	1-47477-571-3	01	1	9905-0003	●
136	BRACKET; CLIP WHEEL BASE 3200MM(32W) (A)	1-47477-571-3	01	1	0004-	●	●
136	BRACKET; CLIP WHEEL BASE 3200MM(32W) (B)	1-47477-943-0	03	1	9905-0003	●
136	BRACKET; CLIP WHEEL BASE 3200MM(32W) (B)	1-47477-943-0	03	1	0004-	●	●
136	BRACKET; CLIP WHEEL BASE 3500MM(35W) (A) L=150 H=30	1-47477-629-2	01	1	9902-	●
136	BRACKET; CLIP WHEEL BASE 3500MM(35W) (B) L=100 H=30	1-47477-645-2	01	1	9902-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB<W16> 650KPA	1-48340-059-0	01	1	9902-0003	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK FULL FLOATING CAB<W16> 650KPA	1-48340-059-1	01	1	0004-	●	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8	1-09664-210-0	02	1	9906-	●
176	ADAPTER WHEEL BASE 3200MM(32W) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	9905-0003	●
176	ADAPTER WHEEL BASE 3200MM(32W) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0004-	●	●
176	ADAPTER WHEEL BASE 3500MM(35W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	9902-	●
351	CONNECTOR; TEST WHEEL BASE 3500MM(35W)	1-47459-013-0	02	1	9902-	●
357	BOLT; BRKT WHEEL BASE 3500MM(35W) M8X20 FLANGE	0-28680-820-0	02	1	9902-	●
366	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	9902-9907	●
366	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	03	1	9908-	●
366	CONNECTOR; NYLON TUBE WHEEL BASE 3500MM(35W) EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	9908-	●

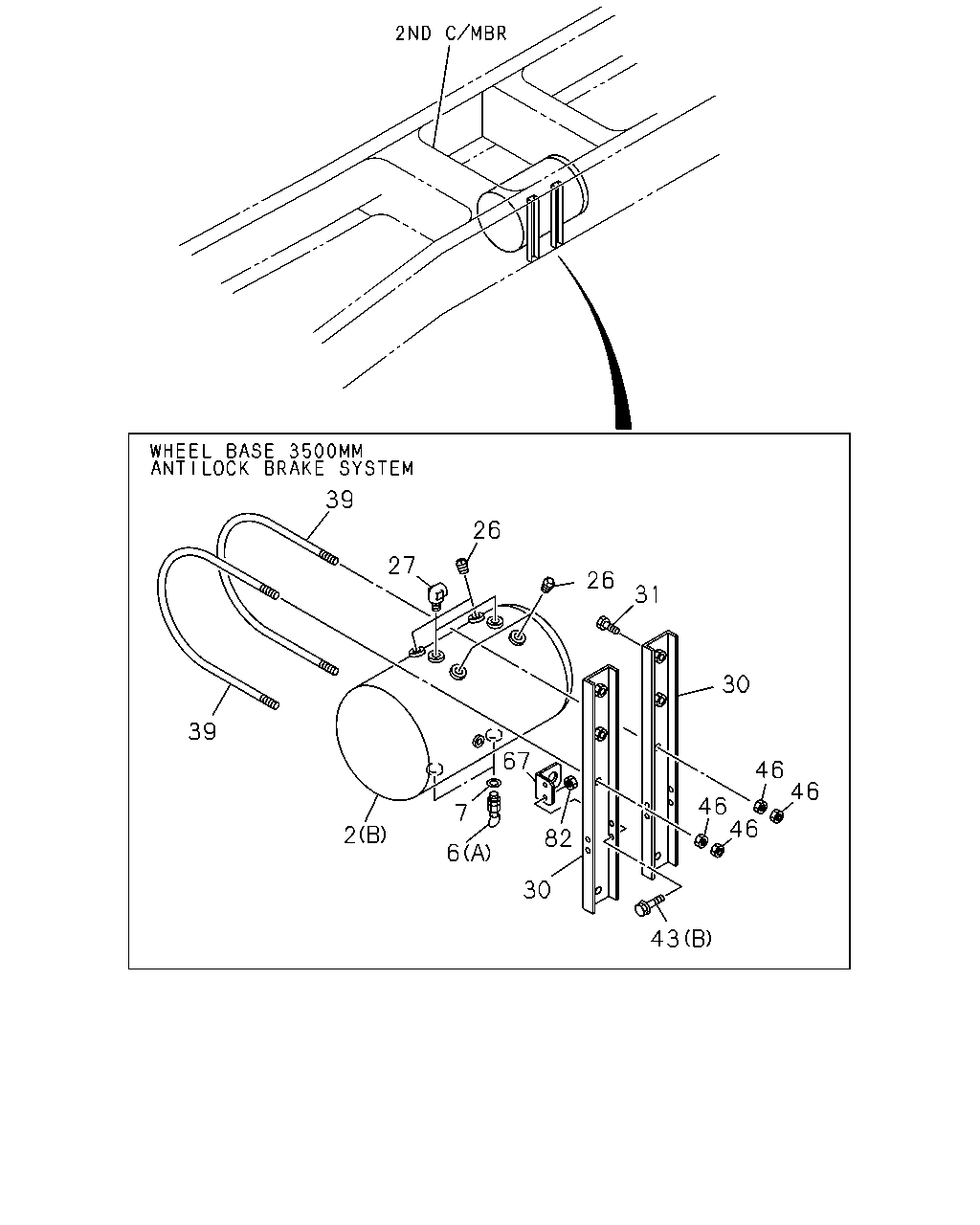

39 26 27 26 31 30 39 67 46 46 46 46 7 82 6 30 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	COCK; DRAIN,AIR TANK AUTO DRAIN<J78> (B)	9-09904-177-0	01	1	9902-	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	9902-0003	●
6	COCK; DRAIN,AIR TANK EXC. AUTO DRAIN<J78> (A)	1-48312-015-0	01	1	0004-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	0004-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) (A)	1-48312-015-0	03	1	9902-9904	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) (A)	1-48312-015-0	05	1	9905-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) (A)	1-48312-015-0	03	1	9905-0003	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A)	1-48312-015-0	03	1	9905-0003	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) (A)	1-48312-015-0	03	1	0004-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) (A)	1-48312-015-0	03	1	0004-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> (A)	1-48312-015-0	03	1	0004-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48312-015-0	02	1	0004-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	9902-0003	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0004-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ID=14	1-09630-145-0	03	1	9902-9904	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) ID=14	1-09630-145-0	05	1	9905-	●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ID=14	1-09630-145-0	03	1	9905-0003	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) ID=14	1-09630-145-0	03	1	9905-0003	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) ID=14	1-09630-145-0	03	1	0004-	●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ID=14	1-09630-145-0	03	1	0004-	●
7	GASKET; DRAIN COCK WHEEL BASE 3200MM(32W) AIR DRYER<PS7> ID=14	1-09630-145-0	03	1	0004-		●
7	GASKET; DRAIN COCK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) ID=14	1-09630-145-0	02	1	0004-	●
26	PLUG; SUB AIR TANK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) PT3/8	9-09204-517-0	04	1	9908-	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9908-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA)	1-48317-910-1	02	1	9908-	●
31	BOLT; BRKT TO FRAME WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) M12X40 FLANGE	0-28681-240-0	04	1	0004-	●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W)	1-48317-675-0	04	1	9902-9904	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5)	1-48317-675-0	06	1	9905-	●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W)	1-48317-675-0	04	1	9905-0003	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5)	1-48317-675-0	04	1	9905-0003	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5)	1-48317-675-0	04	1	0004-	●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W)	1-48317-675-0	04	1	0004-	●
39	U-BOLT; AIR TANK WHEEL BASE 3200MM(32W) AIR DRYER<PS7>	1-48317-675-0	04	1	0004-		●
39	U-BOLT; AIR TANK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA)	1-48317-675-0	02	1	9908-	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3200MM(32W) (C) M12X25 FLANGE	0-28681-225-0	04	1	9905-0003	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3200MM(32W) (C) M12X25 FLANGE	0-28681-225-0	04	1	0004-	●	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3500MM(35W) (A) M12X30 FLANGE	0-28681-230-0	08	1	9902-	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28680-820-0	02	1	9908-	●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) M8	9-09110-408-0	16	1	9902-9904	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) ANTILOCK BRAKE SYSTEM(BFA) TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	24	1	9905-	●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) M8	9-09110-408-0	16	1	9905-0003	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	16	1	9905-0003	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) EXC. ANTILOCK BRAKE SYSTEM(BFA),TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	16	1	0004-	●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) M8	9-09110-408-0	16	1	0004-	●
46	NUT; U-BOLT WHEEL BASE 3200MM(32W) AIR DRYER<PS7> M8	9-09110-408-0	16	1	0004-		●
46	NUT; U-BOLT WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) M8	9-09110-508-0	08	1	0004-	●
67	STAY; SUB TANK WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA)	1-48317-911-0	01	1	9908-	●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 3500MM(35W) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	9908-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
