Sayfa 0-05 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 51266 - NP/NQR(LHD)EU4 W/DOC ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶

0-05 — ENGINE GASKET KIT (#76849) — 114 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

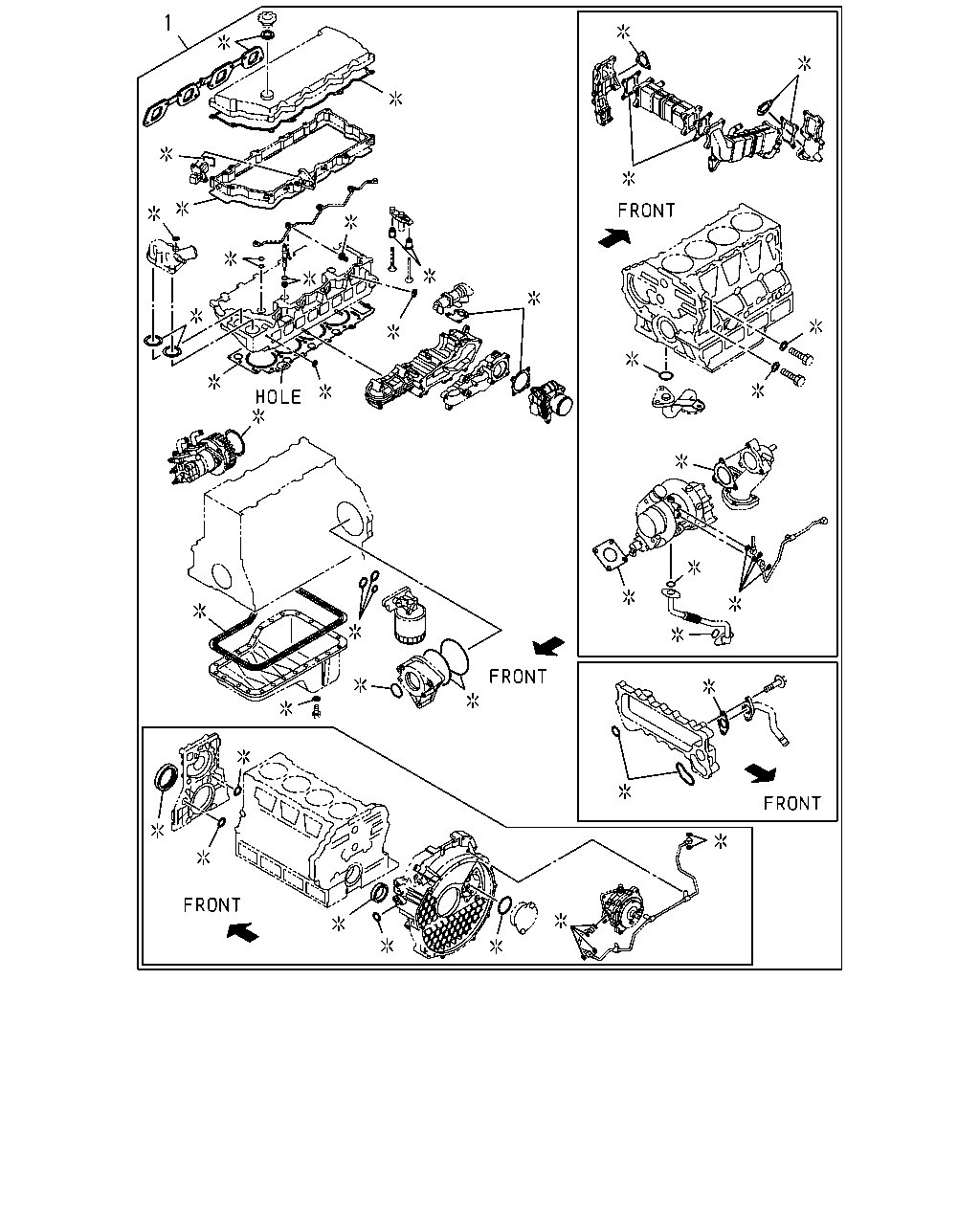

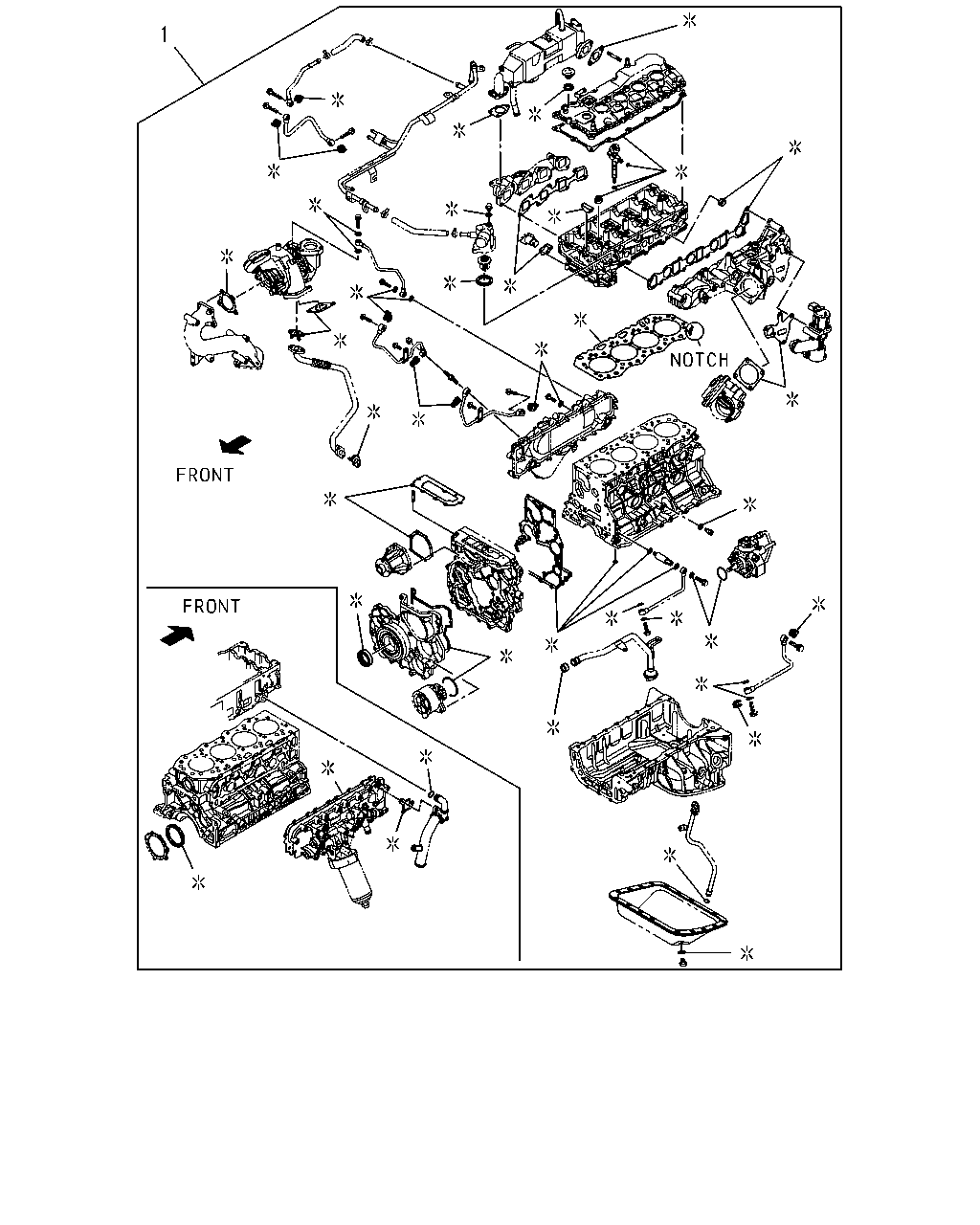

1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-337-0	01	1	1209-1211	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-504-0	01	1	1212-1212	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-562-0	01	1	1301-1302	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-743-0	01	1	1303-1304	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-909-1	01	1	1305-1411	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.14 1-NOTCH	5-87817-644-0	01	1	1412-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-338-0	01	1	1209-1211	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-505-0	01	1	1212-1212	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-563-0	01	1	1301-1302	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-744-0	01	1	1303-1304	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-910-1	01	1	1305-1411	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.19 2-NOTCH	5-87817-645-0	01	1	1412-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-339-0	01	1	1209-1211	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-506-0	01	1	1212-1212	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-564-0	01	1	1301-1302	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-745-0	01	1	1303-1304	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-911-1	01	1	1305-1411	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.24 3-NOTCH	5-87817-646-0	01	1	1412-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-797-2	01	1	1010-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-797-3	01	1	1109-1312		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-100-0	01	1	1401-1501		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-723-0	01	1	1502-1505		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-942-0	01	1	1506-		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-798-2	01	1	1010-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-798-3	01	1	1109-1312		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-101-0	01	1	1401-1501		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-724-0	01	1	1502-1505		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-943-0	01	1	1506-		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-799-2	01	1	1010-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-799-3	01	1	1109-1312		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-102-0	01	1	1401-1501		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-725-0	01	1	1502-1505		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-944-0	01	1	1506-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

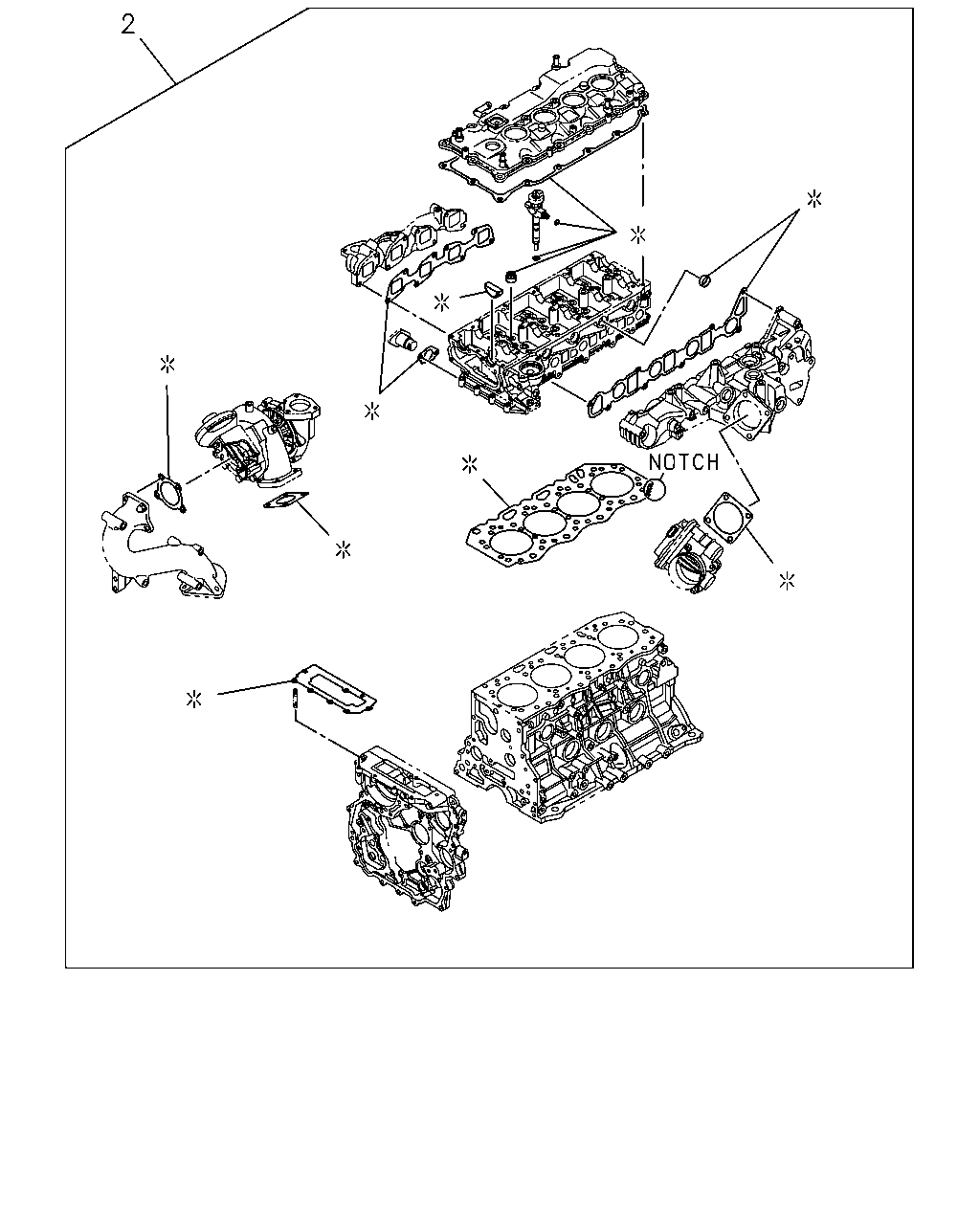

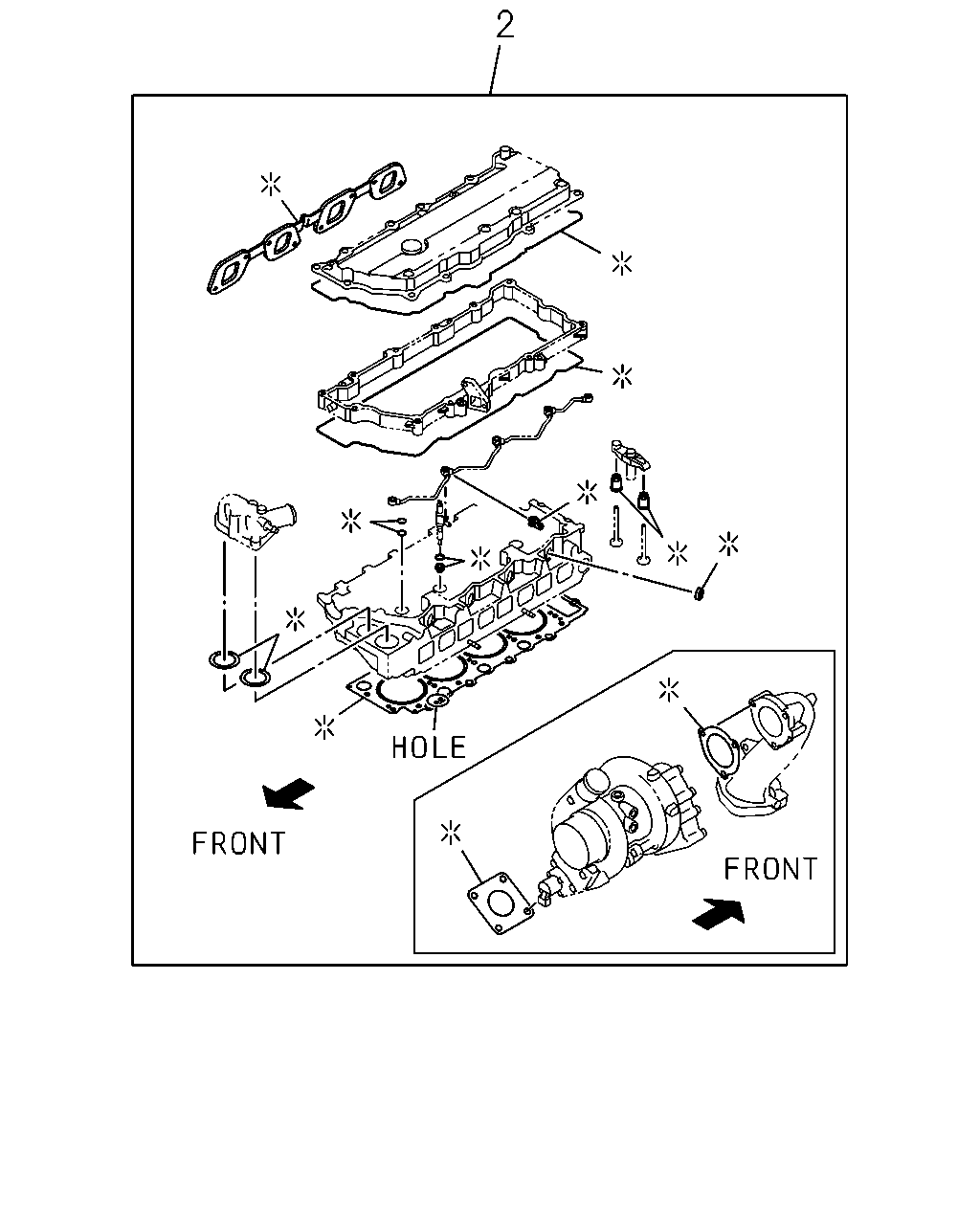

2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87816-340-0	01	1	1209-1211	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87816-507-0	01	1	1212-1304	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87816-826-1	01	1	1305-1411	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.14 1-NOTCH	5-87817-647-0	01	1	1412-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87816-341-0	01	1	1209-1211	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87816-508-0	01	1	1212-1304	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87816-827-1	01	1	1305-1411	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.19 2-NOTCH	5-87817-648-0	01	1	1412-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87816-342-0	01	1	1209-1211	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87816-509-0	01	1	1212-1304	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87816-828-1	01	1	1305-1411	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.24 3-NOTCH	5-87817-649-0	01	1	1412-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-526-3	01	1	1010-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-526-3	01	1	1109-1501		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-702-1	01	1	1502-1505		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-921-0	01	1	1506-		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-527-3	01	1	1010-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-527-3	01	1	1109-1501		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-703-1	01	1	1502-1505		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-922-0	01	1	1506-		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-528-3	01	1	1010-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-528-3	01	1	1109-1501		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-704-1	01	1	1502-1505		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-923-0	01	1	1506-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87816-340-0	01	1	1209-1211	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH GRADE A	5-87816-507-0	01	1	1212-1304	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87816-826-1	01	1	1305-1411	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.14 1-NOTCH	5-87817-647-0	01	1	1412-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87816-341-0	01	1	1209-1211	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH GRADE B	5-87816-508-0	01	1	1212-1304	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87816-827-1	01	1	1305-1411	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.19 2-NOTCH	5-87817-648-0	01	1	1412-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87816-342-0	01	1	1209-1211	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH GRADE C	5-87816-509-0	01	1	1212-1304	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87816-828-1	01	1	1305-1411	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.24 3-NOTCH	5-87817-649-0	01	1	1412-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-526-3	01	1	1010-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87815-526-3	01	1	1109-1501		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-702-1	01	1	1502-1505		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.475 NON-HOLE	5-87817-921-0	01	1	1506-		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-527-3	01	1	1010-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87815-527-3	01	1	1109-1501		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-703-1	01	1	1502-1505		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.525 1-HOLE	5-87817-922-0	01	1	1506-		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-528-3	01	1	1010-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87815-528-3	01	1	1109-1501		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-704-1	01	1	1502-1505		●	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.575 2-HOLE	5-87817-923-0	01	1	1506-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-337-0	01	1	1209-1211	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-504-0	01	1	1212-1212	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-562-0	01	1	1301-1302	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-743-0	01	1	1303-1304	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-909-1	01	1	1305-1411	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.14 1-NOTCH	5-87817-644-0	01	1	1412-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-338-0	01	1	1209-1211	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-505-0	01	1	1212-1212	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-563-0	01	1	1301-1302	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-744-0	01	1	1303-1304	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-910-1	01	1	1305-1411	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.19 2-NOTCH	5-87817-645-0	01	1	1412-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-339-0	01	1	1209-1211	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-506-0	01	1	1212-1212	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-564-0	01	1	1301-1302	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-745-0	01	1	1303-1304	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-911-1	01	1	1305-1411	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.24 3-NOTCH	5-87817-646-0	01	1	1412-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-797-2	01	1	1010-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87815-797-3	01	1	1109-1312		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-100-0	01	1	1401-1501		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-723-0	01	1	1502-1505		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.475 NON-HOLE	5-87817-942-0	01	1	1506-		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-798-2	01	1	1010-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87815-798-3	01	1	1109-1312		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-101-0	01	1	1401-1501		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-724-0	01	1	1502-1505		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.525 1-HOLE	5-87817-943-0	01	1	1506-		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-799-2	01	1	1010-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87815-799-3	01	1	1109-1312		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-102-0	01	1	1401-1501		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-725-0	01	1	1502-1505		●	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.575 2-HOLE	5-87817-944-0	01	1	1506-		●	●
