Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
9 - Tools
▶
9-01 - TOOLS
▶

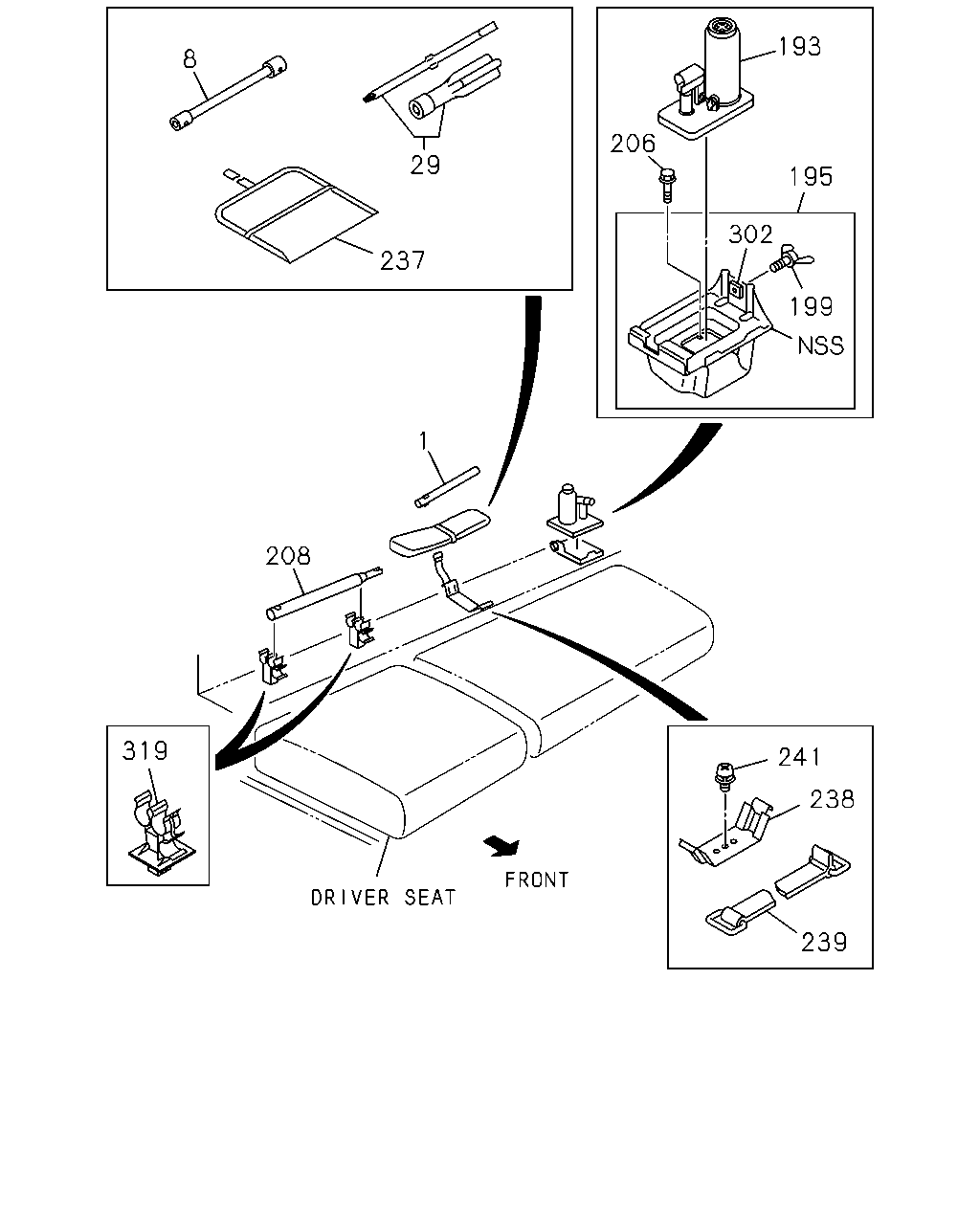

9-01 — TOOLS
(#76847) — 16 parça
193
8
206
29
195
302
237
199
1
208
319
241
238
239
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.629 HANDLE; SPARE TIRE CARRIER
08.821 L=280
1-85515-007-0
01
1
0907-1108
1
07.629 HANDLE; SPARE TIRE CARRIER
L=280
8-98181-251-0
01
1
1109-
8
08.821 WRENCH; WHEEL
B=41X21 L=440
1-85113-015-1
01
1
0907-
29
08.821 DRIVER; SCREW
<+>,<-> L=160
8-94242-798-1
01
1
0907-
193
08.820 JACK ASM
4TON
8-94438-019-2
01
1
0907-
195
08.820 BRACKET; JACK
8-98034-917-0
01
1
0907-
199
08.820 BOLT; JACK
M8X30 WING
8-98005-536-0
01
1
0907-
206
08.820 SCREW; OIL JACK BRKT
06.216 BOLT M8X25 FLANGE
0-28650-825-0
01
1
0907-
208
08.820 HANDLE; JACK
L=580
1-85515-005-1
01
1
0907-1108
208
08.820 HANDLE; JACK
L=580
8-98181-249-0
01
1
1109-
237
08.821 BAG; TOOL
8-97130-903-1
01
1
0907-
238
08.820 SUPPORT; TOOL BAG
8-97994-977-0
01
1
0907-
239
08.820 BAND; TOOL BAG
L=100
5-73997-026-1
01
1
0907-
241
08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16
0-38050-616-0
01
1
0907-
302
08.820 NUT; JACK BRKT
8-98021-556-0
01
1
0907-
319
08.821 CLIP; TOOL BAR
8-97853-077-2
02
1
0907-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
