8-65 — CONTROL LEVER; HEATER AND AIR CON (#76841) — 14 parça

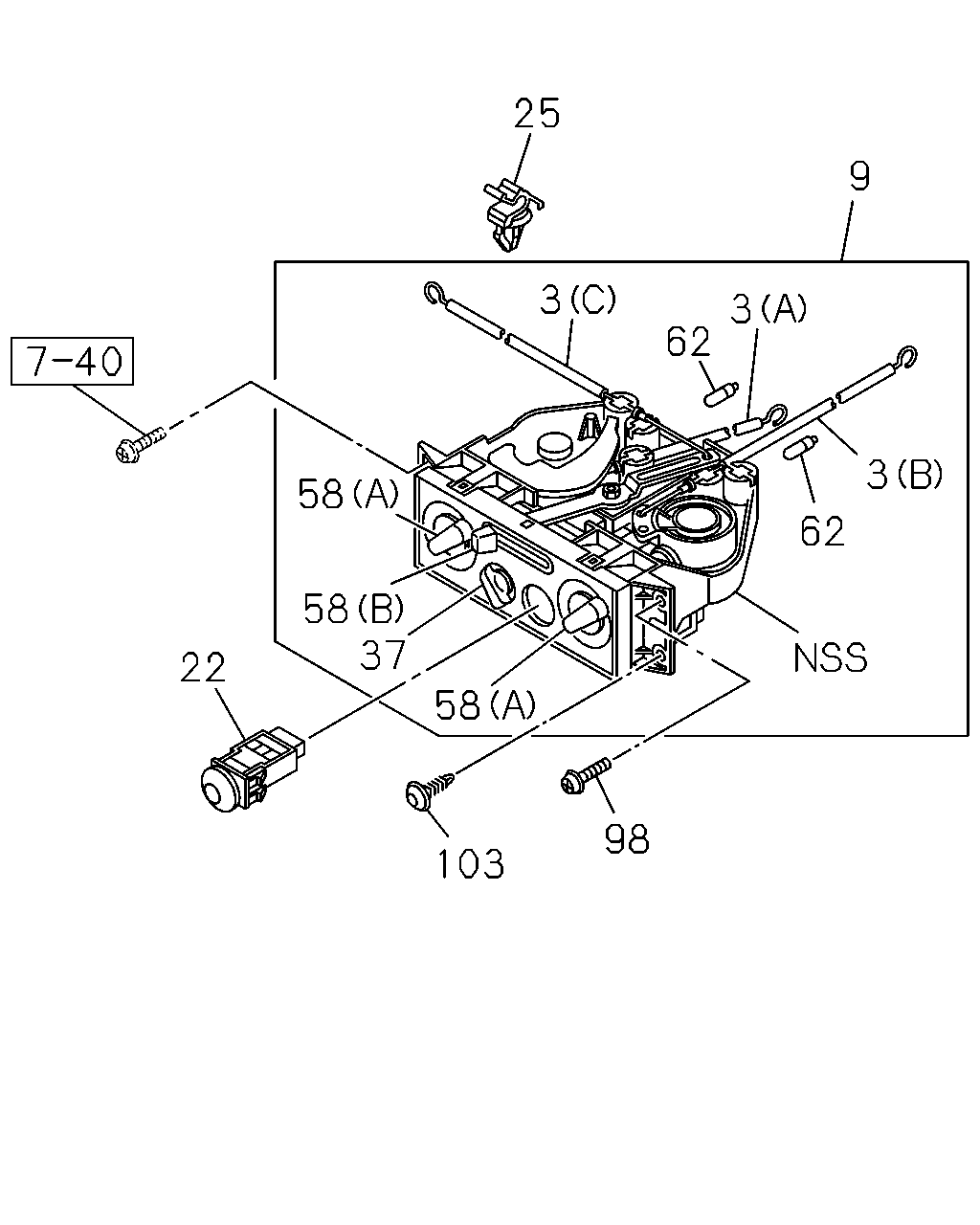

çizim 141067
25 9 3 3 62 3 58 62 58 37 58 22 98 103
BalonParca AdiParca NoAdetTipApplied Date
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-98039-250-0 01 1 0907-
3 09.787 CABLE; HTR CONT LVR
(B) MIX 		8-98039-251-0 01 1 0907-
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-98039-253-2 01 1 0907-
9 08.852 LEVER ASM; HTR & A/C CONT 8-98037-363-2 01 1 0907-
22 08.852 SWITCH; A/C,MAIN 8-98021-982-0 01 1 0907-
25 08.854 CLIP; CABLE,CONT LEVER
09.647 ID=4.8 		8-94128-483-0 01 1 0907-
37 08.852 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 0907-
58 09.787 KNOB; LVR,HTR CONT LVR
(A) 		8-98037-369-0 02 1 0907-
58 09.787 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 0907-
62 08.991 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 0907-
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0907-1101
98 08.852 SCREW; CONT PANEL
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-
103 08.854 CLIP
16.742 DARK GRAY 		8-97098-326-0 01 1 0907-
