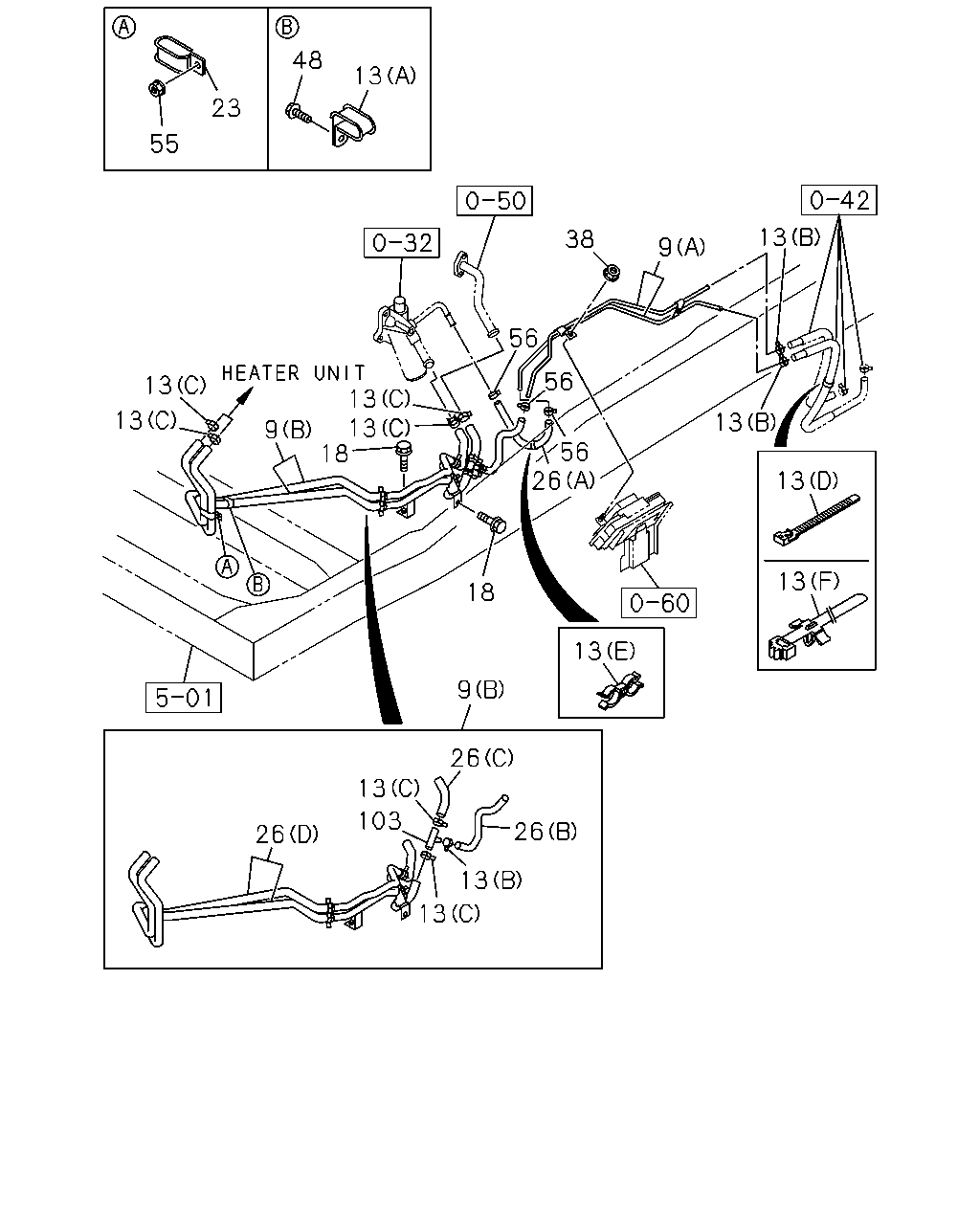

8-45 — HEATER PIPING (#76837) — 24 parça

48 13 23 55 13 38 9 56 13 13 18 56 13 13 13 9 56 26 13 13 18 13 9 26 13 103 26 26 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	08.846 PIPE; HTR (B)	8-98062-949-2	01	1	0907-
9	08.846 PIPE; HTR (A)	8-98147-980-2	01	1	0907-
13	08.846 CLIP; HTR HOSE 02.559 (F) L=170.3	1-09987-182-0	01	1	0907-
13	08.846 CLIP; HTR HOSE 02.559 (D) L=250	5-09707-030-1	01	1	0907-
13	08.846 CLIP; HTR HOSE 01.219 (B) ID=13	8-94238-571-0	01	1	0907-
13	08.846 CLIP; HTR HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	0907-0911
13	08.846 CLIP; HTR HOSE 03.162 (B) ID=13	8-98150-357-0	02	1	0912-
13	08.846 CLIP; HTR HOSE 03.162 (E) ID=13.2 & 11.5	8-97230-081-0	01	1	0907-
13	08.846 CLIP; HTR HOSE 03.278 (C) ID=22	8-97359-141-0	02	1	0907-
13	08.846 CLIP; HTR HOSE 03.278 (C) ID=22	8-97359-141-0	04	1	0907-
13	08.846 CLIP; HTR HOSE (A) B=14	8-98029-678-0	01	1	0907-
18	08.866 BOLT; WATER HOSE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0907-
23	08.846 CLIP; WATER HOSE,DASH LWR B=18	8-97359-144-0	01	1	0907-1205
23	08.846 CLIP; WATER HOSE,DASH LWR B=18	8-98166-023-0	01	1	1206-
26	08.846 HOSE; HTR 01.159 (A) L=230 SERVICED BY L=3000	0-03257-300-0	01	1	0907-
26	08.846 HOSE; HTR (B)	8-97378-372-1	01	1	0907-
26	08.846 HOSE; HTR (C)	8-97383-827-1	01	1	0907-
26	08.846 HOSE; HTR (D)	8-98063-052-0	01	1	0907-
38	08.846 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-
48	09.262 BOLT; CLIP FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0907-
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-
56	08.846 CLAMP; HTR HOSE 01.219 ID=13	8-94238-571-0	03	1	0907-0911
56	08.846 CLAMP; HTR HOSE 03.162 ID=13	8-98150-357-0	03	1	0912-
103	08.866 CONNECTOR; HOSE	8-97378-346-0	01	1	0907-
