Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#76836) — 42 parça
◀

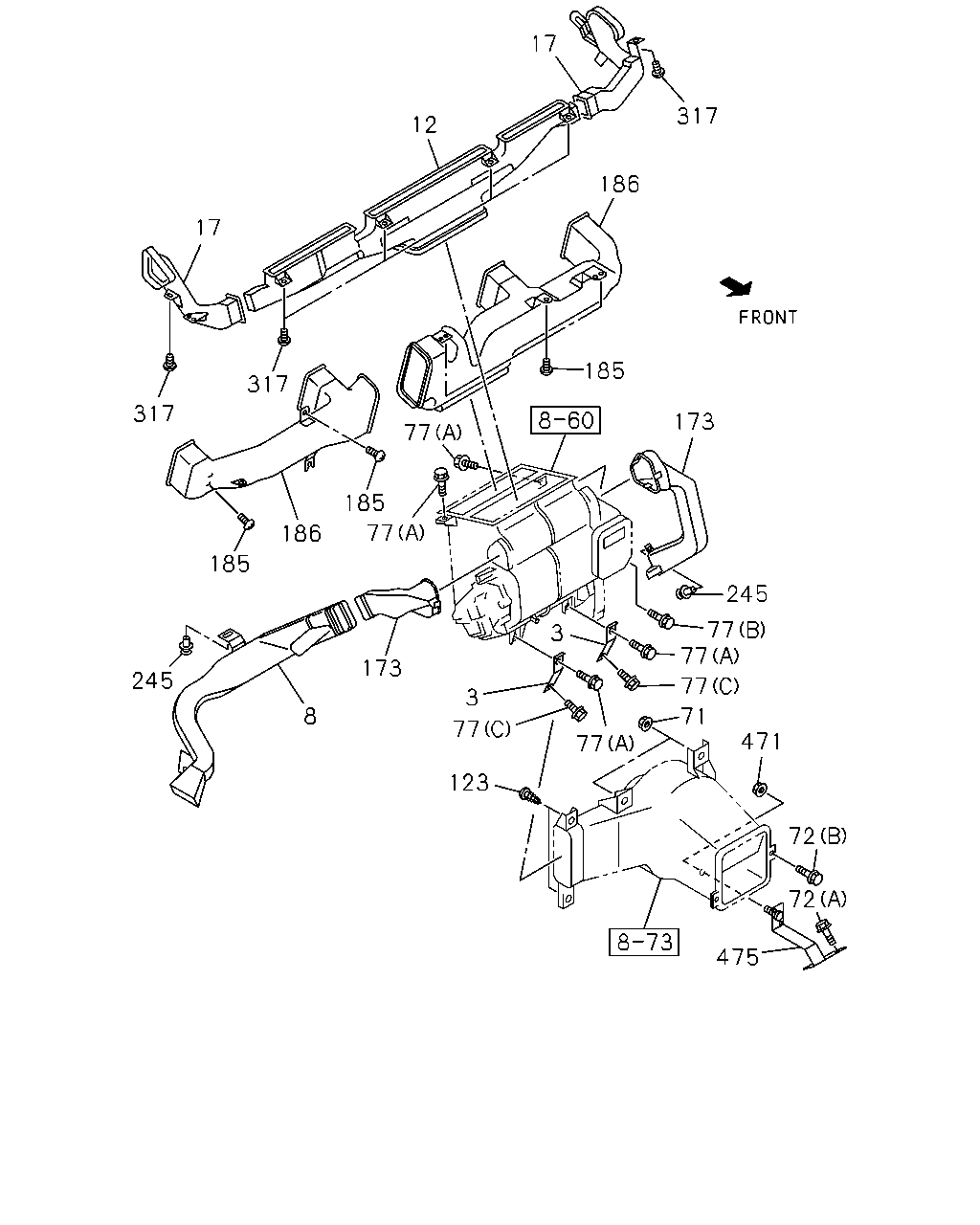

[840A] NO.1 (35 parça)
[840A] NO.2 (7 parça)
▶
17
317
12
186
17
185
317
317
173
77
185
77
186
185
245
77
77
3
173
245
77
3
8
71
77
471
77
123
72
72
475
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
08.854 BRACKET; HTR UNIT
8-98082-473-0
02
1
0907-
3
08.854 BRACKET; HTR UNIT
8-98082-473-0
02
1
0907-
8
09.786 DUCT; HTR AIR,DRIVER FOOT
8-98084-146-0
01
1
0907-
12
09.779 NOZZLE; DEFROSTER
8-97585-480-4
01
1
0907-
17
09.779 NOZZLE; DEFROSTER,SIDE
8-97585-469-1
01
1
0907-
17
09.779 NOZZLE; DEFROSTER,SIDE
8-97585-475-5
01
1
0907-
71
08.845 NUT; BLOWER UNIT TO DASH
01.062 M6 FLANGE
0-91180-106-0
02
1
0907-
72
08.857 BOLT; BLOWER UNIT
16.085 (A) M8X20 W/LK&PL WASHER
8-97359-709-0
01
1
0907-
72
08.857 BOLT; BLOWER UNIT
(B) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
0907-
77
08.845 BOLT; HTR UNIT
02.343 (A) M6X16 FLANGE
0-28650-616-0
04
1
0907-
77
08.845 BOLT; HTR UNIT
08.857 (B) M6X20 W/LK&PL WASHER
8-98081-030-0
01
1
0907-
77
08.845 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
0907-
123
09.786 SCREW; DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
0907-1101
123
09.786 SCREW; DUCT
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
02
1
1102-1212
123
09.786 SCREW; DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1301-
173
09.786 DUCT; FOOT,HTR
8-97585-504-3
01
1
0907-
173
09.786 DUCT; FOOT,HTR
8-98084-145-0
01
1
0907-1411
173
09.786 DUCT; FOOT,HTR
8-98246-555-0
01
1
1412-
185
09.262 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
05
1
0907-1003
185
09.262 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1004-1101
185
09.262 SCREW; VENT DUCT
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
04
1
1102-1212
185
09.262 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1301-
186
09.786 DUCT; VENTILATOR
8-97585-466-7
01
1
0907-1410
186
09.786 DUCT; VENTILATOR
8-98285-582-0
01
1
1411-
186
09.786 DUCT; VENTILATOR
8-97585-486-6
01
1
0907-1410
186
09.786 DUCT; VENTILATOR
8-98285-585-0
01
1
1411-
245
09.786 CLIP; FOOT DUCT
09.264
1-09987-144-0
02
1
0907-
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
0907-1101
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
02
1
1102-1212
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1301-
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
0907-1101
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
04
1
1102-1212
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1301-
471
08.866 NUT; BLOWER
01.062 M6 FLANGE
0-91180-106-0
01
1
0907-
475
09.277 BRACKET; BLOWER
8-97387-092-2
01
1
0907-
223
50
476
206
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
08.845 VALVE ASM; HTR
8-98080-998-1
01
1
0907-
206
09.743 GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
0907-
223
08.845 GROMMET; SCREW
02.679 D=7.9X7.9 L=20 M5
8-94441-539-0
01
1
0907-
225
08.845 SEAL; WATER
8-97856-616-0
02
1
1303-
225
08.845 SEAL; WATER
8-97856-616-0
03
1
0907-1302
225
08.845 SEAL; WATER
8-97856-616-0
01
1
1303-
476
09.222 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR
8-98062-675-0
01
1
0907-
