8-28 — CHASSIS ELECTRICAL (#76835) — 18 parça

504 531 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
504	04.686 RELAY; VACUUM PUMP 02.510 24V 50A	8-97173-947-0	01	1	0907-
531	02.769 RELAY; MAIN 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	0907-1402
531	02.769 RELAY; MAIN 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-
666	02.173 RELAY; STARTER 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0907-1005
666	02.173 RELAY; STARTER 24V 10A PANASONIC	8-98167-173-0	01	1	1006-

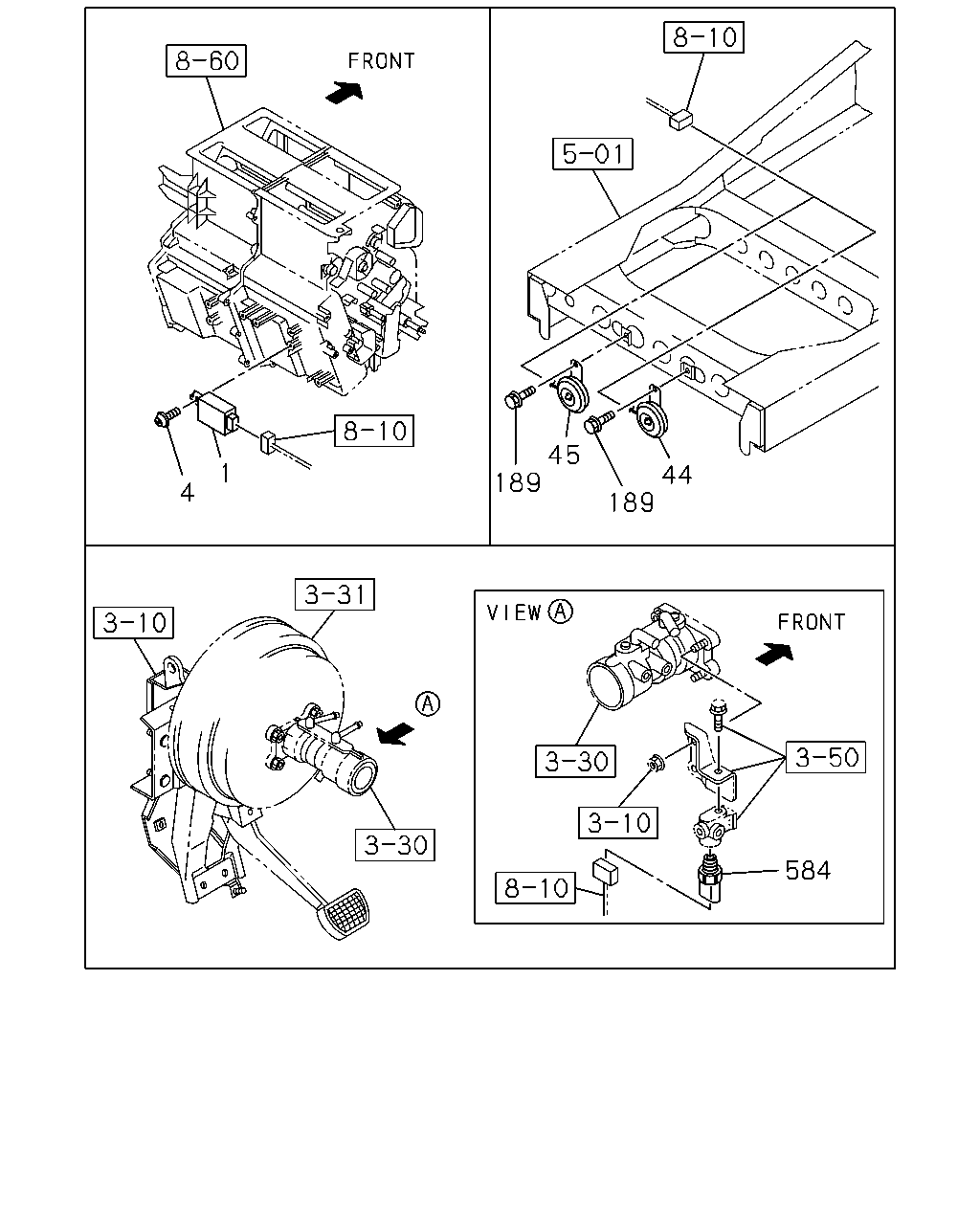

45 189 1 44 189 4 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	0907-
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0907-1101
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-98070-080-0	01	1	0907-
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	0907-
189	02.812 BOLT; HORN 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0907-1004
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0907-1004
189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN<6KK> 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
584	02.440 SENSOR; PRESSURE	8-97387-682-0	01	1	0907-

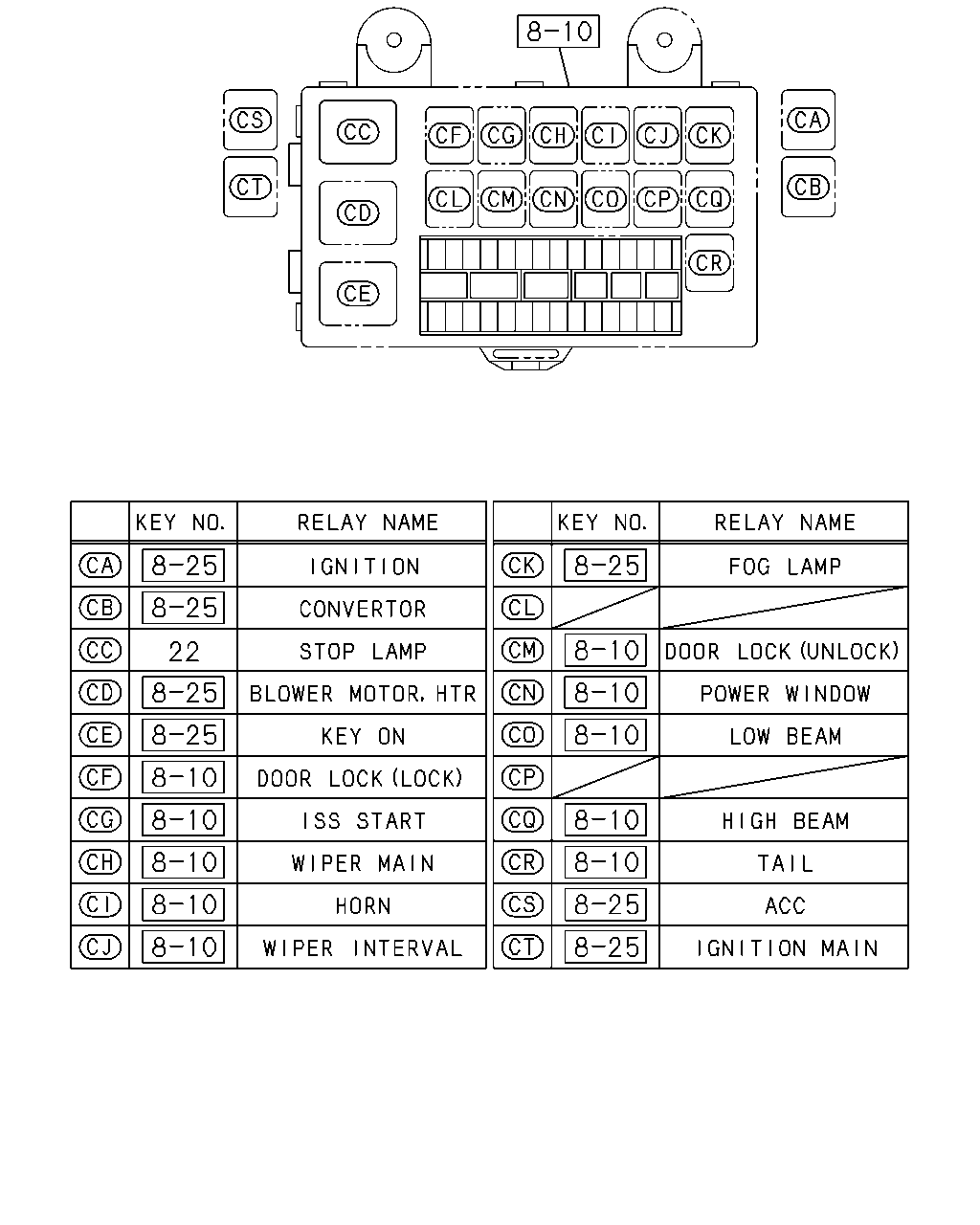

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0907-

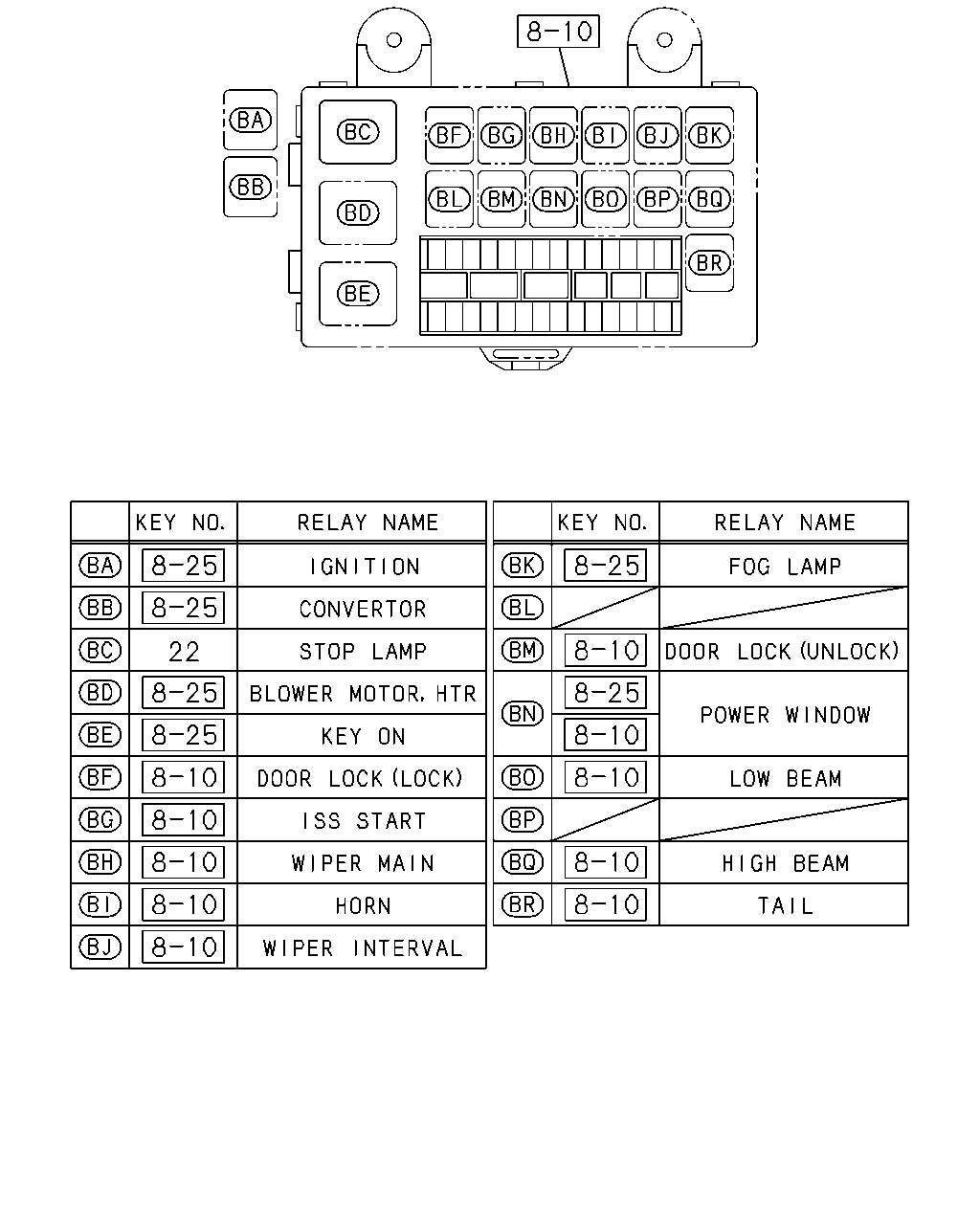

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0907-
