Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶
8-21 — METER ASM
(#76831) — 16 parça
◀

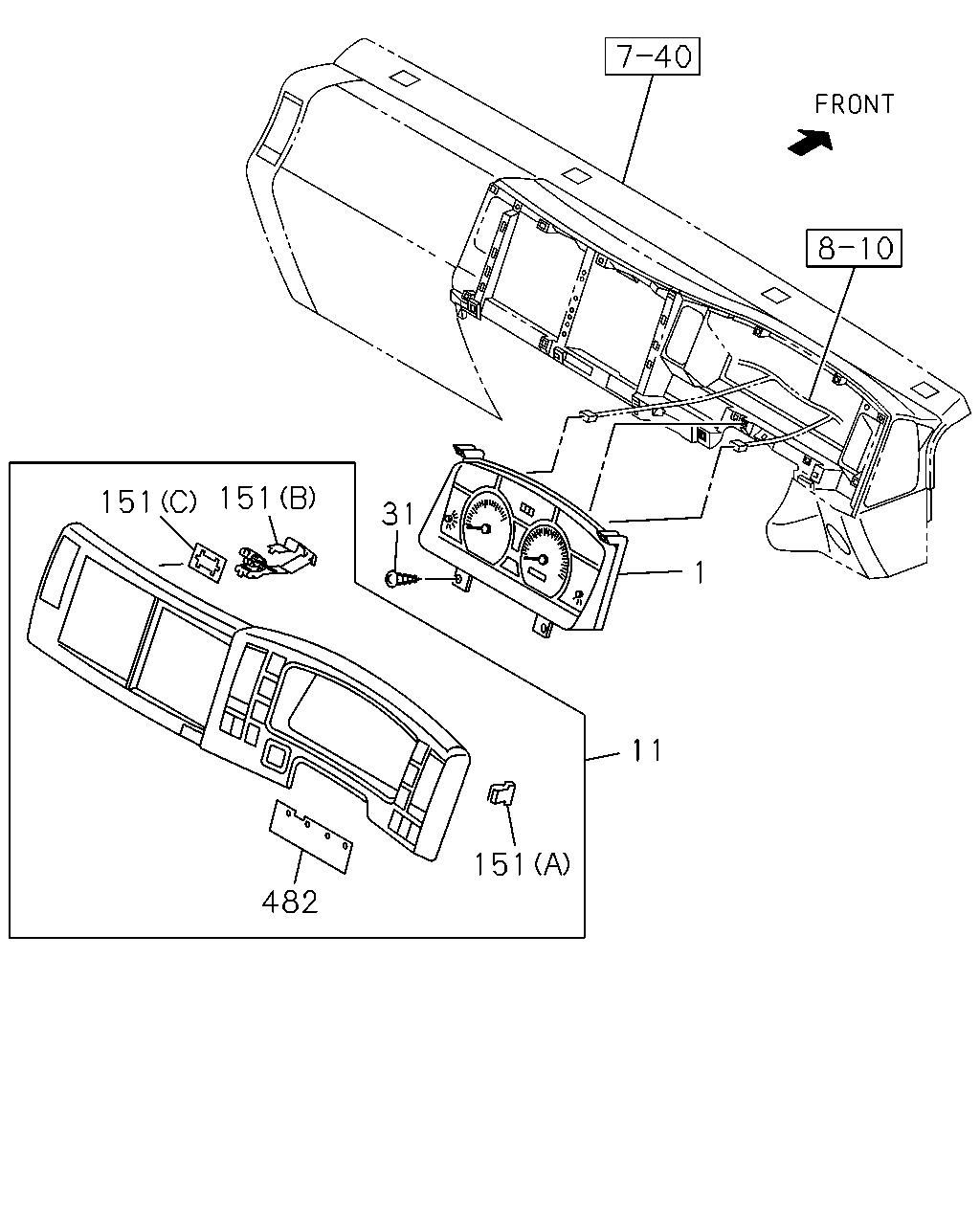

[821A] FIXING (11 parça)
[821A] COMPONENT (5 parça)
▶
151
151
31
1
11
151
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
8-97386-575-5
01
1
0907-
11
09.743 CLUSTER ASM; METER
DARK GRAY
8-97405-350-5
01
1
0907-1001
11
09.743 CLUSTER ASM; METER
DARK GRAY
8-97418-532-1
01
1
1002-
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
0907-1101
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
04
1
1102-1212
31
09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1301-
151
09.747 CLIP; METER CLUSTER
16.090 (B)
8-98152-030-0
01
1
1002-
151
09.747 CLIP; METER CLUSTER
16.090 (C)
8-98152-031-0
01
1
1002-
151
09.747 CLIP; METER CLUSTER
16.085 (A)
8-98021-271-0
13
1
0907-1001
151
09.747 CLIP; METER CLUSTER
16.085 (A)
8-98021-271-0
12
1
1002-
482
09.772 SEAL; CLUSTER METER
8-98116-842-0
01
1
0907-
1
2
110
480
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.735 METER COMPL; CLUSTER
8-97386-575-5
01
1
0907-
2
09.735 PANEL; CLUSTER
8-98054-432-0
01
1
0907-
81
09.735 METER SUB ASM
8-98063-716-0
01
1
0907-
110
09.748 GLASS; CLUSTER METER
8-98054-431-0
01
1
0907-
480
09.748 COVER; METER
BLACK
8-98054-433-0
01
1
0907-
