8-15 — FIXING PARTS; WIRING HARNESS (#76830) — 139 parça

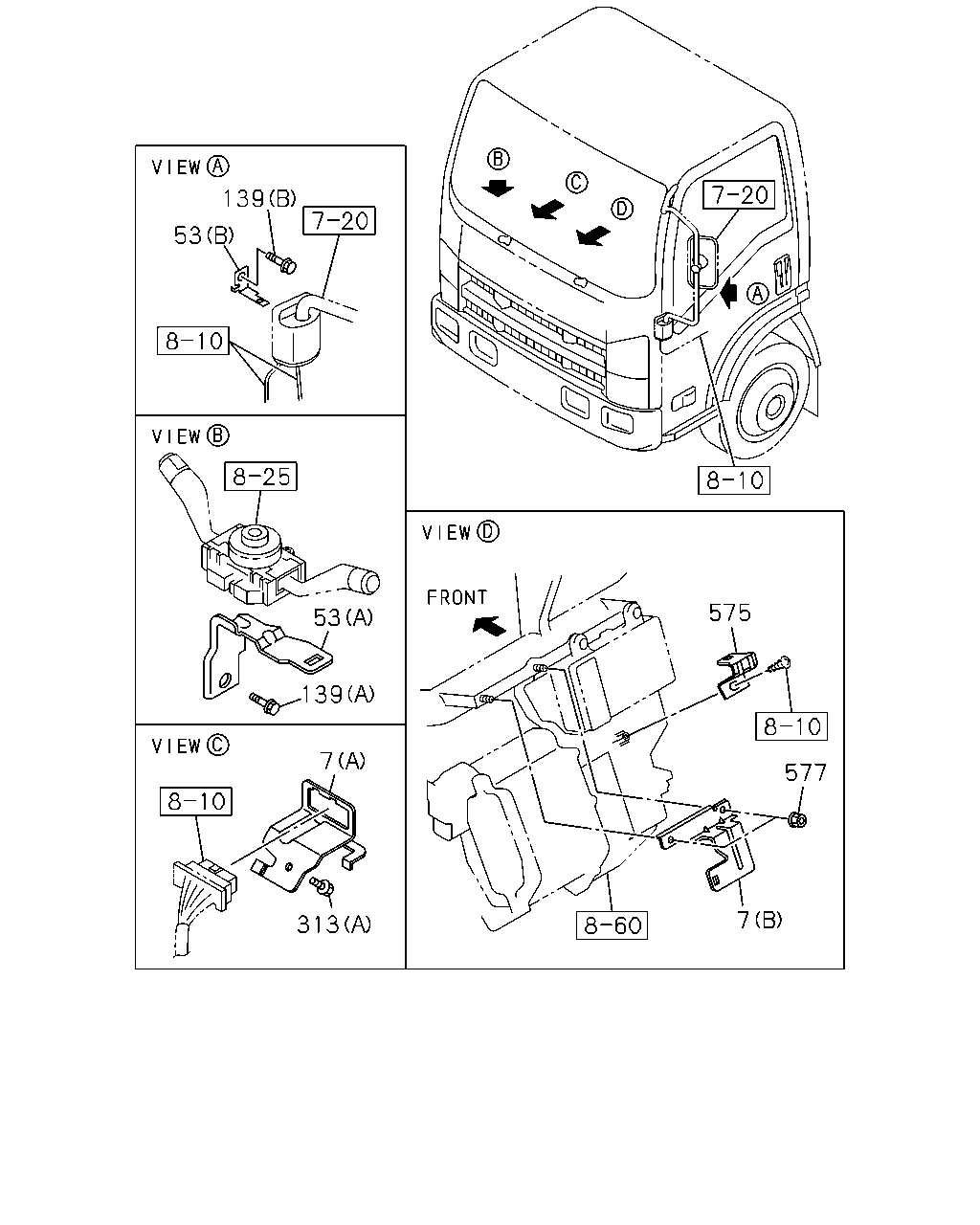

139 53 575 53 139 7 577 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	0907-
7	02.559 BRACKET; CONNECTOR (A)	8-98114-514-0	01	1	0907-
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	0907-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0907-
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0907-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0907-
53	02.483 BRACKET; HARNESS (F)	8-98058-646-2	01	1	0907-
53	02.483 BRACKET; HARNESS (E)	8-98081-988-0	01	1	0907-
53	02.483 BRACKET; HARNESS (D)	8-98083-225-1	01	1	0907-
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0907-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0907-
313	02.559 BOLT; BRKT 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0907-
313	02.559 BOLT; BRKT 09.171 (A) M6X16 FLANGE	0-28450-616-0	01	1	0907-
313	02.559 BOLT; BRKT 09.171 (C) M14X20 FLANGE	0-28851-420-0	01	1	0907-1005
313	02.559 BOLT; BRKT 06.509 (D) M14X25 FLANGE	0-28851-425-0	01	1	1006-1008
313	02.559 BOLT; BRKT 09.171 (D) M14X20 FLANGE	0-28851-420-0	01	1	1009-
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0907-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0907-

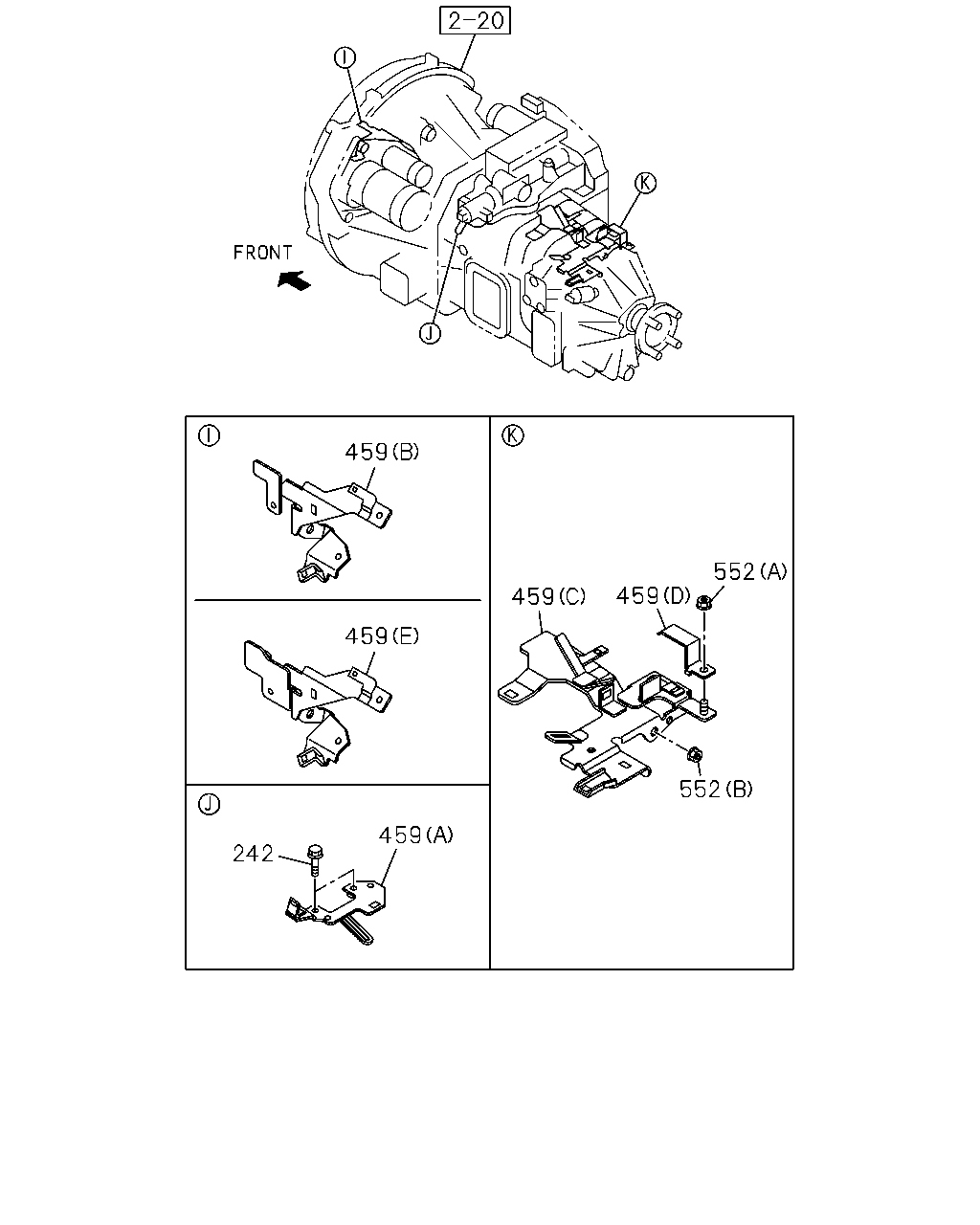

459 459 459 459 459 552 552 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
242	02.483 BOLT; BRKT,HARNESS 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0907-
459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98018-899-1	01	1	0907-
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98030-991-2	01	1	0907-
459	02.483 BRACKET; SUPPORT,HARNESS (D)	8-98044-758-2	01	1	0907-
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98081-708-0	01	1	0907-1205
459	02.483 BRACKET; SUPPORT,HARNESS (E)	8-98210-989-0	01	1	1206-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0907-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0907-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0907-

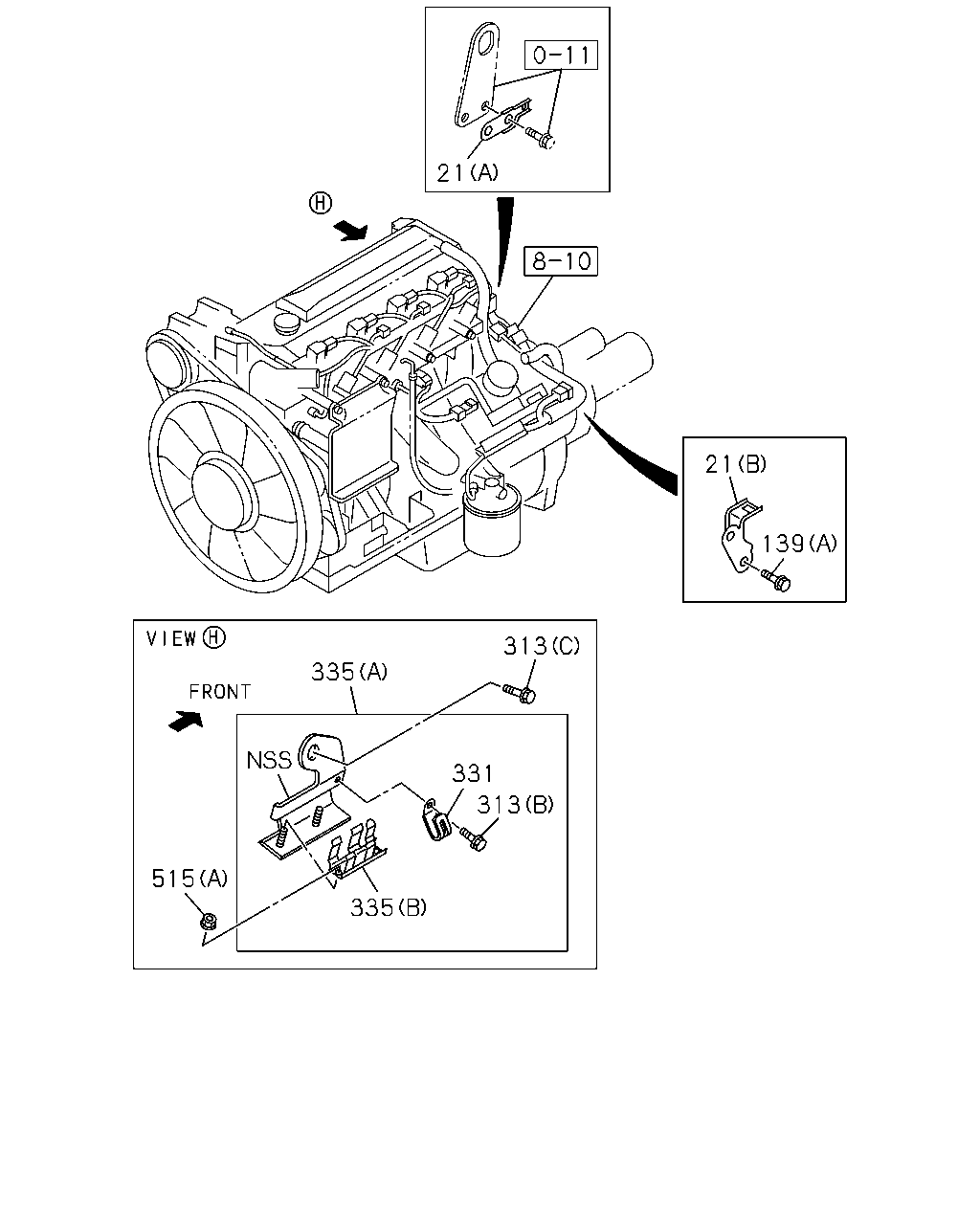

21 21 139 313 335 331 313 515 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	02.483 BRACKET; ENG HARNESS (A)	8-97383-683-0	01	1	0907-
21	02.483 BRACKET; ENG HARNESS (B)	8-97383-684-0	01	1	0907-
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0907-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0907-
313	02.559 BOLT; BRKT 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0907-
313	02.559 BOLT; BRKT 09.171 (A) M6X16 FLANGE	0-28450-616-0	01	1	0907-
313	02.559 BOLT; BRKT 09.171 (C) M14X20 FLANGE	0-28851-420-0	01	1	0907-1005
313	02.559 BOLT; BRKT 06.509 (D) M14X25 FLANGE	0-28851-425-0	01	1	1006-1008
313	02.559 BOLT; BRKT 09.171 (D) M14X20 FLANGE	0-28851-420-0	01	1	1009-
331	02.559 CLIP; HARNESS BRKT 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-
335	02.510 BRACKET; CONNECTOR (B)	8-97262-725-0	01	1	0907-
335	02.510 BRACKET; CONNECTOR (A)	8-97262-726-0	01	1	0907-
515	02.559 NUT; BRKT 00.787 (D) M10	0-91111-510-0	02	1	0907-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0907-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0907-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0907-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0907-

16 16 16 513 16 530 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS (G) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0907-
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0907-
16	02.559 CLIP; HARNESS (H) L=22 ID=10.5	8-94327-574-0	01	1	0907-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0907-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0907-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0907-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0907-
16	02.559 CLIP; HARNESS (I) T=5.5	8-97371-951-0	01	1	0907-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0907-
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0908-
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0908-
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0907-0907
48	02.559 CLIP; FRAME HARNESS (D) L=250	5-09707-030-1	01	1	0908-
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	10	1	0907-
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0907-
48	02.559 CLIP; FRAME HARNESS (C) ID=42 W/STUD	8-97363-356-0	02	1	0907-
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0907-

22 48 488 22 16 16 22 331 483 16 48 48 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS (G) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0907-
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0907-
16	02.559 CLIP; HARNESS (H) L=22 ID=10.5	8-94327-574-0	01	1	0907-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0907-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0907-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0907-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	0907-
16	02.559 CLIP; HARNESS (I) T=5.5	8-97371-951-0	01	1	0907-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	0907-
22	02.559 CLIP; ENG HARNESS (D) ID=13-18 L=18	1-09709-291-0	01	1	0909-1004
22	02.559 CLIP; ENG HARNESS (C) L=170.3	1-09987-182-0	03	1	0907-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0907-
22	02.559 CLIP; ENG HARNESS 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0907-
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0908-
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0908-
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	0907-0907
48	02.559 CLIP; FRAME HARNESS (D) L=250	5-09707-030-1	01	1	0908-
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	10	1	0907-
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	0907-
48	02.559 CLIP; FRAME HARNESS (C) ID=42 W/STUD	8-97363-356-0	02	1	0907-
331	02.559 CLIP; HARNESS BRKT 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-
483	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	0907-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0907-

38 313 481 139 150 304 313 139 242 529 480 313 313 377 377 386 377 386 386 377 386 24 294 515 577 515 524 525 552 515 515 552 516 620

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0907-1409
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-
38	02.559 BOLT; CLIP,HARNESS 09.216 M6X12 FLANGE	0-28250-612-0	01	1	0907-
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0907-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0907-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0907-
150	02.343 BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	0907-
242	02.483 BOLT; BRKT,HARNESS 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0907-
294	02.559 NUT 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0907-
304	02.483 BOLT; ENG HARNESS CLIP 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0907-
313	02.559 BOLT; BRKT 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0907-
313	02.559 BOLT; BRKT 09.171 (A) M6X16 FLANGE	0-28450-616-0	01	1	0907-
313	02.559 BOLT; BRKT 09.171 (C) M14X20 FLANGE	0-28851-420-0	01	1	0907-1005
313	02.559 BOLT; BRKT 06.509 (D) M14X25 FLANGE	0-28851-425-0	01	1	1006-1008
313	02.559 BOLT; BRKT 09.171 (D) M14X20 FLANGE	0-28851-420-0	01	1	1009-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0907-1004
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0907-1004
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0907-1004
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0907-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0907-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
480	02.483 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0907-
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	0907-
515	02.559 NUT; BRKT 00.787 (D) M10	0-91111-510-0	02	1	0907-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0907-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0907-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0907-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0907-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0907-
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
525	02.559 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0907-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0907-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0907-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0907-
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0907-
620	02.559 WASHER; PL BRKT 06.216 ID=15	0-91614-614-0	01	1	1006-1008

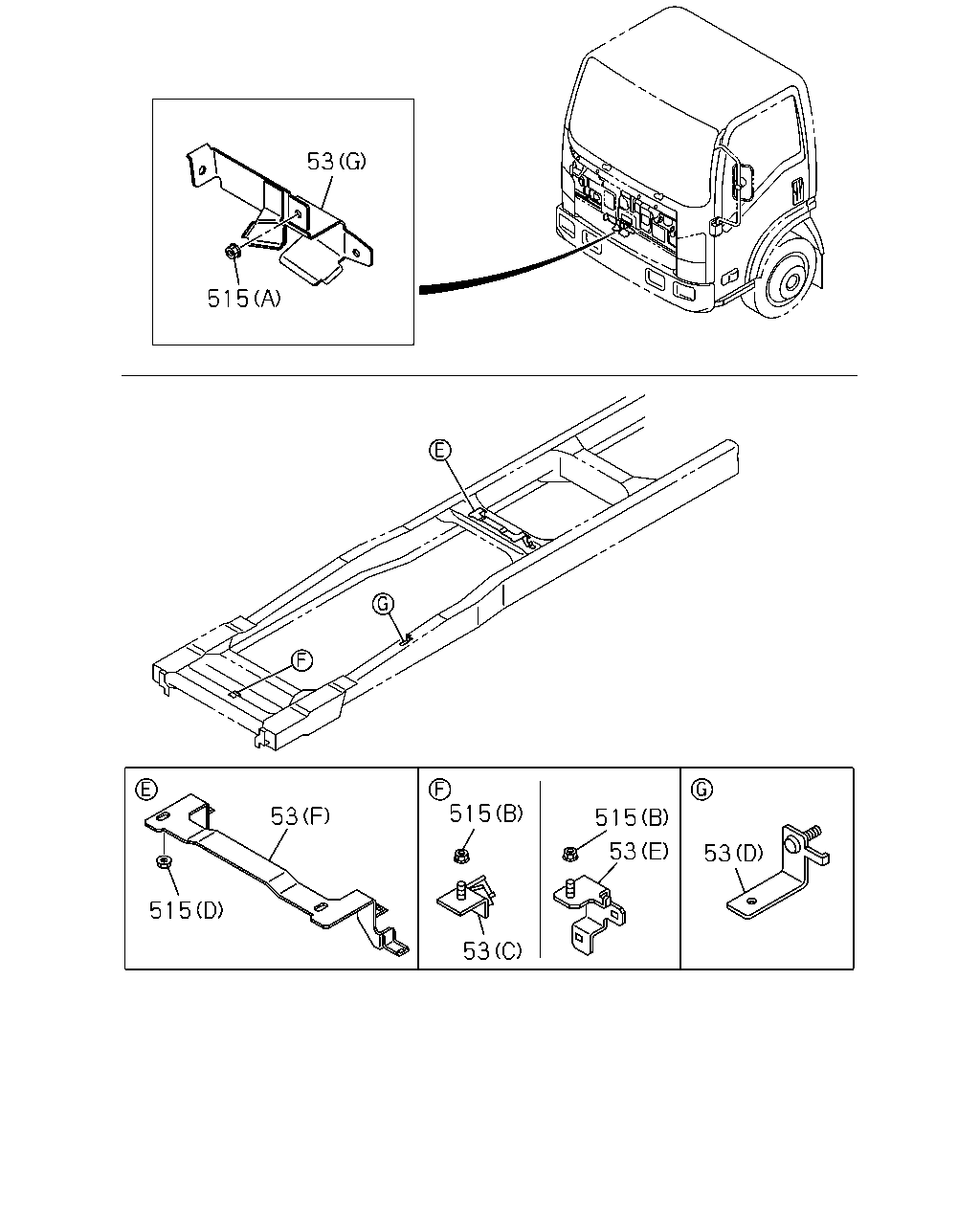

53 515 515 53 515 53 53 515 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	0907-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0907-
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0907-
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0907-
53	02.483 BRACKET; HARNESS (F)	8-98058-646-2	01	1	0907-
53	02.483 BRACKET; HARNESS (E)	8-98081-988-0	01	1	0907-
53	02.483 BRACKET; HARNESS (D)	8-98083-225-1	01	1	0907-
515	02.559 NUT; BRKT 00.787 (D) M10	0-91111-510-0	02	1	0907-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0907-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0907-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0907-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0907-
