3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#7683) — 89 parça
Tümü
A - EXR6MC
B - EXR5MC
◀

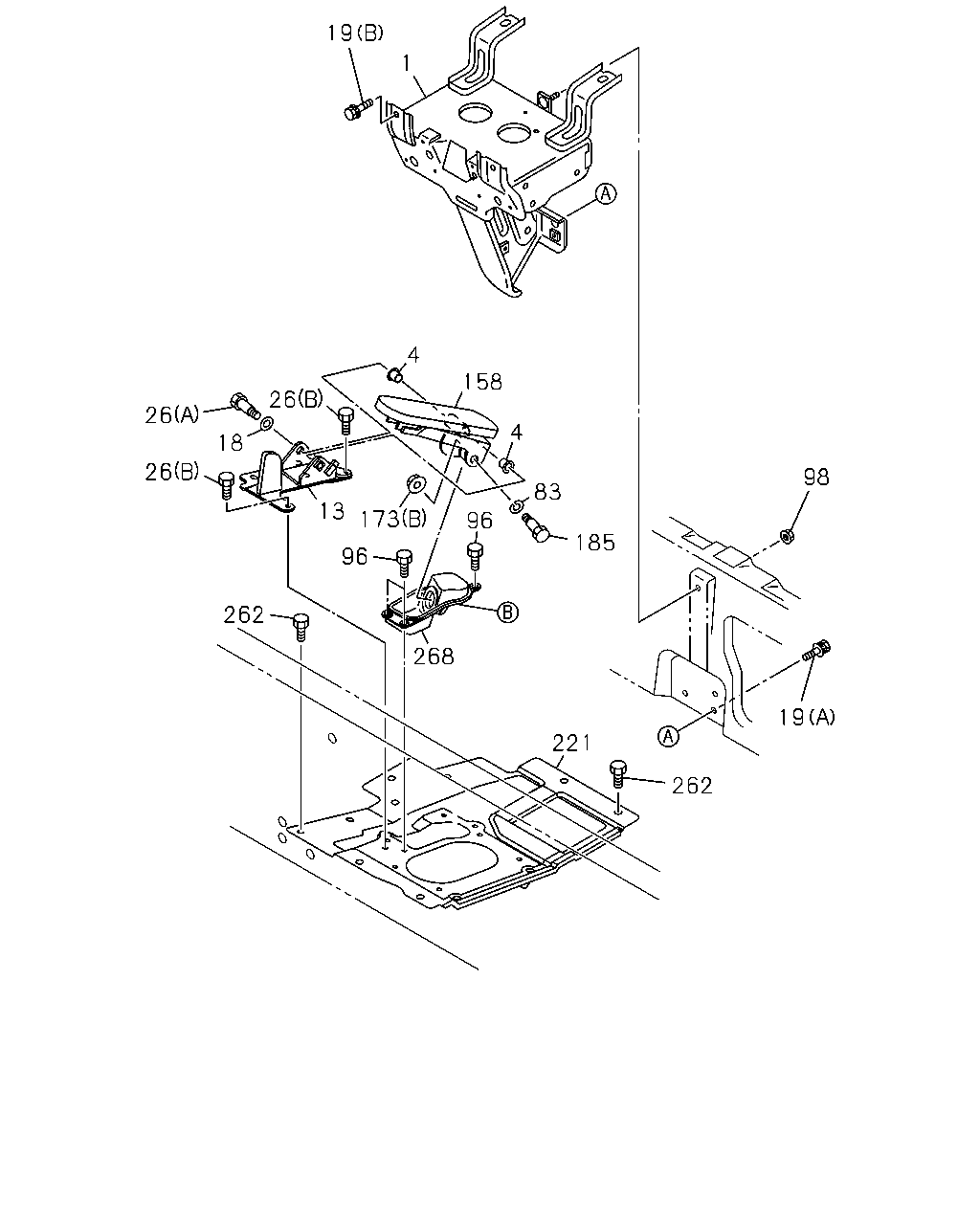

[310A] LHD BRAKE PEDAL AND BRACKET (27 parça)
[310A] LHD BRAKE VALVE CONNECTOR AND BRACKET (26 parça)

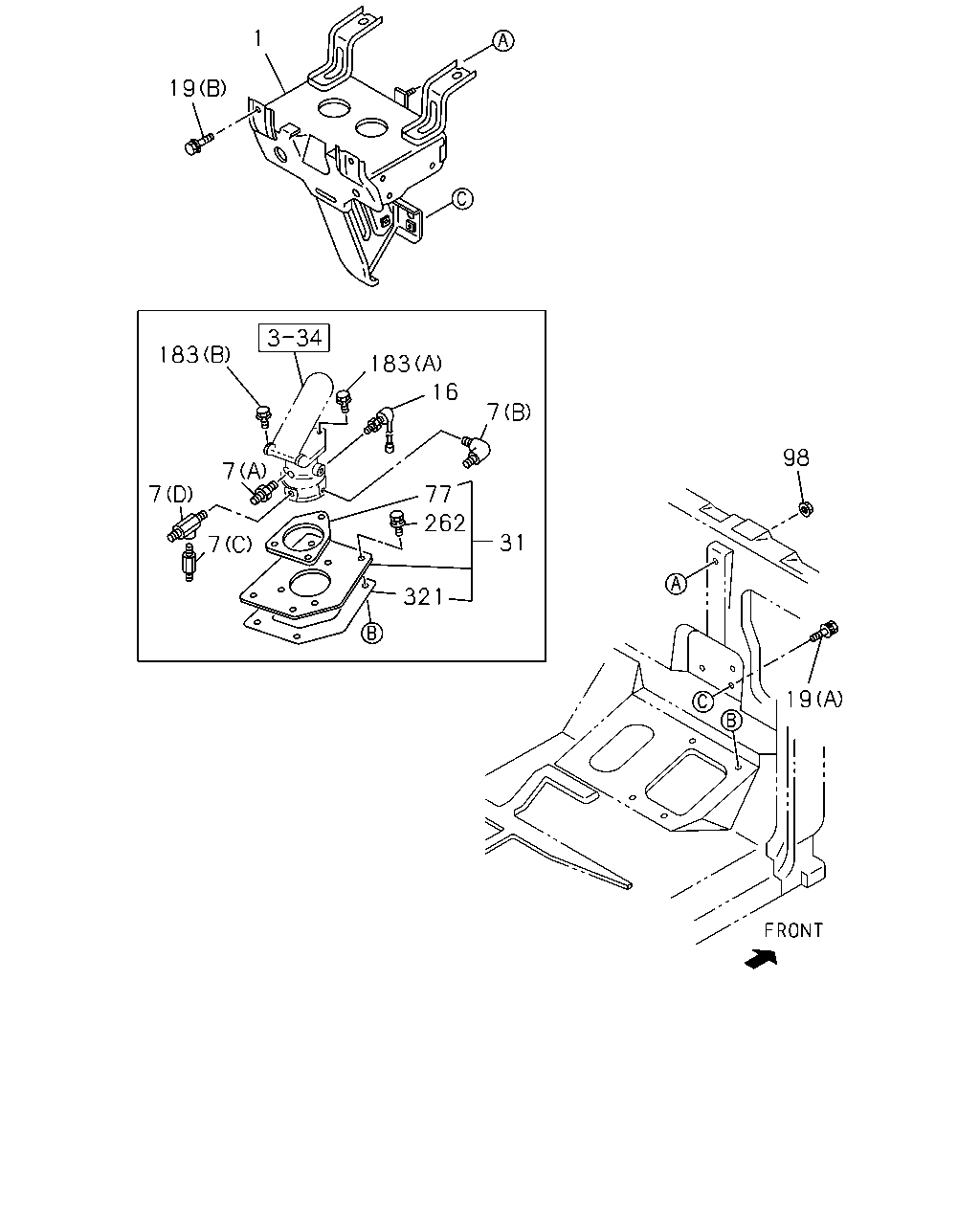

[310A] RHD BRAKE PEDAL AND PLATE (36 parça)
▶
19
1
4
158
26
26
4
18
26
98
83
96
13
173
185
96
262
268
19
221
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
AIR BAG(TFQ) ISUZU M/T<X9A>
1-73907-616-0
01
1
9905-
●
1
BRACKET ASM; PEDAL
ISUZU M/T<X9A>
1-73908-144-6
01
1
9902-9904
●
1
BRACKET ASM; PEDAL
ISUZU M/T<X9A> EXC. AIR BAG(TFQ)
1-73908-144-6
01
1
9905-
●
1
BRACKET ASM; PEDAL
ZF M/T<X9E> AIR BAG(TFQ)
1-73907-617-1
01
1
9905-
●
1
BRACKET ASM; PEDAL
ZF M/T<X9E> EXC. AIR BAG(TFQ)
1-73907-443-6
01
1
9902-
●
1
BRACKET ASM; PEDAL
1-73907-392-6
01
1
0004-
●
4
BUSHING; BRK PEDAL
1-73908-201-1
02
1
9902-
●
13
BRACKET; BRK PEDAL
1-73908-203-1
01
1
9902-
●
18
WASHER; PL
ID=12.5
9-09164-512-0
01
1
9902-
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
9902-0003
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
0004-
●
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9902-0003
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0004-
●
●
26
BOLT; PEDAL
(A)
1-09980-614-0
01
1
9902-
●
26
BOLT; PEDAL
(B) M6X25
8-94279-204-0
02
1
9902-
●
83
WASHER; LK,BRKT
ID=14.2
9-09150-814-0
01
1
9902-
●
96
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
9902-
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9902-0003
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0004-
●
●
158
PEDAL ASM; BRK
1-73908-068-5
01
1
9902-
●
173
NUT; JOINT LOCK
(A) M10 FLANGE
0-91150-110-0
01
1
9902-
●
173
NUT; JOINT LOCK
(B) M12
9-99110-412-0
01
1
9902-
●
185
BOLT; BRKT
1-73996-282-1
01
1
9902-
●
221
PLATE ASM; SIDE
1-73996-280-4
01
1
9902-
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
10
1
9902-
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0004-
●
268
COVER; ROD
1-73908-192-1
01
1
9902-
●
20
20
191
173
172
183
20
266
34
7
16
7
7
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
CONNECTOR; BRK VALVE
(D)
1-09656-708-0
02
1
9902-
●
7
CONNECTOR; BRK VALVE
(E) DIN8,R3/8 STRAIGHT
1-09660-651-1
02
1
9902-9911
●
7
CONNECTOR; BRK VALVE
(E) DIN8 & R3/8 STRAIGHT
1-09660-964-0
02
1
9912-
●
7
CONNECTOR; BRK VALVE
(A) DIN6 & R1/8 STRAIGHT
1-09660-691-1
02
1
9902-9904
●
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (A) DIN6 & R1/8 STRAIGHT
1-09660-691-1
02
1
9905-9911
●
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (A)
1-09661-285-0
02
1
9912-
●
7
CONNECTOR; BRK VALVE
(B)
1-09660-803-0
02
1
9902-9904
●
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (B)
1-09660-803-0
02
1
9905-9911
●
7
CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (C) DIN12 & R3/8 STRAIGHT
1-09660-669-1
02
1
9905-9911
●
7
CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
9912-
●
7
CONNECTOR; BRK VALVE
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0004-
●
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0004-
●
7
CONNECTOR; BRK VALVE
(C)
1-09661-284-0
01
1
0004-
●
7
CONNECTOR; BRK VALVE
(D)
1-09661-285-0
01
1
0004-
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-0
02
1
9902-0003
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-0
02
1
0004-
●
●
20
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9902-
●
34
BRACKET ASM; BRK VLV
1-79738-808-3
01
1
9902-
●
172
JOINT; JAW,BRK PEDAL
1-73908-167-1
01
1
9902-
●
173
NUT; JOINT LOCK
(A) M10 FLANGE
0-91150-110-0
01
1
9902-
●
173
NUT; JOINT LOCK
(B) M12
9-99110-412-0
01
1
9902-
●
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
03
1
9902-
●
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
0004-
●
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
0004-
●
191
JOINT; BALL,PUSH ROD
1-47355-001-0
01
1
9902-
●
266
JOINT ROD
1-73908-166-3
01
1
9902-
●
1
19
183
183
16
7
98
7
7
77
262
31
7
321
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET ASM; PEDAL
AIR BAG(TFQ) ISUZU M/T<X9A>
1-73907-616-0
01
1
9905-
●
1
BRACKET ASM; PEDAL
ISUZU M/T<X9A>
1-73908-144-6
01
1
9902-9904
●
1
BRACKET ASM; PEDAL
ISUZU M/T<X9A> EXC. AIR BAG(TFQ)
1-73908-144-6
01
1
9905-
●
1
BRACKET ASM; PEDAL
ZF M/T<X9E> AIR BAG(TFQ)
1-73907-617-1
01
1
9905-
●
1
BRACKET ASM; PEDAL
ZF M/T<X9E> EXC. AIR BAG(TFQ)
1-73907-443-6
01
1
9902-
●
1
BRACKET ASM; PEDAL
1-73907-392-6
01
1
0004-
●
7
CONNECTOR; BRK VALVE
(D)
1-09656-708-0
02
1
9902-
●
7
CONNECTOR; BRK VALVE
(E) DIN8,R3/8 STRAIGHT
1-09660-651-1
02
1
9902-9911
●
7
CONNECTOR; BRK VALVE
(E) DIN8 & R3/8 STRAIGHT
1-09660-964-0
02
1
9912-
●
7
CONNECTOR; BRK VALVE
(A) DIN6 & R1/8 STRAIGHT
1-09660-691-1
02
1
9902-9904
●
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (A) DIN6 & R1/8 STRAIGHT
1-09660-691-1
02
1
9905-9911
●
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (A)
1-09661-285-0
02
1
9912-
●
7
CONNECTOR; BRK VALVE
(B)
1-09660-803-0
02
1
9902-9904
●
7
CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (B)
1-09660-803-0
02
1
9905-9911
●
7
CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (C) DIN12 & R3/8 STRAIGHT
1-09660-669-1
02
1
9905-9911
●
7
CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
9912-
●
7
CONNECTOR; BRK VALVE
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0004-
●
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0004-
●
7
CONNECTOR; BRK VALVE
(C)
1-09661-284-0
01
1
0004-
●
7
CONNECTOR; BRK VALVE
(D)
1-09661-285-0
01
1
0004-
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-0
02
1
9902-0003
●
16
SWITCH; STOP LAMP
GREEN
1-82410-176-0
02
1
0004-
●
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
9902-0003
●
19
BOLT; BRKT
(A) M8X20
1-79198-002-0
02
1
0004-
●
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
9902-0003
●
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0004-
●
●
31
PLATE; MTG,BRKT VLV
1-73996-271-2
01
1
0004-
●
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
0004-
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9902-0003
●
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0004-
●
●
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
03
1
9902-
●
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
0004-
●
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
0004-
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
10
1
9902-
●
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0004-
●
321
SEAL; VALVE
1-73996-143-0
01
1
0004-
●
