Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#76824) — 51 parça
◀

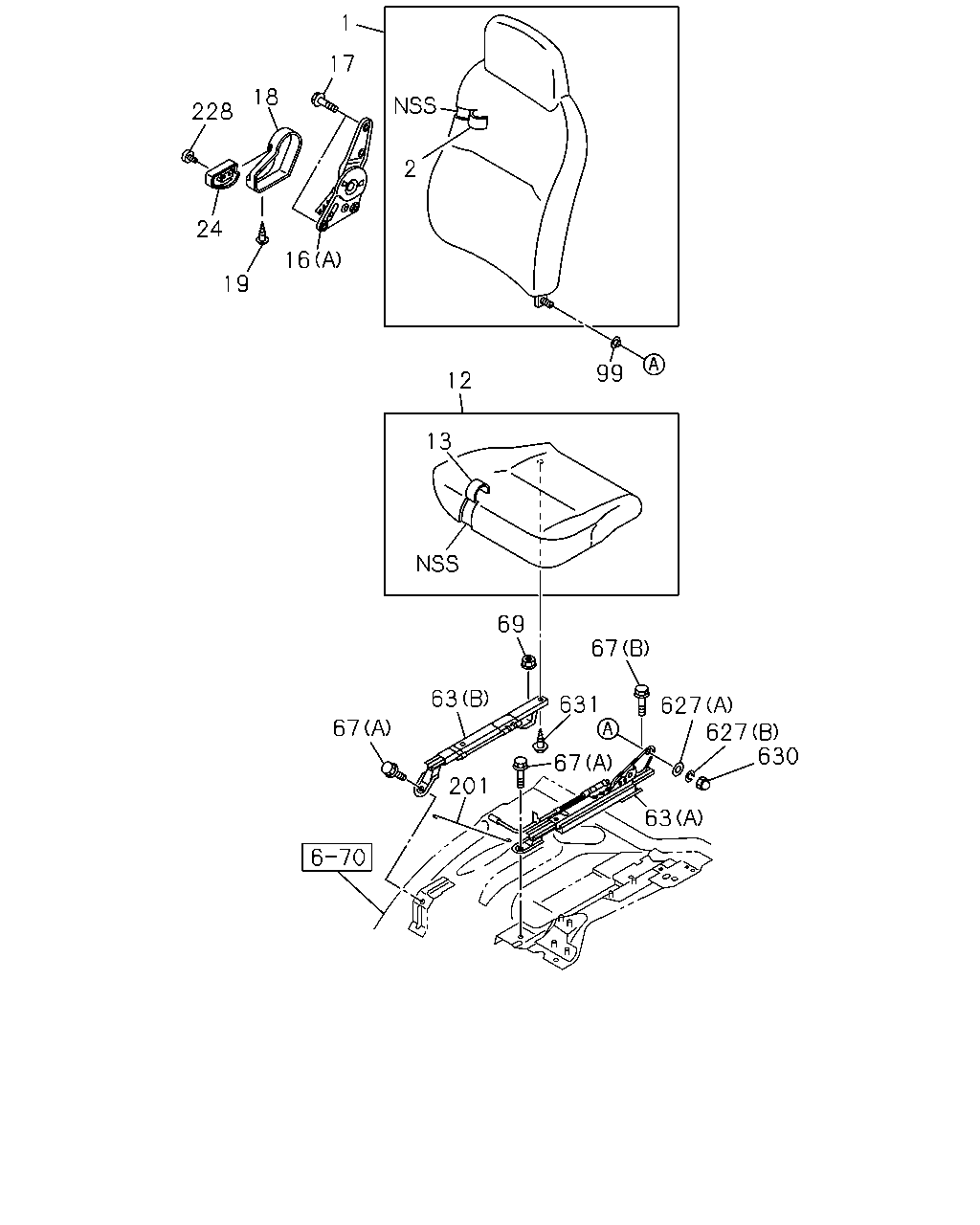

[750A] DRIVER SEAT (28 parça)
[750A] PASSENGER SEAT(NO.1) (18 parça)

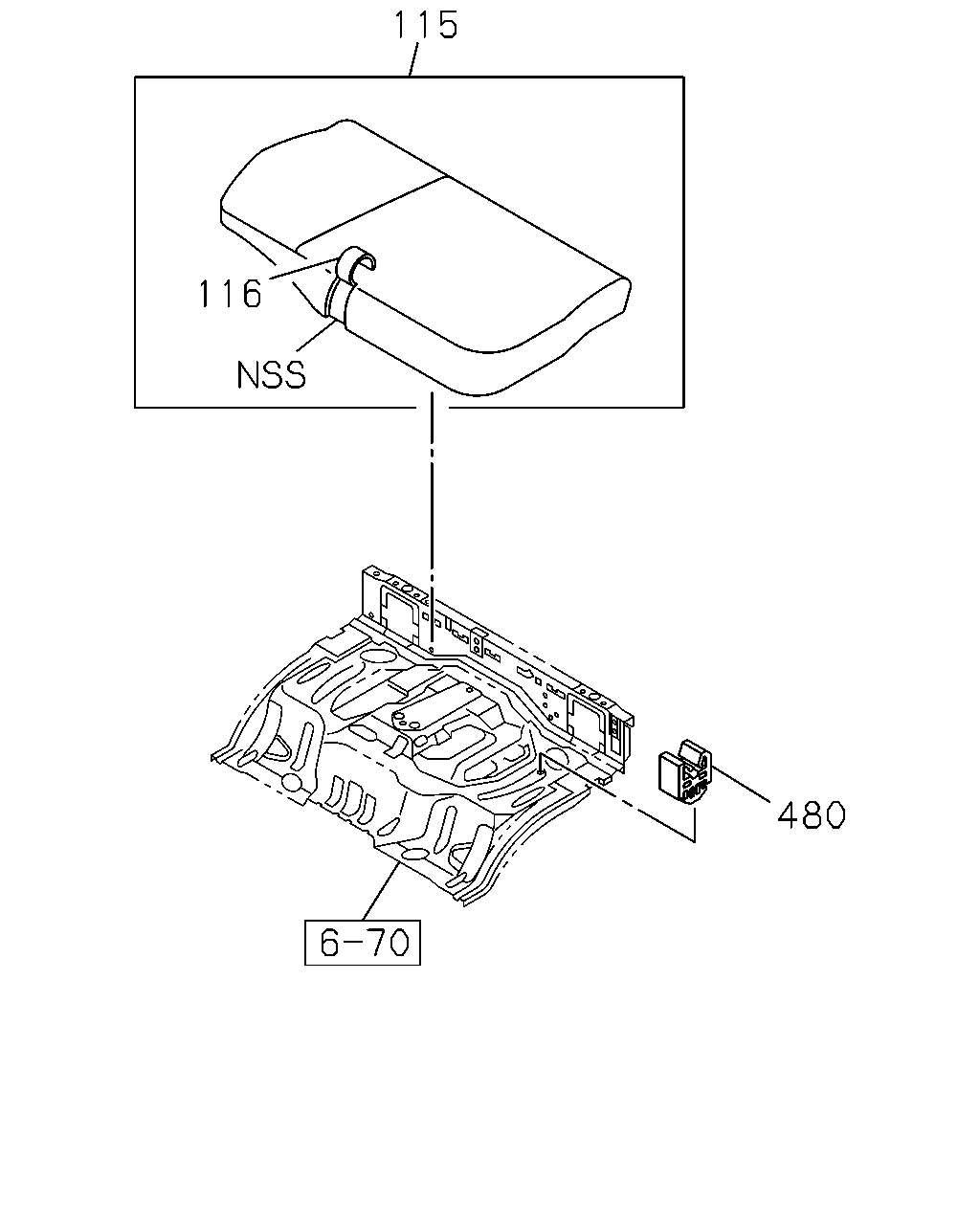

[750A] PASSENGER SEAT(NO.2) (5 parça)
▶
1
17
18
228
2
24
16
19
99
12
13
69
67
63
631
627
627
630
67
67
201
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.720 BACK ASM; SEAT
DARK GRAY
8-97414-145-5
01
1
0907-1009
1
16.720 BACK ASM; SEAT
DARK GRAY
8-97421-235-1
01
1
1010-
2
16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY
8-97414-146-1
01
1
0907-1009
2
16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY
8-97421-254-0
01
1
1010-
12
16.670 CUSHION; SEAT,FRT
DARK GRAY
8-97416-252-1
01
1
0907-1009
12
16.670 CUSHION; SEAT,FRT
DARK GRAY
8-97421-241-1
01
1
1010-
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY
8-97416-260-0
01
1
0907-1009
13
16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY
8-97421-260-1
01
1
1010-
16
16.682 ADJUSTER ASM; RECLINING
(B) BLACK
8-97859-273-3
01
1
0907-
16
16.682 ADJUSTER ASM; RECLINING
(C) BLACK
8-97859-274-3
01
1
0907-
16
16.682 ADJUSTER ASM; RECLINING
(A)
8-98003-087-1
01
1
0907-
17
16.682 BOLT; RECLINING
M10X20
8-98062-661-0
04
1
0907-
18
16.682 COVER; RECLINING
GRAY
8-97409-332-0
01
1
0907-
19
16.686 SCREW; COVER
M5
8-98062-663-0
01
1
0907-
24
16.682 KNOB; RECLINING,FRT,SEAT
GRAY
8-97409-333-0
01
1
0907-
63
16.682 ADJUSTER; SEAT SLIDE
(A) INNER
8-97382-800-2
01
1
0907-
63
16.682 ADJUSTER; SEAT SLIDE
(B) OUTER
8-97382-801-1
01
1
0907-
67
16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE
8-98055-941-0
02
1
0907-
67
16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE
8-98055-942-0
01
1
0907-
69
16.682 NUT; FRT SEAT
M10 FLANGE
8-98055-961-0
01
1
0907-
99
16.716 BUSHING; SEAT BACK
8-98112-751-0
01
1
0907-
201
16.682 CABLE; ADJ
8-98003-086-1
01
1
0907-
228
16.714 SCREW; KNOB
M4
8-98062-662-0
01
1
0907-
627
16.682 WASHER; FRT SEAT
(A)
8-98063-223-0
01
1
0907-
627
16.682 WASHER; FRT SEAT
(B)
8-98063-224-0
01
1
0907-
630
16.682 NUT; CAP
M8
8-98063-225-0
01
1
0907-
631
16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER
8-98062-658-0
02
1
0907-
631
16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER
8-98062-659-0
02
1
0907-
460
368
161
361
160
141
139
460
16
126
139
139
114
16
361
478
126
368
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
16.682 ADJUSTER ASM; RECLINING
(B) BLACK
8-97859-273-3
01
1
0907-
16
16.682 ADJUSTER ASM; RECLINING
(C) BLACK
8-97859-274-3
01
1
0907-
16
16.682 ADJUSTER ASM; RECLINING
(A)
8-98003-087-1
01
1
0907-
114
16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY
8-97409-277-1
01
1
0907-1009
114
16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY
8-97421-291-0
01
1
1010-
126
16.686 BUSHING; HINGE,RECLINING
8-98069-558-0
02
1
0907-
139
16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER
8-98031-841-0
04
1
0907-
141
16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY
8-97409-334-1
01
1
0907-1009
141
16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY
8-97421-305-1
01
1
1010-
160
16.650 CONSOLE; UPR,BACK CENTER
GRAY
8-97405-361-1
01
1
0907-
161
16.650 SCREW; CONSOLE
M4X12
8-94279-351-0
04
1
0907-
361
16.682 BOLT; ADJ,RECLINING
M8X18
8-94279-109-1
04
1
0907-
368
16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER
8-94279-217-0
02
1
0907-
460
16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY
8-97405-335-4
01
1
0907-1009
460
16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY
8-97421-278-0
01
1
1010-
460
16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY
8-97405-338-3
01
1
0907-1009
460
16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY
8-97421-299-1
01
1
1010-
478
16.716 BRACKET ASM; HINGE,PASSENGER SEA
8-98002-092-0
01
1
0907-
115
116
480
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
115
16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY
8-97416-273-0
01
1
0907-1009
115
16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY
8-97421-319-2
01
1
1010-
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY
8-97416-288-0
01
1
0907-1009
116
16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY
8-97421-339-1
01
1
1010-
480
16.716 CLIP; CUSHION
8-94279-977-0
05
1
0907-
