Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#76822) — 30 parça
◀

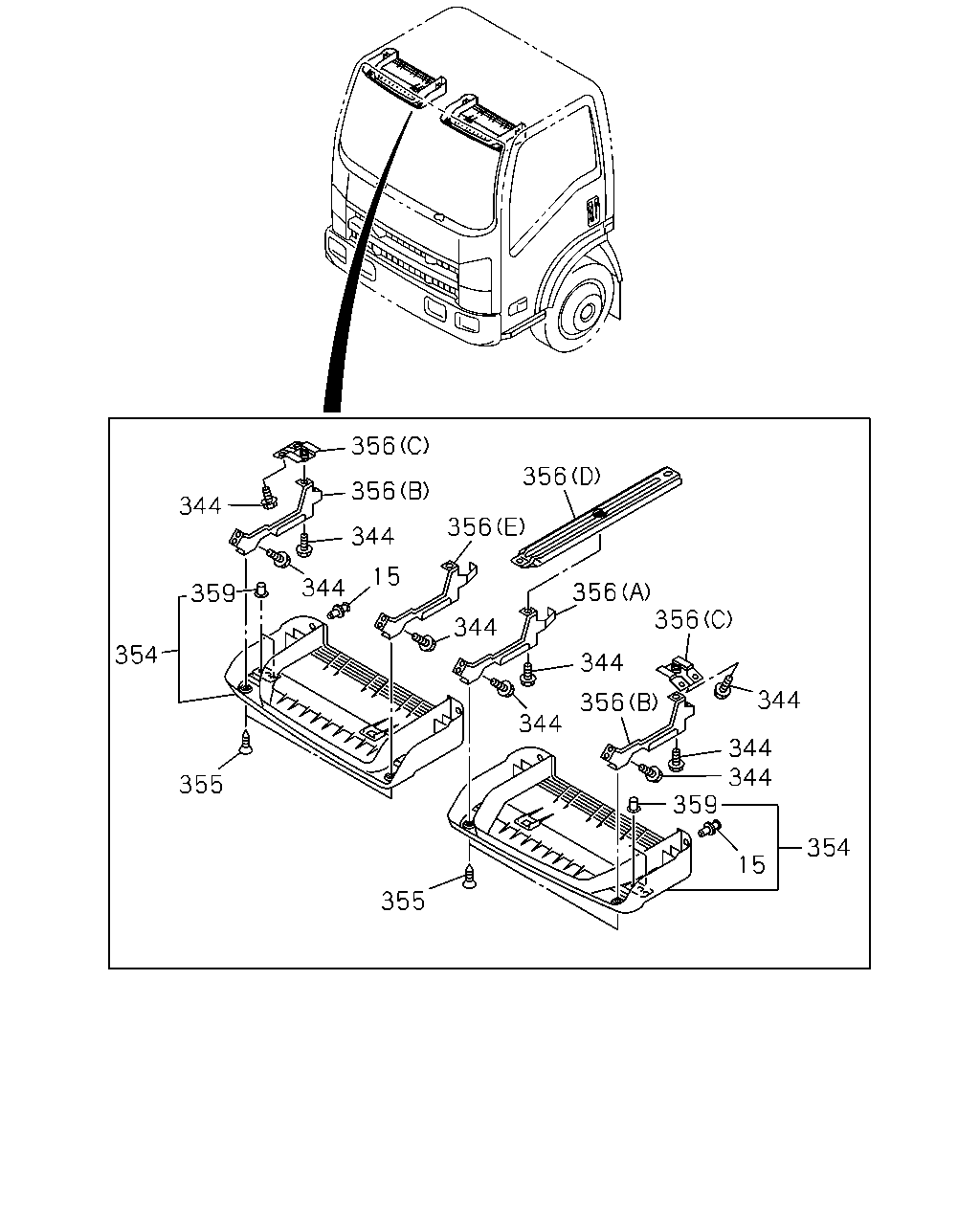

[743A] HEADER ROOF TRAY (18 parça)

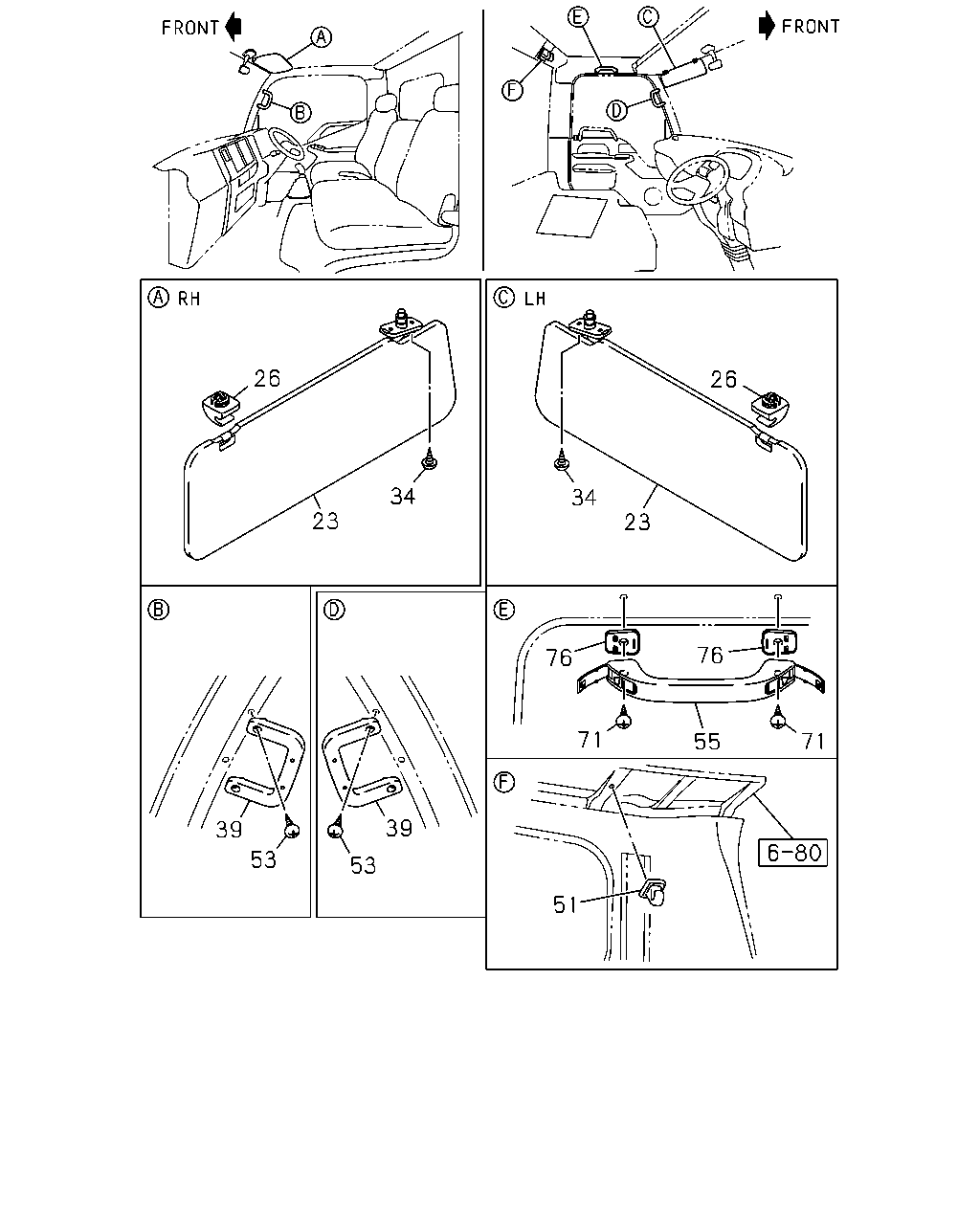

[743A] SUN VISOR AND ASSIST GRIP (12 parça)
▶
356
356
356
344
356
344
15
356
344
356
359
344
354
344
344
356
344
344
344
355
359
354
15
355
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
16.742 FASTENER; HEADER SHELF BOARD
DARK GRAY
8-97406-299-0
02
1
0907-
15
16.742 FASTENER; HEADER SHELF BOARD
DARK GRAY
8-97406-299-0
02
1
0907-
344
16.450 BOLT; BRKT,FRT
03.604 M6X12 FLANGE
8-97108-669-0
08
1
0907-
344
16.450 BOLT; BRKT,FRT
03.604 M6X12 FLANGE
8-97108-669-0
08
1
0907-
354
16.120 TRAY; HEADER ROOF
DARK GRAY
8-97408-060-2
01
1
0907-
354
16.120 TRAY; HEADER ROOF
DARK GRAY
8-97408-061-2
01
1
0907-
355
16.742 SCREW; TRAY
16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
0907-
355
16.742 SCREW; TRAY
16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
04
1
0907-
356
16.742 BRACKET; ROOF OUTER
(E)
8-98036-022-4
01
1
0907-
356
16.742 BRACKET; ROOF OUTER
(A)
8-98036-023-4
01
1
0907-
356
16.742 BRACKET; ROOF OUTER
(C)
8-97386-874-1
01
1
0907-
356
16.742 BRACKET; ROOF OUTER
(C)
8-97386-874-1
01
1
0907-
356
16.742 BRACKET; ROOF OUTER
(B)
8-97585-576-4
01
1
0907-
356
16.742 BRACKET; ROOF OUTER
(B)
8-97585-576-4
01
1
0907-
356
16.742 BRACKET; ROOF OUTER
(D)
8-97585-577-1
01
1
0907-
356
16.742 BRACKET; ROOF OUTER
(D)
8-97585-577-1
01
1
0907-
359
16.070 HOLDER; HEADER TRAY
8-98041-754-0
02
1
0907-
359
16.070 HOLDER; HEADER TRAY
8-98041-754-0
02
1
0907-
26
26
34
34
23
23
76
76
71
71
55
39
39
53
53
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
16.070 SUN VISOR
DARK GRAY
8-97405-170-3
01
1
0907-
23
16.070 SUN VISOR
DARK GRAY
8-97413-097-1
01
1
0907-
26
16.070 HOLDER; SUN VISOR
DARK GRAY
8-97405-171-0
01
1
0907-
26
16.070 HOLDER; SUN VISOR
DARK GRAY
8-97405-171-0
01
1
0907-
34
16.070 SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
0907-
34
16.070 SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
0907-
39
16.450 HANDLE; ASSIST,A-POST
DARK GRAY
8-97405-249-2
02
1
0907-
51
16.570 HOOK; COAT HANGER
DARK GRAY
8-97405-302-1
01
1
0907-
53
16.450 SCREW; ASSIST HANDLE
M6X28
8-98004-344-0
04
1
0907-
55
16.450 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY
8-97405-285-2
01
1
0907-
71
16.450 SCREW
M6X28
8-98004-344-0
02
1
0907-
76
16.742 SPACER; ASSIST GRIP
DARK GRAY
8-97405-286-0
02
1
0907-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
