◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51259 - NPR CNG-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#76820) — 156 parça

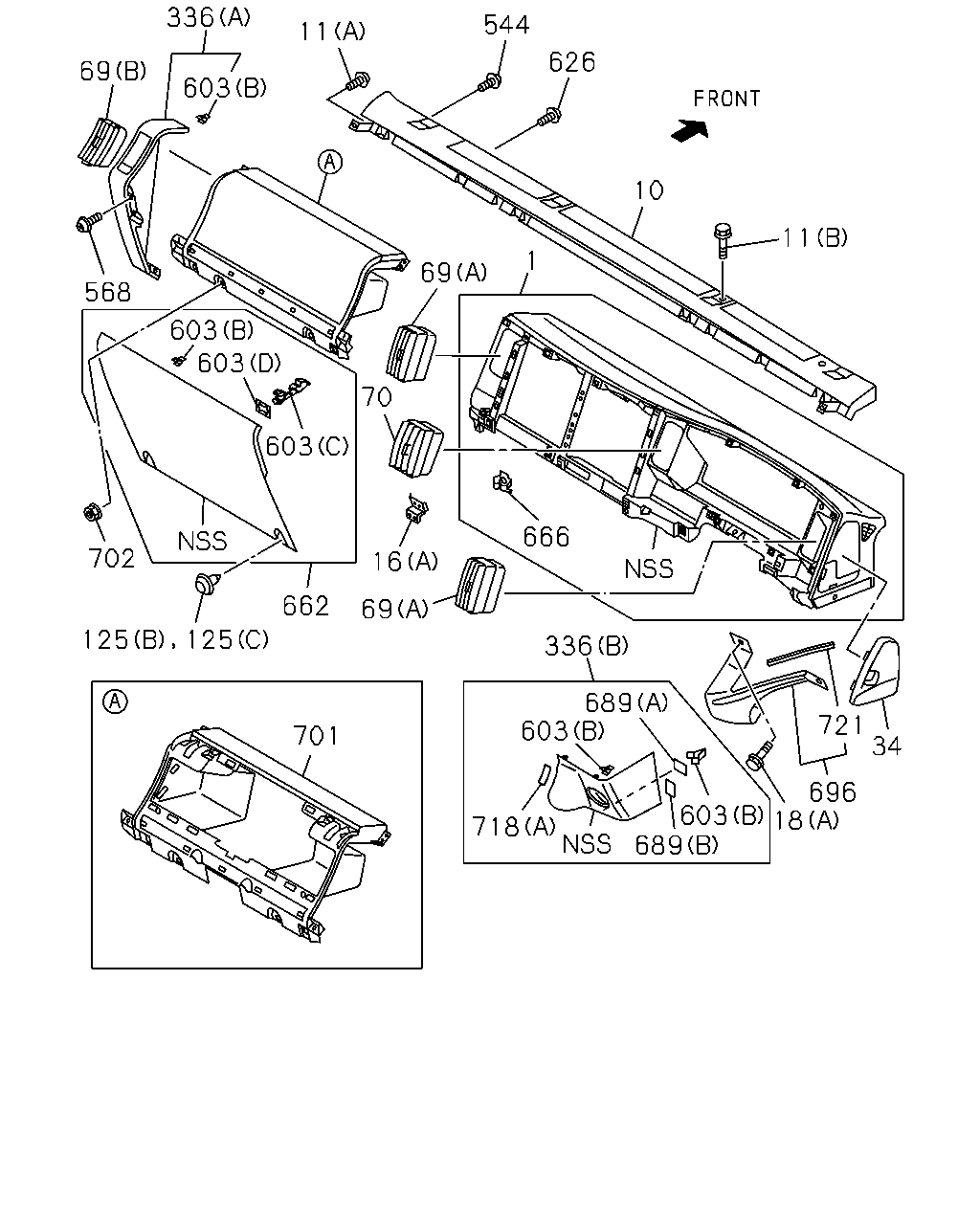

çizim 132939
336 603 69 11 544 10 626 11 69 1 568 603 603 702 125 125 701 662 69 666 16 336 689 603 718 689 18 721 34 70 603 603 696
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 0907-
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97405-265-4 01 1 0907-1003
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1004-
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0907-1101
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0907-
16 16.085 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 0907-
16 16.085 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0907-
16 16.085 BRACKET; INST PNL
(D) 		8-98034-799-6 01 1 0907-
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0907-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0907-1101
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0907-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0907-
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 0907-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0907-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0907-
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0907-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1002-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0907-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0907-0909
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0907-0909
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1002-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 0907-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 0907-
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0907-1101
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0907-1101
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1002-
603 16.090 CLIP; COVER
(C) 		8-98152-030-0 02 1 1002-
603 16.090 CLIP; COVER
(D) 		8-98152-031-0 02 1 1002-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0907-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0907-1001
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0907-1001
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1002-
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0907-
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-1 01 1 0907-1001
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97418-533-2 01 1 1002-
666 16.085 INSERT; INST PANEL 8-98037-629-0 02 1 0907-1003
666 16.085 INSERT; INST PANEL 8-98037-629-0 15 1 0907-
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 0907-
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 0907-
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 0907-1211
696 16.085 BRACKET; KNEE 8-98199-366-0 01 1 1212-
701 16.100 TRAY; INST
GRAY 		8-97416-908-2 01 1 0907-
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0907-
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206-
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110-
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110-
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0907-
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0907-1211
721 16.650 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212-

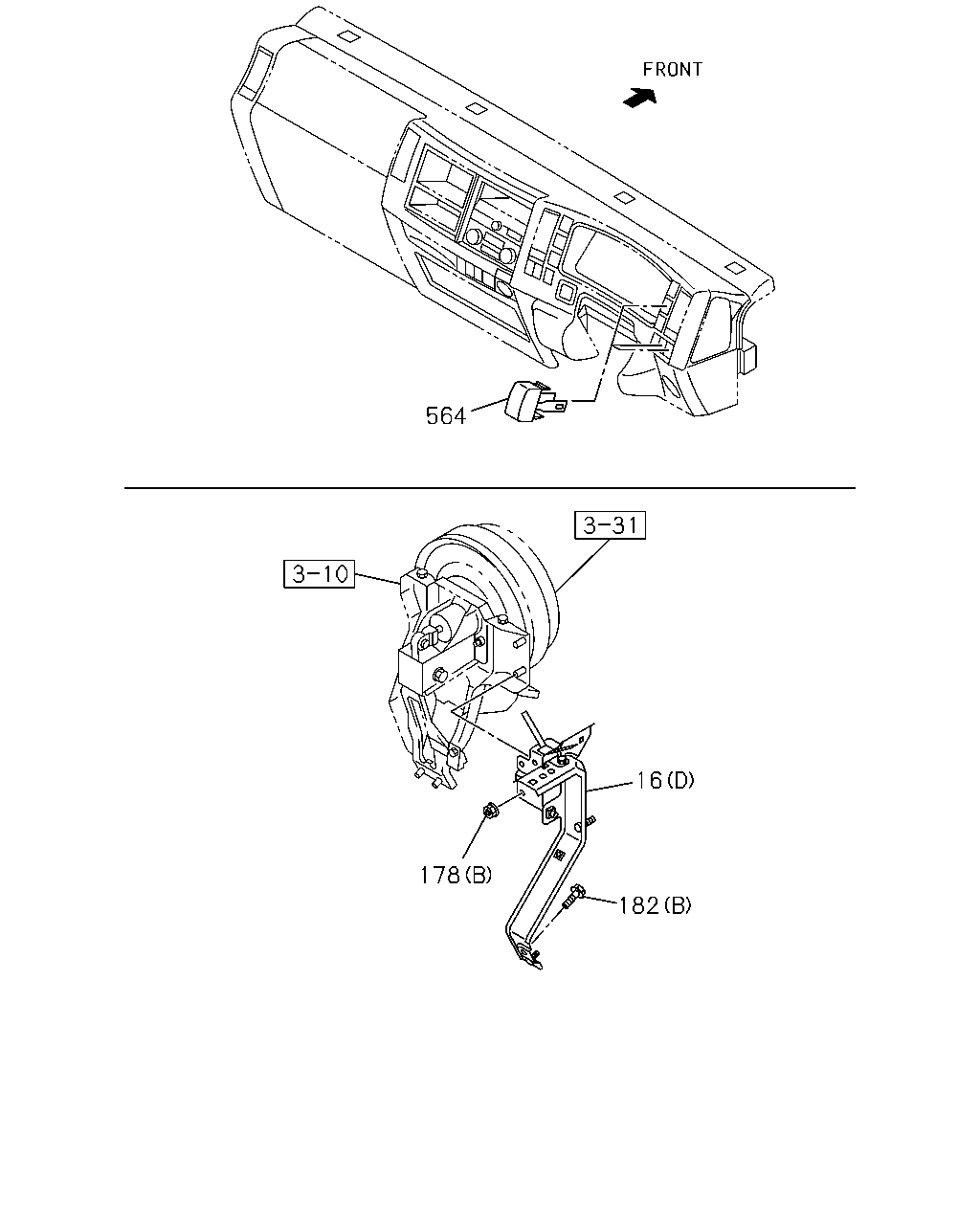

çizim 186836
564 16 178 182
BalonParca AdiParca NoAdetTipApplied Date
16 16.085 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 0907-
16 16.085 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0907-
16 16.085 BRACKET; INST PNL
(D) 		8-98034-799-6 01 1 0907-
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0907-
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0907-
178 16.085 NUT; INST PANEL
00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0907-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0907-1101
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0907-
182 16.085 BOLT; BRKT,INST PANEL
16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0907-1101
182 16.085 BOLT; BRKT,INST PANEL
16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0907-
564 16.081 COVER; SW 8-98025-954-1 03 1 0907-

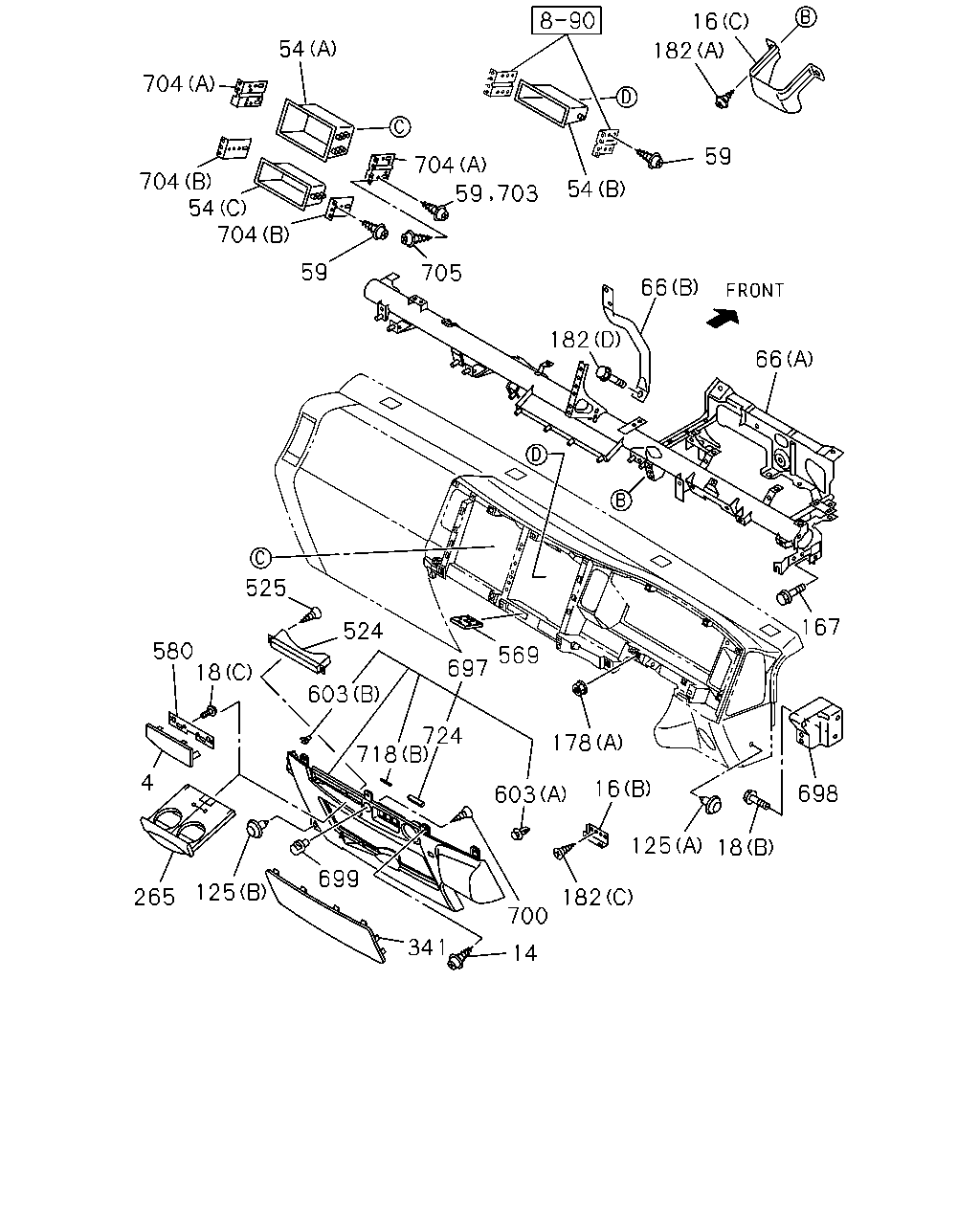

çizim 186840
14 700 341 699 125 265 4 18 580 603 525 524 697 178 603 718 125 182 18 698 167 66 66 182 705 59 704 54 704 704 54 704 59 703 54 59 182 16 569 724 16
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0907-
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0907-1101
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
16 16.085 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 0907-
16 16.085 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0907-
16 16.085 BRACKET; INST PNL
(D) 		8-98034-799-6 01 1 0907-
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0907-
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0907-1101
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0907-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0907-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0907-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0907-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0907-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0907-
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 0907-
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98124-678-2 01 1 0907-1204
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98199-359-1 01 1 1205-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1002-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0907-
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97418-529-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0907-0909
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0907-0909
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0910-0911
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 0912-1001
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1002-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0907-
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0907-
178 16.085 NUT; INST PANEL
00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0907-
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0907-1101
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0907-
182 16.085 BOLT; BRKT,INST PANEL
16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0907-1101
182 16.085 BOLT; BRKT,INST PANEL
16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212
182 16.085 BOLT; BRKT,INST PANEL
16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0907-
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0907-0909
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910-
341 16.110 LID; FUSE BOX
02.483 GRAY 		8-97406-265-3 01 1 0907-1205
341 16.110 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206-
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0907-
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0907-1101
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 0907-
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0907-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1002-
603 16.090 CLIP; COVER
(C) 		8-98152-030-0 02 1 1002-
603 16.090 CLIP; COVER
(D) 		8-98152-031-0 02 1 1002-
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 0907-
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0907-1001
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 0907-1001
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1002-
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 0907-1205
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206-
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0907-
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0907-
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0907-
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0907-1101
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0907-
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0907-
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0907-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1101
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0907-1101
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206-
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110-
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110-
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 0907-
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
