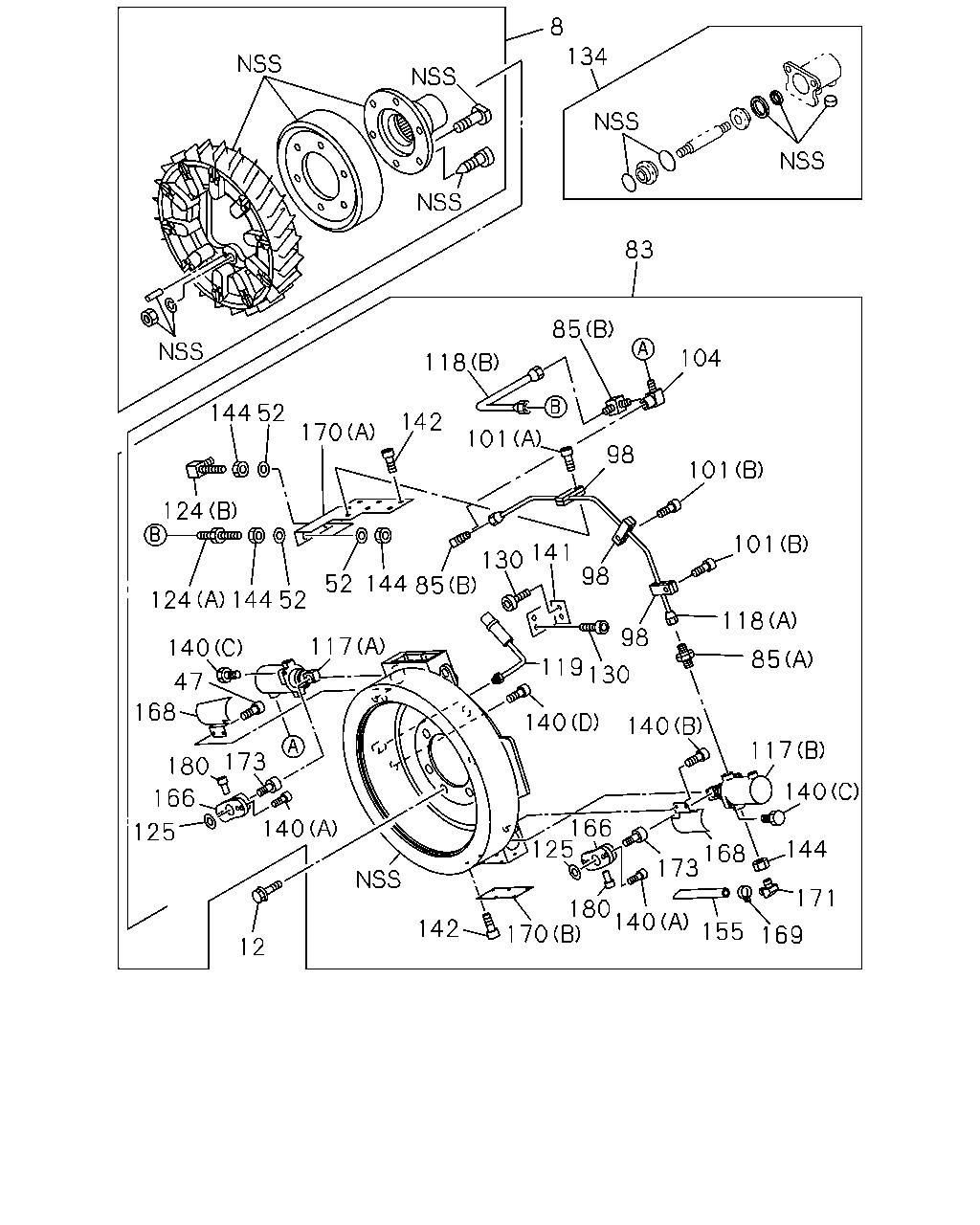

3-08B — PARKING BRAKE (#7682) — 84 parça

8 134 83 85 104 118 142 170 101 98 101 124 101 141 130 98 52 124 118 98 117 140 85 119 130 47 168 140 140 117 173 180 140 166 166 125 140 125 144 168 173 171 180 140 170 142 155 169 12 144 85 144 52 144 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	FLANGE; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-267-0	01	1	9902-9906	●	●
8	FLANGE; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-267-0	01	1	9907-	●	●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> M12X35 FLANGE	0-28791-235-0	08	1	9902-9906	●	●
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2> M12X35 FLANGE	0-28791-235-0	08	1	9907-	●	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	9902-9906	●	●
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	02	1	9907-	●	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=12.5 OD=26	9-09160-612-0	04	1	9902-9906	●	●
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=12.5 OD=26	9-09160-612-0	04	1	9907-	●	●	●
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46200-237-3	01	1	9902-9906	●	●
83	RETARDER ASM; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46200-237-4	01	1	9907-	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8	9-09221-806-1	01	1	9902-9906	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/8	9-09221-806-1	01	1	9907-	●	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	9-09224-306-2	02	1	9902-9906	●	●
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	9-09224-306-2	02	1	9907-	●	●	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2>	1-48629-209-0	06	1	9902-9906	●	●
98	CLIP; AIR PIPE BRAKE SYSTEM RETARDER<RE2>	1-48629-209-0	06	1	9907-	●	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M6X18	1-48629-134-0	02	1	9902-9906	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (B) M6X18	1-48629-134-0	02	1	9907-	●	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (A) M6X25	1-48629-239-0	01	1	9902-9906	●	●
101	BOLT; CLIP BRAKE SYSTEM RETARDER<RE2> (A) M6X25	1-48629-239-0	01	1	9907-	●	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-236-0	01	1	9902-9906	●	●
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-236-0	01	1	9907-	●	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-193-0	01	1	9902-9906	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-193-0	01	1	9907-	●	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-231-0	01	1	9902-9906	●	●
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-231-0	01	1	9907-	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-234-0	01	1	9902-9906	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-234-0	01	1	9907-	●	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-235-0	01	1	9902-9906	●	●
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-235-0	01	1	9907-	●	●	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	9902-9906	●	●
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	9907-	●	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) M12 2WAY	1-09654-257-1	01	1	9902-9906	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) M12 2WAY	1-09654-257-1	01	1	9907-	●	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-296-0	01	1	9902-9906	●	●
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-296-0	01	1	9907-	●	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2>	1-48629-206-0	02	1	9902-9906	●	●
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2>	1-48629-206-0	02	1	9907-	●	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	04	1	9902-9906	●	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	04	1	9907-	●	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2>	1-48629-218-0	02	1	9902-9906	●	●
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2>	1-48629-218-0	02	1	9907-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M10X20	1-48629-070-0	08	1	9902-9906	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M10X20	1-48629-070-0	08	1	9907-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M6X14 HEX SOCKET	1-48629-145-0	02	1	9902-9906	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M6X14 HEX SOCKET	1-48629-145-0	02	1	9907-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-170-0	04	1	9902-9906	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-170-0	04	1	9907-	●	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D) M8X12	1-48629-205-0	02	1	9902-9906	●	●
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D) M8X12	1-48629-205-0	02	1	9907-	●	●	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-233-0	01	1	9902-9906	●	●
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-233-0	01	1	9907-	●	●	●
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	12	1	9902-9906	●	●
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	12	1	9907-	●	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	05	1	9902-9906	●	●
144	NUT BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	05	1	9907-	●	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2>	1-48629-092-0	01	1	9902-9906	●	●
155	TUBE BRAKE SYSTEM RETARDER<RE2>	1-48629-092-0	01	1	9907-	●	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-191-0	02	1	9902-9906	●	●
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-191-0	02	1	9907-	●	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	9902-9906	●	●
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	9907-	●	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2>	1-48629-126-0	01	1	9902-9906	●	●
169	CLAMP BRAKE SYSTEM RETARDER<RE2>	1-48629-126-0	01	1	9907-	●	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-196-0	01	1	9902-9906	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-196-0	01	1	9907-	●	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-232-0	01	1	9902-9906	●	●
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-232-0	01	1	9907-	●	●	●
171	BREATHER BRAKE SYSTEM RETARDER<RE2>	1-48629-144-0	01	1	9902-9906	●	●
171	BREATHER BRAKE SYSTEM RETARDER<RE2>	1-48629-144-0	01	1	9907-	●	●	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	9902-9906	●	●
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	9907-	●	●	●
180	PIN; RETAINING BRAKE SYSTEM RETARDER<RE2>	1-48629-198-0	02	1	9902-9906	●	●
180	PIN; RETAINING BRAKE SYSTEM RETARDER<RE2>	1-48629-198-0	02	1	9907-	●	●	●

113 159 159 92 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> DUMP TRUCK<RA1>	1-09363-668-0	02	1	9905-0003	●	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> DUMP TRUCK<RA1>	1-09363-668-0	02	1	0004-	●	●	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> EXC. DUMP TRUCK<RA1> L=580	1-09363-641-0	02	1	9902-9904	●	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> EXC. DUMP TRUCK<RA1> L=510	1-09363-649-0	02	1	9905-0003	●	●
92	HOSE; FLEX,RETARDER SHORT CHASSIS&LHD(EXR6MC) BRAKE SYSTEM RETARDER<RE2> EXC. DUMP TRUCK<RA1> L=510	1-09363-649-0	02	1	9905-0003			●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> EXC. DUMP TRUCK<RA1> L=510	1-09363-649-0	02	1	0004-	●	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> L=140	5-09707-031-1	01	1	9902-0003	●	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> L=140	5-09707-031-1	01	1	0004-	●	●	●
159	SLEEVE BRAKE SYSTEM RETARDER<RE2> ID=32 OD=36 L=50	1-09337-023-0	02	1	9902-0003	●	●
159	SLEEVE BRAKE SYSTEM RETARDER<RE2> ID=32 OD=36 L=50	1-09337-023-0	02	1	0004-	●	●	●
