◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51259 - NPR CNG-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#76807) — 9 parça

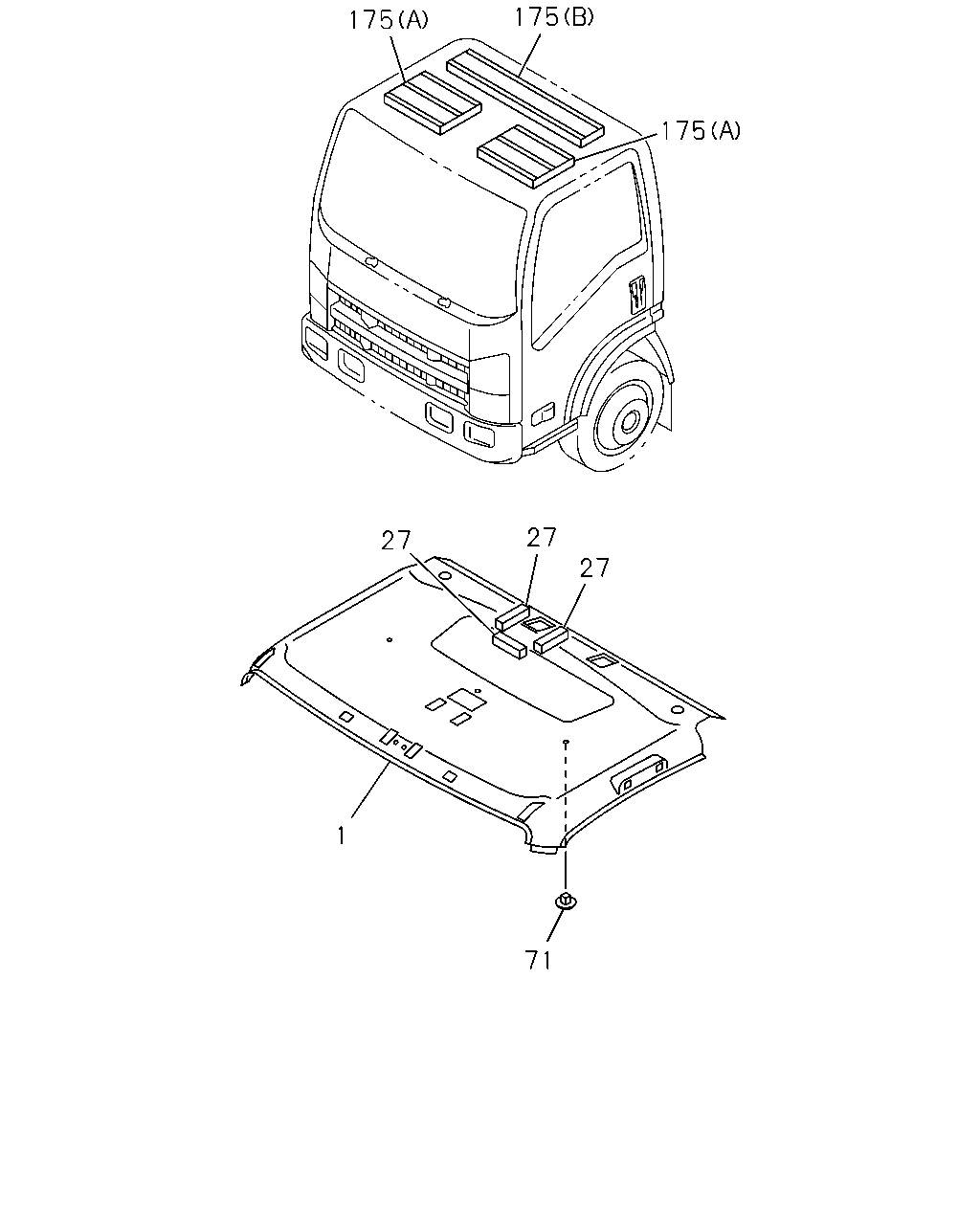

çizim 131275
175 175 175 27 27 27 1 71
BalonParca AdiParca NoAdetTipApplied Date
1 16.742 LINING; HD
FLUORESCENT LAMP<6UC> DARK GRAY 		8-97405-275-3 01 1 0907-1211
1 16.742 LINING; HD
FLUORESCENT LAMP<6UC> DARK GRAY 		8-97425-054-0 01 1 1212-
1 16.742 LINING; HD
EXC. FLUORESCENT LAMP<6UC> DARK GRAY 		8-97405-274-3 01 1 0907-1211
1 16.742 LINING; HD
EXC. FLUORESCENT LAMP<6UC> DARK GRAY 		8-97425-053-0 01 1 1212-
27 16.165 INSULATION; ROOF
FLUORESCENT LAMP<6UC> 		8-98046-638-2 03 1 0907-
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 02 1 0907-
71 16.742 FASTENER; HD LINING
D=11.6X13.6 DARK GRAY 		8-97405-301-2 04 1 0907-
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-298-3 01 1 0907-
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0907-
