Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

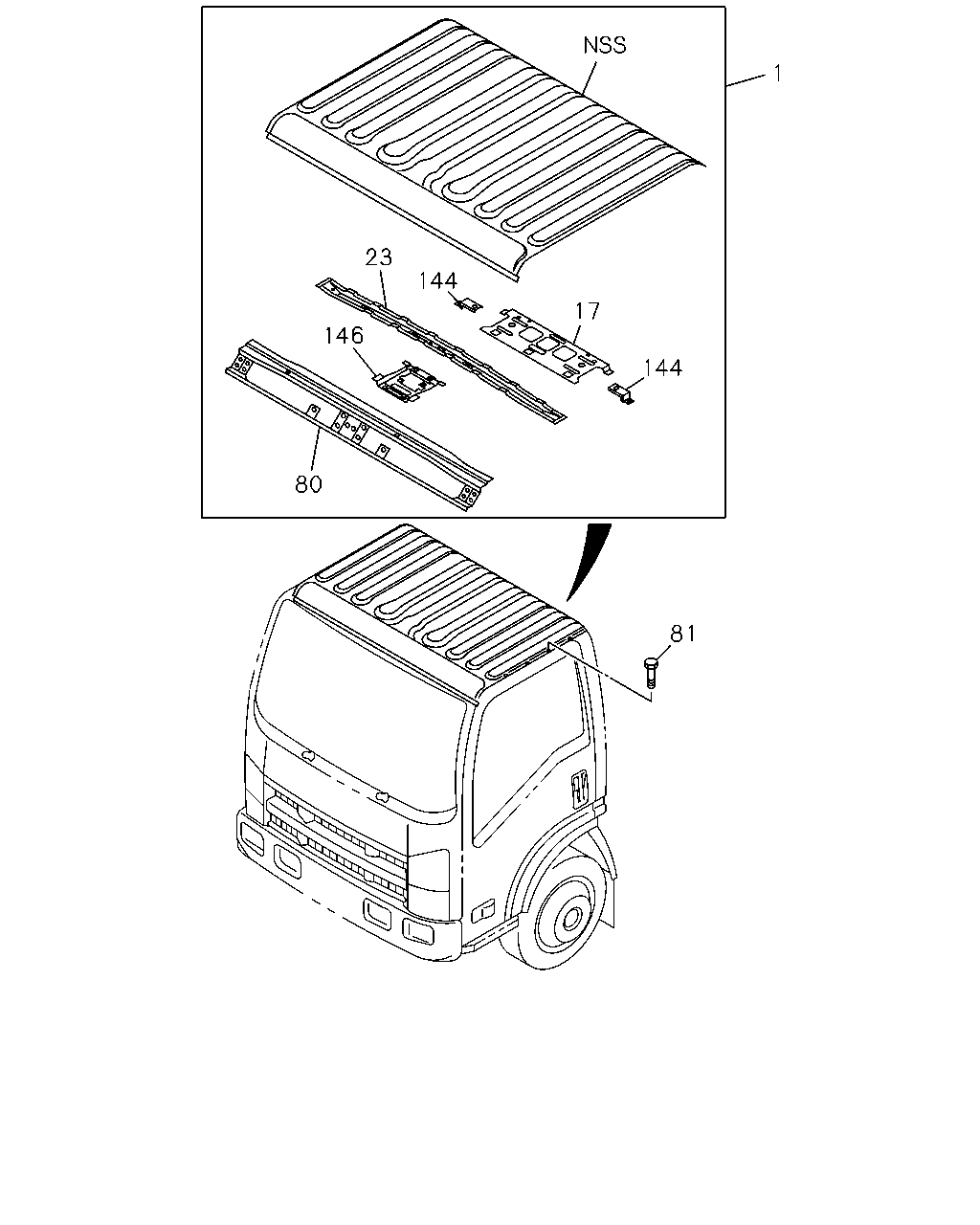

6-60 — ROOF PANEL
(#76806) — 15 parça
1
23
144
17
146
144
80
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.585 PANEL; ROOF
FLUORESCENT LAMP<6UC>
8-97584-163-8
01
1
0908-1503
1
16.585 PANEL; ROOF
FLUORESCENT LAMP<6UC>
8-98287-349-0
01
1
1504-
1
16.585 PANEL; ROOF
8-98024-941-6
01
1
0907-0907
1
16.585 PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98024-941-6
01
1
0908-1503
1
16.585 PANEL; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98287-347-0
01
1
1504-
17
16.570 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC>
8-97584-203-5
01
1
0908-
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98013-502-0
01
1
0907-1503
23
16.570 REINFORCEMENT; ROOF PANEL,FRT
8-98287-359-0
01
1
1504-
80
16.585 PANEL; HEADER,ROOF
8-97584-190-4
01
1
0907-1503
80
16.585 PANEL; HEADER,ROOF
8-98287-354-0
01
1
1504-
81
16.585 BOLT; ROOF
16.450 M8X15.5 HEXALOBULAR
8-98028-744-0
08
1
0907-0910
81
16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR
8-98141-874-0
08
1
0911-
144
16.585 BRACKET; ROOF
8-98013-931-1
02
1
0907-0907
144
16.585 BRACKET; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98013-931-1
02
1
0908-
146
16.570 REINFORCEMENT; ROOM LAMP
8-98075-827-0
01
1
0907-
