Sayfa 3-05 - Isuzu EPC

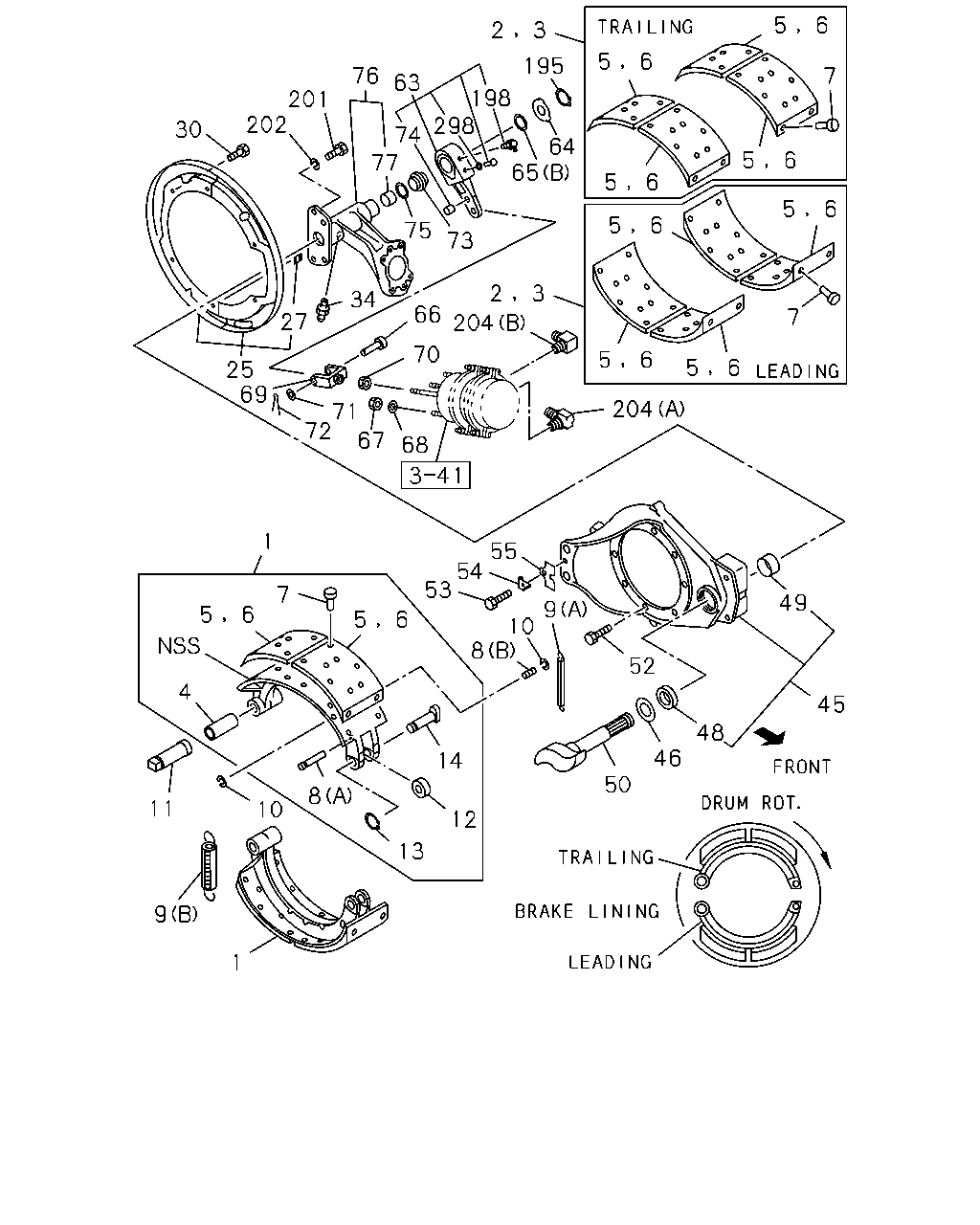

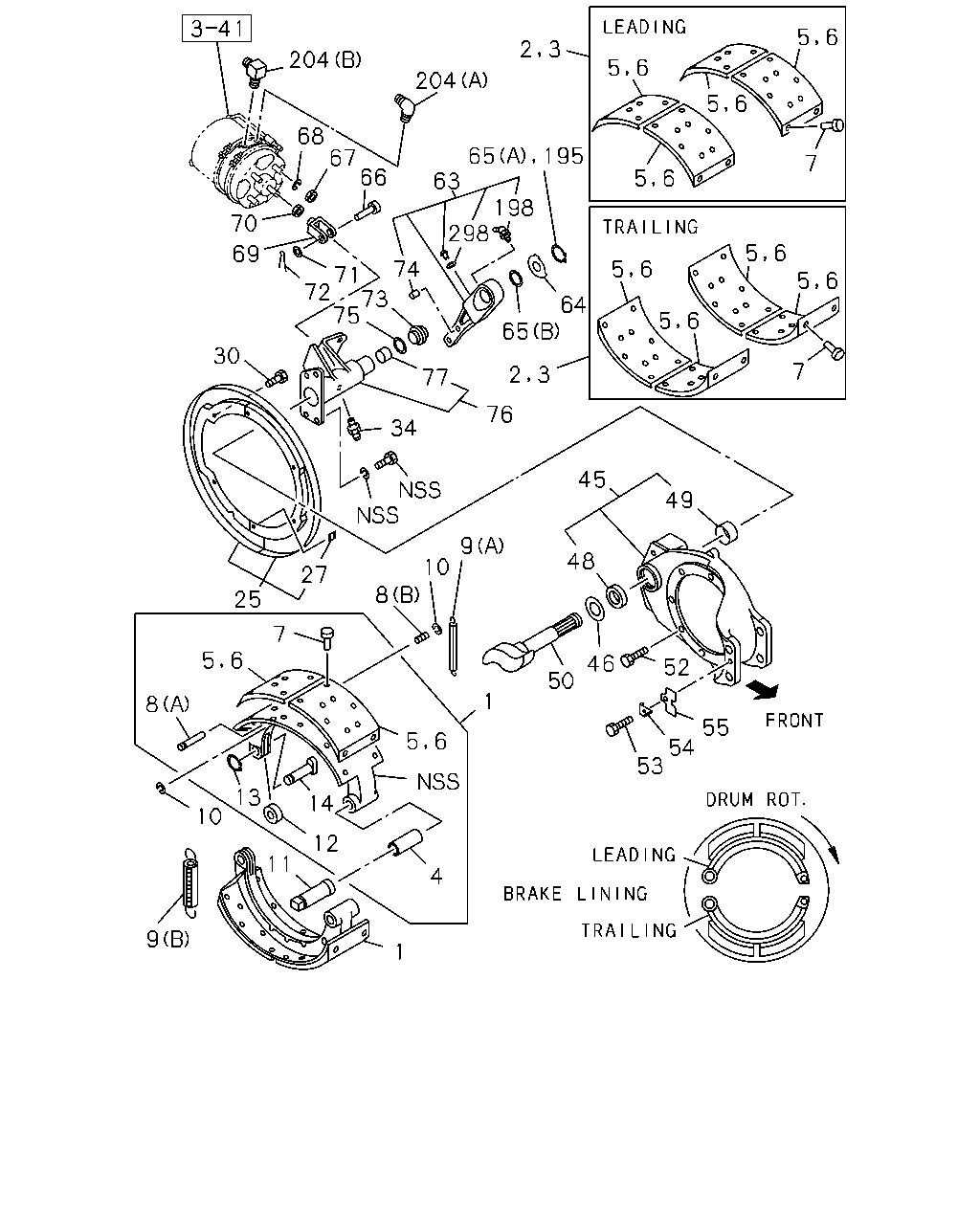

3-05 — REAR WHEEL BRAKE (#7680) — 362 parça

5 6 2 3 5 6 195 76 7 63 198 298 201 202 30 74 77 64 65 6 5 5 6 5 6 5 6 75 73 66 2 3 34 7 27 204 70 5 6 6 5 25 69 204 71 72 67 68 1 55 54 53 7 49 9 5 6 5 6 10 8 52 4 45 48 46 14 50 8 11 10 12 13 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-342-0	01	1	9902-	●
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-343-0	01	1	9902-	●
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-340-0	01	1	9902-	●
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-341-0	01	1	9902-	●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-338-0	01	1	9902-0003	●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-338-0	01	1	0004-	●
1	SHOE; BRK,RR LEADING	1-47120-338-0	01	1	0004-		●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-339-0	01	1	9902-0003	●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-339-0	01	1	0004-	●
1	SHOE; BRK,RR TRAILING	1-47120-339-0	01	1	0004-		●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-336-0	01	1	9902-0003	●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-336-0	01	1	0004-	●
1	SHOE; BRK,RR LEADING	1-47120-336-0	01	1	0004-		●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-337-0	01	1	9902-0003	●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-337-0	01	1	0004-	●
1	SHOE; BRK,RR TRAILING	1-47120-337-0	01	1	0004-		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-317-0	01	1	9902-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-319-0	01	1	9902-	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-313-0	01	1	9902-0003	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-313-0	01	1	0004-	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-313-0	01	1	0004-		●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-315-0	01	1	9902-0003	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-315-0	01	1	0004-	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-315-0	01	1	0004-		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-318-0	01	1	9902-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-320-0	01	1	9902-	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-314-0	01	1	9902-0003	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-314-0	01	1	0004-	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-314-0	01	1	0004-		●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-316-0	01	1	9902-0003	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-316-0	01	1	0004-	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-316-0	01	1	0004-		●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9902-0003	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0004-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-439-0	04	1	9902-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-440-0	04	1	9902-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-447-0	04	1	9902-	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-435-0	04	1	9902-0003	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-435-0	04	1	0004-	●
5	LINING; RR BRK SHOE,STANDARD LEADING WO/INDICATO HOLE	1-47125-435-0	04	1	0004-		●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-436-0	04	1	9902-0003	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-436-0	04	1	0004-	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-436-0	04	1	0004-		●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-445-0	04	1	9902-0003	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-445-0	04	1	0004-	●
5	LINING; RR BRK SHOE,STANDARD LEADING W/INDICATO HOLE	1-47125-445-0	04	1	0004-		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-441-0	04	1	9902-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-442-0	04	1	9902-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-448-0	04	1	9902-	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-437-0	04	1	9902-0003	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-437-0	04	1	0004-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING WO/INDICATO HOLE	1-47125-437-0	04	1	0004-		●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-438-0	04	1	9902-0003	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-438-0	04	1	0004-	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-438-0	04	1	0004-		●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-446-0	04	1	9902-0003	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-446-0	04	1	0004-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING W/INDICATO HOLE	1-47125-446-0	04	1	0004-		●
7	RIVET; LINING,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) L=19.5	1-09732-035-0	AR	1	9902-	●
7	RIVET; LINING,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=18.5	1-09732-034-0	AR	1	0004-	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0004-		●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9902-0003	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0004-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09744-074-0	04	1	9902-	●
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-47119-021-0	04	1	9902-0003	●
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-47119-021-0	04	1	0004-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0004-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-09583-210-0	02	1	9902-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09583-277-2	02	1	9902-	●
9	SPRING; RETURN,BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09583-175-0	02	1	9902-0003	●
9	SPRING; RETURN,BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09583-175-0	02	1	0004-	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0004-		●
9	SPRING; RETURN,BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-09583-196-0	02	1	9902-0003	●
9	SPRING; RETURN,BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-09583-196-0	02	1	0004-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0004-		●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9902-0003	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0004-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9902-0003	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0004-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9902-0003	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0004-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9902-0003	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0004-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9902-0003	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0004-	●	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM HEAVY DUTY(J55)	1-47151-487-1	02	1	9902-	●
25	COVER SET; RR BRK DRUM EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47151-462-1	02	1	9902-0003	●
25	COVER SET; RR BRK DRUM EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47151-462-1	02	1	0004-	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0004-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9902-0003	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0004-	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9902-0003	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0004-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	9902-0003	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	0004-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING ANTILOCK BRAKE SYSTEM(BFA)	1-47137-269-0	01	1	9905-	●
45	BRACKET; ANCHOR PIN,W/BUSHING ANTILOCK BRAKE SYSTEM(BFA)	1-47137-270-0	01	1	9905-	●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47137-120-2	02	1	9902-0003	●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47137-120-2	02	1	0004-	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	0004-		●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9902-0003	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0004-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9902-0003	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0004-	●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	9902-0003	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	0004-	●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-095-0	01	1	9902-	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-094-0	01	1	9902-	●
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-054-0	01	1	9902-0003	●
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-054-0	01	1	0004-	●
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	01	1	0004-		●
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-053-0	01	1	9902-0003	●
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-053-0	01	1	0004-	●
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	01	1	0004-		●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9902-0003	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0004-	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9902-0003	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0004-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9902-0003	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0004-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9902-0003	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0004-	●	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-046-0	01	1	9902-0003	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-046-0	01	1	0004-	●	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-045-0	01	1	9902-0003	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-045-0	01	1	0004-	●	●
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	9902-0003	●
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	0004-	●	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9902-0003	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0004-	●	●
65	SPACER; SLACK ADJ,BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	9-09180-038-0	01	1	9902-0003	●
65	SPACER; SLACK ADJ,BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	9-09180-038-0	01	1	0004-	●
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	0004-		●
66	PIN; JAW JOINT	1-09744-088-0	02	1	9902-0003	●
66	PIN; JAW JOINT	1-09744-088-0	02	1	0004-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9902-0003	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0004-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9902-0003	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0004-	●	●
69	JOINT; JAW	1-09768-060-0	02	1	9902-0003	●
69	JOINT; JAW	1-09768-060-1	02	1	0004-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9902-0003	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0004-	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9902-0003	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0004-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9902-0003	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0004-	●	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9902-0003	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0004-	●	●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9902-0003	●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0004-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9902-0003	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0004-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-141-0	01	1	9902-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-140-0	01	1	9902-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-084-0	01	1	9902-0003	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-084-0	01	1	0004-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-084-0	01	1	0004-		●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-083-0	01	1	9902-0003	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-083-0	01	1	0004-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-083-0	01	1	0004-		●
77	BUSHING	1-47146-003-1	02	1	9902-0003	●
77	BUSHING	1-47146-003-1	02	1	0004-	●	●
195	RING; SNAP,CM/SHF BRAKE SYSTEM HEAVY DUTY(J55)	9-09180-038-0	02	1	9902-	●
195	RING; SNAP,CM/SHF EXC. BRAKE SYSTEM HEAVY DUTY(J55)	9-09180-038-0	01	1	9902-0003	●
195	RING; SNAP,CM/SHF EXC. BRAKE SYSTEM HEAVY DUTY(J55)	9-09180-038-0	01	1	0004-	●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0004-		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9902-0003	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0004-	●	●
201	BOLT; BRKT,POWER CHAMBER BRAKE SYSTEM HEAVY DUTY(J55) M14X35	0-20801-435-0	08	1	9902-	●
202	WASHER; LK,BRKT BRAKE SYSTEM HEAVY DUTY(J55) ID=14.2	9-09150-514-0	08	1	9902-	●
204	CONNECTOR; SPR CHAMBER (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9902-9904	●
204	CONNECTOR; SPR CHAMBER EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9905-9906	●
204	CONNECTOR; SPR CHAMBER (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9907-0003	●
204	CONNECTOR; SPR CHAMBER (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0004-	●	●
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM RETARDER<RE2> (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9902-0003	●
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM RETARDER<RE2> (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0004-	●	●
204	CONNECTOR; SPR CHAMBER EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9902-9904	●
204	CONNECTOR; SPR CHAMBER EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9905-0003	●
204	CONNECTOR; SPR CHAMBER EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0004-	●	●
298	GASKET ID=23.3	9-09561-223-0	02	1	9902-0003	●
298	GASKET ID=23.3	9-09561-223-0	02	1	0004-	●	●

204 204 68 67 66 65 63 195 7 198 298 70 69 71 72 73 75 74 64 65 30 7 77 76 34 45 49 9 48 10 27 8 25 7 52 46 50 1 8 55 54 53 13 14 10 12 11 4 9 1 2 3 5 6 5 6 5 6 5 6 5 6 5 6 5 6 2 3 5 6 5 6 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-342-0	01	1	9902-	●
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-343-0	01	1	9902-	●
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-340-0	01	1	9902-	●
1	SHOE; BRK,RR BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-341-0	01	1	9902-	●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-338-0	01	1	9902-0003	●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-338-0	01	1	0004-	●
1	SHOE; BRK,RR LEADING	1-47120-338-0	01	1	0004-		●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-339-0	01	1	9902-0003	●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-339-0	01	1	0004-	●
1	SHOE; BRK,RR TRAILING	1-47120-339-0	01	1	0004-		●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-336-0	01	1	9902-0003	●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-47120-336-0	01	1	0004-	●
1	SHOE; BRK,RR LEADING	1-47120-336-0	01	1	0004-		●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-337-0	01	1	9902-0003	●
1	SHOE; BRK,RR EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47120-337-0	01	1	0004-	●
1	SHOE; BRK,RR TRAILING	1-47120-337-0	01	1	0004-		●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-317-0	01	1	9902-	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-319-0	01	1	9902-	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-313-0	01	1	9902-0003	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-313-0	01	1	0004-	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88310-313-0	01	1	0004-		●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-315-0	01	1	9902-0003	●
2	LINING SET; RR BRK,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-315-0	01	1	0004-	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88310-315-0	01	1	0004-		●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-318-0	01	1	9902-	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-320-0	01	1	9902-	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-314-0	01	1	9902-0003	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING	1-88310-314-0	01	1	0004-	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88310-314-0	01	1	0004-		●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-316-0	01	1	9902-0003	●
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-88310-316-0	01	1	0004-	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88310-316-0	01	1	0004-		●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9902-0003	●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0004-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-439-0	04	1	9902-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-440-0	04	1	9902-	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-447-0	04	1	9902-	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-435-0	04	1	9902-0003	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-435-0	04	1	0004-	●
5	LINING; RR BRK SHOE,STANDARD LEADING WO/INDICATO HOLE	1-47125-435-0	04	1	0004-		●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-436-0	04	1	9902-0003	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-436-0	04	1	0004-	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47125-436-0	04	1	0004-		●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-445-0	04	1	9902-0003	●
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-445-0	04	1	0004-	●
5	LINING; RR BRK SHOE,STANDARD LEADING W/INDICATO HOLE	1-47125-445-0	04	1	0004-		●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-441-0	04	1	9902-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-442-0	04	1	9902-	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-448-0	04	1	9902-	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-437-0	04	1	9902-0003	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING WO/INDICATO HOLE	1-47125-437-0	04	1	0004-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING WO/INDICATO HOLE	1-47125-437-0	04	1	0004-		●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-438-0	04	1	9902-0003	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) TRAILING	1-47125-438-0	04	1	0004-	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47125-438-0	04	1	0004-		●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-446-0	04	1	9902-0003	●
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM HEAVY DUTY(J55) LEADING W/INDICATO HOLE	1-47125-446-0	04	1	0004-	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING W/INDICATO HOLE	1-47125-446-0	04	1	0004-		●
7	RIVET; LINING,RR BRK BRAKE SYSTEM HEAVY DUTY(J55) L=19.5	1-09732-035-0	AR	1	9902-	●
7	RIVET; LINING,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=18.5	1-09732-034-0	AR	1	0004-	●
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0004-		●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9902-0003	●
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	0004-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09744-074-0	04	1	9902-	●
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-47119-021-0	04	1	9902-0003	●
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-47119-021-0	04	1	0004-	●
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	0004-		●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-09583-210-0	02	1	9902-	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09583-277-2	02	1	9902-	●
9	SPRING; RETURN,BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09583-175-0	02	1	9902-0003	●
9	SPRING; RETURN,BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (B)	1-09583-175-0	02	1	0004-	●
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	0004-		●
9	SPRING; RETURN,BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-09583-196-0	02	1	9902-0003	●
9	SPRING; RETURN,BRK SHOE EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	1-09583-196-0	02	1	0004-	●
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	0004-		●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9902-0003	●
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	0004-	●	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9902-0003	●
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0004-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9902-0003	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0004-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9902-0003	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0004-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9902-0003	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0004-	●	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM HEAVY DUTY(J55)	1-47151-487-1	02	1	9902-	●
25	COVER SET; RR BRK DRUM EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47151-462-1	02	1	9902-0003	●
25	COVER SET; RR BRK DRUM EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47151-462-1	02	1	0004-	●
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0004-		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9902-0003	●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0004-	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9902-0003	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	0004-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	9902-0003	●
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	0004-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING ANTILOCK BRAKE SYSTEM(BFA)	1-47137-269-0	01	1	9905-	●
45	BRACKET; ANCHOR PIN,W/BUSHING ANTILOCK BRAKE SYSTEM(BFA)	1-47137-270-0	01	1	9905-	●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47137-120-2	02	1	9902-0003	●
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47137-120-2	02	1	0004-	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	0004-		●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9902-0003	●
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0004-	●	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9902-0003	●
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0004-	●	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	9902-0003	●
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	0004-	●	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-095-0	01	1	9902-	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-094-0	01	1	9902-	●
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-054-0	01	1	9902-0003	●
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-054-0	01	1	0004-	●
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	01	1	0004-		●
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-053-0	01	1	9902-0003	●
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-47141-053-0	01	1	0004-	●
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	01	1	0004-		●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9902-0003	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0004-	●	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9902-0003	●
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	0004-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9902-0003	●
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0004-	●	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9902-0003	●
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0004-	●	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-046-0	01	1	9902-0003	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-046-0	01	1	0004-	●	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-045-0	01	1	9902-0003	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-045-0	01	1	0004-	●	●
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	9902-0003	●
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	0004-	●	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9902-0003	●
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	0004-	●	●
65	SPACER; SLACK ADJ,BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	9-09180-038-0	01	1	9902-0003	●
65	SPACER; SLACK ADJ,BRK EXC. BRAKE SYSTEM HEAVY DUTY(J55) (A)	9-09180-038-0	01	1	0004-	●
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	0004-		●
66	PIN; JAW JOINT	1-09744-088-0	02	1	9902-0003	●
66	PIN; JAW JOINT	1-09744-088-0	02	1	0004-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9902-0003	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	0004-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9902-0003	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	0004-	●	●
69	JOINT; JAW	1-09768-060-0	02	1	9902-0003	●
69	JOINT; JAW	1-09768-060-1	02	1	0004-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9902-0003	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0004-	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9902-0003	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0004-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9902-0003	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	0004-	●	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9902-0003	●
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	0004-	●	●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9902-0003	●
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	0004-	●	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9902-0003	●
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0004-	●	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-141-0	01	1	9902-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-140-0	01	1	9902-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-084-0	01	1	9902-0003	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-084-0	01	1	0004-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-084-0	01	1	0004-		●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-083-0	01	1	9902-0003	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE SYSTEM HEAVY DUTY(J55)	1-48258-083-0	01	1	0004-	●
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-083-0	01	1	0004-		●
77	BUSHING	1-47146-003-1	02	1	9902-0003	●
77	BUSHING	1-47146-003-1	02	1	0004-	●	●
195	RING; SNAP,CM/SHF BRAKE SYSTEM HEAVY DUTY(J55)	9-09180-038-0	02	1	9902-	●
195	RING; SNAP,CM/SHF EXC. BRAKE SYSTEM HEAVY DUTY(J55)	9-09180-038-0	01	1	9902-0003	●
195	RING; SNAP,CM/SHF EXC. BRAKE SYSTEM HEAVY DUTY(J55)	9-09180-038-0	01	1	0004-	●
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	0004-		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9902-0003	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0004-	●	●
204	CONNECTOR; SPR CHAMBER (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9902-9904	●
204	CONNECTOR; SPR CHAMBER EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9905-9906	●
204	CONNECTOR; SPR CHAMBER (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9907-0003	●
204	CONNECTOR; SPR CHAMBER (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	0004-	●	●
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM RETARDER<RE2> (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9902-0003	●
204	CONNECTOR; SPR CHAMBER BRAKE SYSTEM RETARDER<RE2> (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0004-	●	●
204	CONNECTOR; SPR CHAMBER EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9902-9904	●
204	CONNECTOR; SPR CHAMBER EXC. ANTILOCK BRAKE SYSTEM(BFA),BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9905-0003	●
204	CONNECTOR; SPR CHAMBER EXC. BRAKE SYSTEM RETARDER<RE2> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	0004-	●	●
298	GASKET ID=23.3	9-09561-223-0	02	1	9902-0003	●
298	GASKET ID=23.3	9-09561-223-0	02	1	0004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
