◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51259 - NPR CNG-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#76799) — 46 parça

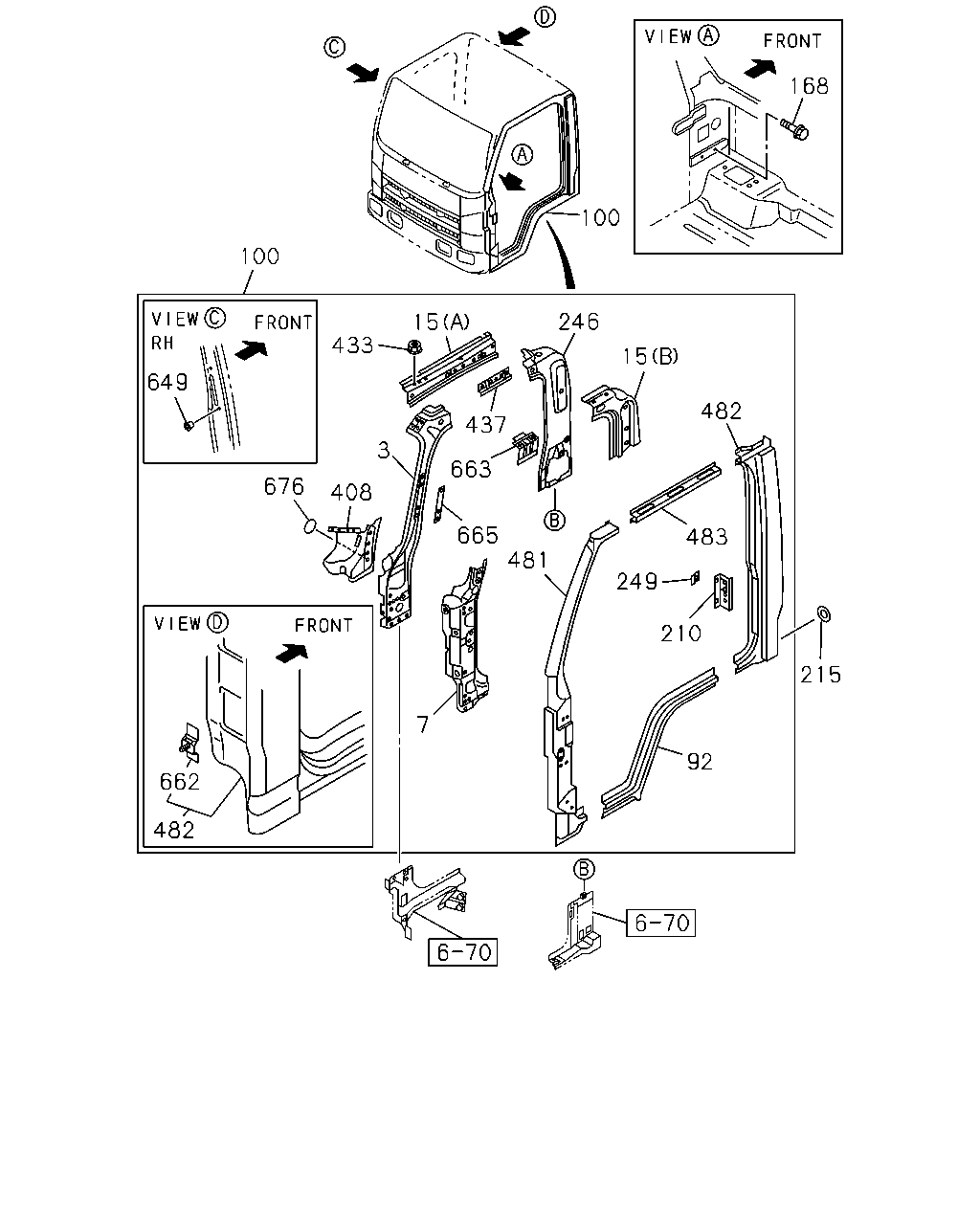

çizim 126289
168 100 100 246 15 433 15 649 482 437 3 663 676 408 665 481 483 249 210 215 7 92 662 482
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0907-
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0907-
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0907-
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0907-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 0907-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 0907-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 0907-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 0907-
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0907-
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0907-
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 0907-
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 0907-
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0907-
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 0907-
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 0907-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0907-
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 0907-
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 0907-
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0907-
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0907-
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 0907-
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 0907-
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0907-
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0907-
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 0907-
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 0907-
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 0907-
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0907-
482 16.570 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 0907-
482 16.570 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 0907-
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0907-
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0907-
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 0907-
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 0907-
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 0907-
663 08.228 BRACKET; AIR 8-97585-208-2 01 1 0907-
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0907-
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0907-
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0907-

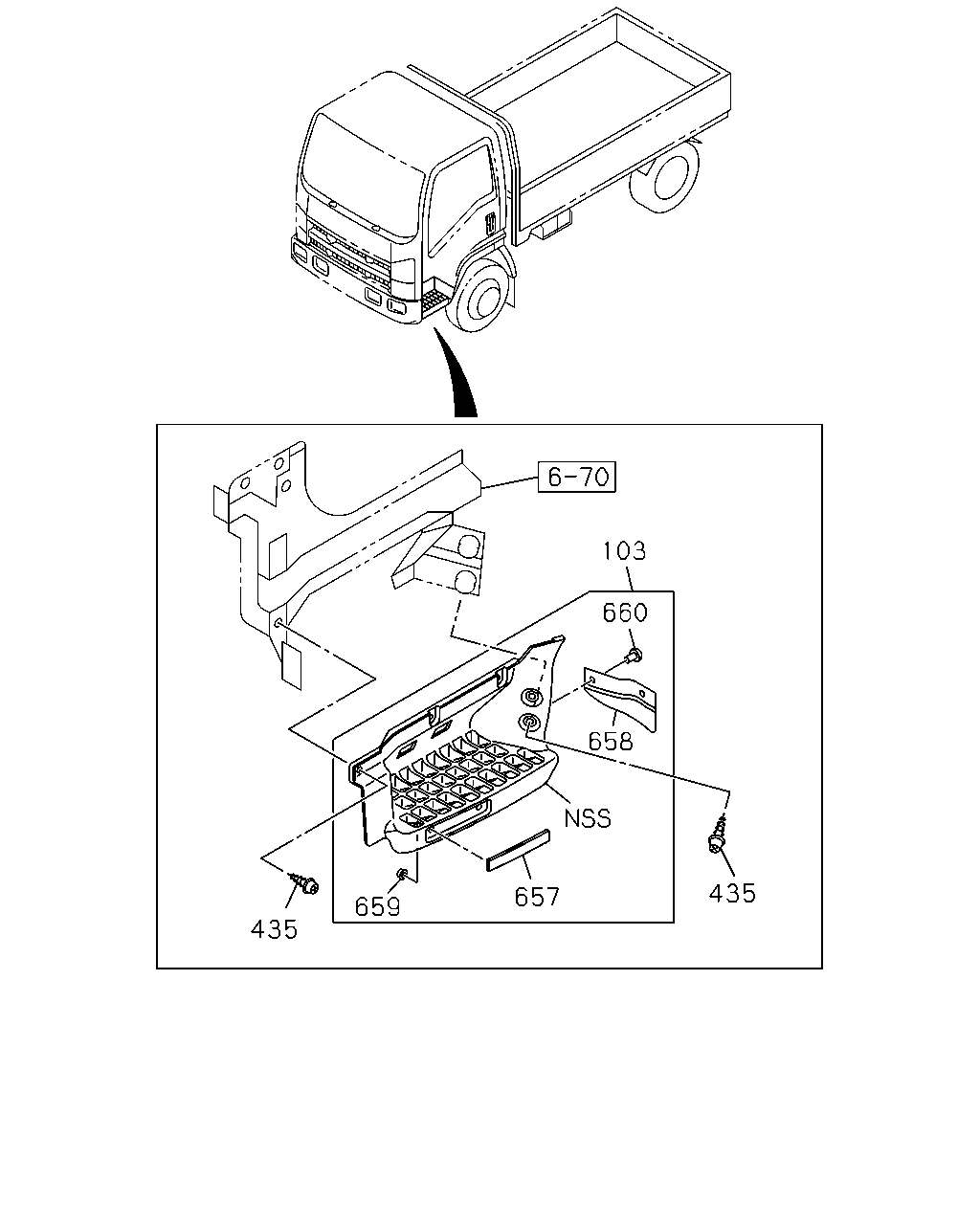

çizim 130579
103 660 658 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP 8-98022-774-3 01 1 0907-
103 08.228 PLATE; STEP 8-98022-775-3 01 1 0907-
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 0907-
657 16.585 REFLECTOR; REFLEX 8-97378-910-0 02 1 0907-
658 08.228 FLAP; STEP 8-98037-560-1 02 1 0907-
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 0907-
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 0907-
