◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51259 - NPR CNG-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#76795) — 58 parça

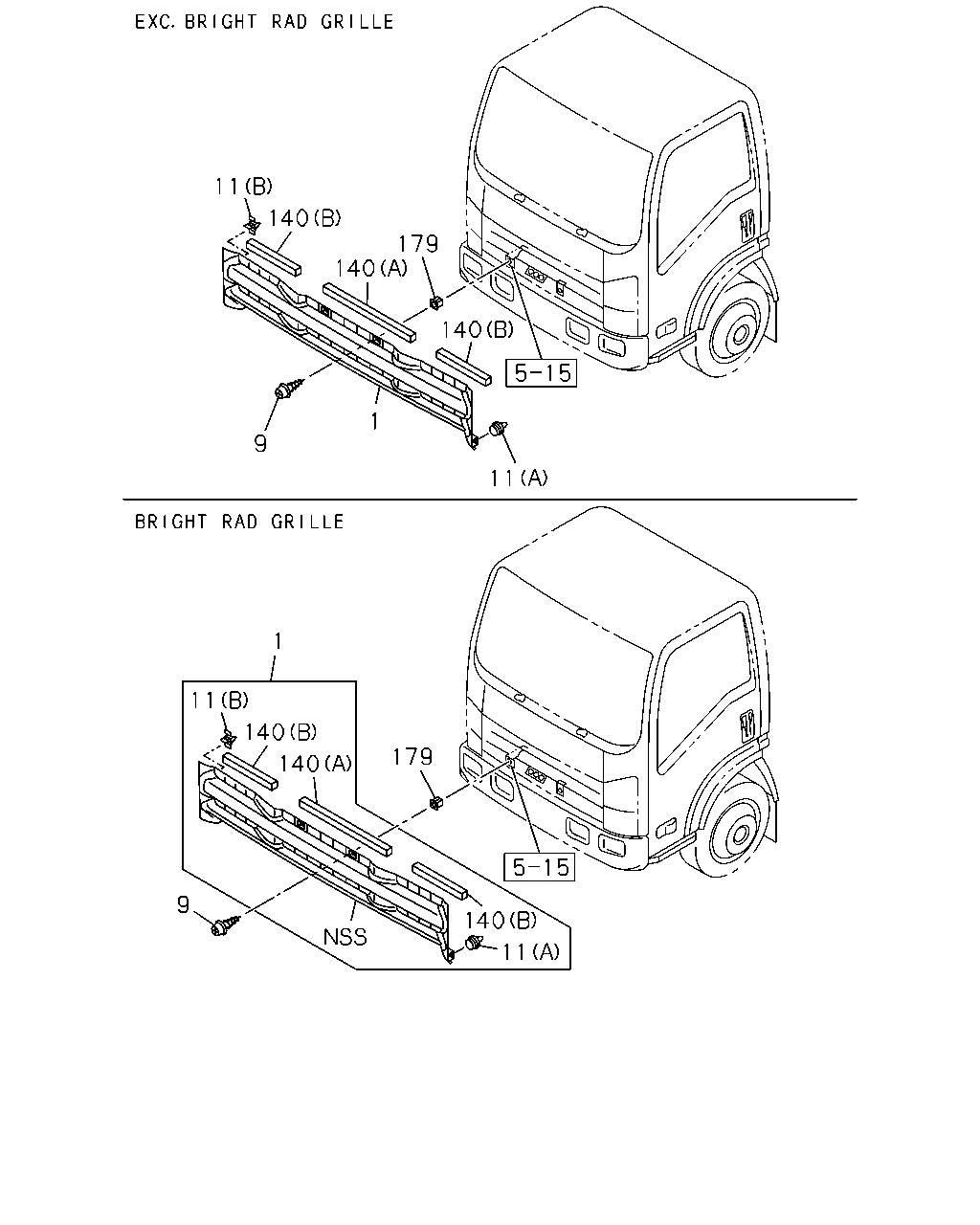

çizim 126737
11 140 179 140 140 1 11 1 11 140 179 140 9 140 11
BalonParca AdiParca NoAdetTipApplied Date
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-468-4 01 1 1002-
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98025-458-4 01 1 0907-
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. BRIGHT RAD GRILLE<V22> BLACK 		8-97408-224-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97408-224-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22> GRAY 		8-97412-394-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-394-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. BRIGHT RAD GRILLE<V22> WHITE 		8-97412-400-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-400-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) EXC. BRIGHT RAD GRILLE<V22> YELLOW 		8-97417-556-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97417-556-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR TELEMAGENTA(539) EXC. BRIGHT RAD GRILLE<V22> PINK 		8-97417-557-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR TELEMAGENTA(539) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> PINK 		8-97417-557-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. BRIGHT RAD GRILLE<V22> BEIGE 		8-97411-540-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97411-540-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22> BLUE 		8-97412-395-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-395-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22> RED 		8-97412-396-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-396-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22> BLUE 		8-97408-225-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97408-225-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22> WHITE 		8-97407-294-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-294-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22> RED 		8-97407-344-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97407-344-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22> DARK GREEN 		8-97408-226-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97408-226-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22> YELLOW 		8-97408-227-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97408-227-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22> BEIGE 		8-97412-397-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-397-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22> BLUE 		8-97412-398-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-398-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22> DARK YELLOW 		8-97412-399-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-399-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. BRIGHT RAD GRILLE<V22> GREEN 		8-97412-401-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-401-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. BRIGHT RAD GRILLE<V22> LIGHT GRAY 		8-97407-293-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-293-4 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22> BLUE 		8-97407-292-4 01 1 0907-1001
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-292-4 01 1 1002-
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 0907-
11 01.269 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0907-1001
11 01.269 CLIP; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0907-1001
11 01.269 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NONPAINT<7LB> (A) 		8-97581-651-2 02 1 1002-
11 01.269 CLIP; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> (A) 		8-97581-651-2 02 1 1002-
11 01.269 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 05 1 0907-1001
11 01.269 CLIP; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 05 1 0907-1001
11 01.269 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NONPAINT<7LB> (B) 		8-98025-698-0 05 1 1002-
11 01.269 CLIP; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> (B) 		8-98025-698-0 05 1 1002-
140 01.266 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		8-98054-280-0 01 1 0907-1001
140 01.266 SEAL; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22> (A) 		8-98054-280-0 01 1 0907-1001
140 01.266 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NONPAINT<7LB> (A) 		8-98054-280-0 01 1 1002-
140 01.266 SEAL; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> (A) 		8-98054-280-0 01 1 1002-
140 01.266 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> (B) 		8-98054-281-0 02 1 0907-1001
140 01.266 SEAL; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98054-281-0 02 1 0907-1001
140 01.266 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NONPAINT<7LB> (B) 		8-98054-281-0 02 1 1002-
140 01.266 SEAL; RAD GRILLE
EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> (B) 		8-98054-281-0 02 1 1002-
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0907-
