Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

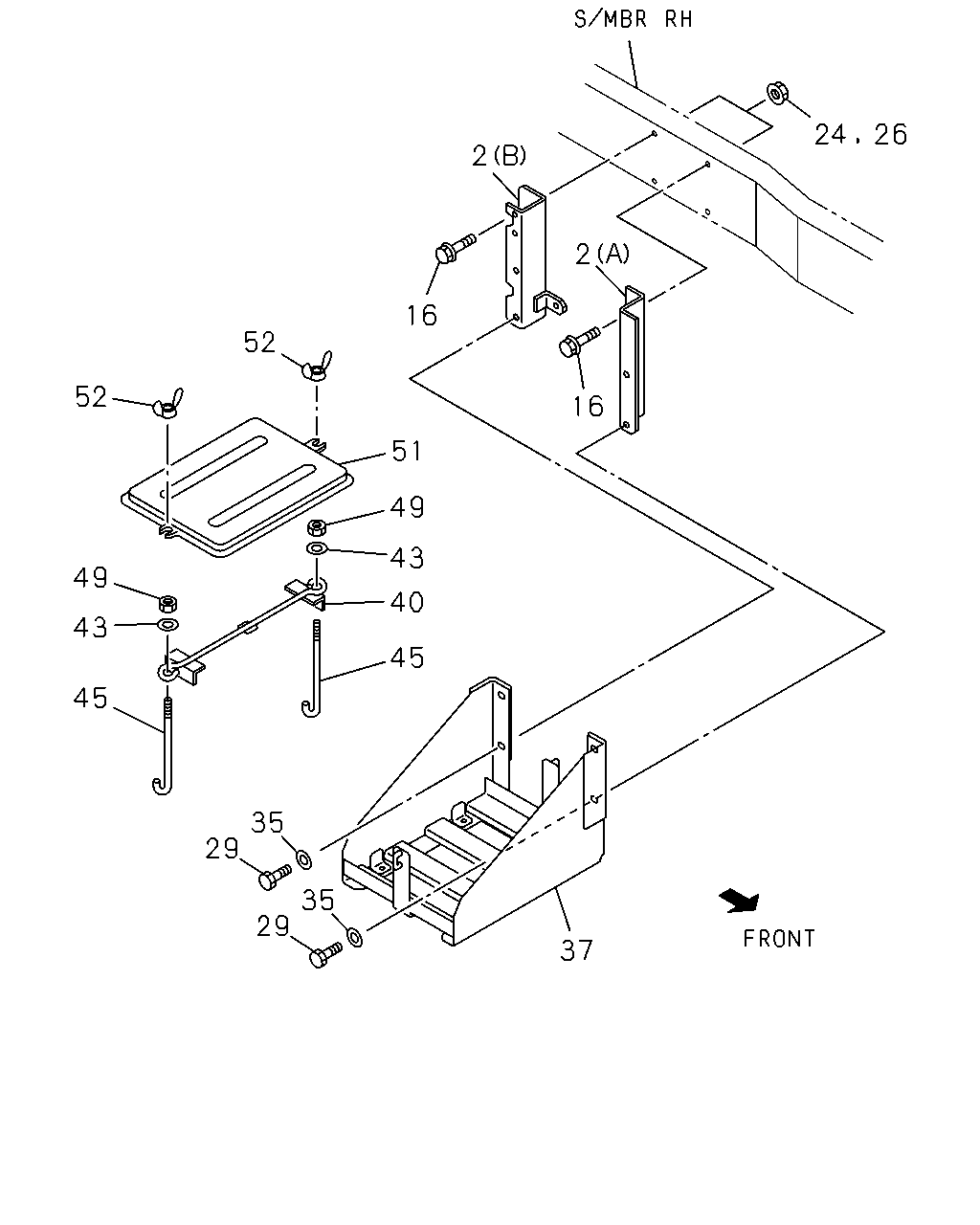

5-20 — BATTERY CARRIER
(#76792) — 14 parça
24
26
2
2
16
52
52
16
51
49
43
49
40
43
45
45
35
29
35
29
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
02.333 BRACKET; BATTERY
(A)
8-98059-439-2
01
1
0907-
2
02.333 BRACKET; BATTERY
(B)
8-98059-440-2
01
1
0907-
16
02.334 BOLT; BRKT TO FRAME
03.613 M10X40 FLANGE
0-28651-040-0
04
1
0907-
24
02.334 NUT; BRKT TO FRAME
03.162 M10 FLANGE
0-91180-110-0
02
1
1009-
26
02.334 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
02
1
0907-1008
29
02.334 BOLT; BRKT TO FRAME
03.023 M10X35 FLANGE
0-28661-035-0
04
1
0907-
35
02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0907-
37
02.333 BRACKET; BATTERY
8-97373-022-0
01
1
0907-
40
02.335 CLAMP; BATTERY
5-53615-004-1
01
1
0907-
43
02.334 WASHER; PL,CLAMP
02.277 ID=8.4 OD=22
0-91614-708-0
02
1
0907-
45
02.334 ROD; TENSION,BATTERY
9-53616-615-0
02
1
0907-
49
02.334 NUT; ROD,BATTERY
01.062 M8 FLANGE
0-91180-108-0
02
1
0907-
51
02.335 COVER; BATTERY
8-97201-920-0
01
1
0907-
52
02.335 NUT; WING,COVER FIX
M8 WING NUT
0-91118-408-0
02
1
0907-
