Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#76790) — 30 parça
◀

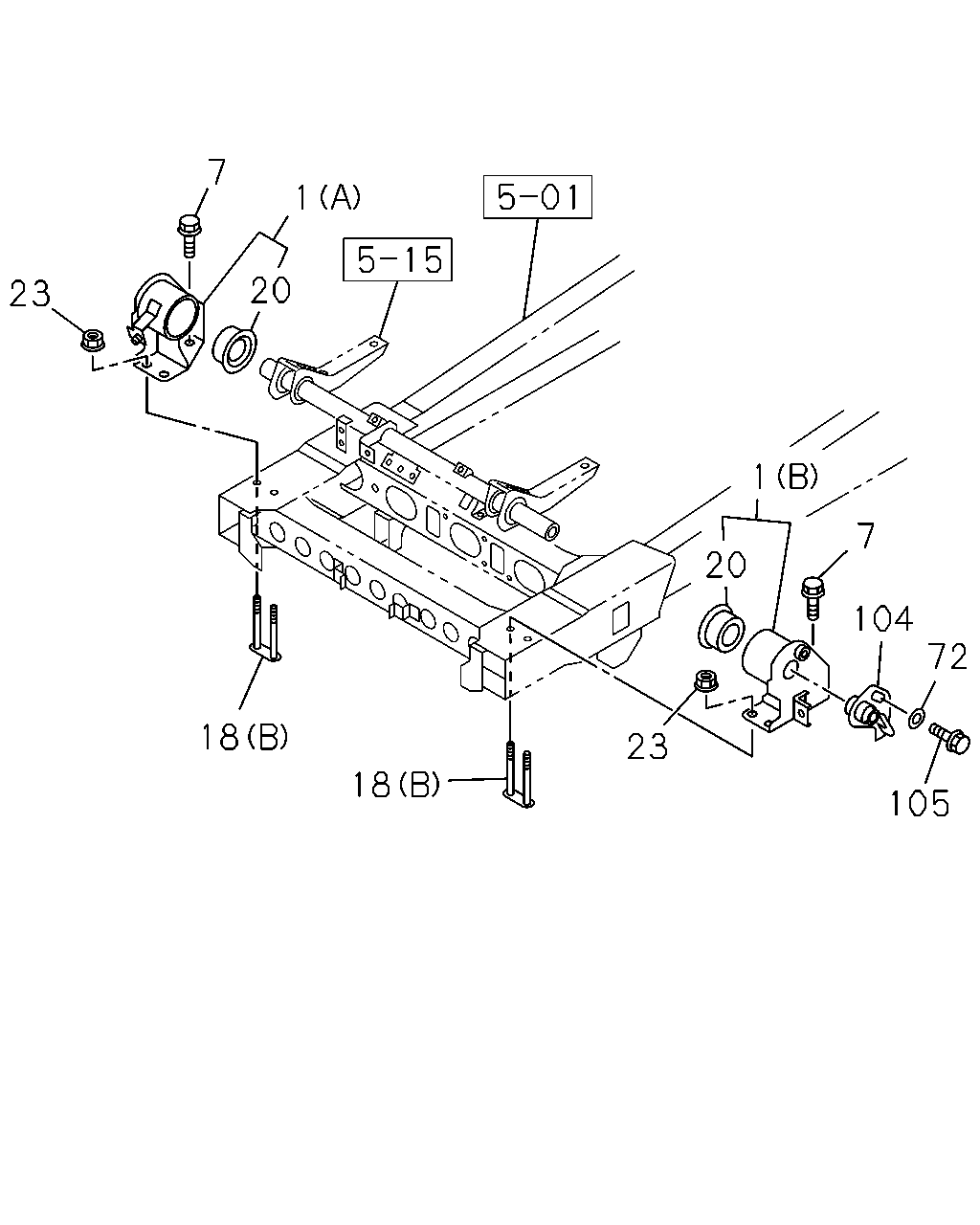

[510A] CAB MTG BRKT FRONT (10 parça)

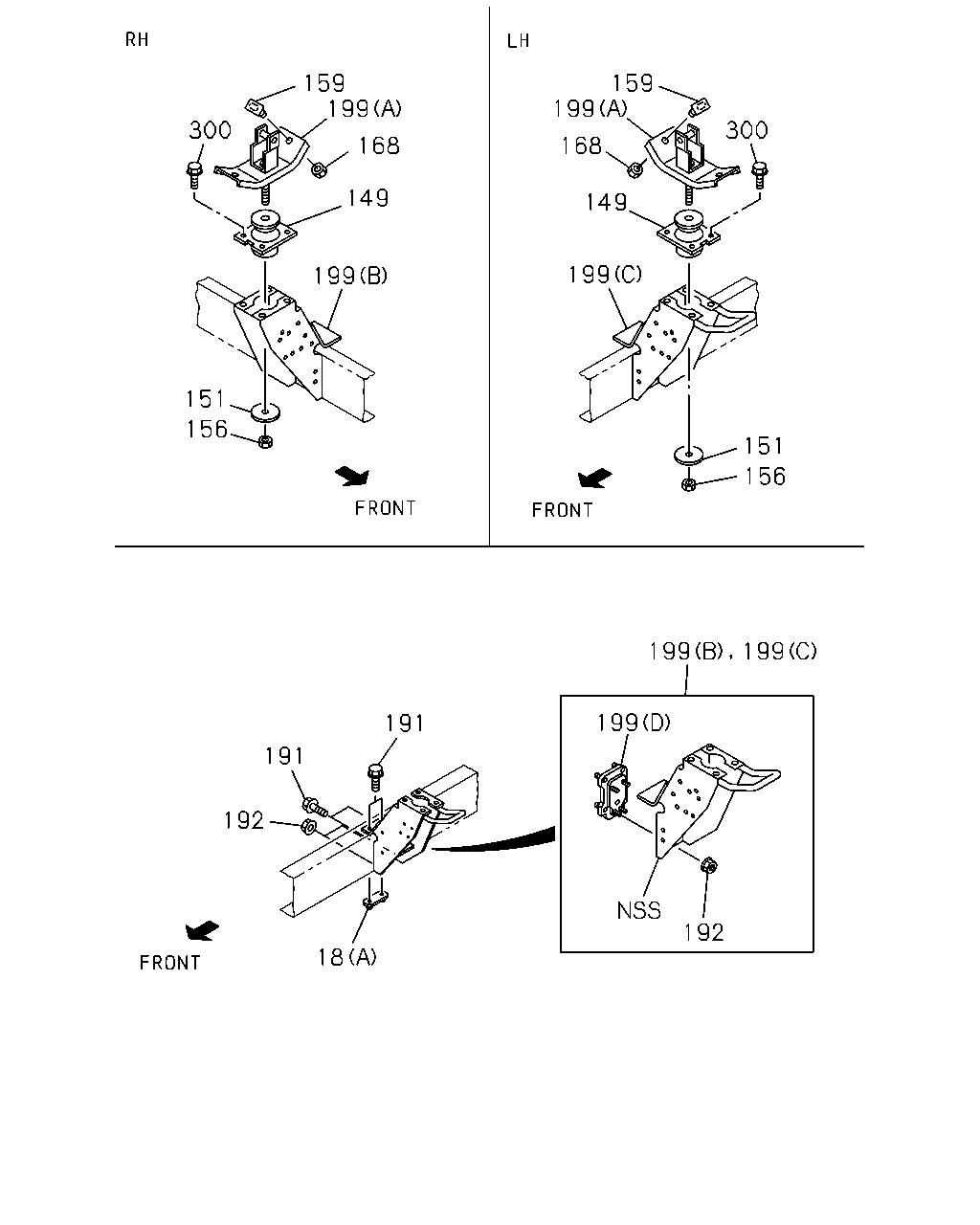

[510A] CAB MTG BRKT REAR (20 parça)
▶
7
1
20
23
1
7
20
104
72
18
23
18
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.003 BRACKET; CAB MTG
16.545 (A)
8-98074-175-0
01
1
0907-
1
09.003 BRACKET; CAB MTG
16.545 (B)
8-98074-176-0
01
1
0907-
7
09.003 BOLT; BRKT,CAB TILT
M14X40 FLANGE
0-28661-440-0
02
1
0907-
18
09.003 PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
0907-
18
09.003 PLATE; MTG BRKT FIX
(B)
8-98029-285-1
02
1
0907-
20
09.003 RUBBER; MTG,CAB BRKT
8-98004-307-0
02
1
0907-
23
09.003 NUT; MTG BRKT
M14
8-98039-989-0
04
1
0907-
72
09.003 WASHER; PL,BRKT TO FRAME
ID=15 OD=36
0-91614-714-0
01
1
0907-
104
09.003 BRACKET; CAB FRAME,CAB FRT MTG
8-97383-788-1
01
1
0907-
105
09.023 BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28661-435-0
01
1
0907-
159
199
159
199
300
300
168
168
149
149
199
199
151
156
151
156
199
199
199
191
191
192
192
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
09.003 PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
0907-
18
09.003 PLATE; MTG BRKT FIX
(B)
8-98029-285-1
02
1
0907-
149
09.023 RUBBER; MTG,CAB,UPR RR
8-98021-561-1
02
1
0907-
151
09.011 WASHER; CAB MTG,RR UPR
ID=17 OD=62
8-97359-042-1
02
1
0907-
156
07.529 NUT; CAB MTG RR
00.785 M16
0-91111-516-0
02
1
0907-
159
09.023 RUBBER; CUSHION,CAB MTG
8-97113-340-0
04
1
0907-
168
09.011 NUT; CUSHION RUBBER,BODY MTG
01.062 M8 FLANGE
0-91180-108-0
04
1
0907-
191
09.003 BOLT; BRKT FIX
M12X40 FLANGE
0-28651-240-0
04
1
0907-
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE
0-91180-112-0
08
1
0907-1509
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE
0-91180-112-0
04
1
0907-1509
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE
0-91180-112-0
04
1
0907-1509
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE
0-91180-112-0
08
1
1510-
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE
0-91180-112-0
08
1
1510-
199
09.003 BRACKET; CAB RR MTG
(B)
8-98024-774-3
01
1
0907-
199
09.003 BRACKET; CAB RR MTG
(C)
8-98024-775-3
01
1
0907-
199
09.003 BRACKET; CAB RR MTG
(A)
8-98036-883-0
02
1
0907-
199
09.003 BRACKET; CAB RR MTG
(D)
8-97092-102-5
01
1
0907-1509
199
09.003 BRACKET; CAB RR MTG
(D)
8-97092-102-5
01
1
0907-1509
199
09.003 BRACKET; CAB RR MTG
(D)
8-97092-102-5
02
1
1510-
300
09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE
0-28651-020-0
08
1
0907-
