Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#7679) — 294 parça

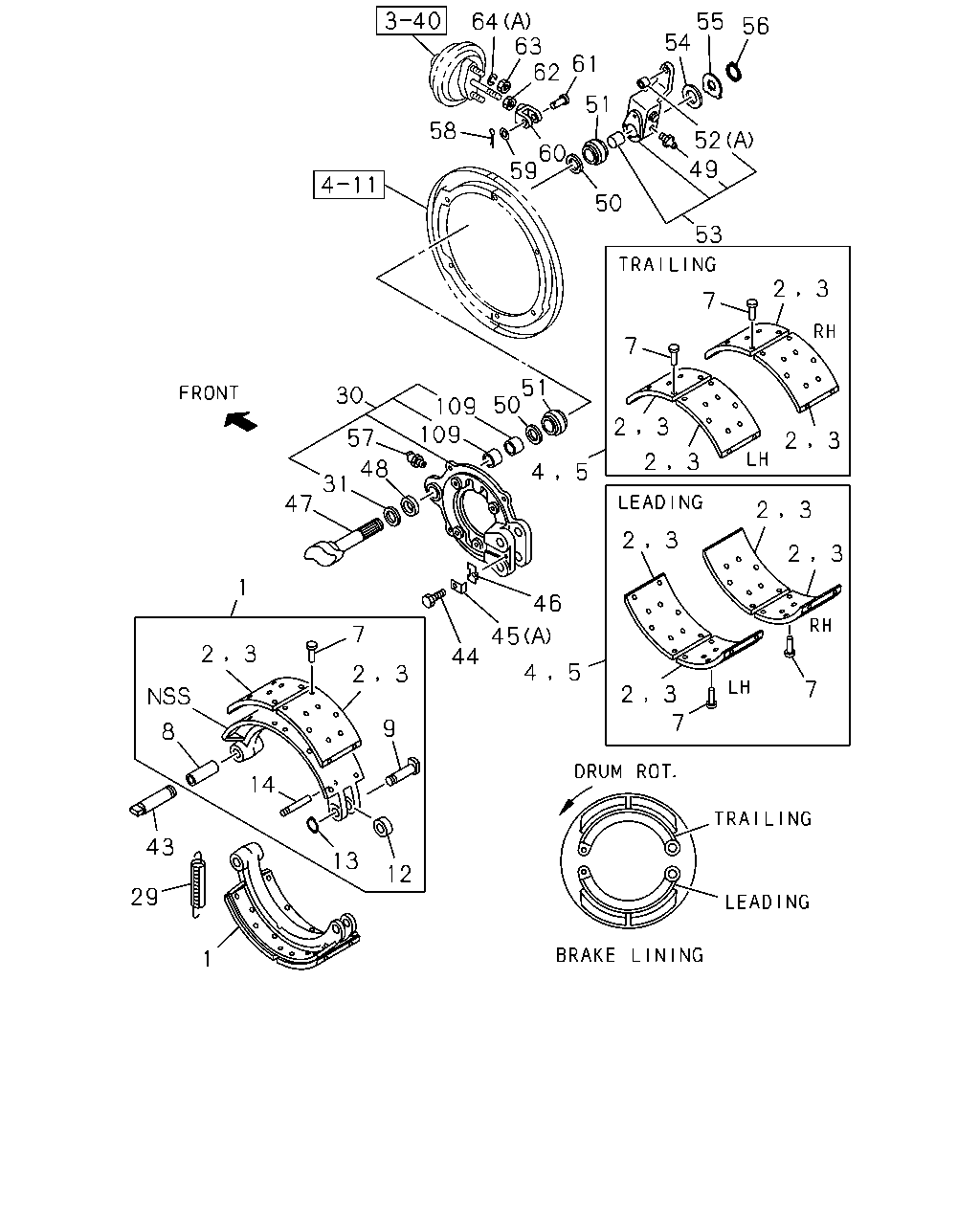

55 54 63 62 56 61 51 58 2 60 59 49 50 53 2 3 7 7 51 50 30 109 109 2 3 57 3 2 2 3 48 5 4 31 47 2 3 2 3 2 3 1 46 7 45 2 3 44 5 4 2 3 7 2 3 7 9 8 14 43 13 12 29 1 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT LEADING	1-47120-334-0	01	1	9902-0003	●
1	SHOE; BRK,FRT LEADING	1-47120-334-0	01	1	0004-	●	●
1	SHOE; BRK,FRT TRAILING	1-47120-335-0	01	1	9902-0003	●
1	SHOE; BRK,FRT TRAILING	1-47120-335-0	01	1	0004-	●	●
1	SHOE; BRK,FRT LEADING	1-47120-332-0	01	1	9902-0003	●
1	SHOE; BRK,FRT LEADING	1-47120-332-0	01	1	0004-	●	●
1	SHOE; BRK,FRT TRAILING	1-47120-333-0	01	1	9902-0003	●
1	SHOE; BRK,FRT TRAILING	1-47120-333-0	01	1	0004-	●	●
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47125-431-0	04	1	9902-9904	●
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE SYSTEM SPRING BRAKE(BCR) LEADING	1-47125-431-0	04	1	9905-0003	●
2	LINING; FRT BRK SHOE,STANDARD LEADING EXC.INDICATO HOLE	1-47125-431-0	04	1	0004-	●	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM SPRING BRAKE(BCR) LEADING	1-47125-443-0	04	1	9905-0003	●
2	LINING; FRT BRK SHOE,STANDARD LEADING INDICATO HOLE	1-47125-443-0	04	1	0004-	●	●
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47125-432-0	04	1	9902-0003	●
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47125-432-0	04	1	0004-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47125-433-0	04	1	9902-9904	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM SPRING BRAKE(BCR) LEADING	1-47125-433-0	04	1	9905-0003	●
3	LINING; FRT BRK SHOE,OVER SIZE LAEDING EXC.INDICATOR HOLE	1-47125-433-0	04	1	0004-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM SPRING BRAKE(BCR) LEADING	1-47125-444-0	04	1	9905-0003	●
3	LINING; FRT BRK SHOE,OVER SIZE LAEDING INDICATOR HOLE	1-47125-444-0	04	1	0004-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47125-434-0	04	1	9902-0003	●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47125-434-0	04	1	0004-	●	●
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-309-0	01	1	9902-0003	●
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-309-0	01	1	0004-	●	●
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-311-0	01	1	9902-0003	●
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-311-0	01	1	0004-	●	●
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-310-0	01	1	9902-0003	●
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-310-0	01	1	0004-	●	●
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-312-0	01	1	9902-0003	●
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-312-0	01	1	0004-	●	●
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9902-0003	●
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	0004-	●	●
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9902-0003	●
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	0004-	●	●
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	9902-0003	●
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	0004-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	9902-0003	●
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	0004-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9902-0003	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0004-	●	●
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9902-0003	●
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	0004-	●	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	9902-0003	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	0004-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-268-2	01	1	9902-9904	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47137-268-2	01	1	9905-	●
30	BRACKET; ANCHOR,FRT	1-47137-267-2	01	1	9902-9904	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47137-267-2	01	1	9905-	●
30	BRACKET; ANCHOR,FRT ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-420-1	01	1	9905-	●
30	BRACKET; ANCHOR,FRT ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-419-1	01	1	9905-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR) ANTILOCK BRAKE SYSTEM(BFA) INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-432-0	01	1	9905-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR) ANTILOCK BRAKE SYSTEM(BFA) INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-431-0	01	1	9905-	●
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-119-3	01	1	9905-0003	●
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-119-3	01	1	0004-	●
30	BRACKET; ANCHOR,FRT	1-47137-119-3	01	1	0004-		●
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-118-3	01	1	9905-0003	●
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-118-3	01	1	0004-	●
30	BRACKET; ANCHOR,FRT	1-47137-118-3	01	1	0004-		●
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	9902-0003	●
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	0004-	●	●
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9902-0003	●
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	0004-	●	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9902-0003	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	0004-	●	●
45	WASHER; LK (A)	1-47133-011-0	02	1	9902-0003	●
45	WASHER; LK (A)	1-47133-011-0	02	1	0004-	●	●
45	WASHER; LK (B) ID=14.2	9-09150-514-0	04	1	9902-9904	●
45	WASHER; LK BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=14.2	9-09150-514-0	04	1	9905-	●
45	WASHER; LK (C) ID=20.2	9-09150-520-0	04	1	9902-9904	●
45	WASHER; LK BRAKE SYSTEM SPRING BRAKE(BCR) (C) ID=20.2	9-09150-520-0	04	1	9905-	●
46	PLATE; LOCK	1-47133-005-0	02	1	9902-0003	●
46	PLATE; LOCK	1-47133-005-0	02	1	0004-	●	●
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	9902-0003	●
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	0004-	●	●
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	9902-0003	●
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	0004-	●	●
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	9902-0003	●
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	0004-	●	●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	02	1	9902-9904	●
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	02	1	9905-	●
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	01	1	9905-0003	●
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	01	1	0004-	●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0004-		●
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-0003	●
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0004-	●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0004-		●
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	9902-0003	●
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	0004-	●	●
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	9902-0003	●
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	0004-	●	●
53	ADJUSTER ASM; SLACK	1-48270-078-0	01	1	9902-9904	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-078-1	01	1	9905-	●
53	ADJUSTER ASM; SLACK	1-48270-077-0	01	1	9902-9904	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-077-1	01	1	9905-	●
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-044-0	01	1	9905-0003	●
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-044-0	01	1	0004-	●
53	ADJUSTER ASM; SLACK	1-48270-044-0	01	1	0004-		●
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-043-0	01	1	9905-0003	●
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-043-0	01	1	0004-	●
53	ADJUSTER ASM; SLACK	1-48270-043-0	01	1	0004-		●
54	SPACER; CM/SHF	1-47143-004-0	02	1	9902-0003	●
54	SPACER; CM/SHF	1-47143-004-0	02	1	0004-	●	●
55	PLATE; STOPPER,CM/SHF	1-47149-053-0	02	1	9902-9904	●
55	PLATE; STOPPER,CM/SHF BRAKE SYSTEM SPRING BRAKE(BCR)	1-47149-053-0	02	1	9905-	●
55	PLATE; STOPPER,CM/SHF EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47149-021-0	02	1	9905-0003	●
55	PLATE; STOPPER,CM/SHF EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47149-021-0	02	1	0004-	●
55	PLATE; STOPPER,CM/SHF	1-47149-021-0	02	1	0004-		●
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	9902-0003	●
56	CLIP; ANCHOR PIN	9-09180-038-0	02	1	0004-	●	●
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9902-9904	●
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE SYSTEM SPRING BRAKE(BCR) INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9905-	●
57	NIPPLE; GREASE,ANCHOR BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9905-	●
57	NIPPLE; GREASE,ANCHOR BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	02	1	9905-0003	●
57	NIPPLE; GREASE,ANCHOR BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	02	1	0004-	●
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	0004-		●
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	9902-0003	●
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	0004-	●	●
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9902-0003	●
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0004-	●	●
60	JOINT; JAW,POWER CHAMBER	1-09768-060-0	02	1	9902-0003	●
60	JOINT; JAW,POWER CHAMBER	1-09768-060-1	02	1	0004-	●	●
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	9902-0003	●
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	0004-	●	●
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9902-0003	●
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0004-	●	●
63	NUT; POWER CHAMBER M16	9-99110-416-0	08	1	9902-9904	●
63	NUT; POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) M16	9-99110-416-0	08	1	9905-	●
63	NUT; POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M16	9-99110-416-0	04	1	9905-0003	●
63	NUT; POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M16	9-99110-416-0	04	1	0004-	●
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	0004-		●
64	WASHER; LK,POWER CHAMBER (B) ID=14.2	9-09150-514-0	04	1	9902-9904	●
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=14.2	9-09150-514-0	04	1	9905-	●
64	WASHER; LK,POWER CHAMBER (A) ID=16.2	9-09150-516-0	08	1	9902-9904	●
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=16.2	9-09150-516-0	08	1	9905-	●
64	WASHER; LK,POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=16.2	9-09150-516-0	04	1	9905-0003	●
64	WASHER; LK,POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=16.2	9-09150-516-0	04	1	0004-	●
64	WASHER; LK,POWER CHAMBER (A) ID=16.2	9-09150-516-0	04	1	0004-		●
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	9902-0003	●
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	0004-	●	●

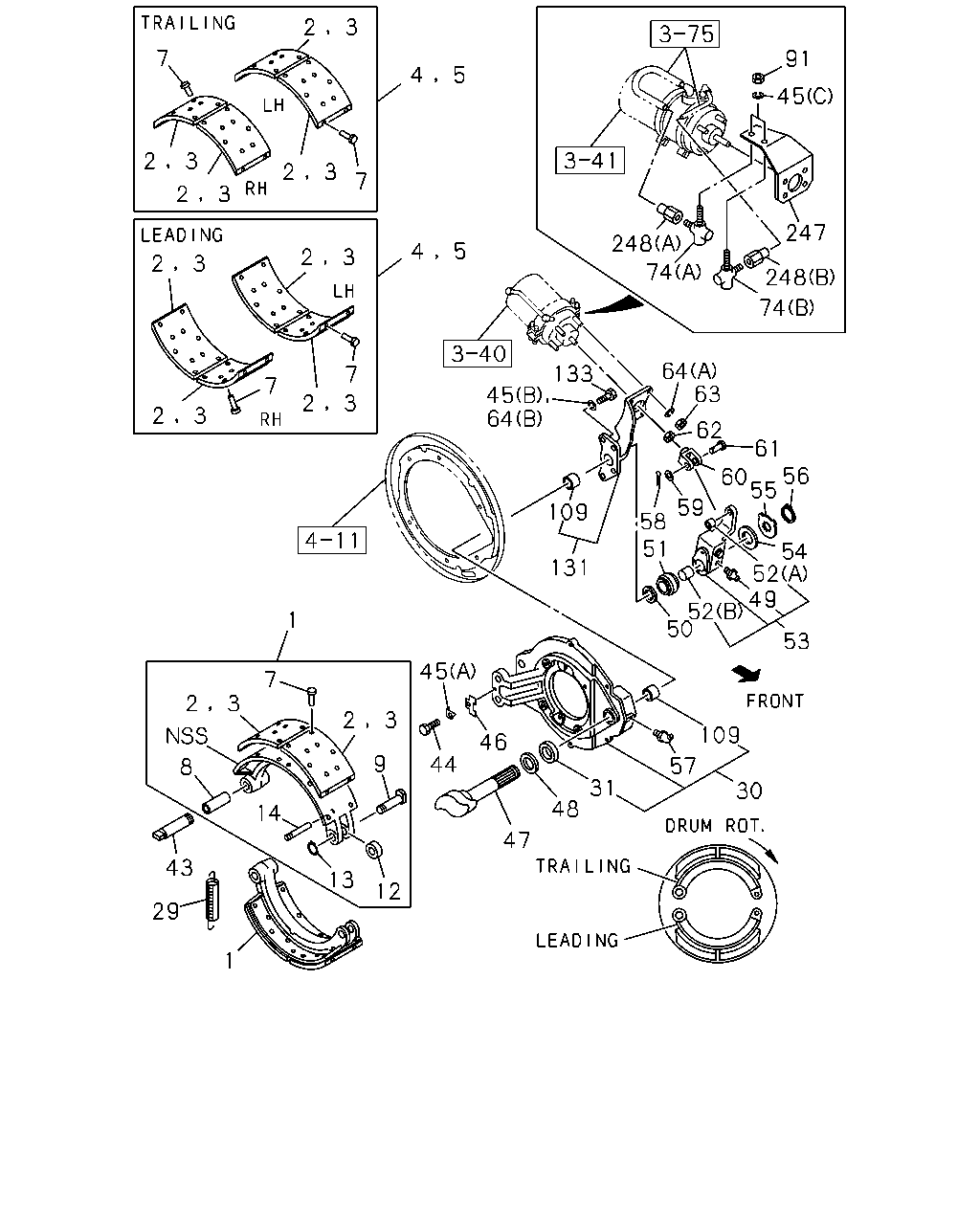

2 3 7 91 5 4 45 2 3 2 3 7 2 3 247 248 5 4 2 3 2 3 74 248 74 133 64 63 7 7 45 64 2 3 3 2 62 61 55 59 109 4 52 49 52 50 58 51 131 1 53 45 7 2 3 3 2 109 4 9 44 57 8 31 30 48 14 47 43 13 12 29 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT LEADING	1-47120-334-0	01	1	9902-0003	●
1	SHOE; BRK,FRT LEADING	1-47120-334-0	01	1	0004-	●	●
1	SHOE; BRK,FRT TRAILING	1-47120-335-0	01	1	9902-0003	●
1	SHOE; BRK,FRT TRAILING	1-47120-335-0	01	1	0004-	●	●
1	SHOE; BRK,FRT LEADING	1-47120-332-0	01	1	9902-0003	●
1	SHOE; BRK,FRT LEADING	1-47120-332-0	01	1	0004-	●	●
1	SHOE; BRK,FRT TRAILING	1-47120-333-0	01	1	9902-0003	●
1	SHOE; BRK,FRT TRAILING	1-47120-333-0	01	1	0004-	●	●
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47125-431-0	04	1	9902-9904	●
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE SYSTEM SPRING BRAKE(BCR) LEADING	1-47125-431-0	04	1	9905-0003	●
2	LINING; FRT BRK SHOE,STANDARD LEADING EXC.INDICATO HOLE	1-47125-431-0	04	1	0004-	●	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM SPRING BRAKE(BCR) LEADING	1-47125-443-0	04	1	9905-0003	●
2	LINING; FRT BRK SHOE,STANDARD LEADING INDICATO HOLE	1-47125-443-0	04	1	0004-	●	●
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47125-432-0	04	1	9902-0003	●
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47125-432-0	04	1	0004-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47125-433-0	04	1	9902-9904	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRAKE SYSTEM SPRING BRAKE(BCR) LEADING	1-47125-433-0	04	1	9905-0003	●
3	LINING; FRT BRK SHOE,OVER SIZE LAEDING EXC.INDICATOR HOLE	1-47125-433-0	04	1	0004-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM SPRING BRAKE(BCR) LEADING	1-47125-444-0	04	1	9905-0003	●
3	LINING; FRT BRK SHOE,OVER SIZE LAEDING INDICATOR HOLE	1-47125-444-0	04	1	0004-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47125-434-0	04	1	9902-0003	●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47125-434-0	04	1	0004-	●	●
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-309-0	01	1	9902-0003	●
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-309-0	01	1	0004-	●	●
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-311-0	01	1	9902-0003	●
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-311-0	01	1	0004-	●	●
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-310-0	01	1	9902-0003	●
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-310-0	01	1	0004-	●	●
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-312-0	01	1	9902-0003	●
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-312-0	01	1	0004-	●	●
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	9902-0003	●
7	RIVET; LINING,FRT BRK L=18.5	1-09732-034-0	80	1	0004-	●	●
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	9902-0003	●
8	BUSHING; BRK SHOE	1-47112-011-0	04	1	0004-	●	●
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	9902-0003	●
9	PIN; SHOE HOLDER	1-09744-060-0	04	1	0004-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	9902-0003	●
12	ROLLER; CAM,BRK SHOE	1-47113-007-0	04	1	0004-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9902-0003	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0004-	●	●
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	9902-0003	●
14	PIN; SHOE RETURN SPR L=73.5	1-47119-017-1	04	1	0004-	●	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	9902-0003	●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-185-2	02	1	0004-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-268-2	01	1	9902-9904	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47137-268-2	01	1	9905-	●
30	BRACKET; ANCHOR,FRT	1-47137-267-2	01	1	9902-9904	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR) INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. ANTILOCK BRAKE SYSTEM(BFA)	1-47137-267-2	01	1	9905-	●
30	BRACKET; ANCHOR,FRT ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-420-1	01	1	9905-	●
30	BRACKET; ANCHOR,FRT ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-419-1	01	1	9905-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR) ANTILOCK BRAKE SYSTEM(BFA) INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-432-0	01	1	9905-	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM SPRING BRAKE(BCR) ANTILOCK BRAKE SYSTEM(BFA) INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-431-0	01	1	9905-	●
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-119-3	01	1	9905-0003	●
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-119-3	01	1	0004-	●
30	BRACKET; ANCHOR,FRT	1-47137-119-3	01	1	0004-		●
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-118-3	01	1	9905-0003	●
30	BRACKET; ANCHOR,FRT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47137-118-3	01	1	0004-	●
30	BRACKET; ANCHOR,FRT	1-47137-118-3	01	1	0004-		●
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	9902-0003	●
31	SEAL; OIL,CM/SHF	1-09625-228-0	02	1	0004-	●	●
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	9902-0003	●
43	PIN; ANCHOR L=106.5	1-47131-038-0	04	1	0004-	●	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	9902-0003	●
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20801-016-0	02	1	0004-	●	●
45	WASHER; LK (A)	1-47133-011-0	02	1	9902-0003	●
45	WASHER; LK (A)	1-47133-011-0	02	1	0004-	●	●
45	WASHER; LK (B) ID=14.2	9-09150-514-0	04	1	9902-9904	●
45	WASHER; LK BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=14.2	9-09150-514-0	04	1	9905-	●
45	WASHER; LK (C) ID=20.2	9-09150-520-0	04	1	9902-9904	●
45	WASHER; LK BRAKE SYSTEM SPRING BRAKE(BCR) (C) ID=20.2	9-09150-520-0	04	1	9905-	●
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	9902-0003	●
47	CAMSHAFT; FRT BRK	1-47141-052-0	01	1	0004-	●	●
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	9902-0003	●
47	CAMSHAFT; FRT BRK	1-47141-051-0	01	1	0004-	●	●
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	9902-0003	●
48	RING; SPACER,CM/SHF	1-47143-005-0	02	1	0004-	●	●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	02	1	9902-9904	●
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	02	1	9905-	●
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	01	1	9905-0003	●
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 STRAIGHT	9-09031-010-0	01	1	0004-	●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	0004-		●
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9905-0003	●
49	NIPPLE; GREASE,SLACK ADJ EXC. BRAKE SYSTEM SPRING BRAKE(BCR) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0004-	●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0004-		●
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	9902-0003	●
50	RING; FELT,CM/SHF	1-09620-009-0	02	1	0004-	●	●
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	9902-0003	●
51	COLLAR; RING,CM/SHF	1-47143-016-0	02	1	0004-	●	●
52	BUSHING; SLACK ADJ (A)	1-09330-041-0	02	1	9902-0003	●
52	BUSHING; SLACK ADJ (A)	1-09330-041-0	02	1	0004-	●	●
52	BUSHING; SLACK ADJ (B)	1-47146-003-1	02	1	9902-9904	●
52	BUSHING; SLACK ADJ BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-47146-003-1	02	1	9905-	●
53	ADJUSTER ASM; SLACK	1-48270-078-0	01	1	9902-9904	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-078-1	01	1	9905-	●
53	ADJUSTER ASM; SLACK	1-48270-077-0	01	1	9902-9904	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-077-1	01	1	9905-	●
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-044-0	01	1	9905-0003	●
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-044-0	01	1	0004-	●
53	ADJUSTER ASM; SLACK	1-48270-044-0	01	1	0004-		●
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-043-0	01	1	9905-0003	●
53	ADJUSTER ASM; SLACK EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-48270-043-0	01	1	0004-	●
53	ADJUSTER ASM; SLACK	1-48270-043-0	01	1	0004-		●
55	PLATE; STOPPER,CM/SHF	1-47149-053-0	02	1	9902-9904	●
55	PLATE; STOPPER,CM/SHF BRAKE SYSTEM SPRING BRAKE(BCR)	1-47149-053-0	02	1	9905-	●
55	PLATE; STOPPER,CM/SHF EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47149-021-0	02	1	9905-0003	●
55	PLATE; STOPPER,CM/SHF EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47149-021-0	02	1	0004-	●
55	PLATE; STOPPER,CM/SHF	1-47149-021-0	02	1	0004-		●
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9902-9904	●
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE SYSTEM SPRING BRAKE(BCR) INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9905-	●
57	NIPPLE; GREASE,ANCHOR BRKT ANTILOCK BRAKE SYSTEM(BFA) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9905-	●
57	NIPPLE; GREASE,ANCHOR BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	02	1	9905-0003	●
57	NIPPLE; GREASE,ANCHOR BRKT EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTILOCK BRAKESYSTEM(BFA),INTERNATIONAL STANDARD ISO 10STUD<B3V> PT1/8 STRAIGHT	9-09031-010-0	02	1	0004-	●
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	0004-		●
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	9902-0003	●
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	0004-	●	●
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9902-0003	●
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	0004-	●	●
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	9902-0003	●
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	0004-	●	●
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9902-0003	●
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	0004-	●	●
63	NUT; POWER CHAMBER M16	9-99110-416-0	08	1	9902-9904	●
63	NUT; POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) M16	9-99110-416-0	08	1	9905-	●
63	NUT; POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M16	9-99110-416-0	04	1	9905-0003	●
63	NUT; POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) M16	9-99110-416-0	04	1	0004-	●
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	0004-		●
64	WASHER; LK,POWER CHAMBER (B) ID=14.2	9-09150-514-0	04	1	9902-9904	●
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (B) ID=14.2	9-09150-514-0	04	1	9905-	●
64	WASHER; LK,POWER CHAMBER (A) ID=16.2	9-09150-516-0	08	1	9902-9904	●
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=16.2	9-09150-516-0	08	1	9905-	●
64	WASHER; LK,POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=16.2	9-09150-516-0	04	1	9905-0003	●
64	WASHER; LK,POWER CHAMBER EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) ID=16.2	9-09150-516-0	04	1	0004-	●
64	WASHER; LK,POWER CHAMBER (A) ID=16.2	9-09150-516-0	04	1	0004-		●
74	CONNECTOR; FRT BRK (B)	1-09654-119-1	02	1	9902-9904	●
74	CONNECTOR; FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-09654-119-1	02	1	9905-	●
74	CONNECTOR; FRT BRK (A)	1-09654-128-1	02	1	9902-9904	●
74	CONNECTOR; FRT BRK BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-09654-128-1	02	1	9905-	●
91	NUT; CONNECTOR M20	9-99111-420-0	04	1	9902-9904	●
91	NUT; CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR) M20	9-99111-420-0	04	1	9905-	●
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	9902-0003	●
109	BUSHING; CM/SHF,FRT BRK	1-47146-003-1	04	1	0004-	●	●
131	BRACKET; POWER CHAMBER	1-48258-152-1	01	1	9902-9904	●
131	BRACKET; POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-152-1	01	1	9905-	●
131	BRACKET; POWER CHAMBER	1-48258-151-1	01	1	9902-9904	●
131	BRACKET; POWER CHAMBER BRAKE SYSTEM SPRING BRAKE(BCR)	1-48258-151-1	01	1	9905-	●
133	BOLT; BRKT M14X60	0-20801-460-0	08	1	9902-9904	●
133	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR) M14X60	0-20801-460-0	08	1	9905-	●
247	BRACKET; CONNECTOR	1-82699-859-0	01	1	9902-9904	●
247	BRACKET; CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR)	1-82699-859-0	01	1	9905-	●
247	BRACKET; CONNECTOR	1-82699-858-0	01	1	9902-9904	●
247	BRACKET; CONNECTOR BRAKE SYSTEM SPRING BRAKE(BCR)	1-82699-858-0	01	1	9905-	●
248	ADAPTER (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	9902-9904	●
248	ADAPTER BRAKE SYSTEM SPRING BRAKE(BCR) (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	9905-	●
248	ADAPTER (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9902-9904	●
248	ADAPTER BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9905-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
