Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#76788) — 18 parça
◀

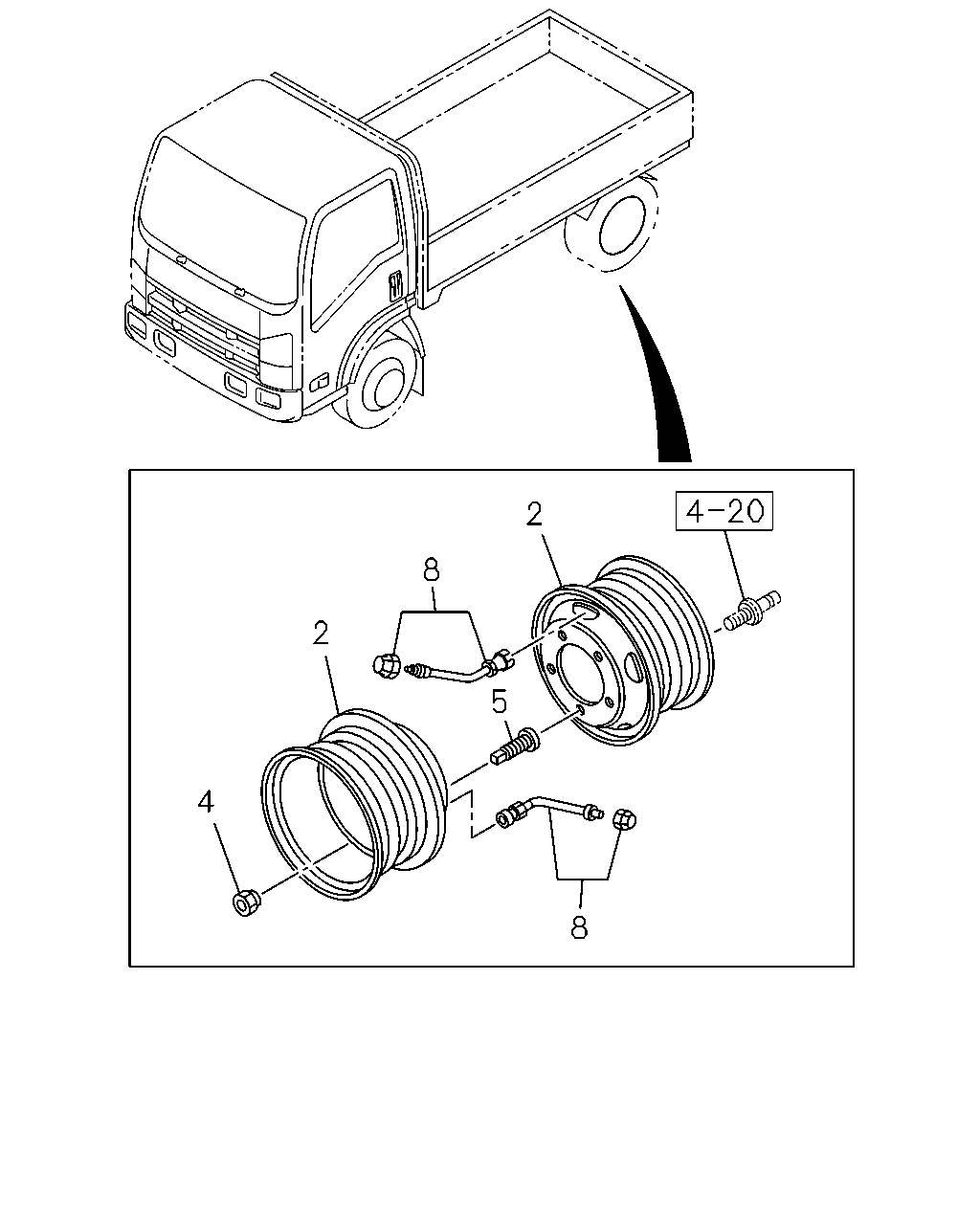

[480A] REAR (10 parça)

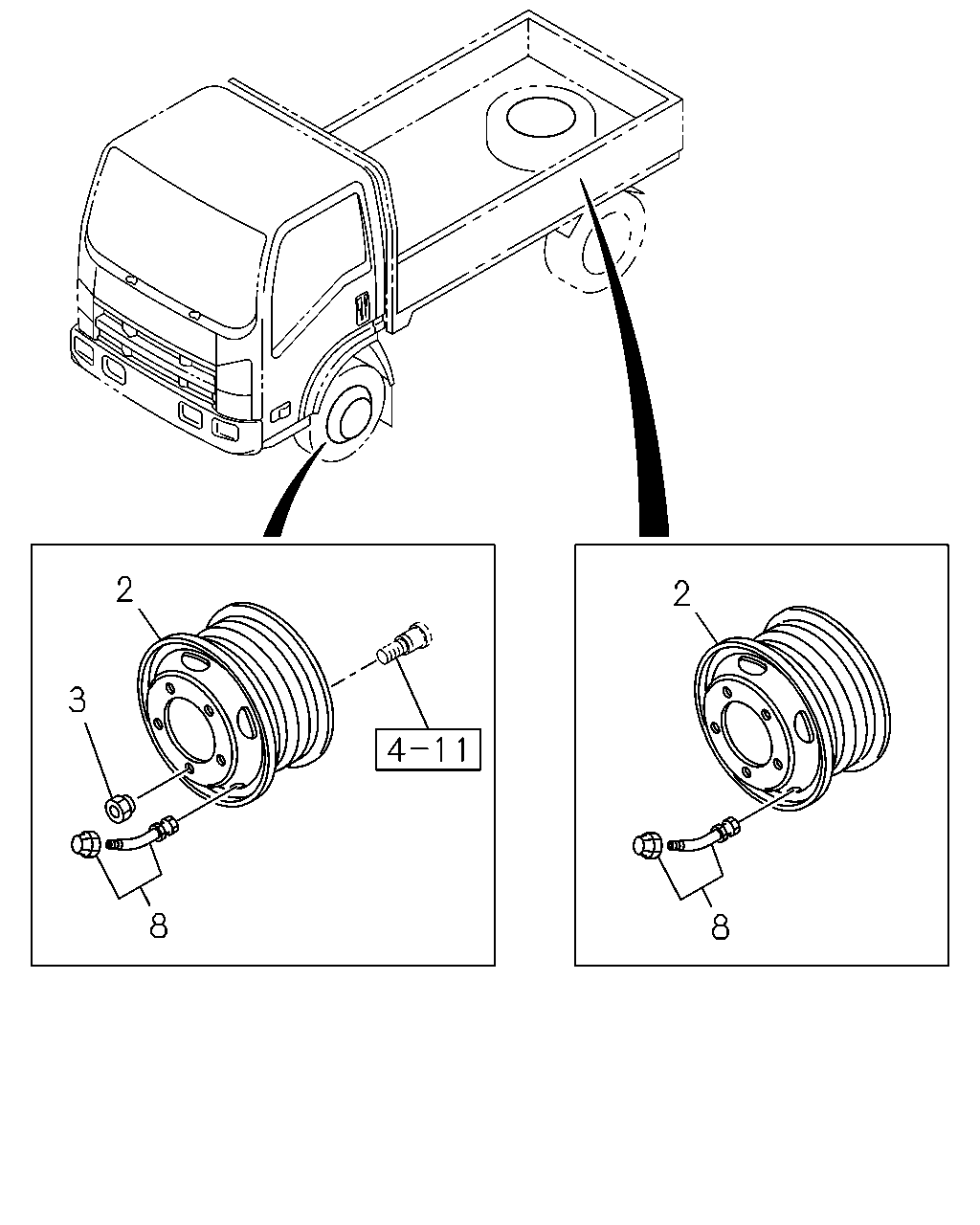

[480A] FRONT AND SPARE (8 parça)
▶
2
8
2
5
4
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
01
1
0907-1010
2
05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
01
1
1011-
2
05.803 WHEEL; DISC
FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
06
1
0907-1010
2
05.803 WHEEL; DISC
FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
06
1
1011-
4
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
0907-
4
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
0907-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
0907-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
0907-
8
05.875 VALVE; TIRE
SPARE
8-98221-112-0
01
1
0907-
8
05.875 VALVE; TIRE
FRONT,REAR
8-98221-112-0
06
1
0907-
2
3
8
8
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
01
1
0907-1010
2
05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
01
1
1011-
2
05.803 WHEEL; DISC
FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
06
1
0907-1010
2
05.803 WHEEL; DISC
FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98168-215-0
06
1
1011-
3
05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD
8-97359-807-0
06
1
0907-
3
05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD
8-97359-808-0
06
1
0907-
8
05.875 VALVE; TIRE
SPARE
8-98221-112-0
01
1
0907-
8
05.875 VALVE; TIRE
FRONT,REAR
8-98221-112-0
06
1
0907-
