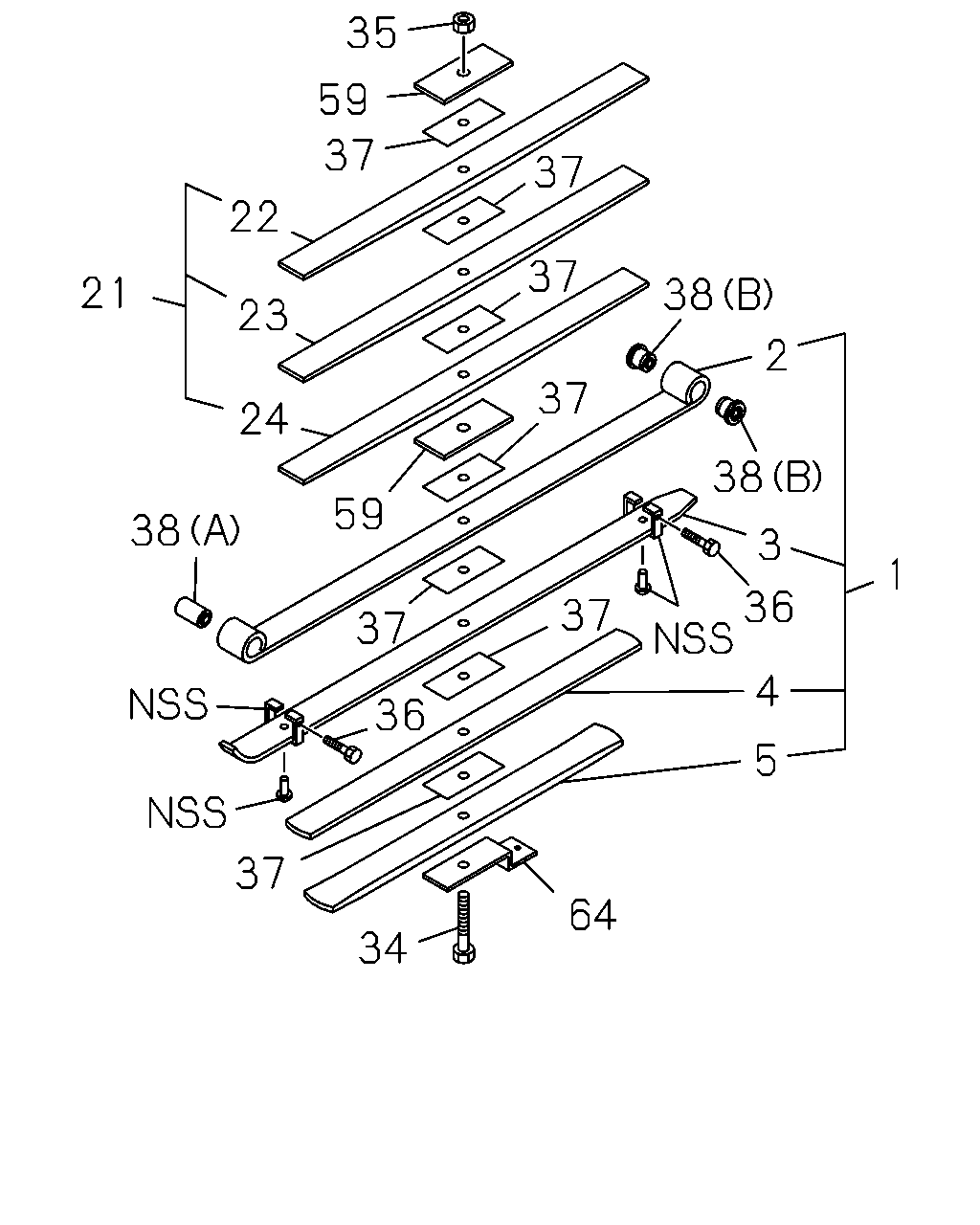

4-65 — REAR LEAF SPRING (#76787) — 18 parça

35 59 37 37 22 37 21 38 23 2 37 24 38 59 38 3 1 36 37 37 4 36 5 37 64 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98028-261-0, 98028261	8-98034-511-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98028-261-0, 98028261	8-98034-512-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98028-261-0, 98028261	8-98034-513-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98028-261-0, 98028261	8-98034-514-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98028-261-0, 98028261	8-98034-515-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98028-261-0, 98028261	8-98034-516-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98028-261-0, 98028261	8-98034-517-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98028-261-0, 98028261	8-98034-518-0	01	1	-
24	07.505 SPRING; LEAF,NO 3,RR SUB ASM PART: A = 8-98028-261-0, 98028261	8-98034-519-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=135 ASM PART: A = 8-98028-261-0, 98028261	8-98041-354-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98028-261-0, 98028261	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: A = 8-98028-261-0, 98028261	8-98040-332-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98028-261-0, 98028261	8-97084-102-0	07	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98028-261-0, 98028261	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-98028-261-0, 98028261	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98028-261-0, 98028261	8-97074-826-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB T=6 ASM PART: A = 8-98028-261-0, 98028261	8-98034-524-0	02	1	-
64	07.513 SUPPORT; RR SPR ASM PART: A = 8-98028-261-0, 98028261	8-97225-579-1	01	1	-
