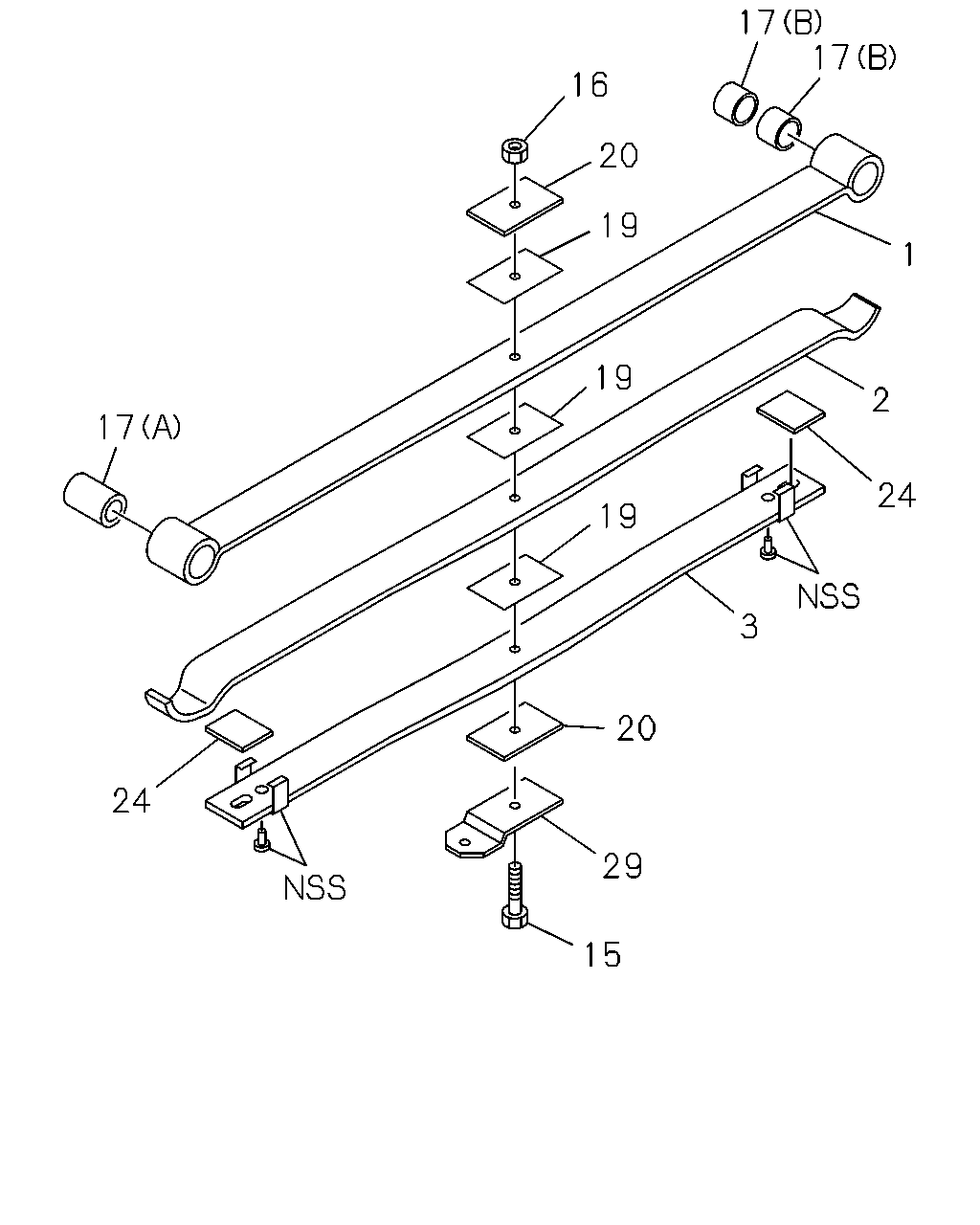

4-55 — FRONT LEAF SPRING (#76784) — 14 parça

17 17 16 20 19 1 19 2 17 24 19 3 20 24 29 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: A = 8-98061-643-0, 98061643	8-98064-661-0	01	1	-
1	07.415 SPRING; LEAF,NO 1,FRT ASM PART: B = 8-98061-644-0, 98061644	8-98064-664-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: A = 8-98061-643-0, 98061643	8-98064-662-0	01	1	-
2	07.415 SPRING; LEAF,NO 2,FRT ASM PART: B = 8-98061-644-0, 98061644	8-98064-665-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: A = 8-98061-643-0, 98061643	8-98064-663-0	01	1	-
3	07.415 SPRING; LEAF,NO 3,FRT ASM PART: B = 8-98061-644-0, 98061644	8-98064-666-0	01	1	-
15	07.428 BOLT; CENTER,LEAF SPR,FRT L=85 ASM PART: A = 8-98061-643-0, 98061643, B = 8-98061-644-0, 98061644	8-98040-305-0	01	1	-
16	07.506 NUT; CENTER BOLT,LEAF SPR,FRT M10 ASM PART: A = 8-98061-643-0, 98061643, B = 8-98061-644-0, 98061644	1-09400-055-0	01	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.524, (B) ASM PART: A = 8-98061-643-0, 98061643, B = 8-98061-644-0, 98061644	8-94118-588-1	02	1	-
17	07.413 BUSHING; LEAF SPR,FRT 07.105, (A) ASM PART: A = 8-98061-643-0, 98061643, B = 8-98061-644-0, 98061644	8-94130-354-0	01	1	-
19	07.425 SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 8-98061-643-0, 98061643, B = 8-98061-644-0, 98061644	8-97084-845-0	03	1	-
20	07.425 SEAT; LEAF SPR,FRT ASM PART: A = 8-98061-643-0, 98061643, B = 8-98061-644-0, 98061644	8-98034-521-0	02	1	-
24	07.436 LINER; LEAF SPR,FWD FRT ASM PART: A = 8-98061-643-0, 98061643, B = 8-98061-644-0, 98061644	8-97084-848-0	02	1	-
29	07.425 SUPPORTER; LEAF SPR,FRT ASM PART: A = 8-98061-643-0, 98061643, B = 8-98061-644-0, 98061644	8-97141-927-1	01	1	-
