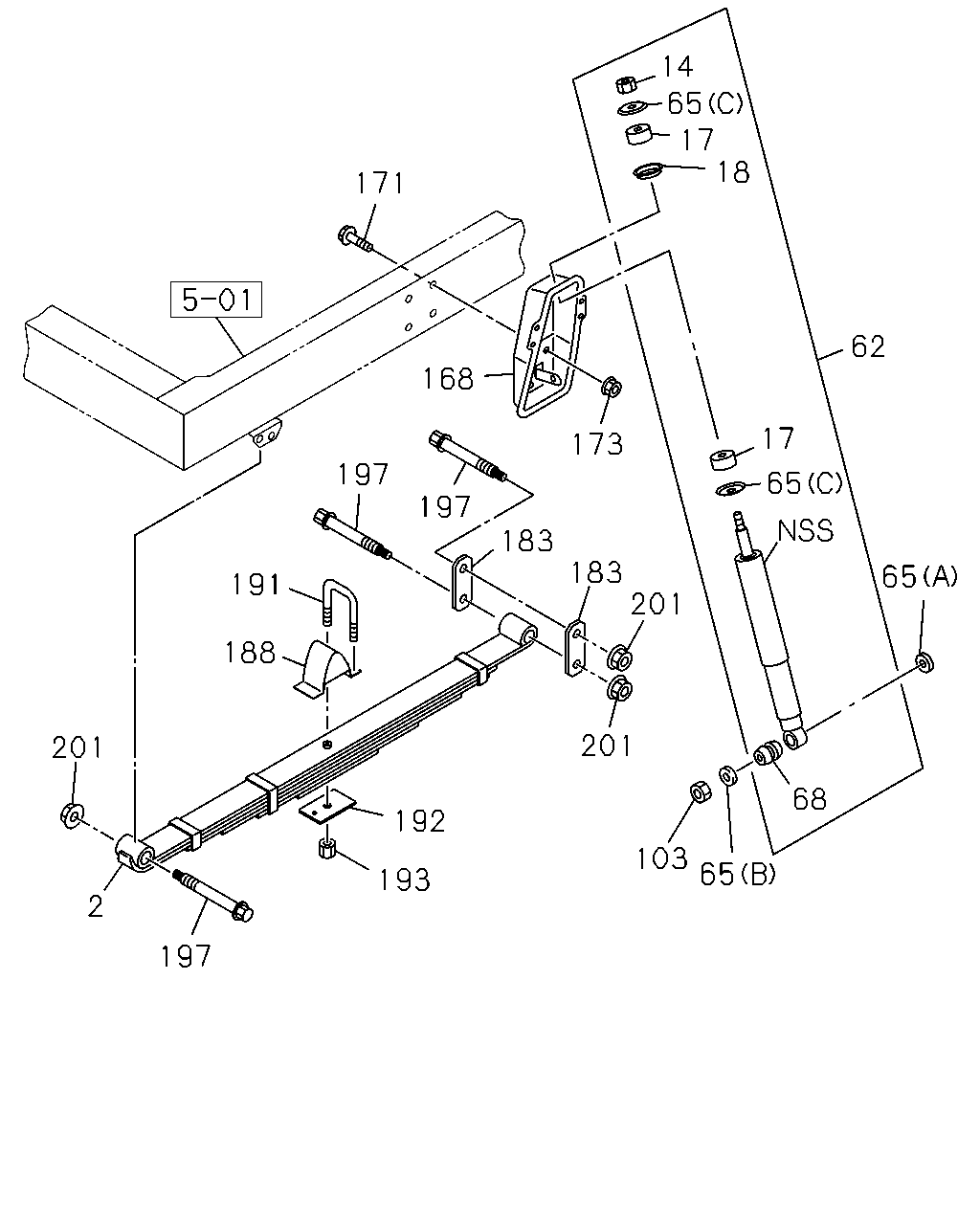

4-50 — FRONT SUSPENSION (#76783) — 23 parça

14 65 17 18 171 62 168 17 173 197 65 197 183 183 201 65 191 188 201 201 68 192 103 65 193 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF	8-98061-643-0	01	1	0907-
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF	8-98061-644-0	01	1	0907-
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0907-
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0907-
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0907-
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97253-618-1	02	1	0907-
62	07.345 ABSORBER ASM; SHOCK,FRT BEST VALUE PARTS	5-87610-129-1	02	1	1304-
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0907-
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0907-
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0907-
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0907-
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0907-
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98006-958-1	01	1	0907-
168	07.380 BRACKET; S/ABS,FRT SUSP	8-98006-959-1	01	1	0907-
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0907-
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0907-
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0907-
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-94422-380-4	02	1	0907-
191	07.417 U-BOLT; FRT SPR L=115	8-94412-504-3	04	1	0907-
192	07.436 PIECE; DIST	8-97093-554-1	02	1	0907-
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	0907-
197	07.427 PIN; FRT SPR,FRT M16X122 FLANGE	8-97360-110-0	06	1	0907-
201	07.427 NUT; PIN LK M16 FLANGE	8-97360-125-0	06	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
