2-85B — POWER TAKE OFF CONTROL (#7678) — 48 parça

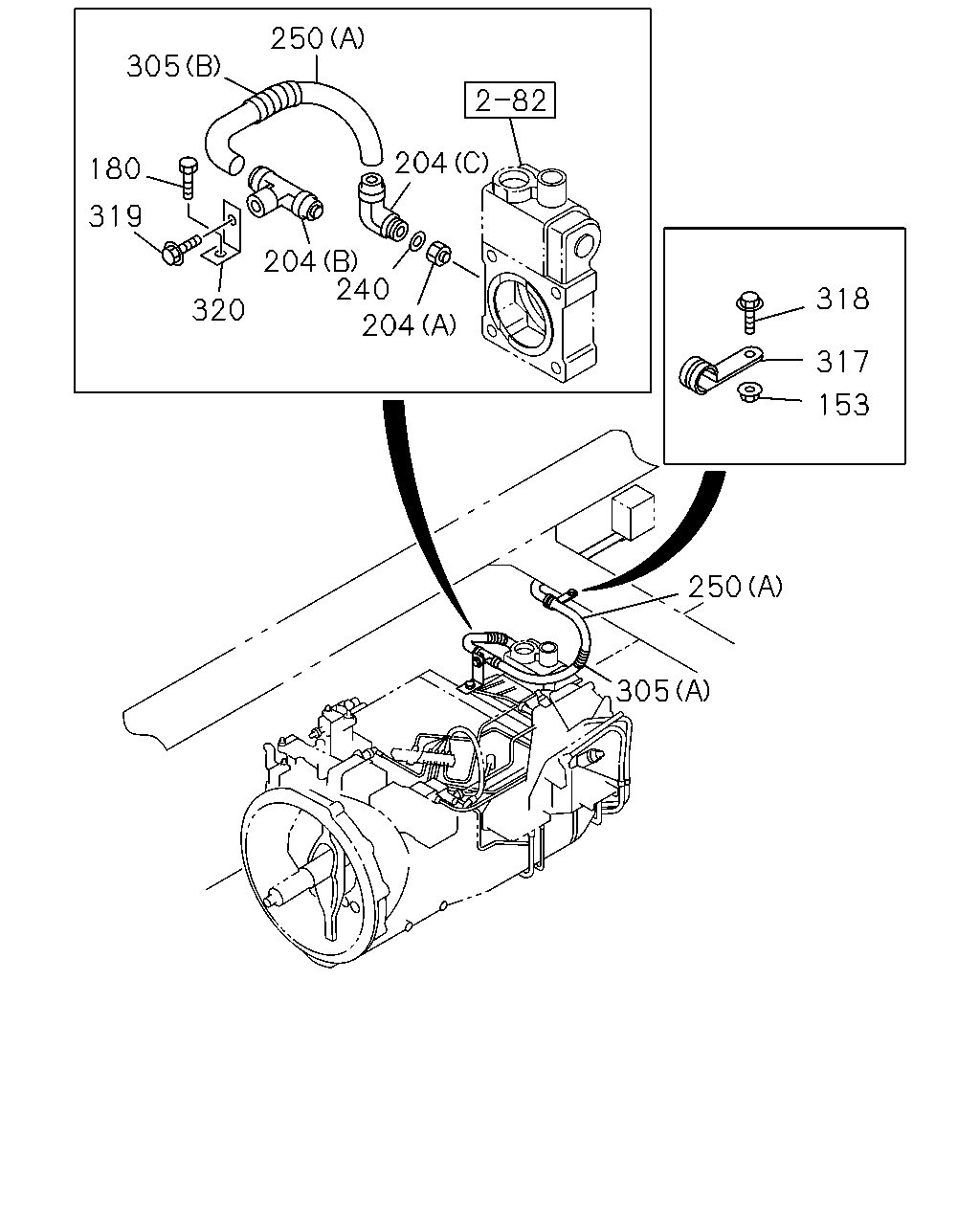

250 305 204 180 319 204 240 204 318 320 317 153 250 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
153	NUT; CLIP PTO ZF TRANS RR(BDM) M8 FLANGE	0-91150-108-0	01	1	9902-0003	●	●
153	NUT; CLIP PTO ZF TRANS RR(BDM) M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●
180	BOLT; BRKT PTO ZF TRANS RR(BDM) M16X25 FLANGE	0-28881-625-0	01	1	9902-9909	●	●
180	BOLT; BRKT PTO ZF TRANS RR(BDM) M16X25 FLANGE	0-28881-625-0	01	1	9910-	●	●	●
204	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (A)	1-09654-396-0	01	1	9902-9909	●	●
204	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (A)	1-09654-396-0	01	1	9910-	●	●	●
204	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (B)	1-09660-788-0	01	1	9902-9909	●	●
204	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (B)	1-09660-788-0	01	1	9910-	●	●	●
204	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9909	●	●
204	CONNECTOR; NYLON TUBE PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9910-	●	●	●
240	GASKET; CONNECTOR,PTO PTO ZF TRANS RR(BDM) ID=12.2	1-09630-084-0	01	1	9902-9909	●	●
240	GASKET; CONNECTOR,PTO PTO ZF TRANS RR(BDM) ID=12.2	1-09630-084-0	01	1	9910-	●	●	●
250	TUBE; NYLON PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9902-9909	●	●
250	TUBE; NYLON PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9902-9909	●	●
250	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9902-9909			●
250	TUBE; NYLON PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9910-	●	●	●
250	TUBE; NYLON PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9910-	●	●	●
305	TUBE; CORRUGATE PTO ZF TRANS RR(BDM) (B) L=150 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9902-9909	●	●
305	TUBE; CORRUGATE PTO ZF TRANS RR(BDM) (B) L=150 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9910-	●	●	●
305	TUBE; CORRUGATE PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9902-0003	●	●
305	TUBE; CORRUGATE PTO ZF TRANS RR(BDM) (A) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0004-	●	●	●
317	CLIP; NYLON TUBE PTO ZF TRANS RR(BDM) ID=14.5 L=40	1-09701-014-0	01	1	9902-0003	●	●
317	CLIP; NYLON TUBE PTO ZF TRANS RR(BDM) ID=14.5 L=40	1-09701-014-0	01	1	0004-	●	●	●
318	BOLT; CLIP PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	01	1	9902-0003	●	●
318	BOLT; CLIP PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	01	1	0004-	●	●	●
319	BOLT; CONNECTOR PTO ZF TRANS RR(BDM) M8X16 FLANGE	0-28080-816-0	01	1	9902-9909	●	●
319	BOLT; CONNECTOR PTO ZF TRANS RR(BDM) M8X16 FLANGE	0-28080-816-0	01	1	9910-	●	●	●
320	BRACKET; UNION PTO ZF TRANS RR(BDM)	1-47478-250-0	01	1	9902-9909	●	●
320	BRACKET; UNION PTO ZF TRANS RR(BDM)	1-47478-250-0	01	1	9910-	●	●	●

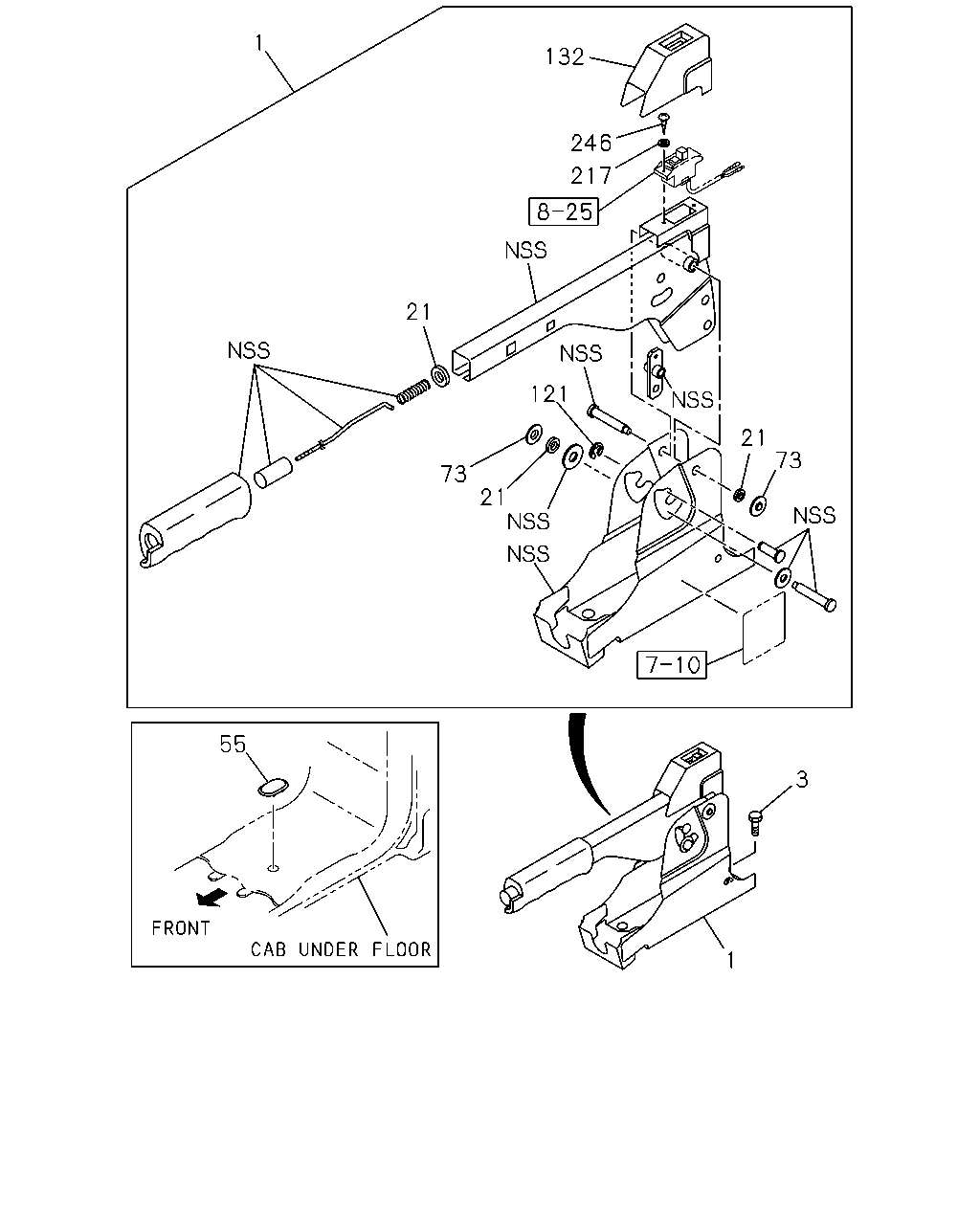

1 132 246 217 21 121 21 73 73 21 55 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-244-0	01	1	9902-0003	●	●
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-244-0	01	1	0004-	●	●	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9902-0003	●	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0004-	●	●	●
21	WASHER; PL,CONT LEVER DUMP CONTROL LEVER<RC4> ID=6.4 OD=14	9-09160-606-0	03	1	9902-0003	●	●
21	WASHER; PL,CONT LEVER DUMP CONTROL LEVER<RC4> ID=6.4 OD=14	9-09160-606-0	03	1	0004-	●	●
21	WASHER; PL,CONT LEVER SHORT CHASSIS&LHD(EXR6MC) DUMP CONTROL LEVER<RC4> ID=6.4 OD=14	9-09160-606-0	03	1	0004-			●
55	GROMMET; CABLE EXC. DUMP CONTROL LEVER<RC4>	1-09983-068-0	01	1	9902-	●	●	●
73	NUT; LEVER DUMP CONTROL LEVER<RC4> ID=5.9 PUSH NUT	8-97015-036-0	02	1	9902-0003	●	●
73	NUT; LEVER DUMP CONTROL LEVER<RC4> ID=5.9 PUSH NUT	8-97015-036-0	02	1	0004-	●	●	●
121	RING; SNAP DUMP CONTROL LEVER<RC4> ID=5	9-09185-405-0	01	1	9902-0003	●	●
121	RING; SNAP DUMP CONTROL LEVER<RC4> ID=5	9-09185-405-0	01	1	0004-	●	●	●
132	COVER; PTO CONT DUMP CONTROL LEVER<RC4>	1-79997-376-0	01	1	9902-0003	●	●
132	COVER; PTO CONT DUMP CONTROL LEVER<RC4>	1-79997-376-0	01	1	0004-	●	●	●
217	WASHER; PL DUMP CONTROL LEVER<RC4> ID=4.3	9-09160-504-0	02	1	9902-0003	●	●
217	WASHER; PL DUMP CONTROL LEVER<RC4> ID=4.3	9-09160-504-0	02	1	0004-	●	●	●
246	SCREW; CABLE CLIP DUMP CONTROL LEVER<RC4> M4X8 TAPPING	0-71180-408-0	02	1	9902-0003	●	●
246	SCREW; CABLE CLIP DUMP CONTROL LEVER<RC4> M4X8 TAPPING	0-71180-408-0	02	1	0004-	●	●
246	SCREW; CABLE CLIP SHORT CHASSIS&LHD(EXR6MC) DUMP CONTROL LEVER<RC4> M4X8 TAPPING	0-71180-408-0	02	1	0004-			●
