Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

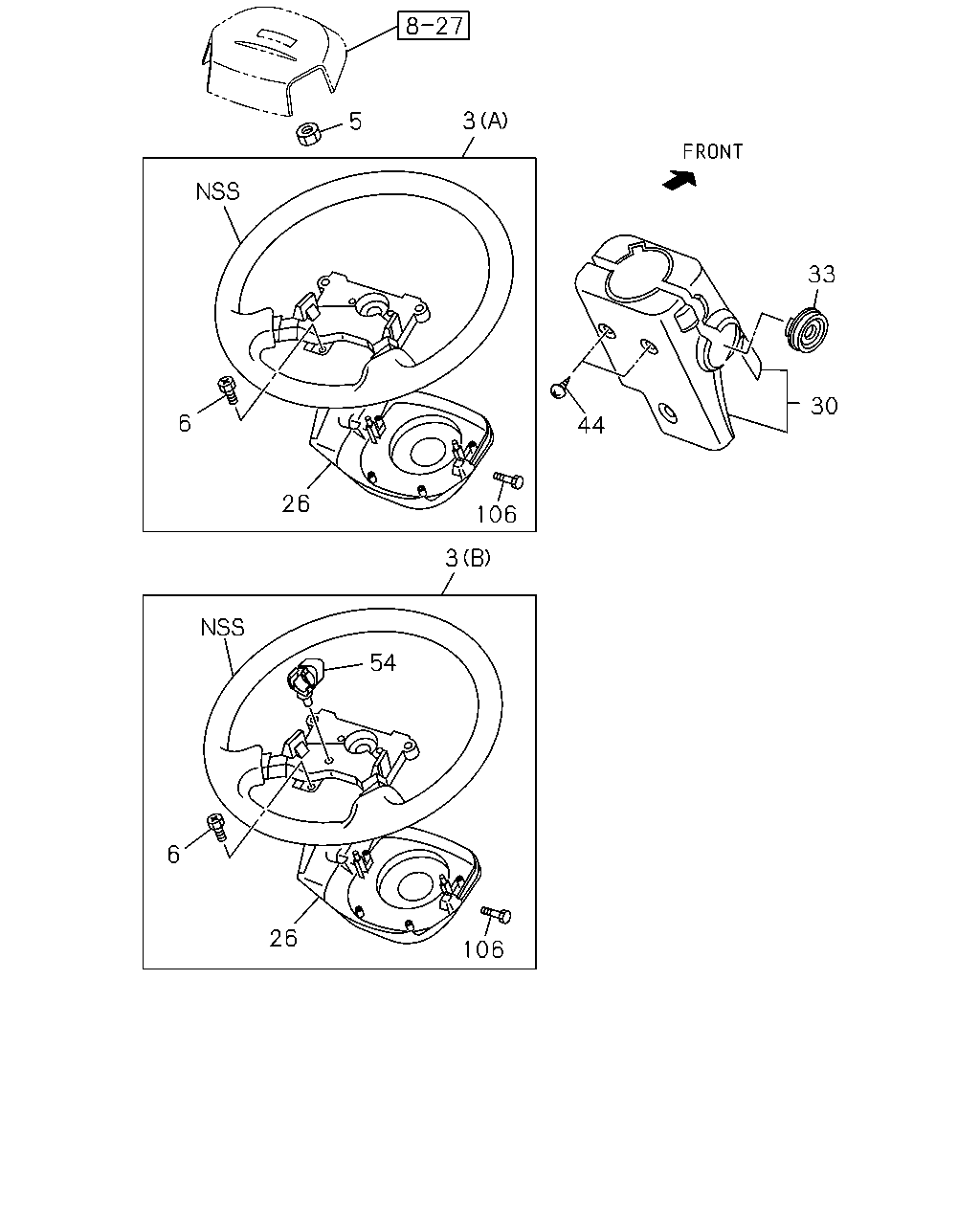

4-30 - STEERING WHEEL AND COWL
▶
4-30 — STEERING WHEEL AND COWL
(#76776) — 13 parça
3
5
44
30
33
106
3
26
6
54
6
26
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
06.513 WHEEL; STRG
(A) DARK GRAY
8-97405-726-1
01
1
0907-1006
3
06.513 WHEEL; STRG
(A) DARK GRAY
8-97421-977-0
01
1
1007-1210
3
06.513 WHEEL; STRG
(B) DARK GRAY
8-97423-997-0
01
1
1211-
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
0907-
6
02.820 SCREW; HORN SPR CONTACT
M4X12
8-97167-588-0
04
1
0907-
26
06.514 COVER; STRG WHEEL,LWR
DARK GRAY
8-97405-841-0
01
1
0907-1006
26
06.514 COVER; STRG WHEEL,LWR
DARK GRAY
8-97421-978-0
01
1
1007-
30
06.518 COWL; STEERING
DARK GRAY
8-97405-356-5
01
1
0907-1110
30
06.518 COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1111-
33
06.518 COVER; STRG COWL
DARK GRAY
8-97409-495-0
01
1
0907-
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
0907-
54
02.559 CLIP; HARNESS
8-98165-703-0
01
1
1211-
106
05.453 BOLT; TORX
8-98231-397-0
02
1
0907-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
