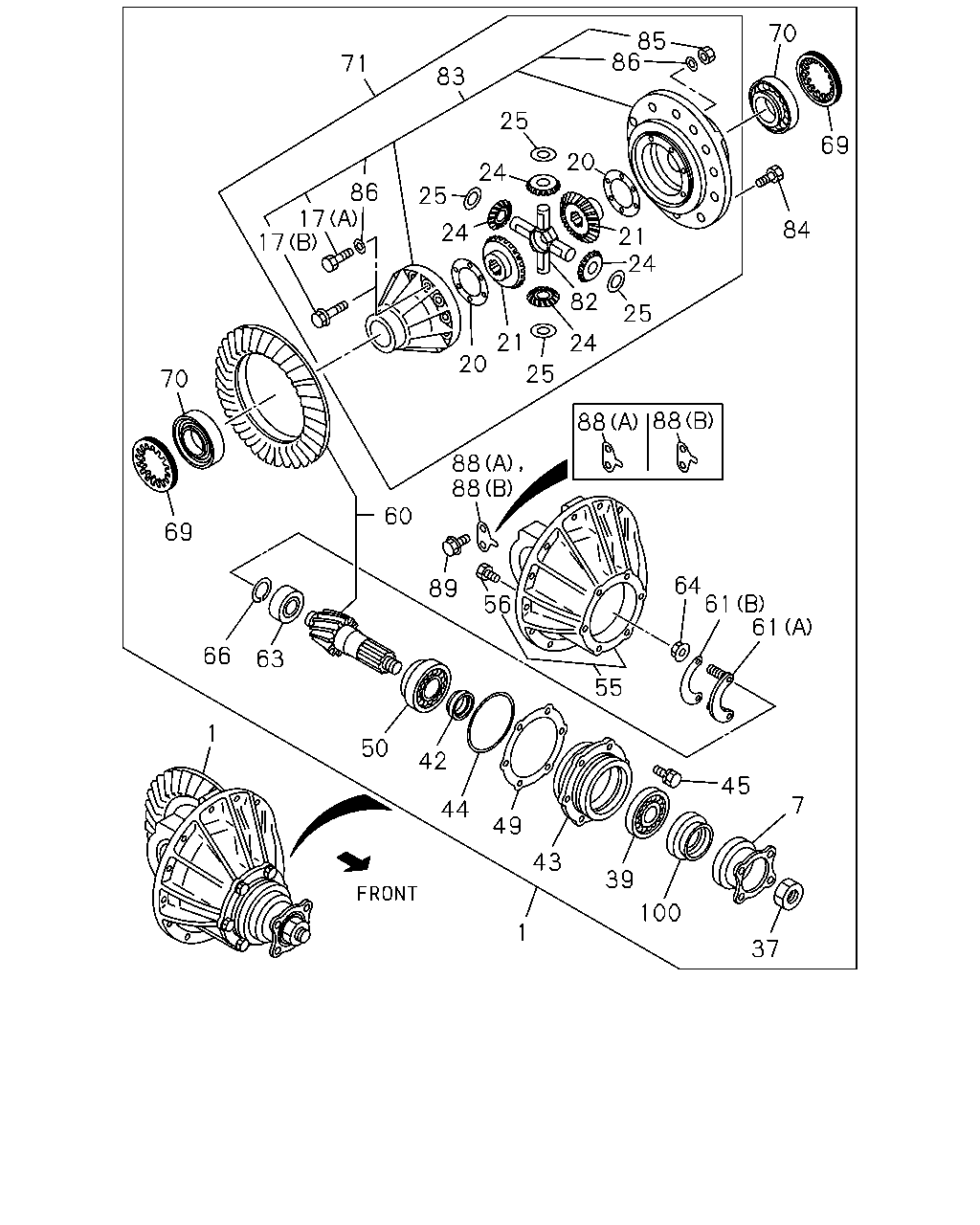

4-25 — REAR FINAL DRIVE (#76775) — 67 parça

37 100 39 1 43 49 44 42 50 1 7 45 61 61 64 55 89 56 88 88 60 63 66 69 70 17 17 86 71 83 25 24 25 24 20 21 25 24 82 25 24 21 20 86 85 70 69 84 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-707-0	01	1	0907-
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97388-709-0	01	1	0907-
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97388-708-0	01	1	0907-
7	05.545 FLANGE; FINAL	8-97073-802-2	01	1	0907-
17	05.510 BOLT; DIFF CAGE SETTING (A) M12X90	8-97047-295-0	12	1	0907-1208
17	05.510 BOLT; DIFF CAGE SETTING (B) M12X90	8-98219-448-0	12	1	1209-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0907-
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0907-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0907-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0907-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0907-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0907-
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0907-
21	05.528 GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0907-1004
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0907-1004
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0907-
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0907-
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-
39	05.484 BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0907-1002
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0907-
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0907-
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0907-
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0907-0909
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0907-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0907-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0907-
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0907-
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0907-
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0907-
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0907-
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0907-
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0907-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	0907-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	0907-1505
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97061-850-0	01	1	0907-1505
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-98092-146-0	01	1	1506-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0907-
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0907-
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0907-
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0907-
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0907-
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0907-
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0907-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-97047-099-4	01	1	0907-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1)	8-97047-100-4	01	1	0907-
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0907-1004
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1310-
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-97047-101-2	01	1	0907-1208
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-98219-705-0	01	1	1209-
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-97047-117-2	01	1	0907-1208
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-98219-707-0	01	1	1209-
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0907-
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0907-
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0907-1208
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-
88	05.506 PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	0907-
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0907-
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0907-
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0907-
