3-60 — BRAKE PIPING; VACUUM (#76770) — 78 parça

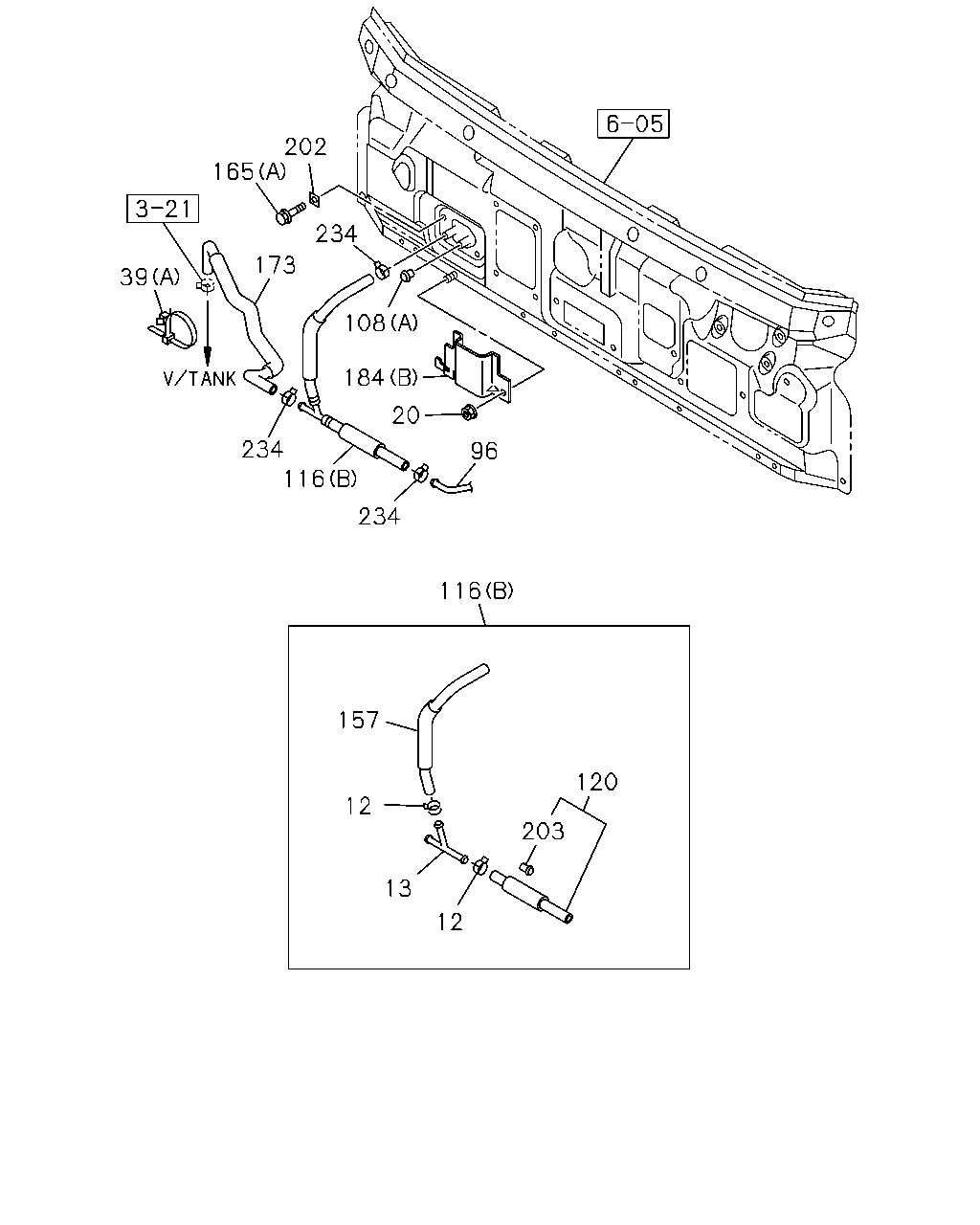

çizim 121507
120 203 12 13 12 157 116 234 96 20 184 116 234 39 173 234 108 202 165
BalonParca AdiParca NoAdetTipApplied Date
12 04.681 CLIP; HOSE
04.930 ID=15.5 		8-98008-097-0 02 1 0907-
13 04.681 JOINT; HOSE,VAC 8-98035-106-0 01 1 0907-
20 04.686 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0907-
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912-1205
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1206-
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0907-
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0912-
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0907-1205
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206-
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0907-
108 04.931 GROMMET; PIPE
(A) 		9-09956-353-0 01 1 0907-
116 04.931 HOSE; VAC,M/VAC
(B) 		8-97389-690-3 01 1 0907-
116 04.931 HOSE; VAC,M/VAC
(A) 		8-98094-547-0 01 1 0907-
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98098-029-0 01 1 0907-
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE 8-97389-696-2 01 1 0907-
157 04.931 HOSE; JOINT 8-98022-868-3 01 1 0907-
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0907-
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0907-
173 04.931 HOSE; VAC,VAC TANK SIDE 8-98022-870-1 01 1 0907-1012
173 04.931 HOSE; VAC,VAC TANK SIDE 8-98107-558-0 01 1 1101-
184 04.685 BRACKET; UNION FIX
(D) 		8-98255-548-0 01 1 1312-
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0907-1102
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103-1311
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-535-0 01 1 1312-
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0907-
202 04.686 SEAL
08.845 		8-97856-616-0 02 1 0907-
203 04.690 VALVE; CHECK 8-94386-540-0 01 1 0907-
234 04.685 CLAMP; PIPE
04.930 ID=16 		8-94238-568-0 03 1 0907-

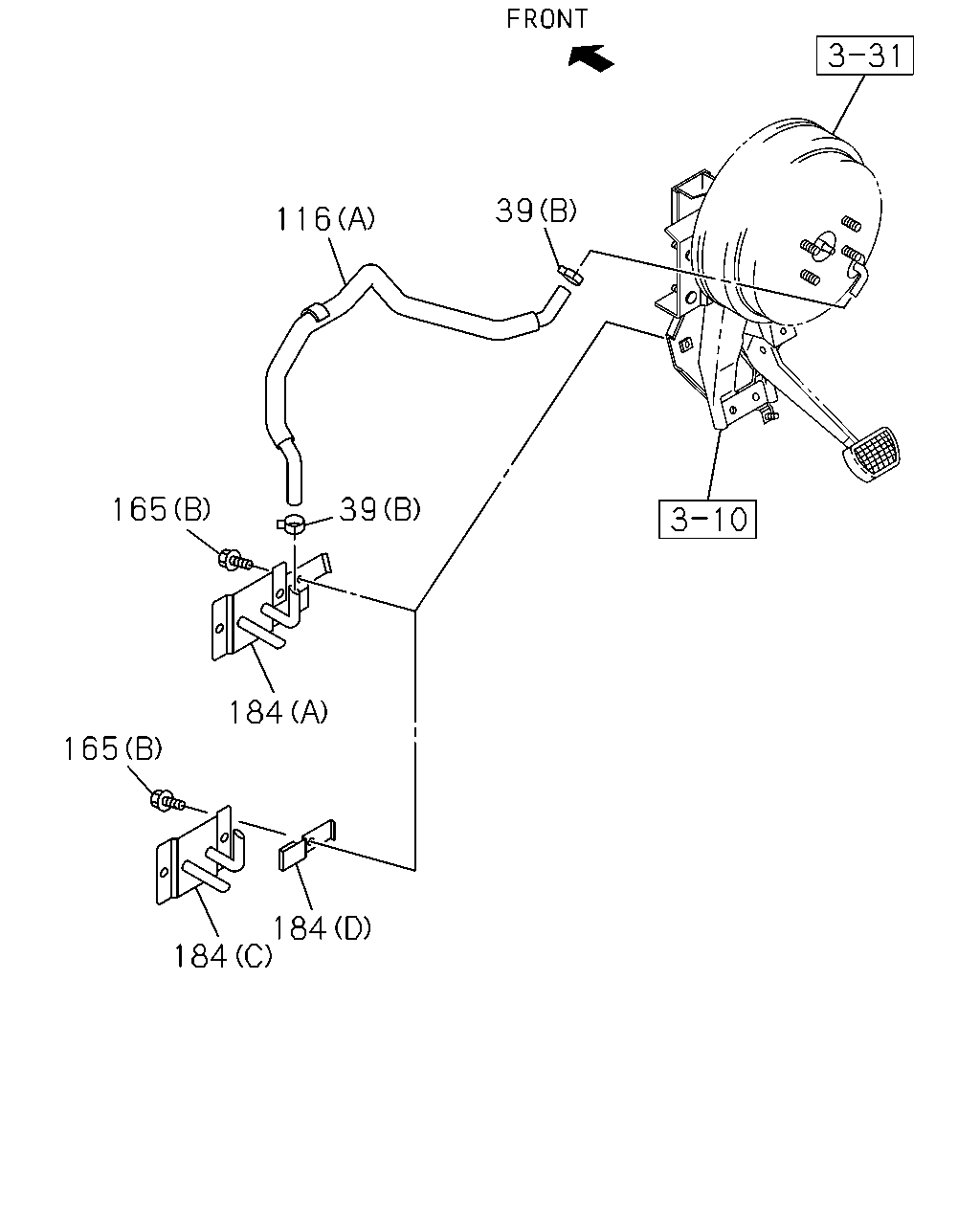

çizim 121539
39 116 165 39 184 184 165 184
BalonParca AdiParca NoAdetTipApplied Date
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912-1205
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1206-
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0907-
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0912-
116 04.931 HOSE; VAC,M/VAC
(B) 		8-97389-690-3 01 1 0907-
116 04.931 HOSE; VAC,M/VAC
(A) 		8-98094-547-0 01 1 0907-
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98098-029-0 01 1 0907-
165 04.686 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0907-
165 04.686 BOLT; BRKT
02.762 (A) M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 0907-
184 04.685 BRACKET; UNION FIX
(D) 		8-98255-548-0 01 1 1312-
184 04.685 BRACKET; UNION FIX
(A) 		8-97389-686-1 01 1 0907-1102
184 04.685 BRACKET; UNION FIX
(A) 		8-98183-462-1 01 1 1103-1311
184 04.685 BRACKET; UNION FIX
(C) 		8-98255-535-0 01 1 1312-
184 04.685 BRACKET; UNION FIX
(B) 		8-98017-628-1 01 1 0907-

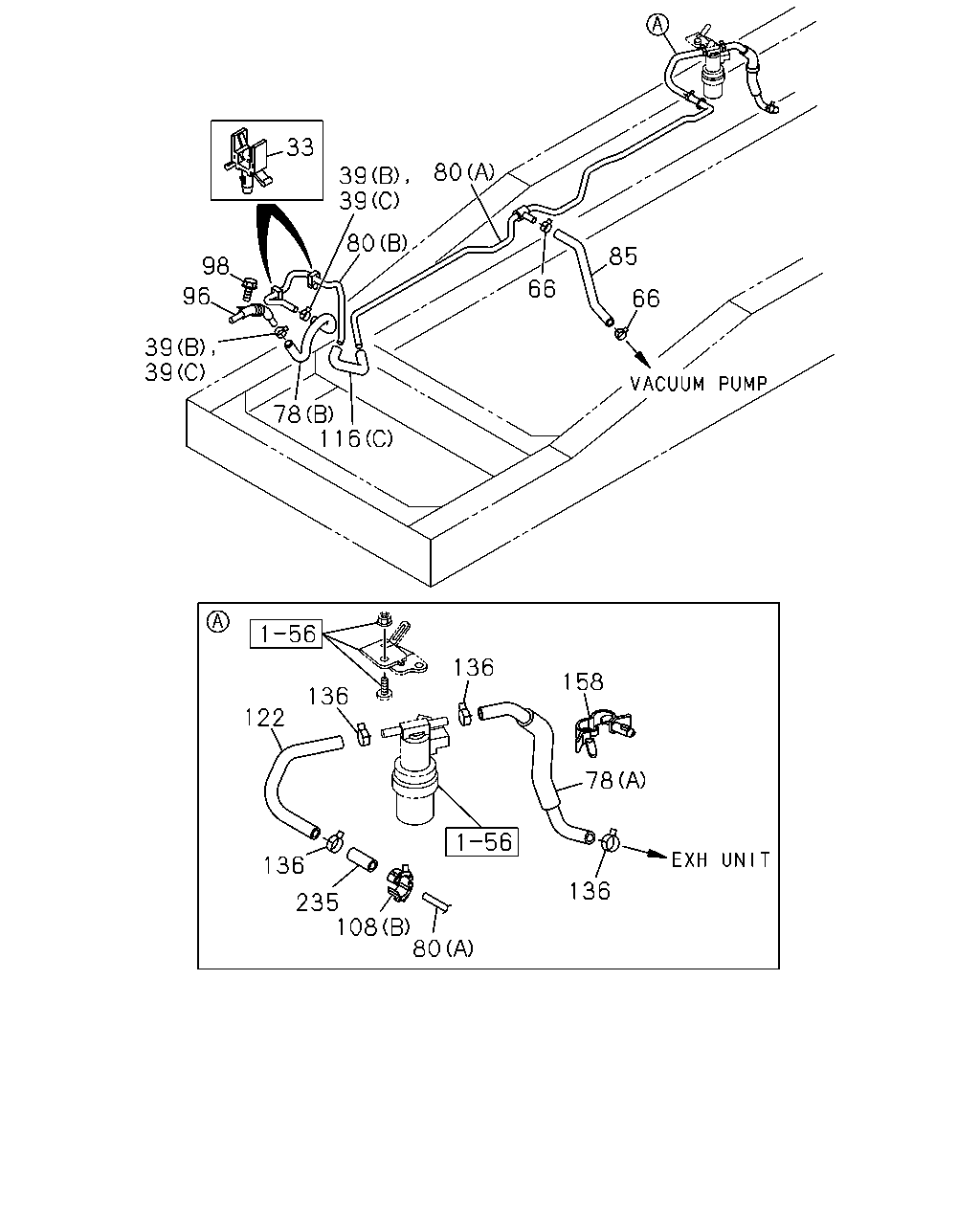

çizim 121582
33 80 39 39 80 85 98 66 96 66 39 39 78 116 136 158 136 122 78 136 136 235 108 80
BalonParca AdiParca NoAdetTipApplied Date
33 04.930 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 0907-
39 04.681 CLIP; HOSE,VAC
03.162 (C) ID=16 		8-98008-098-0 02 1 0912-1205
39 04.681 CLIP; HOSE,VAC
01.097 (C) ID=16 		8-97329-628-0 02 1 1206-
39 04.681 CLIP; HOSE,VAC
02.559 (A) L=170.3 		1-09987-182-0 01 1 0907-
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0907-0911
39 04.681 CLIP; HOSE,VAC
04.930 (B) ID=16 		8-94238-568-0 02 1 0912-
66 04.930 CLIP; VAC HOSE,M/VAC
ID=16 		8-94238-568-0 02 1 0907-0911
66 04.930 CLIP; VAC HOSE,M/VAC
03.162 ID=16 		8-98008-098-0 02 1 0912-
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-97389-712-2 01 1 0907-1205
78 04.931 HOSE; VAC,PIPE TO PIPE
(B) 		8-98220-704-0 01 1 1206-
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98051-378-1 01 1 0907-1104
78 04.931 HOSE; VAC,PIPE TO PIPE
(A) 		8-98188-384-0 01 1 1105-
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98055-706-1 01 1 0907-1205
80 04.930 PIPE; VAC,ENG SIDE
(B) 		8-98220-578-0 01 1 1206-
80 04.930 PIPE; VAC,ENG SIDE
(A) 		8-98098-011-0 01 1 0907-
85 04.931 HOSE; VAC,ENG SIDE 8-98051-263-1 01 1 0907-
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98046-550-0 01 1 0907-1205
96 04.930 PIPE; VAC,M/VAC TO VAC PUMP 8-98220-579-0 01 1 1206-
98 04.931 BOLT; VAC PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0907-
108 04.931 GROMMET; PIPE
02.343 (B) ID=17 		8-94128-319-2 01 1 0907-
108 04.931 GROMMET; PIPE
(A) 		9-09956-353-0 01 1 0907-
116 04.931 HOSE; VAC,M/VAC
(B) 		8-97389-690-3 01 1 0907-
116 04.931 HOSE; VAC,M/VAC
(A) 		8-98094-547-0 01 1 0907-
116 04.931 HOSE; VAC,M/VAC
(C) 		8-98098-029-0 01 1 0907-
122 04.931 HOSE; AIR,MAG VLV TO AIR PIPE 8-97389-721-1 01 1 0907-
136 04.681 CLIP; VAC HOSE
04.930 ID=16 		8-94238-568-0 04 1 0907-0911
136 04.681 CLIP; VAC HOSE
03.162 ID=16 		8-98008-098-0 04 1 0912-
158 04.681 CLIP; HOSE
ID=18-24 L=14.5 		1-09709-298-0 01 1 0907-
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0907-0907
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0907-0907
235 04.931 RUBBER; SUPPORT,PIPE
03.162 OD=16.5 L=50 		8-97214-235-0 01 1 0908-
