Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

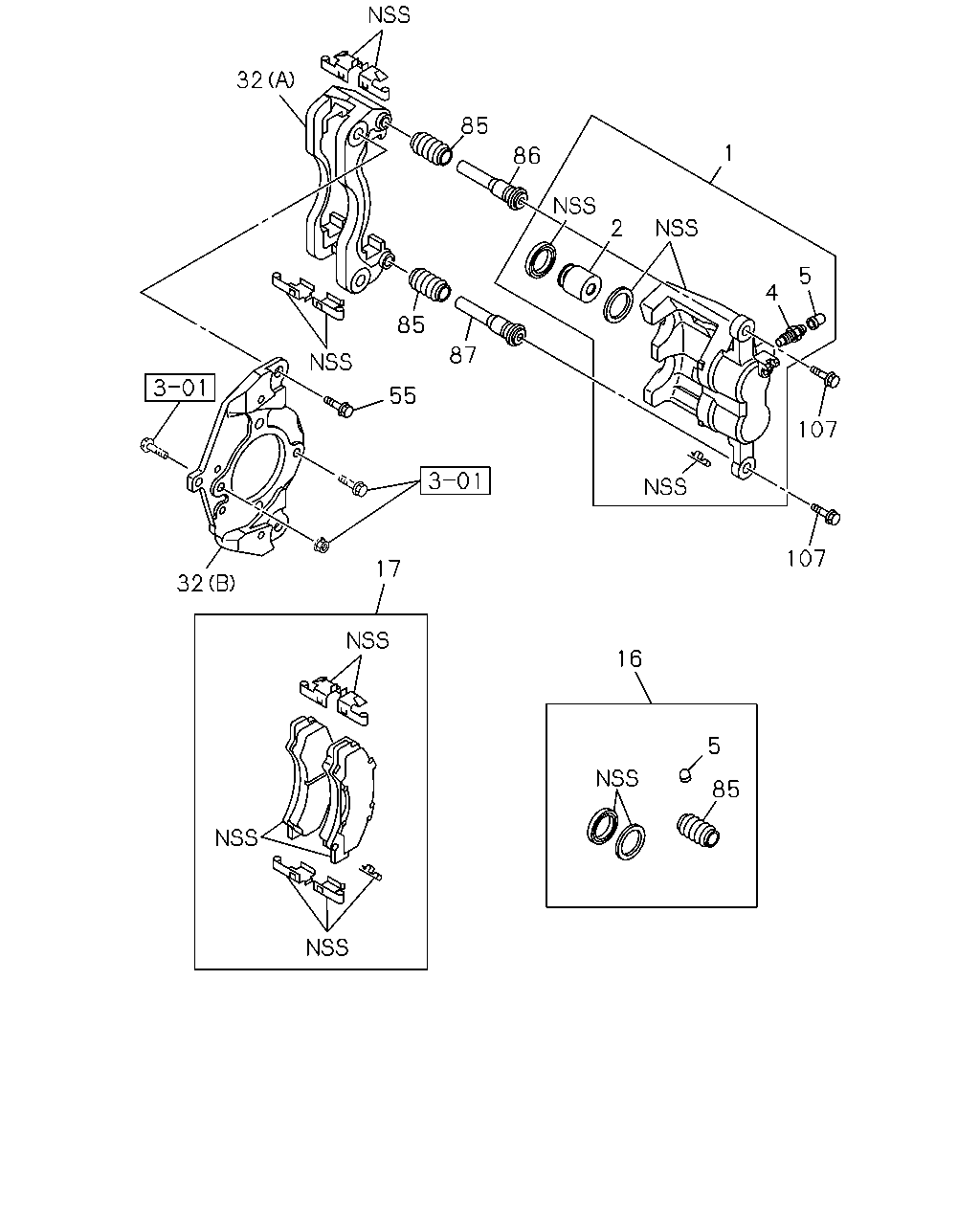

3-02 — FRONT DISC BRAKE CALIPER
(#76757) — 21 parça
32
85
1
86
2
5
4
85
87
55
107
107
17
32
16
5
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.665 CALIPER; FRT DISC BRK
8-97368-919-0
01
1
0907-1412
1
04.665 CALIPER; FRT DISC BRK
8-98303-465-0
01
1
1501-
1
04.665 CALIPER; FRT DISC BRK
8-97368-920-0
01
1
0907-1412
1
04.665 CALIPER; FRT DISC BRK
8-98303-466-0
01
1
1501-
2
04.668 PISTON; CALIPER,DISC BRK,FRT
8-97365-279-0
04
1
0907-
4
04.666 SCREW; BLEEDER,DISC BRK,FRT
1-47615-027-0
02
1
0907-1412
4
04.666 SCREW; BLEEDER,DISC BRK,FRT
8-98050-476-0
02
1
1501-
5
04.666 CAP; BLEEDER,DISC BRK,FRT
1-47619-009-0
02
1
0907-1412
5
04.666 CAP; BLEEDER,DISC BRK,FRT
8-98050-479-0
02
1
1501-
16
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
8-98120-358-0
01
1
0907-1412
16
04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
8-98302-532-0
01
1
1501-
17
05.017 PAD KIT; CALIPER,DISC BRK,FRT
8-97168-634-0
01
1
0907-1212
17
05.017 PAD KIT; CALIPER,DISC BRK,FRT
8-98216-926-0
01
1
1301-
32
04.665 SUPPORT; FRT DISC BRK
(A)
8-97365-281-0
02
1
0907-
32
04.665 SUPPORT; FRT DISC BRK
(B)
8-98009-726-0
01
1
0907-
32
04.665 SUPPORT; FRT DISC BRK
(B)
8-98009-727-0
01
1
0907-
55
04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE
8-97359-816-0
04
1
0907-
85
04.665 BOOT; PIN
8-98120-354-0
04
1
0907-
86
04.665 PIN; GUIDE
8-98047-529-0
02
1
0907-
87
04.665 PIN; LOCK
8-98047-531-0
02
1
0907-
107
04.665 BOLT; PIN
8-97365-264-0
04
1
0907-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
