Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

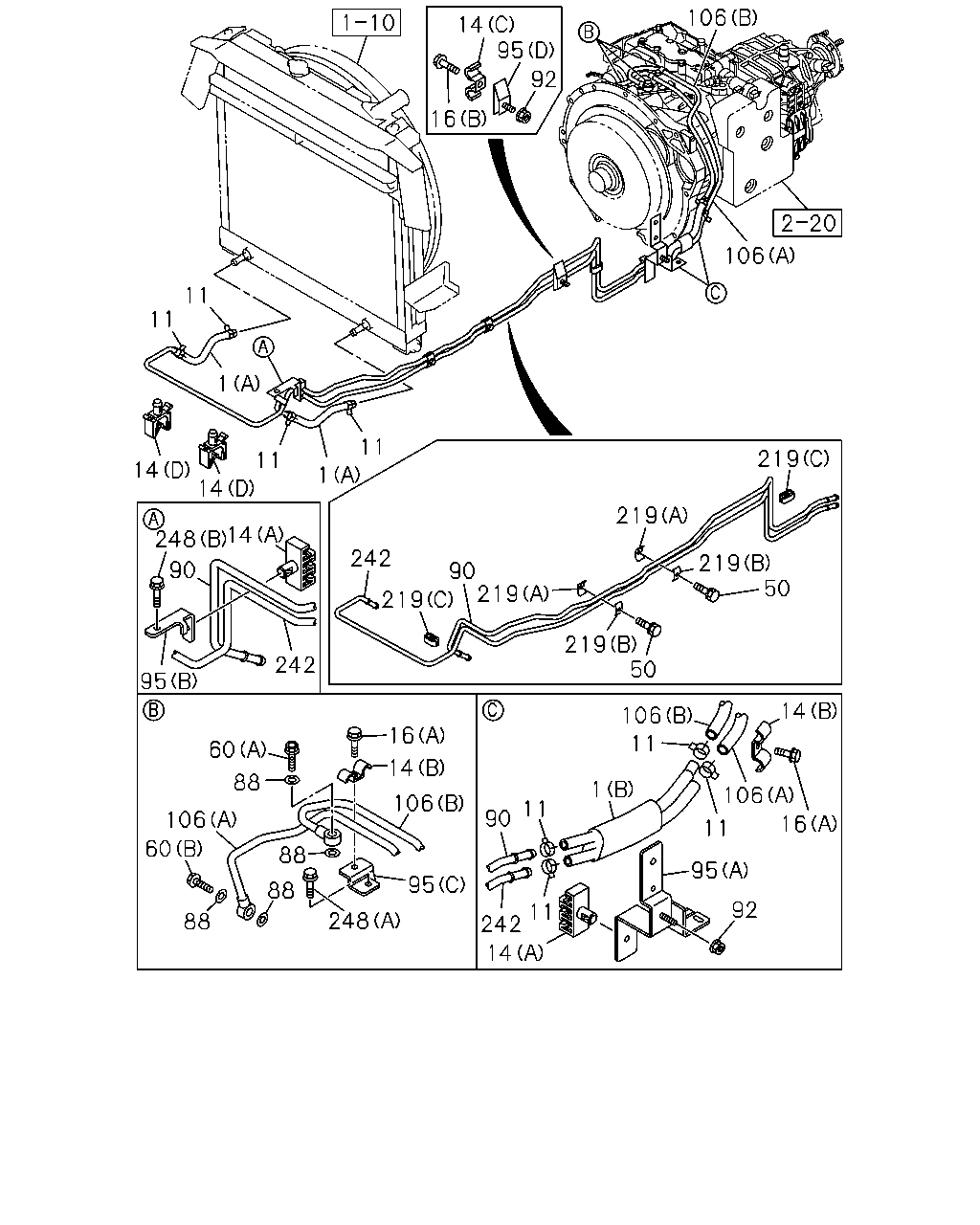

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#76755) — 29 parça
106
14
95
92
16
106
11
11
1
11
219
11
14
14
1
219
248
14
242
219
50
90
90
219
219
219
50
242
95
14
11
16
60
14
88
1
106
106
11
90
106
16
11
60
88
95
95
88
92
11
242
248
88
14
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.128 HOSE; ATF
(B)
8-98086-374-0
01
1
0907-
1
04.128 HOSE; ATF
(A)
8-98086-381-1
02
1
0907-
11
04.128 CLIP; PIPE
01.097 ID=16
8-97329-628-0
08
1
0907-
14
04.128 CLIP; PIPE TO ENG SIDE
04.047 (C) ID=13 & 13 L=16 & 16
1-09700-072-0
01
1
0907-
14
04.128 CLIP; PIPE TO ENG SIDE
00.854 (B) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
02
1
0907-
14
04.128 CLIP; PIPE TO ENG SIDE
04.930 (D) ID=10 H=40
8-94462-219-0
02
1
0907-
14
04.128 CLIP; PIPE TO ENG SIDE
(A) ID=10 OR 12X2 & 4.76
8-98058-323-0
02
1
0907-
16
04.128 BOLT; CLIP,ENG SIDE
02.343 (B) M6X16 FLANGE
0-28650-616-0
01
1
0907-
16
04.128 BOLT; CLIP,ENG SIDE
01.531 (A) M8X20 FLANGE
0-28650-820-0
02
1
0907-
50
04.128 BOLT; CLIP
M6X25 W/LK WASHER
0-50540-625-0
02
1
0907-
60
04.128 BOLT; EYE,ATF PIPE
(B) M14X30 EYE-BOLT
8-98037-827-0
01
1
0907-
60
04.128 BOLT; EYE,ATF PIPE
(A) M14X35.5 EYE-BOLT
8-98060-382-0
01
1
0907-
88
04.128 GASKET; EYE BOLT
08.955 ID=14.2 OD=20.0
9-09571-414-0
04
1
0907-
90
04.128 PIPE ASM; ATF
8-98089-905-0
01
1
0907-
92
04.128 NUT; CLIP
00.837 M10
8-98034-487-1
01
1
0909-
92
04.128 NUT; CLIP
03.162 M10 FLANGE
0-91180-110-0
02
1
0907-0908
92
04.128 NUT; CLIP
03.162 M10 FLANGE
0-91180-110-0
01
1
0909-
95
04.128 BRACKET; CLIP
(C)
8-97349-876-0
01
1
0907-
95
04.128 BRACKET; CLIP
(B)
8-97389-857-1
01
1
0907-
95
04.128 BRACKET; CLIP
(D)
8-98056-376-1
01
1
0907-
95
04.128 BRACKET; CLIP
(A)
8-98057-619-0
01
1
0907-
106
04.128 PIPE ASM; OIL,COOLER TO UNION
(A)
8-98017-110-0
01
1
0907-
106
04.128 PIPE ASM; OIL,COOLER TO UNION
(B)
8-98035-638-0
01
1
0907-
219
04.128 CLIP; ATF PIPE
06.672 (C) ID=10X2 H=22
8-94252-455-2
02
1
0907-
219
04.128 CLIP; ATF PIPE
(A)
8-98089-125-0
02
1
0907-
219
04.128 CLIP; ATF PIPE
(B)
8-98089-126-0
02
1
0907-
242
04.128 PIPE; COOLER
8-98081-267-1
01
1
0907-
248
04.128 BOLT; RETAINER
01.531 (A) M8X20 FLANGE
0-28650-820-0
01
1
0907-
248
04.128 BOLT; RETAINER
06.216 (B) M8X25 FLANGE
0-28650-825-0
01
1
0907-
