◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51259 - NPR CNG-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#76751) — 89 parça

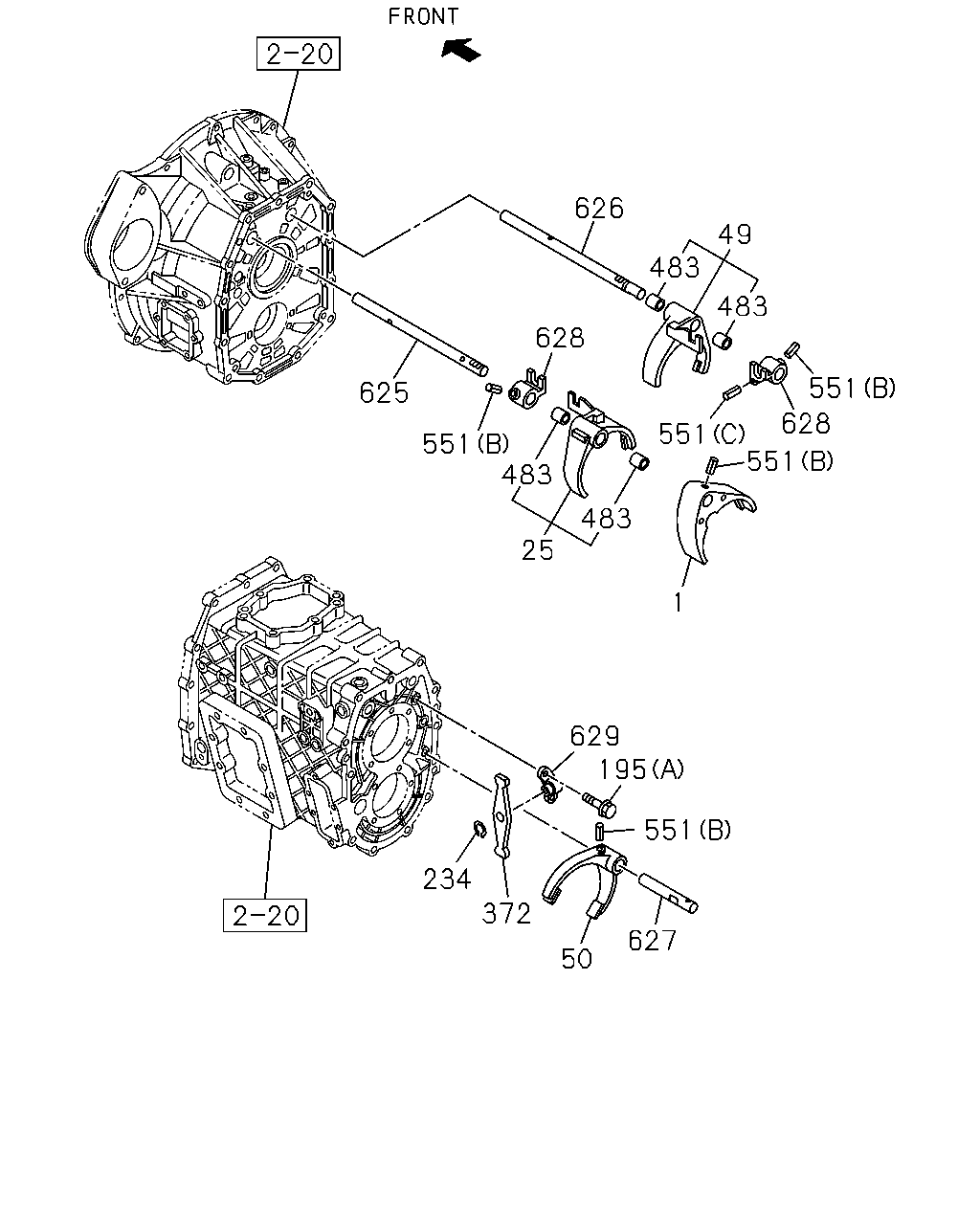

çizim 113434
626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 0907-
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 0907-1407
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408-
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 0907-
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 0907-
195 04.105 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0907-
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0907-
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 0907-
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 0907-
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 04 1 0907-
551 04.303 PIN; SPRING
04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0907-
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0907-
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 0907-
551 04.303 PIN; SPRING
04.302 (F) OD=5 		8-97184-905-0 03 1 0907-
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0907-
551 04.303 PIN; SPRING
(E) 		8-97379-991-0 01 1 0907-
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 0907-
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 0907-
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 0907-
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 0907-
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 0907-

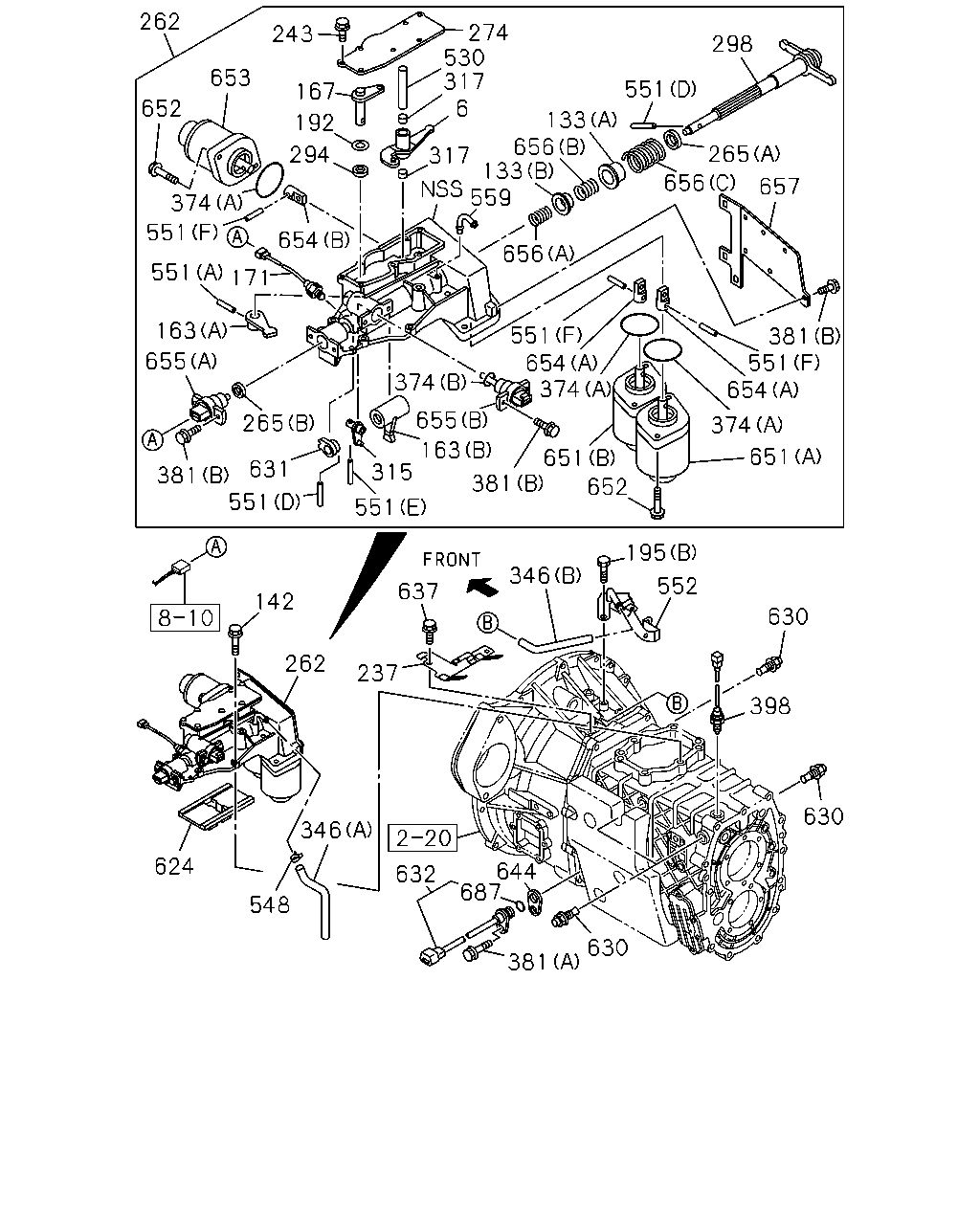

çizim 186807
262 274 530 317 6 243 298 653 551 167 652 133 656 133 559 192 265 294 317 656 657 374 551 654 656 551 171 381 551 654 163 551 654 374 655 374 655 265 374 163 315 651 651 381 631 381 551 652 551 195 346 552 637 142 630 262 237 398 630 346 644 687 624 632 548 630 381
BalonParca AdiParca NoAdetTipApplied Date
6 04.302 LEVER; RELAY 8-97379-995-0 01 1 0907-
133 04.027 SEAT; SPR
(B) 		8-97379-988-0 01 1 0907-
133 04.027 SEAT; SPR
(A) 		8-97379-989-0 01 1 0907-
142 04.012 BOLT; QUAD BOX
M8X35 FLANGE 		8-98020-384-0 03 1 0907-
142 04.012 BOLT; QUAD BOX
M8X75 FLANGE 		8-98020-385-0 03 1 0907-
163 04.302 LEVER; SELECT,INTERNAL
(B) 		8-97379-979-0 01 1 0907-
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97379-990-0 01 1 0907-
167 04.302 LEVER; SELECT,EXTERNAL 8-97379-994-0 01 1 0907-
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 0907-1312
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-
192 04.309 WASHER; PL
04.302 		1-09503-280-0 01 1 0907-
195 04.105 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0907-
195 04.105 BOLT
(A) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0907-
237 04.057 BRACKET; CABLE,TRANS 8-98018-905-1 01 1 0907-
243 04.105 BOLT; COVER
03.162 M6X12 FLANGE 		0-28050-612-0 11 1 0907-0907
243 04.105 BOLT; COVER
04.010 M6X12 FLANGE 		1-33739-842-0 11 1 0907-
262 04.105 BOX ASM; SHIFT CONT 8-98020-399-5 01 1 0907-1010
262 04.105 BOX ASM; SHIFT CONT 8-98109-435-1 01 1 1011-1312
262 04.105 BOX ASM; SHIFT CONT 8-98241-121-1 01 1 1401-1411
262 04.105 BOX ASM; SHIFT CONT 8-98296-529-0 01 1 1412-
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 0907-
265 04.107 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97379-981-0 01 1 0907-
274 04.105 COVER; SHAFT,QUAD BOX 8-98020-711-0 01 1 0907-
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-600-0 01 1 0907-
298 04.309 SHAFT; SHIFT LEVER 8-97379-978-0 01 1 0907-
315 04.302 LEVER; SELECT 8-97379-998-0 01 1 0907-1411
315 04.302 LEVER; SELECT 8-98296-526-0 01 1 1412-
317 04.302 BUSHING; LEVER 8-97379-997-0 02 1 0907-
346 04.545 HOSE; AIR
(A) 		8-97309-855-0 01 1 0907-
346 04.545 HOSE; AIR
(B) 		8-97373-381-0 01 1 0907-
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97349-571-0 03 1 0907-
374 04.107 GASKET
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97349-573-0 01 1 0907-
381 04.105 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 0907-
381 04.105 BOLT
03.162 (B) M6X12 FLANGE 		0-28050-612-0 04 1 0907-0907
381 04.105 BOLT
04.010 (B) M6X12 FLANGE 		1-33739-842-0 04 1 0907-
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 0907-1312
398 02.698 SWITCH; REV LAMP 8-98242-173-1 01 1 1401-
530 04.302 SHAFT; SELECT 8-97379-996-0 01 1 0907-
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 0907-
551 04.303 PIN; SPRING
04.027 (D) L=30 OD=4 		1-09748-031-0 02 1 0907-
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 0907-
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 05 1 0907-
551 04.303 PIN; SPRING
04.302 (F) OD=5 		8-97184-905-0 03 1 0907-
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 0907-
551 04.303 PIN; SPRING
(E) 		8-97379-991-0 01 1 0907-
552 04.105 BRACKET 8-97349-914-1 01 1 0907-
559 04.302 PIPE; BREATHER 8-98020-710-0 01 1 0907-
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 0907-
630 04.307 DETENT ASM 8-98019-536-0 04 1 0907-
631 04.105 STOPPER; SPRING 8-97379-984-0 01 1 0907-
632 04.054 SENSOR; TRANS,REV 8-97315-604-1 01 1 0907-
637 04.105 BOLT; BRACKET
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0907-
644 04.302 SPACER; SENSOR 8-97255-489-1 01 1 0907-
651 04.309 SOLENOID ASM; SHIFT
(A) 		8-98002-759-0 01 1 0907-
651 04.309 SOLENOID ASM; SHIFT
(B) 		8-98002-760-0 01 1 0907-
652 04.309 BOLT; SORENOID
02.042 M10X25 FLANGE 		0-28151-025-0 06 1 0907-
653 04.309 SOLENOID ASM; SELECT 8-98002-761-0 01 1 0907-
654 04.309 JOINT; SOLENOID,CASE
(A) 		8-97349-473-0 02 1 0907-
654 04.309 JOINT; SOLENOID,CASE
(B) 		8-97380-419-0 01 1 0907-
655 04.309 SENSOR; STROKE
(A) 		8-97324-826-0 01 1 0907-1010
655 04.309 SENSOR; STROKE
(A) 		8-98107-823-0 01 1 1011-
655 04.309 SENSOR; STROKE
(B) 		8-97324-827-0 01 1 0907-1010
655 04.309 SENSOR; STROKE
(B) 		8-98107-824-0 01 1 1011-
656 04.307 SPRING; SHAFT
(A) 		8-97379-985-0 01 1 0907-
656 04.307 SPRING; SHAFT
(B) 		8-97379-986-0 01 1 0907-
656 04.307 SPRING; SHAFT
(C) 		8-97379-987-0 01 1 0907-
657 04.105 PLATE; SIDE 8-98020-712-0 01 1 0907-
687 04.075 GASKET; SENSOR
04.307 		9-09567-113-0 01 1 0907-
