2-20 — MANUAL TRANSMISSION ASM AND CASE (#76748) — 70 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

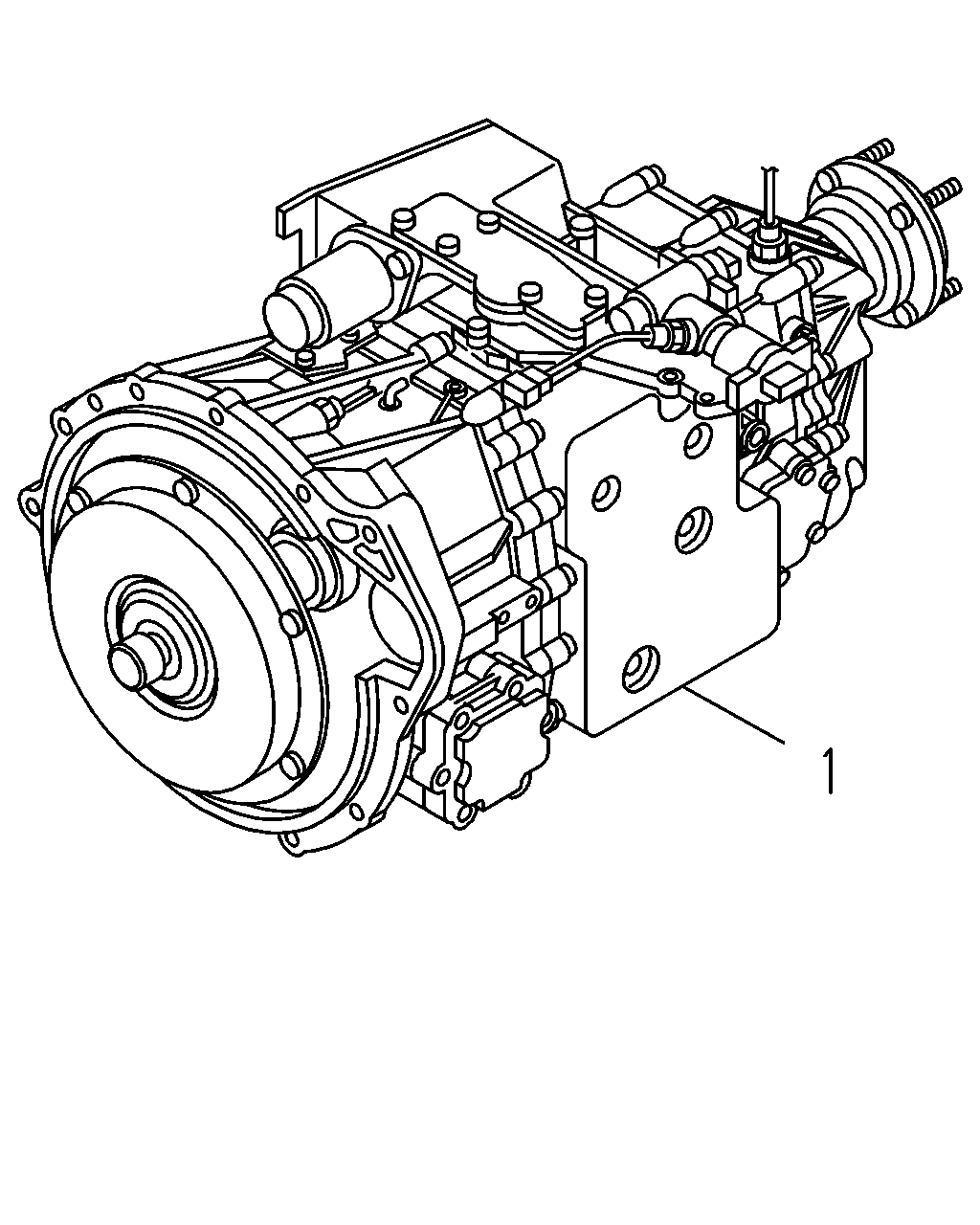

	1	04.003 TRANSMISSION ASM; MANUAL	8-98030-297-0	01	1	0907-

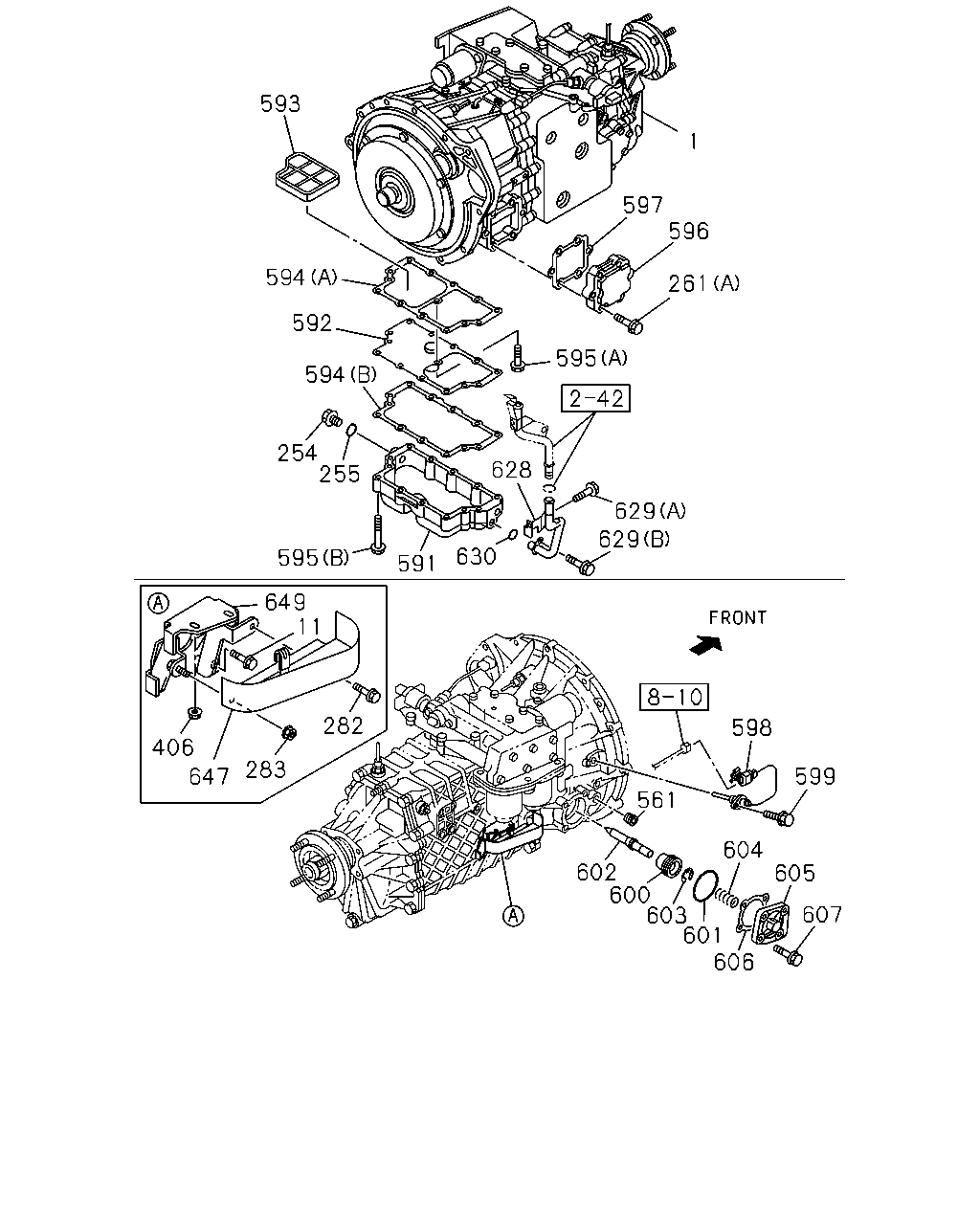

593 1 597 596 594 261 592 595 594 254 255 628 629 629 630 595 591 649 11 282 598 406 561 283 599 647 604 602 600 603 601 606 605 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.003 TRANSMISSION ASM; MANUAL	8-98030-297-0	01	1	0907-
11	04.085 BOLT; BRKT M10X20 FLANGE	0-28761-020-0	02	1	0907-
254	04.104 PLUG; DRAIN,OIL 04.105	8-97365-374-0	01	1	0907-
255	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-
261	04.109 BOLT; COVER 03.162 (A) M6X35 FLANGE	0-28650-635-0	06	1	0907-
261	04.109 BOLT; COVER 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0907-
282	00.785 BOLT; PROTECTOR 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0907-
283	04.083 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	01	1	0907-
406	04.510 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	02	1	0907-
561	04.104 PLUG	8-97320-204-0	01	1	0907-
591	04.195 PAN; OIL	8-97256-429-2	01	1	0907-
592	04.338 COVER; STRAINER	8-97289-771-1	01	1	0907-
593	04.338 FILTER; STRAINER	8-97256-438-1	01	1	0907-
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97256-430-1	01	1	0907-
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97289-772-0	01	1	0907-
595	04.510 BOLT; OIL PAN 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0907-
595	04.510 BOLT; OIL PAN 03.162 (B) M6X35 FLANGE	0-28650-635-0	13	1	0907-
596	04.317 COVER; OIL PAN	8-97289-773-0	01	1	0907-
597	04.109 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97289-774-0	01	1	0907-
598	04.329 SENSOR; TURBINE	8-97316-495-1	01	1	0907-
599	04.329 BOLT; SENSOR 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0907-
600	04.105 PISTON; BRAKE	8-97254-652-1	01	1	0907-
601	04.317 SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T).	8-97254-755-0	01	1	0907-
602	04.166 PLUNGER; BRAKE	8-97254-653-0	01	1	0907-
603	04.317 RING; SNAP 03.838 ID=8	9-09185-008-0	01	1	0907-
604	04.384 SPRING; PISTON	8-97254-752-0	01	1	0907-
605	04.356 COVER; CYLINDER	8-97254-756-0	01	1	0907-
606	04.005 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97254-757-0	01	1	0907-
607	04.109 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	04	1	0907-
628	04.439 TUBE; OIL FILLER	8-98030-395-1	01	1	0907-
629	04.317 BOLT; OIL FILLER 00.029 (A) M10X16 FLANGE	0-28151-016-0	01	1	0907-
629	04.317 BOLT; OIL FILLER 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0907-
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). ID=15.8	8-97305-656-0	01	1	0907-
647	00.782 PROTECTOR; HEAT	8-97329-465-0	01	1	0907-
649	04.105 BRACKET; SOLENOID	8-97387-237-0	01	1	0907-

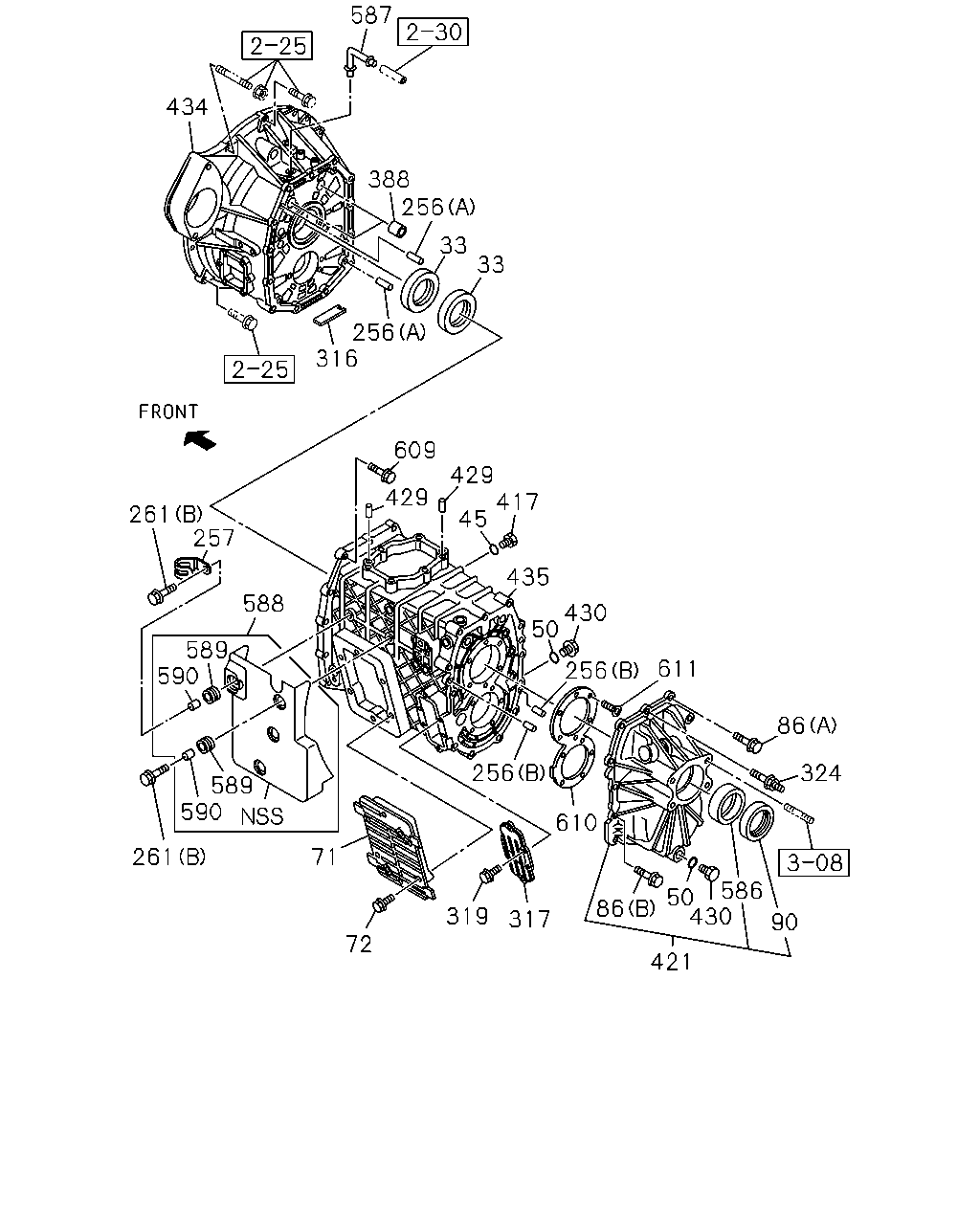

587 434 388 256 33 33 256 316 609 429 417 45 429 261 257 435 588 430 50 589 590 611 256 256 86 324 589 590 610 261 71 586 50 430 86 319 317 90 72 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97255-187-0	02	1	0907-
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	0907-
71	04.439 COVER; SIDE,TRANS CASE	8-97252-625-0	01	1	0907-
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0907-
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0907-1405
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0907-
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0907-
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0907-
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0907-
257	02.559 CLIP; HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-
261	04.109 BOLT; COVER 03.162 (A) M6X35 FLANGE	0-28650-635-0	06	1	0907-
261	04.109 BOLT; COVER 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0907-
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0907-
317	04.109 COVER; CASE	8-97252-626-0	01	1	0907-
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0907-
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0907-1405
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0907-
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0907-
421	04.317 COVER; RR,TRANS	8-98020-028-0	01	1	0907-
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0907-
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	0907-
434	00.683 HOUSING; CLU	8-98100-978-0	01	1	0907-
435	04.103 CASE; TRANS	8-97379-374-0	01	1	0907-
586	00.683 BEARING; NEEDLE	8-97253-109-0	01	1	0907-
587	04.020 PIPE; BREATHER 04.510	8-97358-318-0	01	1	0907-
588	04.356 COVER ASM; TRANS	8-97317-663-1	01	1	0907-
589	04.015 MOUNTING; RUBBER 00.034 OD=22	8-94140-428-1	04	1	0907-
590	04.015 BUSHING; RUBBER 00.034 OD=13 T=9.5	8-94140-427-1	04	1	0907-
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0907-
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0907-
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	0907-
