Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

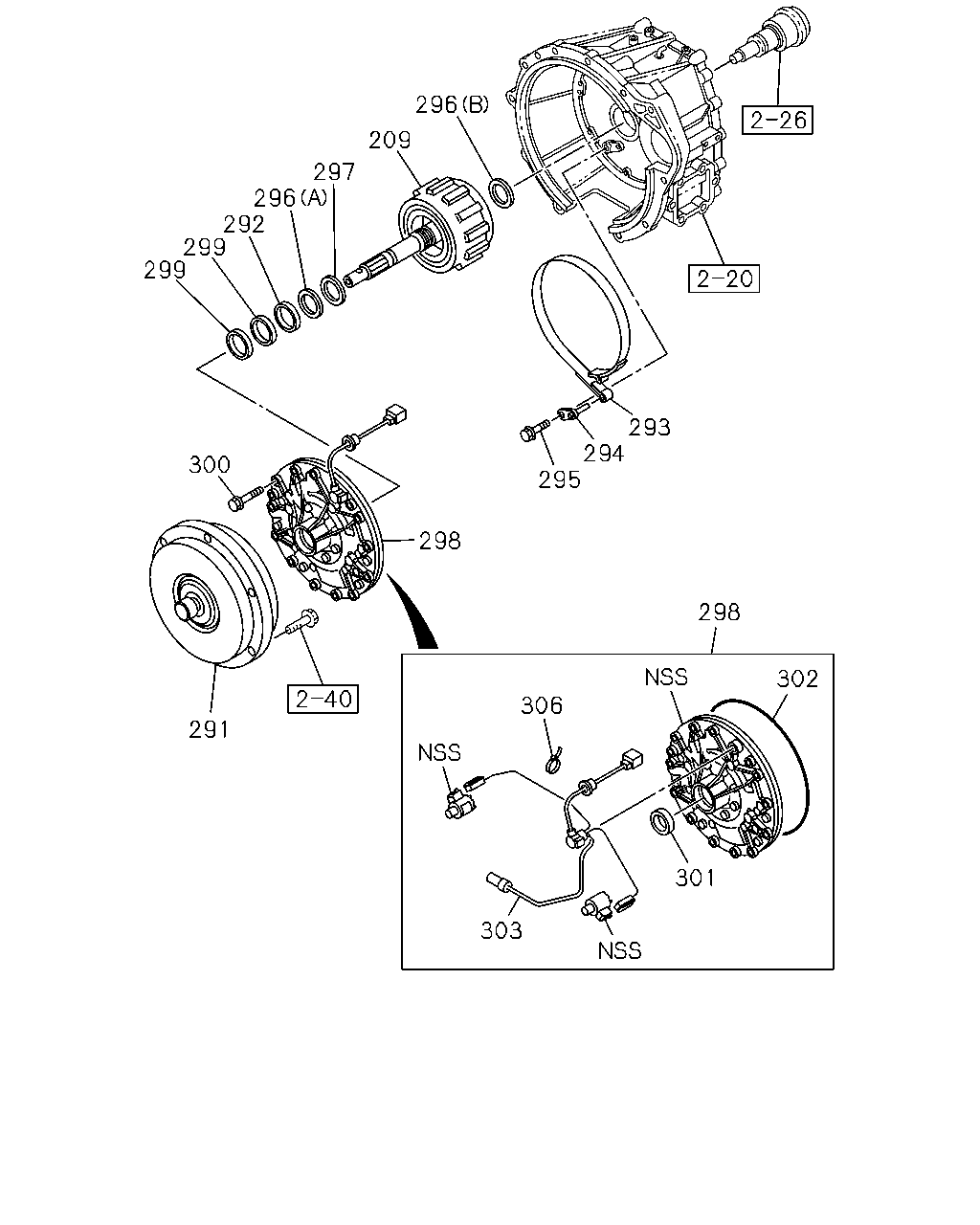

2-01 — CLUTCH
(#76746) — 17 parça
296
209
297
296
292
299
299
293
294
295
300
298
298
302
306
291
301
303
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
209
00.885 CLUTCH ASM
8-98116-930-2
01
1
0907-1412
209
00.885 CLUTCH ASM
8-98275-320-0
01
1
1501-
291
00.863 COUPLING; FLUID
8-98087-660-2
01
1
0907-
292
00.862 RING; SEAL
8-97255-329-0
01
1
0907-
293
00.799 BAND; BRAKE
8-97254-651-0
01
1
0907-
294
00.846 PIN; ANCHOR
8-97255-703-0
01
1
0907-
295
00.864 BOLT; ANCHOR PIN
01.531 M8X20 FLANGE
0-28650-820-0
01
1
0907-
296
00.862 BEARING; THRUST
(A)
8-97255-688-0
01
1
0907-
296
00.862 BEARING; THRUST
(B)
8-97255-689-0
01
1
0907-
297
00.862 WASHER; THRUST
8-97300-070-0
01
1
0907-
298
04.020 PUMP ASM; OIL
8-98107-924-1
01
1
0907-
299
04.105 RING; SEAL
8-97255-330-0
02
1
0907-
300
04.226 BOLT; OIL PUMP
09.173 M8X45 FLANGE
0-28050-845-0
11
1
0907-
301
04.166 SEAL; OIL PUMP
8-97289-811-0
01
1
0907-
302
04.226 RING; OIL PUMP
8-97255-188-0
01
1
0907-
303
02.480 HARNESS ASM; OIL PUMP
8-98000-265-2
01
1
0907-
306
00.785 CLIP; BAND
02.559 L=100
8-94279-939-0
03
1
0907-
