Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#76740) — 42 parça
◀

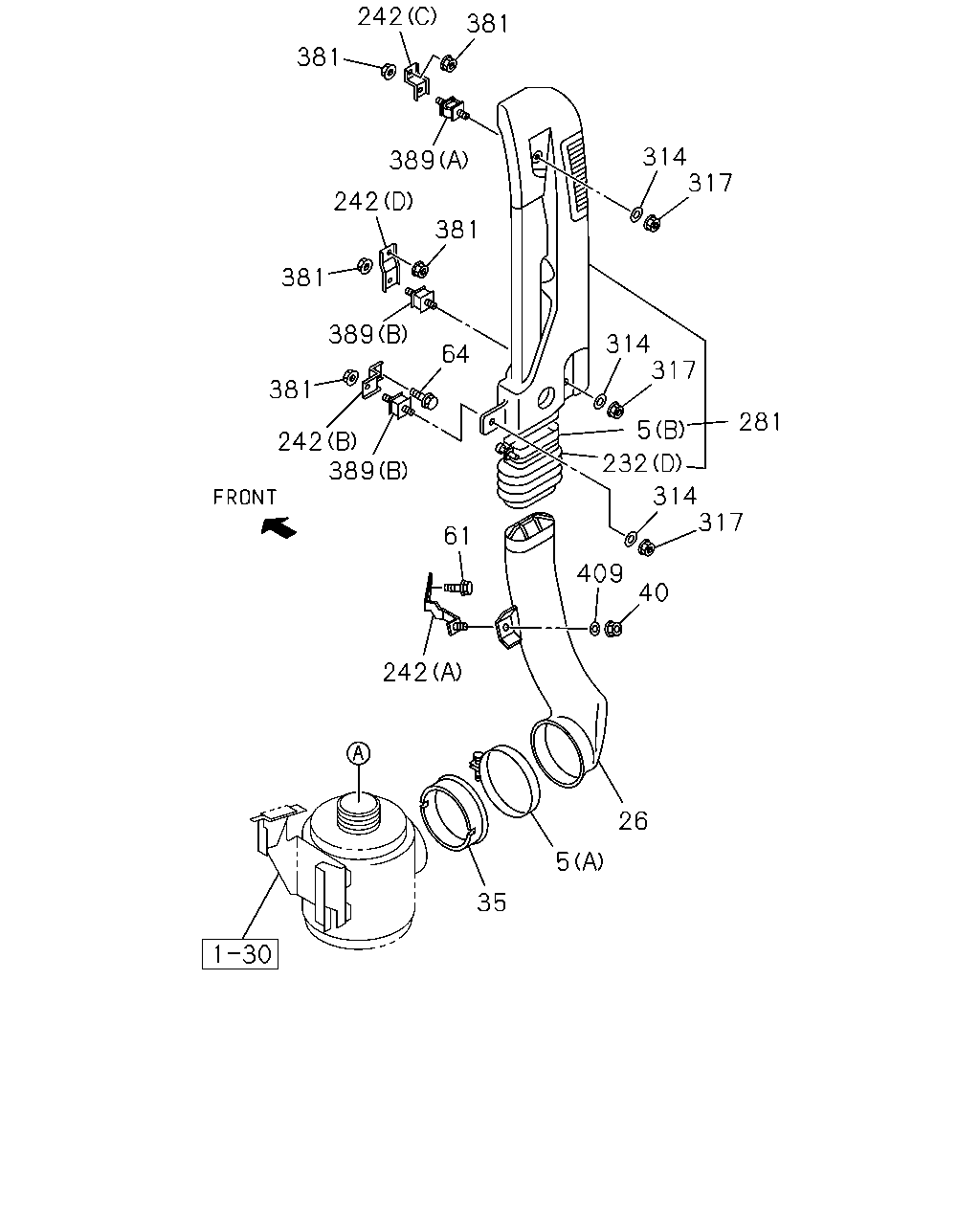

[131A] NO.1 (25 parça)

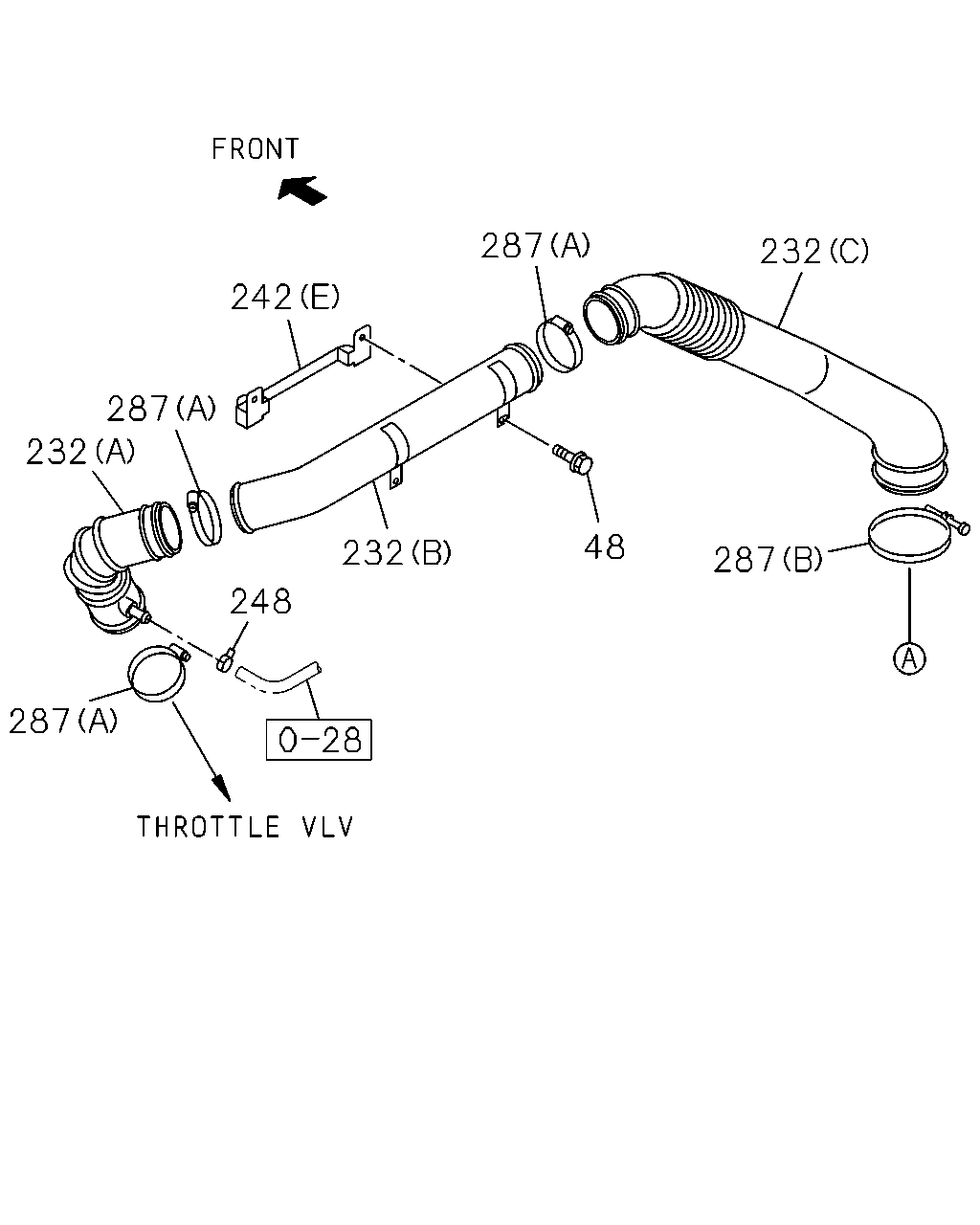

[131A] NO.2 (17 parça)
▶
242
381
381
314
317
389
242
381
381
389
314
317
64
381
281
5
242
389
232
314
317
61
409
40
242
26
5
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
03.407 CLIP; AIR DUCT
(A) ID=127
1-14239-263-0
01
1
0907-
5
03.407 CLIP; AIR DUCT
(B) D=101.6
9-09915-502-1
01
1
0907-
26
03.417 DUCT; AIR INT
8-98145-146-0
01
1
0907-
35
03.406 SEAL; DUCT,INT
8-98029-332-0
01
1
0907-
40
03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE
0-91180-110-0
01
1
0907-
61
03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0907-
64
03.417 BOLT; BRKT,AIR DUCT
M8X16
0-52000-816-0
01
1
0907-
232
03.417 HOSE; CONN
(A)
8-98059-207-1
01
1
0907-
232
03.417 HOSE; CONN
(C)
8-98059-326-2
01
1
0907-
232
03.417 HOSE; CONN
(D)
8-98082-535-0
01
1
0907-1309
232
03.417 HOSE; CONN
(D)
8-98231-785-0
01
1
1310-
232
03.417 HOSE; CONN
(B)
8-98122-850-0
01
1
0907-
242
03.417 BRACKET; AIR DUCT
(A)
8-98004-416-0
01
1
0907-
242
03.417 BRACKET; AIR DUCT
(C)
8-98036-646-2
01
1
0907-
242
03.417 BRACKET; AIR DUCT
(D)
8-98036-647-2
01
1
0907-
242
03.417 BRACKET; AIR DUCT
(B)
8-98036-649-2
01
1
0907-
242
03.417 BRACKET; AIR DUCT
(E)
8-98081-980-1
01
1
0907-
281
03.417 DUCT; AIR,VERTICAL INT
8-98080-929-2
01
1
0907-
314
03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32
0-91614-810-0
03
1
0907-
317
03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER
8-97581-234-0
03
1
0907-
381
03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER
8-97581-234-0
02
1
0907-
381
03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER
8-97581-234-0
03
1
0907-
389
03.317 RUBBER; SUPPORT,AIR INT UPR
(A)
8-98036-825-0
01
1
0907-
389
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B)
8-98036-826-0
02
1
0907-
409
03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32
0-91614-810-0
01
1
0907-
287
232
242
287
232
48
232
287
248
287
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
03.417 BOLT; AIR DUCT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0907-
232
03.417 HOSE; CONN
(A)
8-98059-207-1
01
1
0907-
232
03.417 HOSE; CONN
(C)
8-98059-326-2
01
1
0907-
232
03.417 HOSE; CONN
(D)
8-98082-535-0
01
1
0907-1309
232
03.417 HOSE; CONN
(D)
8-98231-785-0
01
1
1310-
232
03.417 HOSE; CONN
(B)
8-98122-850-0
01
1
0907-
242
03.417 BRACKET; AIR DUCT
(A)
8-98004-416-0
01
1
0907-
242
03.417 BRACKET; AIR DUCT
(C)
8-98036-646-2
01
1
0907-
242
03.417 BRACKET; AIR DUCT
(D)
8-98036-647-2
01
1
0907-
242
03.417 BRACKET; AIR DUCT
(B)
8-98036-649-2
01
1
0907-
242
03.417 BRACKET; AIR DUCT
(E)
8-98081-980-1
01
1
0907-
248
03.417 CLIP; RUBBER HOSE
01.252 ID=22.7
8-94466-382-0
01
1
0907-
287
03.417 CLIP; AIR DUCT
03.407 (A) ID=65-85
8-98133-350-0
01
1
0907-1001
287
03.417 CLIP; AIR DUCT
03.407 (A) ID=70-90
8-98122-372-0
01
1
1002-
287
03.417 CLIP; AIR DUCT
03.407 (A) ID=65-85
8-98133-350-0
02
1
0907-1001
287
03.417 CLIP; AIR DUCT
03.407 (A) ID=70-90
8-98122-372-0
02
1
1002-
287
03.417 CLIP; AIR DUCT
03.407 (B) ID=112
9-09915-074-1
01
1
0907-
