2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#7674) — 81 parça

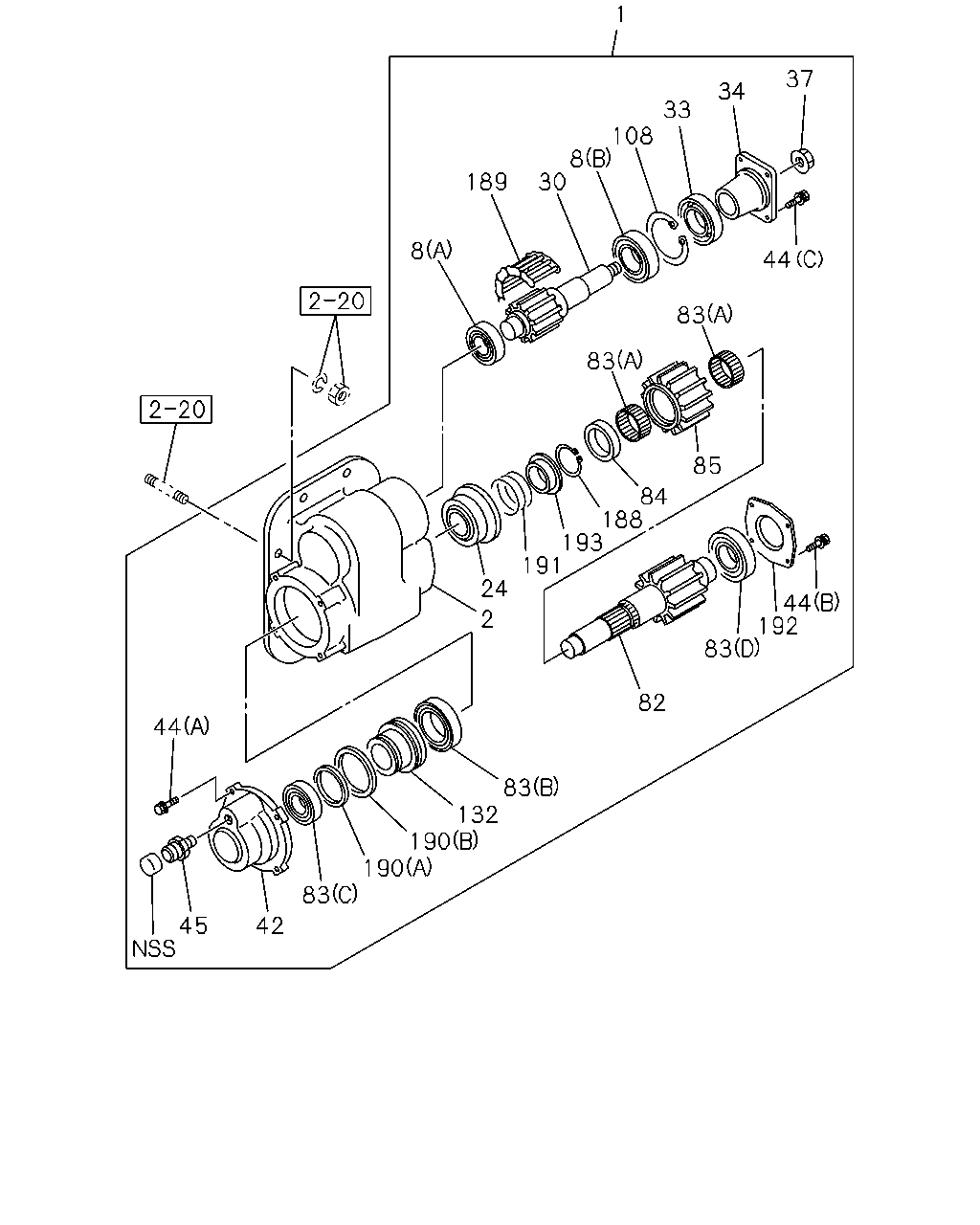

çizim 44562
1 37 34 33 108 8 30 189 8 44 83 83 85 84 188 193 191 24 44 192 83 2 82 44 83 132 190 190 83 45 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; TRANS SIDE 1-38000-328-1 01 1 9902- ●
1 POWER TAKE OFF ASM; TRANS SIDE 1-38000-315-1 01 1 9905- ●
2 CASE; GEAR,TRANS SIDE PTO 1-38111-057-1 01 1 9902- ●
2 CASE; GEAR,TRANS SIDE PTO 1-38111-081-0 01 1 9905- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(A) 		5-00098-057-0 02 1 9902- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(A) KOYO 		1-09810-231-0 01 1 9905- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(A) NSK 		1-09810-232-0 01 1 9905- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(B) KOYO 		1-09810-233-0 01 1 9905- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(B) NSK 		1-09810-234-0 01 1 9905- ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO 1-38225-009-0 01 1 9905- ●
30 SHAFT; OUTPUT,TRANS SIDE PTO 1-38211-030-0 01 1 9902- ●
30 SHAFT; OUTPUT,TRANS SIDE PTO 1-38111-083-0 01 1 9905- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO 1-38119-040-0 01 1 9902- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO 1-38119-035-0 01 1 9905- ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 1-38512-019-0 01 1 9902- ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
M16 		1-38119-036-0 01 1 9902- ● ●
42 CYLINDER; AIR,TRANS SIDE PTO 1-38377-003-0 01 1 9902- ●
42 CYLINDER; AIR,TRANS SIDE PTO 1-38151-021-0 01 1 9905- ●
44 BOLT; COVER,TRANS SIDE PTO
(A) M10X25 FLANGE 		0-28181-025-0 02 1 9902- ●
44 BOLT; COVER,TRANS SIDE PTO
(B) M8X16 FLANGE 		0-28080-816-0 04 1 9905- ●
44 BOLT; COVER,TRANS SIDE PTO
(A) M8X25 FLANGE 		0-28080-825-0 04 1 9905- ●
44 BOLT; COVER,TRANS SIDE PTO
(C) M8X30 FLANGE 		0-28680-830-0 04 1 9905- ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9902- ● ●
82 SHAFT; INPUT 1-38211-027-0 01 1 9905- ●
83 BEARING; INPUT SHAFT
(B) KOYO 		1-09800-259-0 01 1 9905- ●
83 BEARING; INPUT SHAFT
(B) NSK 		1-09800-260-0 01 1 9905- ●
83 BEARING; INPUT SHAFT
(D) KOYO 		1-09810-233-0 01 1 9905- ●
83 BEARING; INPUT SHAFT
(D) NSK 		1-09810-234-0 01 1 9905- ●
83 BEARING; INPUT SHAFT
(A) 		1-09811-397-0 02 1 9905- ●
83 BEARING; INPUT SHAFT
(C) 		8-97012-835-0 01 1 9905- ●
84 COLLAR; INPUT SHAFT 1-38226-057-0 01 1 9905- ●
85 GEAR; INPUT SHAFT 1-38241-104-0 01 1 9905- ●
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
ID=57.9 		9-09180-562-0 01 1 9905- ●
132 PISTON; CYL,PTO 1-38377-010-0 01 1 9905- ●
188 RING; SNAP,INPUT SHAFT 1-09588-199-0 01 1 9905- ●
189 CHAIN; DRIVE,PTO 1-38111-082-1 01 1 9905- ●
190 CUP; PISTON,PTO
(A) 		1-38152-020-0 01 1 9905- ●
190 CUP; PISTON,PTO
(B) 		1-38152-021-0 01 1 9905- ●
191 SPRING; SLEEVE,PTO 1-38121-005-0 01 1 9905- ●
192 COVER; INPUT SHAFT 9-38151-604-0 01 1 9905- ●
193 RETAINER; SPRING 1-38226-056-0 01 1 9905- ●
çizim 47535
1 12 50 15 11 13 44 42 40 18 20 19 26 45 39 37 34 21 2 23 9 8 10 32 6 33 10 9 8 30 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; TRANS SIDE 1-38000-328-1 01 1 9902- ●
1 POWER TAKE OFF ASM; TRANS SIDE 1-38000-315-1 01 1 9905- ●
2 CASE; GEAR,TRANS SIDE PTO 1-38111-057-1 01 1 9902- ●
2 CASE; GEAR,TRANS SIDE PTO 1-38111-081-0 01 1 9905- ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO 1-38151-006-0 01 1 9902- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(A) 		5-00098-057-0 02 1 9902- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(A) KOYO 		1-09810-231-0 01 1 9905- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(A) NSK 		1-09810-232-0 01 1 9905- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(B) KOYO 		1-09810-233-0 01 1 9905- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
(B) NSK 		1-09810-234-0 01 1 9905- ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
M10X16 		9-02341-016-0 08 1 9902- ●
10 WASHER; OUTPUT SHAFT COVER,SIDE PTO
ID=10.2 		9-09150-510-0 08 1 9902- ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO 1-09811-144-0 01 1 9902- ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO 1-38221-024-0 01 1 9902- ●
13 GEAR; IDLE,TRANS SIDE PTO
Z=36 		1-38241-065-0 01 1 9902- ●
15 PIN; SPR,TRANS SIDE PTO
L=16 		9-09878-613-0 01 1 9902- ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO 1-38361-025-0 01 1 9902- ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO 1-09748-019-0 01 1 9902- ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO 1-38371-027-2 01 1 9902- ●
21 COVER; SHIFTER ROD,TRANS SIDE PTO 9-33545-001-0 01 1 9902- ●
23 GEAR; OUTPUT,TRANS SIDE PTO
Z=21 		1-38241-087-0 01 1 9902- ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO 1-38121-004-1 01 1 9902- ●
30 SHAFT; OUTPUT,TRANS SIDE PTO 1-38211-030-0 01 1 9902- ●
30 SHAFT; OUTPUT,TRANS SIDE PTO 1-38111-083-0 01 1 9905- ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO 1-38152-016-0 01 1 9902- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO 1-38119-040-0 01 1 9902- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO 1-38119-035-0 01 1 9905- ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO 1-38512-019-0 01 1 9902- ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
M16 		1-38119-036-0 01 1 9902- ● ●
39 STOPPER; SHIFTER ROD,TRANS SIDE PTO 1-38379-006-0 01 1 9902- ●
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO 9-09561-324-0 01 1 9902- ●
42 CYLINDER; AIR,TRANS SIDE PTO 1-38377-003-0 01 1 9902- ●
42 CYLINDER; AIR,TRANS SIDE PTO 1-38151-021-0 01 1 9905- ●
44 BOLT; COVER,TRANS SIDE PTO
(A) M10X25 FLANGE 		0-28181-025-0 02 1 9902- ●
44 BOLT; COVER,TRANS SIDE PTO
(B) M8X16 FLANGE 		0-28080-816-0 04 1 9905- ●
44 BOLT; COVER,TRANS SIDE PTO
(A) M8X25 FLANGE 		0-28080-825-0 04 1 9905- ●
44 BOLT; COVER,TRANS SIDE PTO
(C) M8X30 FLANGE 		0-28680-830-0 04 1 9905- ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9902- ● ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
(A) 		1-38226-045-0 01 1 9902- ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
(B) 		1-38226-052-0 01 1 9902- ●
