1-11 — RADIATOR HOSE AND SUB TANK (#76738) — 17 parça

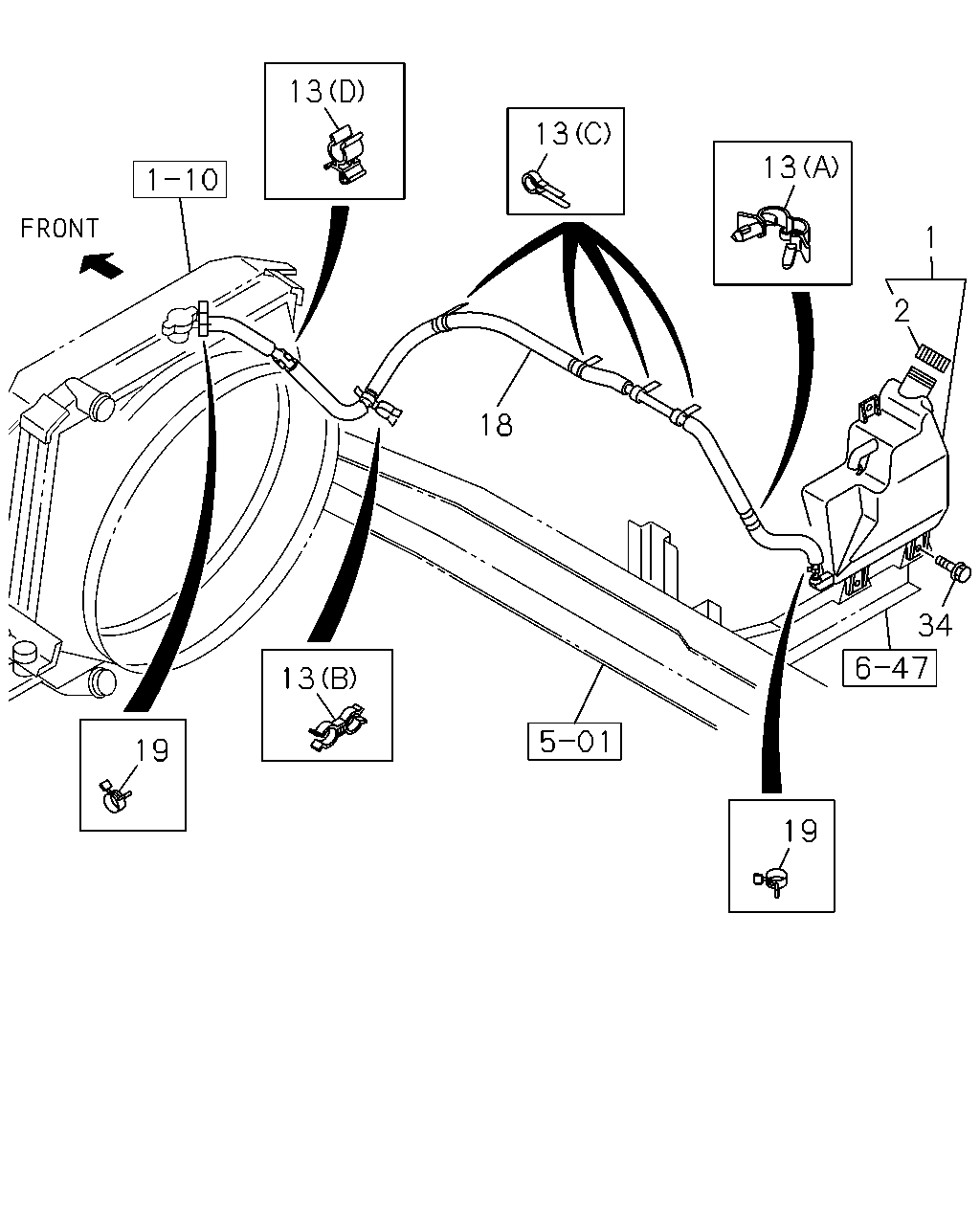

13 13 13 1 2 18 34 13 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 TANK; SURGE,RAD	8-97387-632-1	01	1	0907-1010
1	01.219 TANK; SURGE,RAD	8-98178-179-0	01	1	1011-
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	0907-1010
2	01.203 CAP; SURGE TANK	8-98178-074-0	01	1	1011-
13	01.240 CLIP; HOSE,SURGE TANK 03.162 (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0907-
13	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	04	1	0907-
13	01.240 CLIP; HOSE,SURGE TANK 02.559 (B) ID=10 & 11	8-94438-996-0	01	1	0907-
13	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	0907-
18	01.240 HOSE; RAD TO SURGE TANK	8-98147-655-0	01	1	0907-
19	01.240 CLIP; HOSE,SURGE TANK 01.219 ID=12	8-94238-610-0	02	1	0907-0911
19	01.240 CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	0912-
34	01.203 BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	0907-

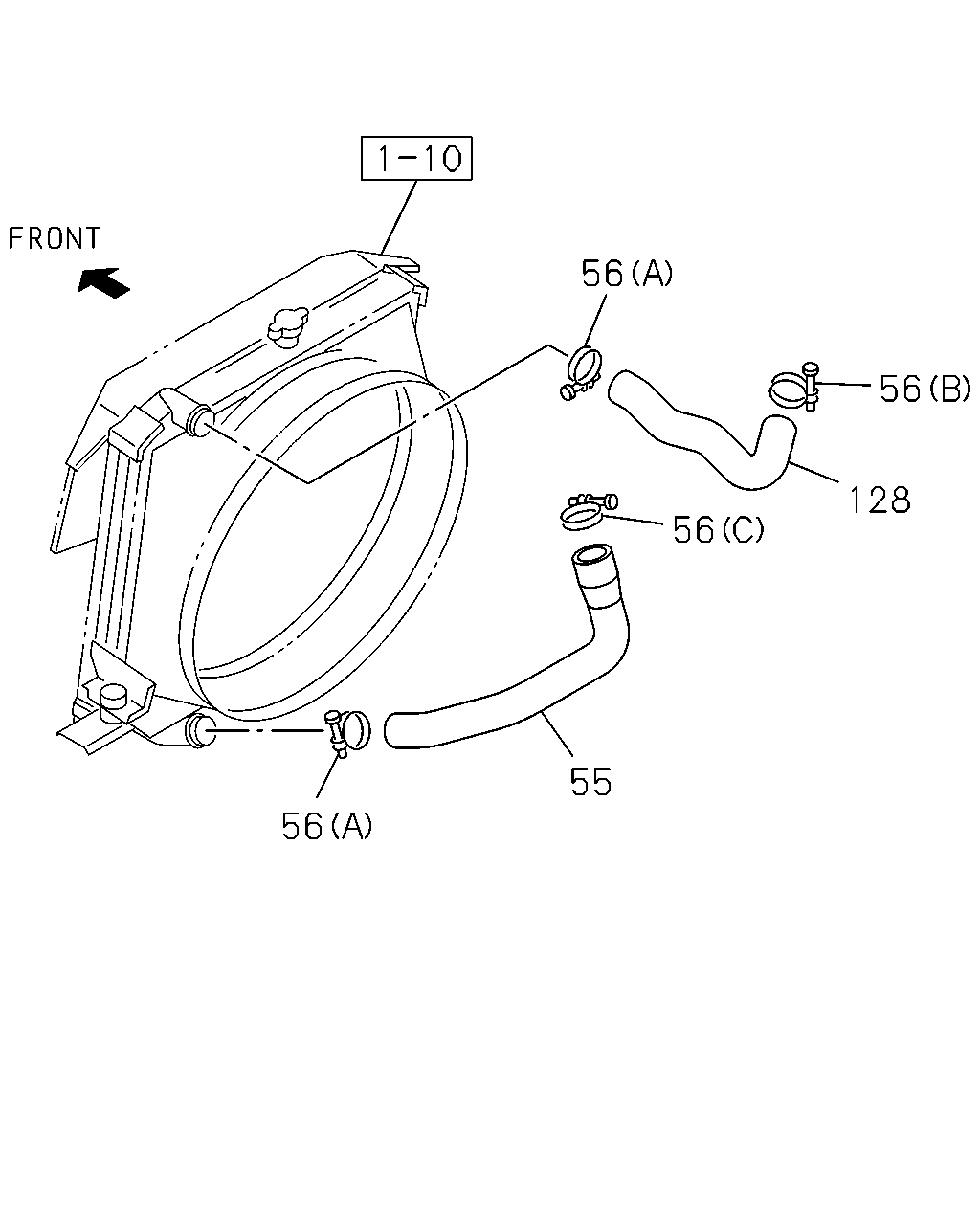

56 56 128 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	01.173 HOSE; WATER,RAD OUTLET	8-97177-372-0	01	1	0907-
56	01.166 CLIP; WATER HOSE,RAD 00.413 (B) ID=52	1-09704-057-0	01	1	0907-
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	0907-
56	01.166 CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	0907-
128	01.159 HOSE; WATER,RAD INL	8-98058-629-1	01	1	0907-
