Isuzu WW
▶
TRUCKS
▶
NPR
▶
51259 - NPR CNG-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#76737) — 24 parça
◀

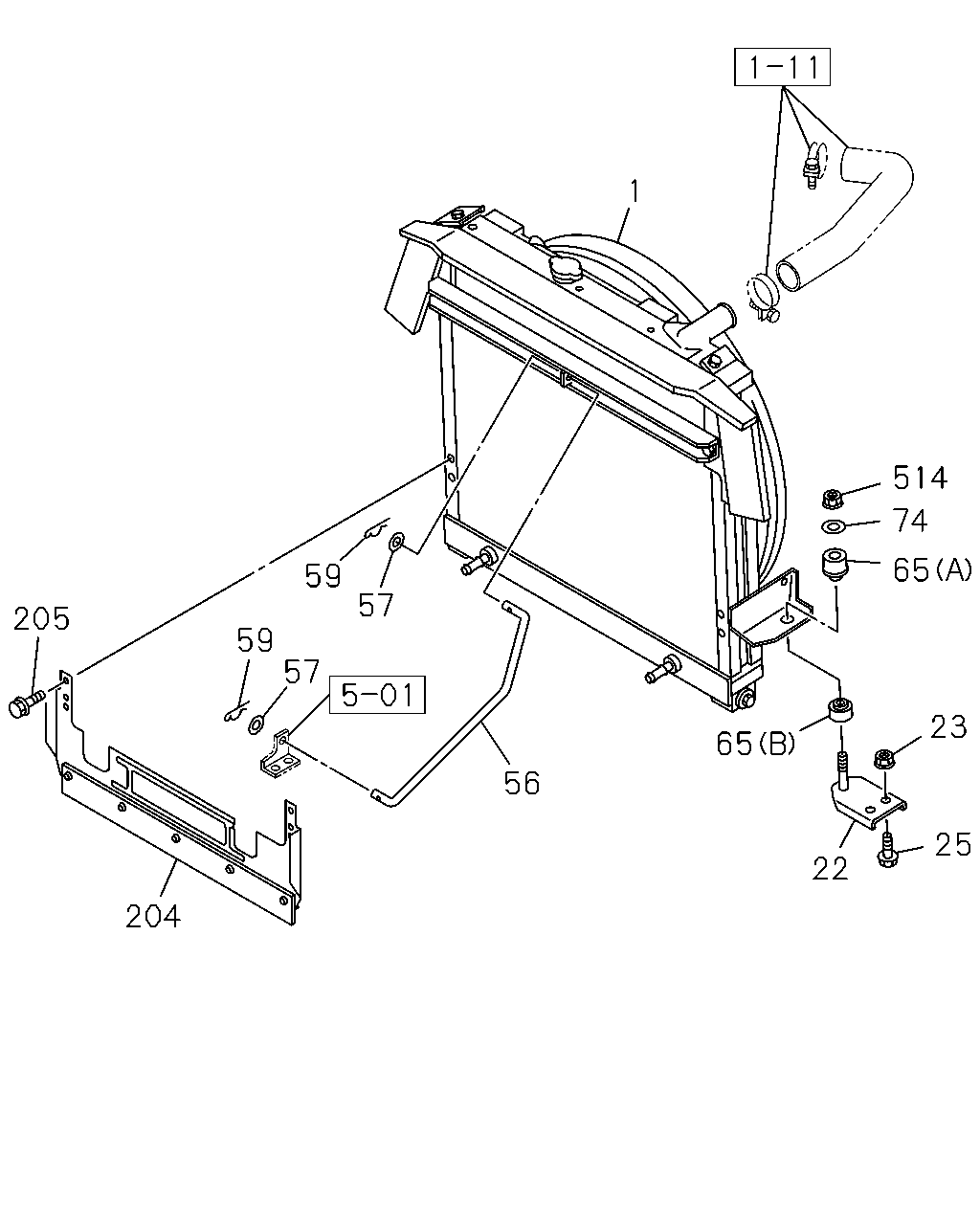

[110A] NO.1 (15 parça)

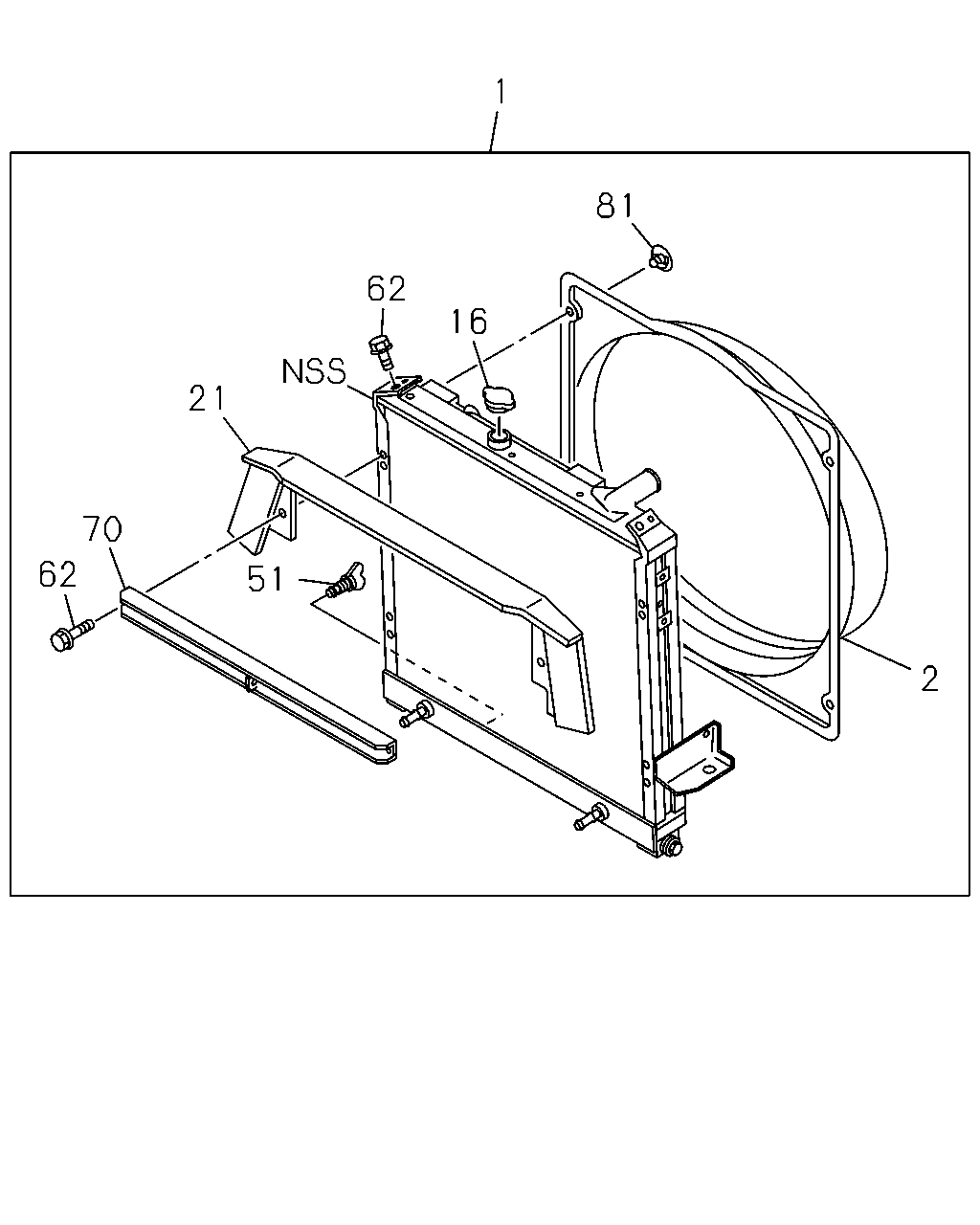

[110A] NO.2 (9 parça)
▶
1
514
74
65
59
57
205
59
57
23
65
56
25
22
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98058-490-5
01
1
0907-1311
1
01.219 RADIATOR ASM
8-98253-656-0
01
1
1312-
22
01.270 BRACKET; RAD MTG
8-97387-638-0
02
1
0907-
23
01.271 NUT; RAD MTG
04.085 M10 FLANGE
0-91180-210-0
04
1
0907-0909
23
01.271 NUT; RAD MTG
03.162 M10 FLANGE
0-91180-110-0
04
1
0910-
25
01.271 BOLT; BRKT
00.029 M10X30 FLANGE
0-28651-030-0
04
1
0907-
56
01.270 STAY; RAD
8-98129-202-0
01
1
0907-
57
01.271 WASHER; PL,STAY
17.198 ID=10.5
0-91610-510-0
02
1
0907-
59
01.271 PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
0907-
65
01.271 INSULATOR; RAD
01.270 (A)
8-94249-346-0
02
1
0907-
65
01.271 INSULATOR; RAD
01.270 (B)
8-94249-347-0
02
1
0907-
74
01.270 WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
0907-
204
01.267 GUIDE ASM; AIR
8-98081-417-1
01
1
0907-
205
01.267 BOLT; AIR GUIDE
03.162 M6X12 FLANGE
0-28050-612-0
02
1
0907-
514
01.276 NUT; RAD
01.062 M8 FLANGE
0-91180-108-0
02
1
0907-
1
81
62
16
21
70
62
51
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.219 RADIATOR ASM
8-98058-490-5
01
1
0907-1311
1
01.219 RADIATOR ASM
8-98253-656-0
01
1
1312-
2
01.277 GUIDE; FAN
8-98067-108-0
01
1
0907-
16
01.203 CAP; RAD
8-97241-152-0
01
1
0907-
21
01.276 SEAL; RAD
8-98080-347-0
01
1
0907-
51
08.951 PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
0907-
62
01.271 BOLT; STAY
02.343 M8X12 FLANGE
0-28050-812-0
02
1
0907-
70
01.271 STAY; RAD
8-97073-125-0
01
1
0907-
81
01.277 SCREW; FAN GUIDE,RAD
8-97088-810-0
02
1
0907-
