0-52 — OIL AND VACUUM PIPING; ENGINE (#76728) — 12 parça
çizim 64678
202 89 65 202 86 202 83 202 65 27 340
BalonParca AdiParca NoAdetTipApplied Date
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0907-
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 0907-
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		8-97372-239-0 01 1 0907-
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0907-
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 0907-
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0907-
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0907-
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0907-
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0907-1312
202 01.531 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0907-

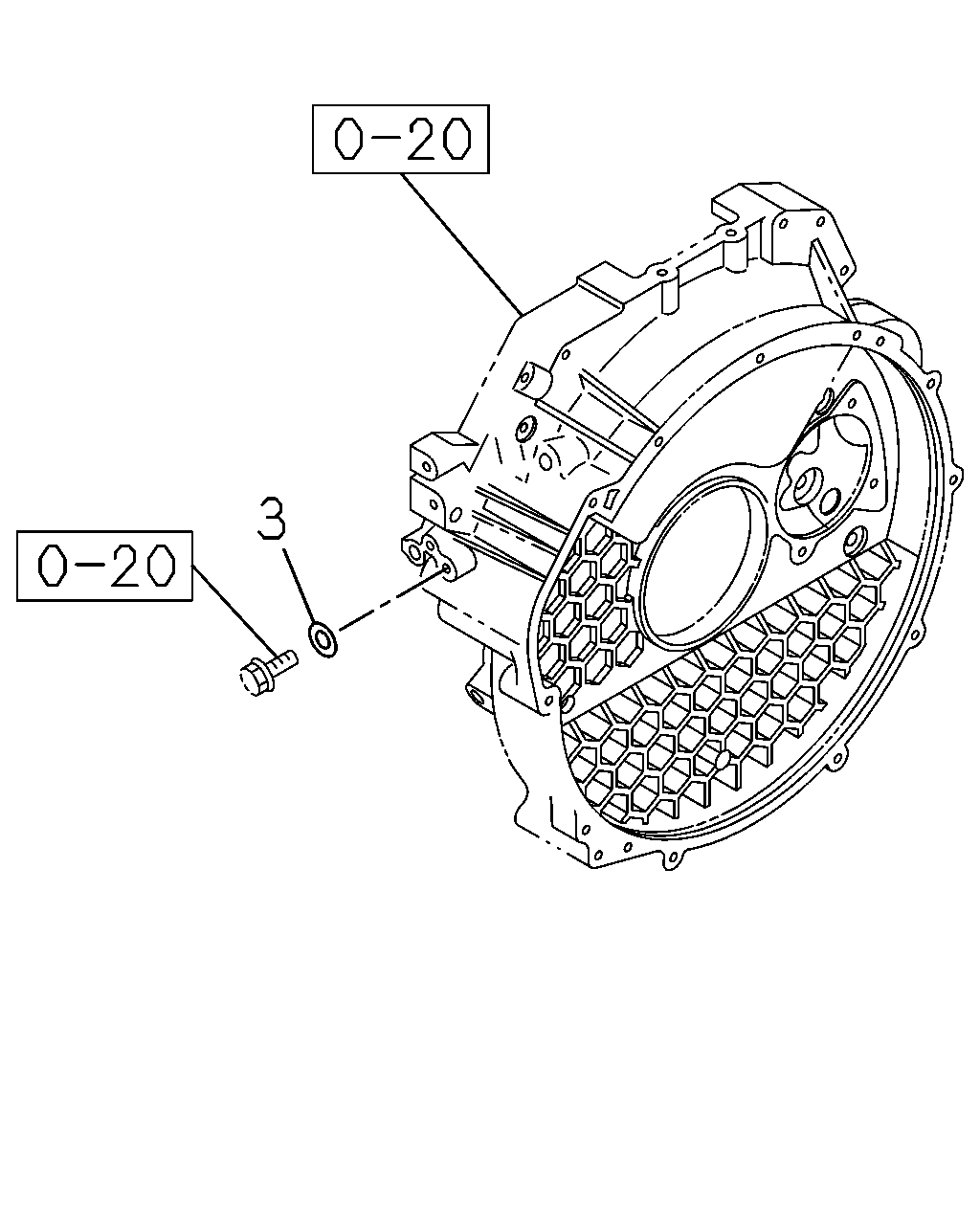

çizim 186861
3
BalonParca AdiParca NoAdetTipApplied Date
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0907-
