2-53A — TRANSMISSION OIL COOLER SYSTEM (#7672) — 77 parça

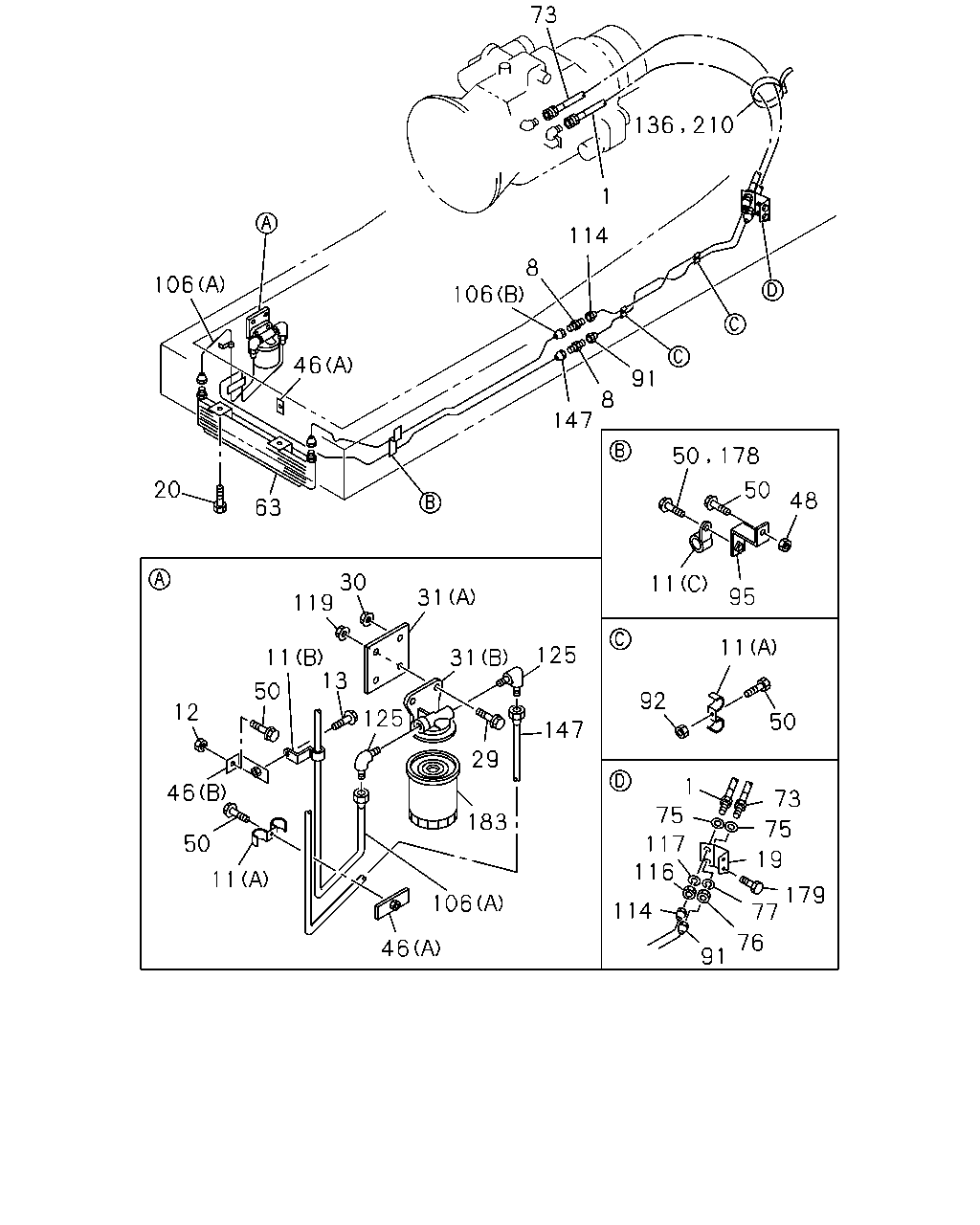

çizim 11032
73 1 114 8 106 106 46 91 8 147 178 20 50 48 63 30 119 11 95 31 11 125 11 13 31 50 92 125 12 50 147 29 1 46 73 75 183 75 50 117 116 19 11 179 77 106 114 76 46 91 50 136 210
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
TRANSMISSION OIL COOLER<C2C> L=450 		1-09364-625-0 01 1 9905-
8 UNION
TRANSMISSION OIL COOLER<C2C> M16 L=42 		9-09233-010-1 01 1 9902-
8 UNION
TRANSMISSION OIL COOLER<C2C> M16 L=42 		9-09233-010-1 01 1 9902-
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 9902-
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 04 1 9902-0002
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 03 1 0003-
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9902-
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20 		9-09525-035-0 01 1 9902-
11 CLIP; PIPE
TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 11 L=21.5 & 21.5 		1-09700-924-0 01 1 0003-
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9902-0003
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9902-0003
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0004-
12 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0004-
13 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 9902-
19 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> 		1-47478-344-0 01 1 9902-
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28681-025-0 02 1 9902-0003
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28681-025-0 02 1 0004-0006
20 BOLT; COOLER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE 		0-28081-020-0 02 1 0007-
29 BOLT; FILTER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE 		0-28681-030-0 02 1 9902-
30 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M10 FLANGE 		0-91150-210-0 02 1 9902-
31 BRACKET; OIL FILTER
TRANSMISSION OIL COOLER<C2C> (B) 		1-33119-222-0 01 1 9902-
31 BRACKET; OIL FILTER
TRANSMISSION OIL COOLER<C2C> (A) 		1-47478-329-0 01 1 9902-
46 BRACKET; OIL PIPE
TRANSMISSION OIL COOLER<C2C> (A) L=50 		1-47475-299-2 02 1 9902-0002
46 BRACKET; OIL PIPE
TRANSMISSION OIL COOLER<C2C> (A) L=50 		1-47475-299-2 04 1 0003-
46 BRACKET; OIL PIPE
TRANSMISSION OIL COOLER<C2C> (B) 		1-47475-519-0 01 1 9902-
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 9902-0002
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 9902-0002
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 02 1 0003-
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9902-0002
48 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 04 1 0003-
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 9902-0002
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 0003-
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 01 1 0003-
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 02 1 9902-0002
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 03 1 9902-0002
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE 		0-28680-820-0 04 1 0003-
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 9902-0002
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 0003-0003
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 0003-0003
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 0004-
50 BOLT; CLIP
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 01 1 0004-
63 COOLER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 9902-0003
63 COOLER; OIL
TRANSMISSION OIL COOLER<C2C> 		1-21700-290-0 01 1 0004-
73 HOSE; FLEX,TRANS
TRANSMISSION OIL COOLER<C2C> L=450 		1-09364-625-0 01 1 9905-
75 GASKET; FLEX HOSE,TRANS
TRANSMISSION OIL COOLER<C2C> ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9902-
76 NUT; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M16 		9-99111-416-0 01 1 9902-
77 WASHER; LK
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09150-516-0 01 1 9902-
91 PIPE; OIL,FLEX HOSE TO UNION
TRANSMISSION OIL COOLER<C2C> 		1-47428-873-0 01 1 9902-
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9902-0003
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 9902-0003
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0004-
92 NUT; CLIP
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91150-108-0 01 1 0004-
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 02 1 9902-9908
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 9909-0003
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 9909-0003
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 0004-
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 0004-
95 BRACKET; CLIP
TRANSMISSION OIL COOLER<C2C> 		1-47475-881-0 01 1 9902-9908
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (A) L=677 		1-49163-119-0 01 1 9902-
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (B) 		1-49163-120-0 01 1 9902-9903
106 PIPE ASM; OIL,COOLER TO UNION
TRANSMISSION OIL COOLER<C2C> (B) 		1-49164-314-0 01 1 9904-
114 PIPE; OIL,UNION TO FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=739 SERVICED BY L=800 		1-47428-872-0 01 1 9902-
116 NUT; BRKT,FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M16 		9-99111-416-0 01 1 9902-
117 WASHER; LK,FLEX HOSE
TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09150-516-0 01 1 9902-
119 NUT; FILTER TO BRKT
TRANSMISSION OIL COOLER<C2C> M10 FLANGE 		0-91150-210-0 02 1 9902-
125 CONNECTOR; OIL FILTER
TRANSMISSION OIL COOLER<C2C> M16 & PT1/4 ELBOW 		1-09650-434-0 02 1 9902-
136 CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 9902-0003
136 CLIP; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=250 		1-09707-126-0 01 1 0004-
147 PIPE; OIL,UNION TO FILTER
TRANSMISSION OIL COOLER<C2C> 		1-49163-118-0 01 1 9902-9903
147 PIPE; OIL,UNION TO FILTER
TRANSMISSION OIL COOLER<C2C> 		1-49164-313-0 01 1 9904-
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 01 1 9902-0003
178 BOLT; BRKT,CLIP
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28680-825-0 01 1 0004-
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 9902-0003
179 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE 		0-28680-830-0 02 1 0004-
183 CARTRIDGE; OIL FILTER
TRANSMISSION OIL COOLER<C2C> 		8-94459-700-1 01 1 9902-
210 BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 9902-0003
210 BAND; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> L=175 		1-09707-178-0 01 1 0004-
