9-01 — TOOLS (#76706) — 97 parça

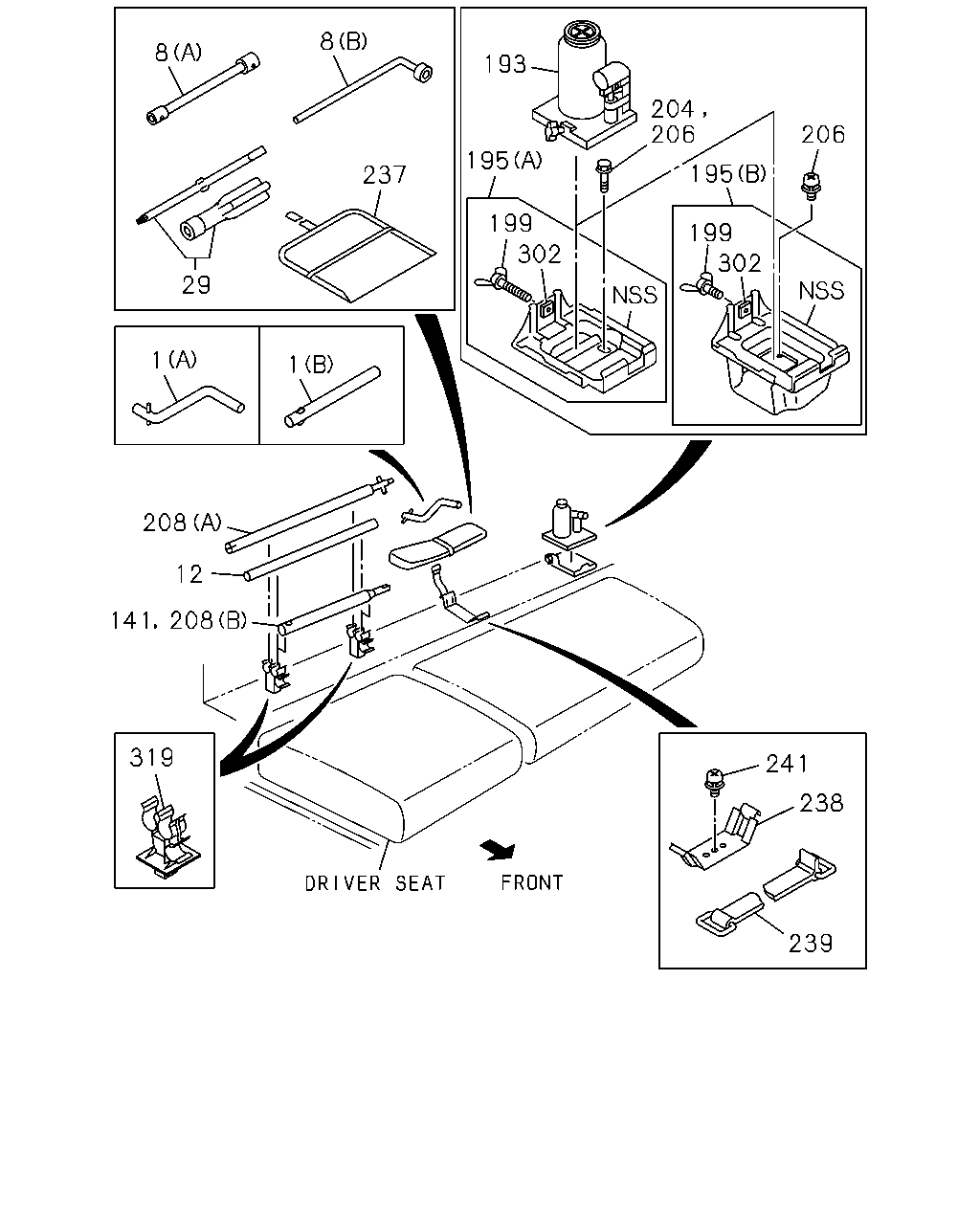

çizim 14417
239 238 241 12 208 208 141 319 206 195 199 302 206 204 193 195 199 302 237 8 8 29 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 0907- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) (A) 		8-97218-985-0 01 1 0907- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0907-0910 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0907-0910 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) 08.821 (B) L=280 		1-85515-007-0 01 1 0907-0910 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0907-0910 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
SPARE TIRE & DISC WHEEL REAR TIRE<R46> EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0911-1003 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0911-1003 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0911-1003 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) 08.821 (B) L=280 		1-85515-007-0 01 1 0911-1003 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0911-1003 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 0911-1003 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1004-1108 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1004-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) 08.821 (B) L=280 		1-85515-007-0 01 1 1004-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1004-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) (B) L=280 		8-98181-251-0 01 1 1109- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1109- ●
8 08.821 WRENCH; WHEEL
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) (B) B=23 L=300 		9-85113-935-0 01 1 0907- ●
8 08.821 WRENCH; WHEEL
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) (A) B=41X19 L=330 		8-94386-490-1 01 1 0907-1008 ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) (A) B=41X19 L=330 		8-94386-490-1 01 1 1009- ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) OD=25 L=590 		8-97332-988-0 01 1 0907-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) OD=25 L=590 		8-97332-988-0 01 1 0907-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1111 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1111 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1112-1204 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1112-1204 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1205-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1205-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0907- ● ● ●
141 08.821 HANDLE; WRENCH
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 08.820 L=580 		1-85515-005-1 01 1 0907-1108 ●
141 08.821 HANDLE; WRENCH
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> 08.820 L=580 		1-85515-005-1 01 1 0907-1108 ●
141 08.821 HANDLE; WRENCH
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> 08.820 L=580 		8-98181-249-0 01 1 1109- ●
141 08.821 HANDLE; WRENCH
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> 08.820 L=580 		8-98181-249-0 01 1 1109- ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98090-823-0 01 1 0907-1008 ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98090-823-0 01 1 1009-1311 ● ●
193 08.820 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98239-828-0 01 1 1312- ● ●
193 08.820 JACK ASM
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON 		8-98114-047-0 01 1 0907- ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 4TON 		8-98012-285-0 01 1 0907-1008 ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 0907-1008 ● ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 4TON 		8-98012-285-0 01 1 1009- ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 1009- ●
193 08.820 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98012-285-0 01 1 1009- ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-94273-287-7 01 1 1009- ●
195 08.820 BRACKET; JACK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97589-376-2 01 1 0907- ●
195 08.820 BRACKET; JACK
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97589-376-2 01 1 0907- ●
195 08.820 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) (A) 		8-98033-737-2 01 1 0907- ●
195 08.820 BRACKET; JACK
(A) 		8-98033-737-2 01 1 0907- ●
195 08.820 BRACKET; JACK
(A) 		8-94262-068-3 01 1 0907-1008 ●
195 08.820 BRACKET; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-94262-068-3 01 1 1009- ●
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-94279-018-1 01 1 1009- ●
199 08.820 BOLT; JACK
FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-98005-536-0 01 1 0907- ●
199 08.820 BOLT; JACK
SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING 		8-98005-536-0 01 1 0907- ●
199 08.820 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) M8X50 WING 		8-98005-537-0 01 1 0907- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 0907- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0907-1008 ●
199 08.820 BOLT; JACK
EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X50 WING 		8-94279-136-0 01 1 1009- ●
204 08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0907- ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 BOLT M6X16 		0-38050-616-0 01 1 0907- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A) L=642 		8-97217-800-0 01 1 0907-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-97217-800-0 01 1 0907-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0907-0910 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0907-0910 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 0907-0910 ●
208 08.820 HANDLE; JACK
SPARE TIRE & DISC WHEEL REAR TIRE<R46> EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0911-1003 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL LESS<7NC> EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0911-1003 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 0911-1003 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 0911-1003 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 1004-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 1004-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 1004-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		8-98181-249-0 01 1 1109- ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0907- ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0907- ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0907- ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0907- ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 0907- ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0907- ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0907- ● ● ●

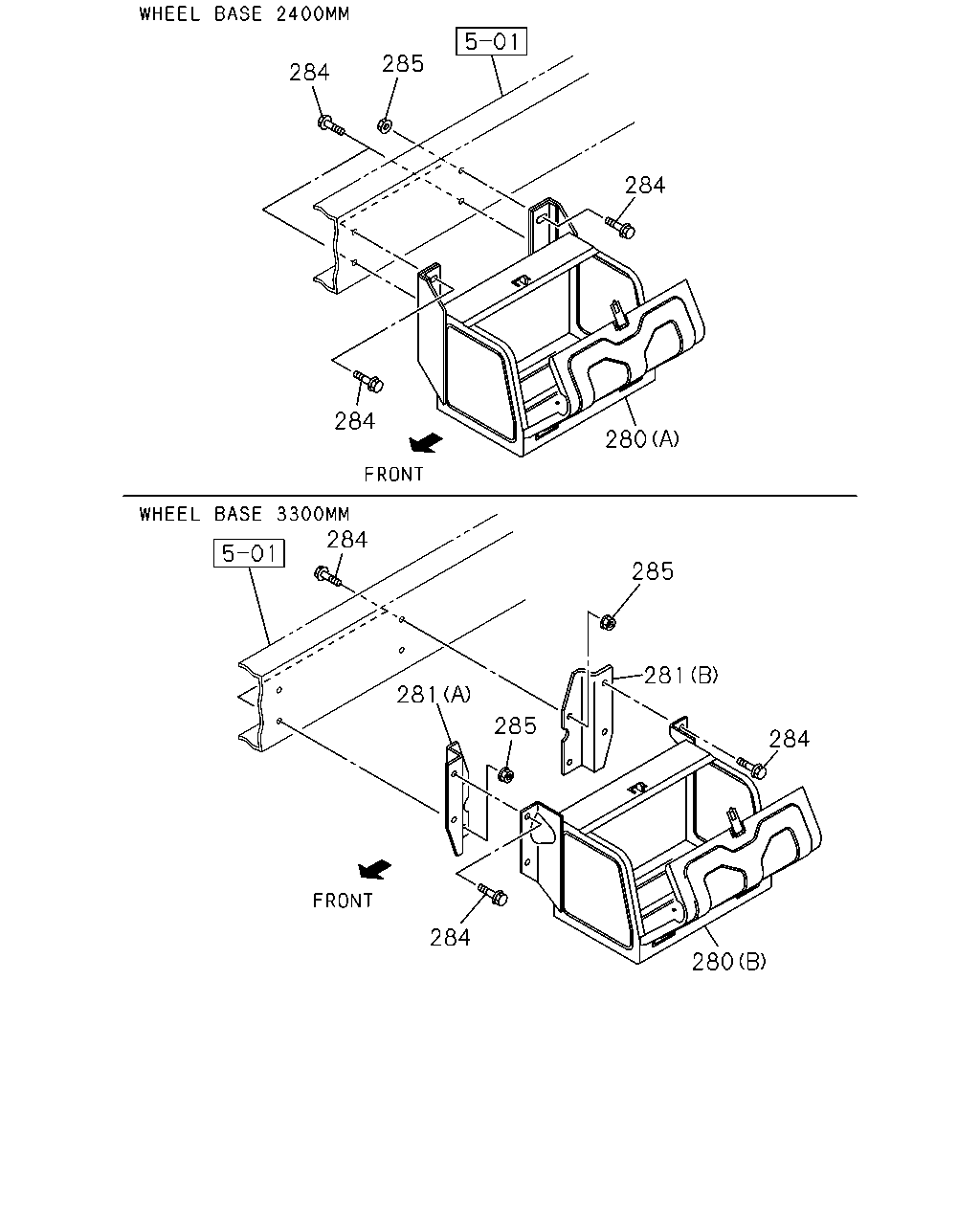

çizim 14578
285 284 284 284 280 284 285 281 281 285 284 284 280
BalonParca AdiParca NoAdetTipApplied Date A B C
280 08.821 BOX; TOOL
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> (A) 		8-98054-885-0 01 1 0907- ● ● ●
280 08.821 BOX; TOOL
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-97384-079-0 01 1 0907- ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 0907- ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 0907- ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0907- ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 0907- ● ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 02 1 0907- ● ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 0907- ● ● ●

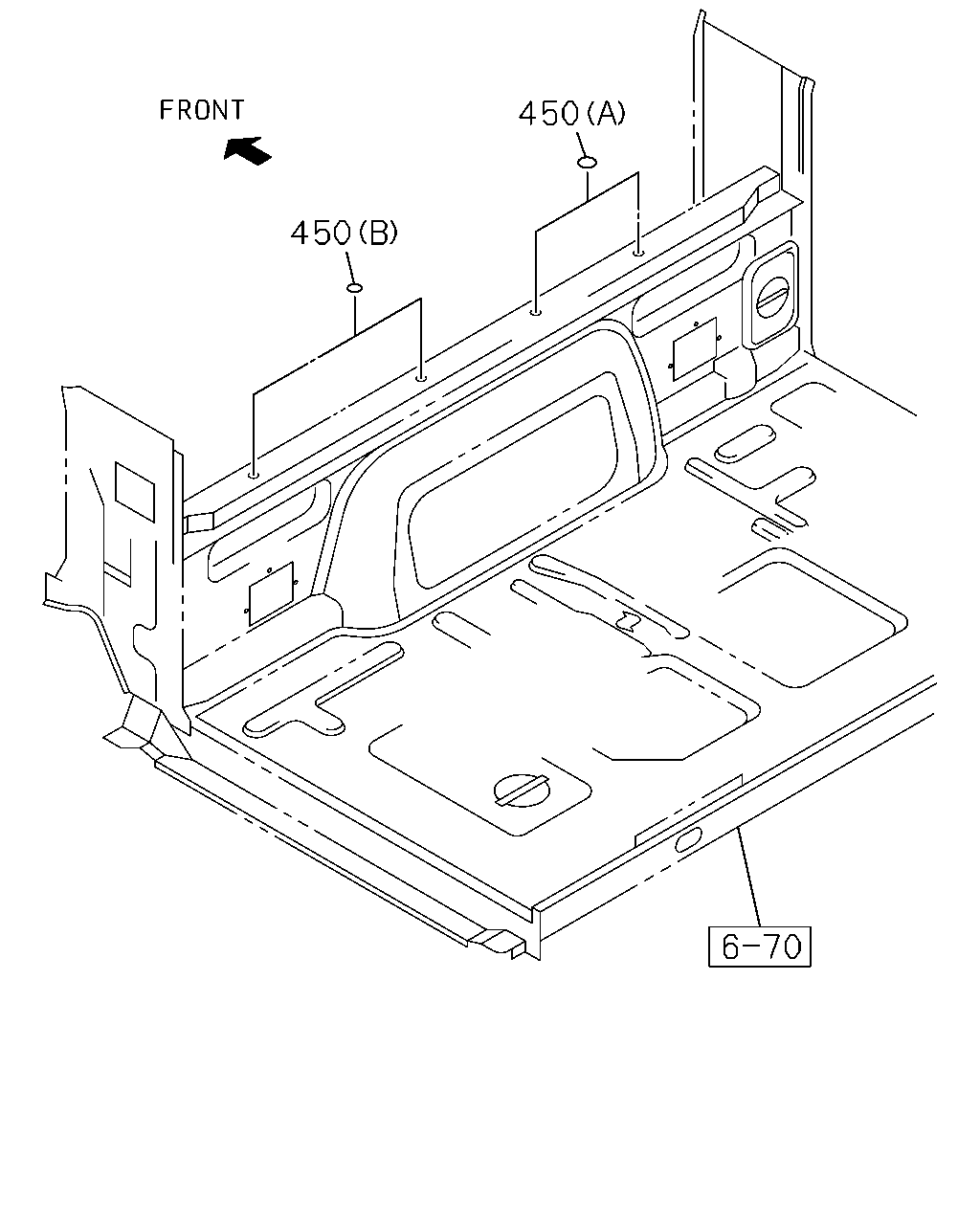

çizim 186728
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0907- ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0907- ●
