Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#767) — 208 parça

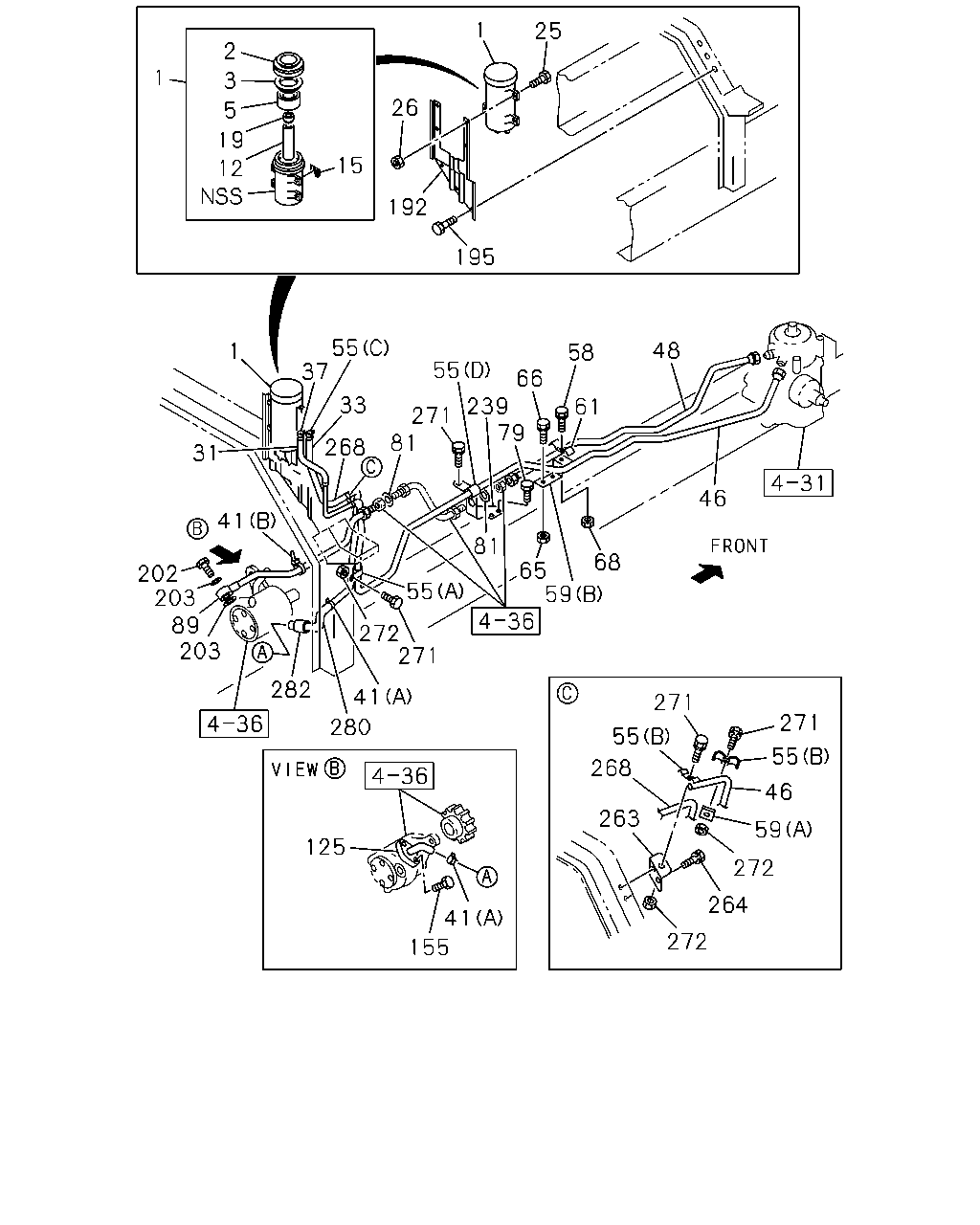

1 25 2 1 3 26 5 19 15 12 192 195 55 37 48 1 58 55 66 239 79 33 61 271 81 268 31 46 41 81 68 65 59 202 203 89 203 55 272 271 282 41 271 271 280 55 55 268 46 263 59 125 272 264 41 272 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9204-9504
1	TANK ASM; OIL,P/S 6HE1 STD ENG(46L)	1-21210-205-0	01	1	9505-
1	TANK ASM; OIL,P/S BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21210-152-6	01	1	9505-
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	9204-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9204-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9204-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9204-9504
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 STD ENG(46L)	1-21235-011-0	01	1	9505-
12	FILTER; MICROBON,OIL TANK,P/S BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21235-004-1	01	1	9505-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9204-9504
15	PLATE; FILTER,OIL TANK 6HE1 STD ENG(46L)	1-21249-007-1	02	1	9505-
15	PLATE; FILTER,OIL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21249-007-1	04	1	9505-
19	SEAT; OIL TANK	1-21249-004-0	02	1	9204-
25	BOLT; OIL TANK BRKT M8X18	0-28010-818-0	04	1	9204-9204
25	BOLT; OIL TANK BRKT M8X18 FLANGE	0-28080-818-0	04	1	9205-9504
25	BOLT; OIL TANK BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9505-
25	BOLT; OIL TANK BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X18 FLANGE	0-28080-818-0	04	1	9505-
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9204-9504
26	NUT; OIL TANK TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9505-
26	NUT; OIL TANK TO BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9505-
31	HOSE; P/S OIL TANK,INL	1-21112-549-1	01	1	9204-9504
31	HOSE; P/S OIL TANK,INL 6HE1 STD ENG(46L)	1-21113-590-0	01	1	9505-
31	HOSE; P/S OIL TANK,INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21112-549-1	01	1	9505-
33	HOSE; RUBBER,POWER STRG	1-21112-612-1	01	1	9204-9504
33	HOSE; RUBBER,POWER STRG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21112-612-1	01	1	9505-
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9204-
41	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	9204-
41	CLIP; HOSE,P/S (B) L=140	5-09707-031-0	01	1	9204-9504
41	CLIP; HOSE,P/S BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=140	5-09707-031-0	01	1	9505-
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21114-291-0	01	1	9204-9504
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 STD ENG(46L)	1-21114-051-0	01	1	9505-
46	PIPE; OIL,P/S UNIT TO OIL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-291-0	01	1	9505-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21114-290-0	01	1	9204-9212
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21114-749-0	01	1	9301-9504
48	PIPE; OIL,FLEX HOSE TO STRG UNIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-749-0	01	1	9505-
55	CLIP; P/S RUBBER HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9204-9504
55	CLIP; P/S RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9505-
55	CLIP; P/S RUBBER HOSE (B) ID=19 & 16 L=21.5 & 21.5	1-09700-979-0	02	1	9204-9504
55	CLIP; P/S RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=19 & 16 L=21.5 & 21.5	1-09700-979-0	02	1	9505-
55	CLIP; P/S RUBBER HOSE (C) ID=32	1-09704-085-0	02	1	9204-9504
55	CLIP; P/S RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=32	1-09704-085-0	02	1	9505-
55	CLIP; P/S RUBBER HOSE (D) ID=16 L=50	9-09525-586-0	01	1	9204-9504
55	CLIP; P/S RUBBER HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=16 L=50	9-09525-586-0	01	1	9505-
58	BOLT; CLIP M8X20 FLANGE	0-28010-820-0	01	1	9204-9204
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9205-9504
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	01	1	9505-
58	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	01	1	9505-
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	01	1	9505-
59	BRACKET; CLIP,OIL PIPE (A) L=50	1-47475-299-2	01	1	9204-9504
59	BRACKET; CLIP,OIL PIPE 6HE1 STD ENG(46L) (A) L=60	1-47475-455-0	01	1	9505-
59	BRACKET; CLIP,OIL PIPE (B)	1-47476-925-1	01	1	9204-9504
59	BRACKET; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47476-925-1	01	1	9505-
59	BRACKET; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=50	1-47475-299-2	01	1	9505-
61	CLIP; OIL PIPE ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9204-9504
61	CLIP; OIL PIPE 6HE1 STD ENG(46L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9505-
61	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9505-
61	CLIP; OIL PIPE 6HE1 STD ENG(46L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9505-
65	NUT; BRKT M8	9-09110-408-0	02	1	9204-9207
65	NUT; BRKT 6HE1 STD ENG(46L) (A) M10 FLANGE	5-09440-006-0	02	1	9505-
65	NUT; BRKT 6HE1 STD ENG(46L) (B) M8	9-09110-408-0	01	1	9505-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9204-9504
66	BOLT; BRKT,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9505-
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9505-
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9204-
79	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9204-9504
79	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	02	1	9505-
79	BOLT; BRKT 6HE1 STD ENG(46L) M8X12 FLANGE	0-28080-812-0	02	1	9505-
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9204-9504
81	WASHER; LK,FLEX HOSE 6HE1 STD ENG(46L) ID=20.2	9-09150-520-0	01	1	9505-
81	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	9505-
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE	1-21112-546-0	01	1	9204-9212
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE	1-21114-594-0	01	1	9301-9504
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-594-0	01	1	9505-
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6HE1 STD ENG(46L)	1-21114-561-0	01	1	9505-
125	CONNECTOR; P/S PUMP	1-21122-019-2	01	1	9204-9504
125	CONNECTOR; P/S PUMP 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21122-019-2	01	1	9505-
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94394-614-0	01	1	9505-
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9204-9504
155	BOLT; CONNECTOR 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9505-
155	BOLT; CONNECTOR 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	02	1	9505-
192	BRACKET; P/S OIL TANK	1-21219-080-2	01	1	9204-9504
192	BRACKET; P/S OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21219-080-2	01	1	9505-
192	BRACKET; P/S OIL TANK 6HE1 STD ENG(46L)	1-21119-120-1	01	1	9505-
195	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	03	1	9204-9504
195	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M10X30 W/LK WASHER	0-50041-030-0	03	1	9505-
195	BOLT; BRKT 6HE1 STD ENG(46L) M10X35 W/LK WASHER	0-50041-035-0	02	1	9505-
202	BOLT; EYE,OIL PIPE M18X36	1-09675-059-0	01	1	9204-9310
202	BOLT; EYE,OIL PIPE M18X36	1-09675-205-0	01	1	9311-9504
202	BOLT; EYE,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M18X36	1-09675-205-0	01	1	9505-
202	BOLT; EYE,OIL PIPE 6HE1 STD ENG(46L) M18X36	1-09675-174-0	01	1	9505-
203	GASKET; EYE BOLT ID=18	9-09571-418-0	02	1	9204-
239	BRACKET; FLEX HOSE	1-21119-071-2	01	1	9204-9504
239	BRACKET; FLEX HOSE 6HE1 STD ENG(46L)	1-21119-131-0	01	1	9505-
239	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21119-071-2	01	1	9505-
263	BRACKET; P/S PIPE	1-47475-599-0	01	1	9204-9504
263	BRACKET; P/S PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-599-0	01	1	9505-
263	BRACKET; P/S PIPE 6HE1 STD ENG(46L)	8-94393-981-0	01	1	9505-
264	BOLT; PIPE BRKT M8X18	0-28010-818-0	02	1	9204-9204
264	BOLT; PIPE BRKT M8X18 FLANGE	0-28080-818-0	02	1	9205-9504
264	BOLT; PIPE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X18 FLANGE	0-28080-818-0	02	1	9505-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21113-699-1	01	1	9204-9403
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	1-21113-399-0	01	1	9404-9504
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21113-399-0	01	1	9505-
271	BOLT; P/S OIL PIPE FIX M8X20 FLANGE	0-28010-820-0	04	1	9204-9204
271	BOLT; P/S OIL PIPE FIX M8X20 FLANGE	0-28080-820-0	04	1	9205-9504
271	BOLT; P/S OIL PIPE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	9505-
272	NUT; P/S OIL PIPE FIX M8	9-09110-408-0	03	1	9204-9504
272	NUT; P/S OIL PIPE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	03	1	9505-
280	HOSE; P/S OIL PUMP,INL	1-21112-613-0	01	1	9204-9403
280	HOSE; P/S OIL PUMP,INL	1-21114-908-0	01	1	9404-9504
280	HOSE; P/S OIL PUMP,INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-908-0	01	1	9505-
280	HOSE; P/S OIL PUMP,INL 6HE1 STD ENG(46L)	1-21114-048-1	01	1	9505-
282	SLEEVE; RUBBER,PIPE ID=29 OD=39 L=40	1-09337-013-0	01	1	9204-9504
282	SLEEVE; RUBBER,PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	9505-

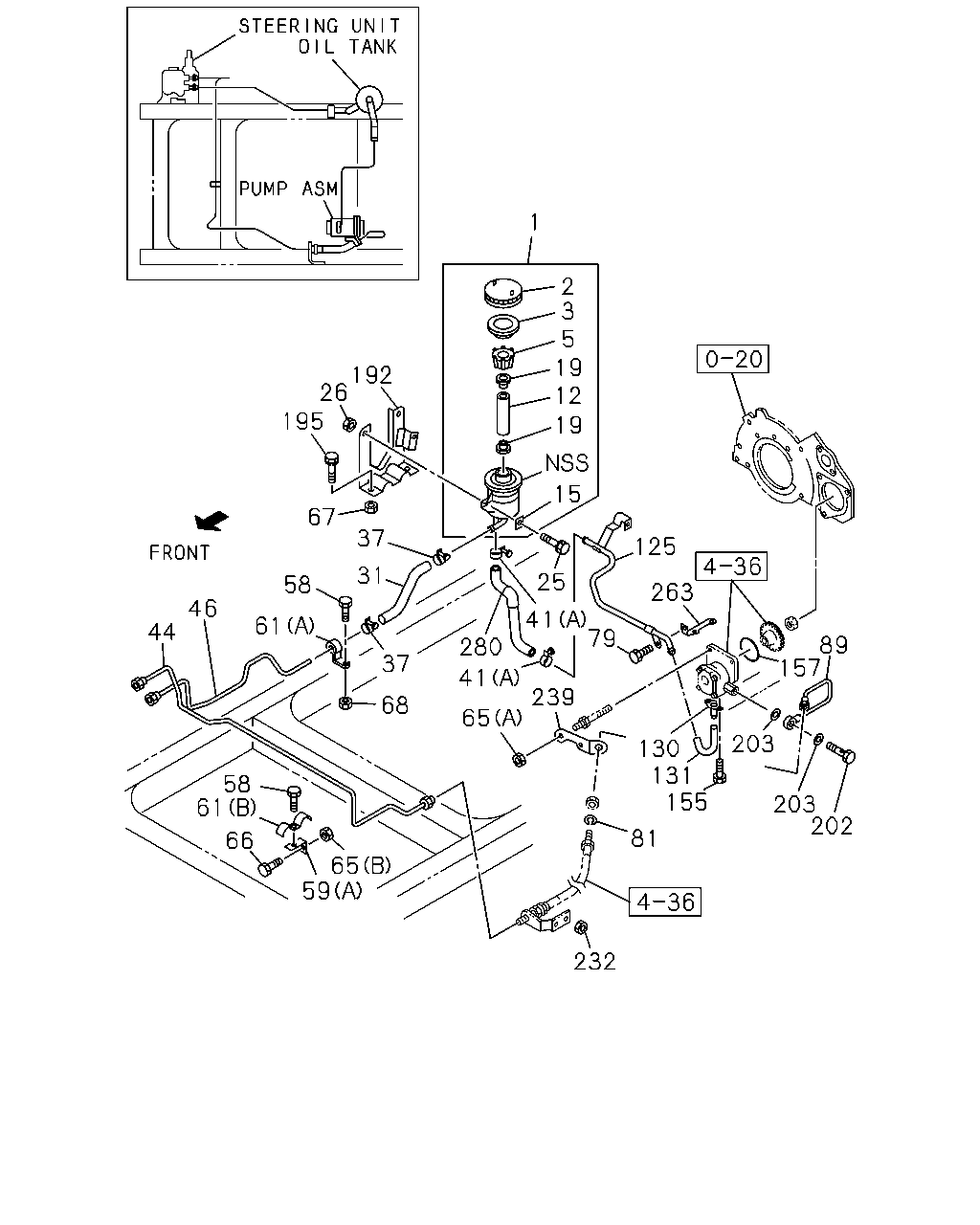

1 2 3 5 19 12 192 26 195 19 15 67 125 37 263 31 25 58 46 41 79 61 44 89 157 280 37 41 239 68 65 203 130 131 155 58 61 203 202 81 66 65 59 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	9204-9504
1	TANK ASM; OIL,P/S 6HE1 STD ENG(46L)	1-21210-205-0	01	1	9505-
1	TANK ASM; OIL,P/S BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21210-152-6	01	1	9505-
2	CAP; OIL TANK,P/S	1-21241-004-3	01	1	9204-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9204-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9204-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9204-9504
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 STD ENG(46L)	1-21235-011-0	01	1	9505-
12	FILTER; MICROBON,OIL TANK,P/S BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21235-004-1	01	1	9505-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9204-9504
15	PLATE; FILTER,OIL TANK 6HE1 STD ENG(46L)	1-21249-007-1	02	1	9505-
15	PLATE; FILTER,OIL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21249-007-1	04	1	9505-
19	SEAT; OIL TANK	1-21249-004-0	02	1	9204-
25	BOLT; OIL TANK BRKT M8X18	0-28010-818-0	04	1	9204-9204
25	BOLT; OIL TANK BRKT M8X18 FLANGE	0-28080-818-0	04	1	9205-9504
25	BOLT; OIL TANK BRKT 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9505-
25	BOLT; OIL TANK BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X18 FLANGE	0-28080-818-0	04	1	9505-
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9204-9504
26	NUT; OIL TANK TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	04	1	9505-
26	NUT; OIL TANK TO BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9505-
31	HOSE; P/S OIL TANK,INL	1-21112-549-1	01	1	9204-9504
31	HOSE; P/S OIL TANK,INL 6HE1 STD ENG(46L)	1-21113-590-0	01	1	9505-
31	HOSE; P/S OIL TANK,INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21112-549-1	01	1	9505-
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9204-
41	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	9204-
41	CLIP; HOSE,P/S (B) L=140	5-09707-031-0	01	1	9204-9504
41	CLIP; HOSE,P/S BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=140	5-09707-031-0	01	1	9505-
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 STD ENG(46L)	1-21114-757-0	01	1	9505-
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21114-291-0	01	1	9204-9504
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 STD ENG(46L)	1-21114-051-0	01	1	9505-
46	PIPE; OIL,P/S UNIT TO OIL TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-291-0	01	1	9505-
58	BOLT; CLIP M8X20 FLANGE	0-28010-820-0	01	1	9204-9204
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9205-9504
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	01	1	9505-
58	BOLT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	01	1	9505-
58	BOLT; CLIP 6HE1 STD ENG(46L) M8X25 FLANGE	0-28080-825-0	01	1	9505-
59	BRACKET; CLIP,OIL PIPE (A) L=50	1-47475-299-2	01	1	9204-9504
59	BRACKET; CLIP,OIL PIPE 6HE1 STD ENG(46L) (A) L=60	1-47475-455-0	01	1	9505-
59	BRACKET; CLIP,OIL PIPE (B)	1-47476-925-1	01	1	9204-9504
59	BRACKET; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47476-925-1	01	1	9505-
59	BRACKET; CLIP,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=50	1-47475-299-2	01	1	9505-
61	CLIP; OIL PIPE ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9204-9504
61	CLIP; OIL PIPE 6HE1 STD ENG(46L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9505-
61	CLIP; OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9505-
61	CLIP; OIL PIPE 6HE1 STD ENG(46L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9505-
65	NUT; BRKT M8	9-09110-408-0	02	1	9204-9207
65	NUT; BRKT 6HE1 STD ENG(46L) (A) M10 FLANGE	5-09440-006-0	02	1	9505-
65	NUT; BRKT 6HE1 STD ENG(46L) (B) M8	9-09110-408-0	01	1	9505-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28080-825-0	02	1	9204-9504
66	BOLT; BRKT,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9505-
66	BOLT; BRKT,OIL PIPE 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	01	1	9505-
67	NUT; BRKT 6HE1 STD ENG(46L) M10	9-09110-410-0	01	1	9505-
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9204-
79	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9204-9504
79	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	02	1	9505-
79	BOLT; BRKT 6HE1 STD ENG(46L) M8X12 FLANGE	0-28080-812-0	02	1	9505-
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9204-9504
81	WASHER; LK,FLEX HOSE 6HE1 STD ENG(46L) ID=20.2	9-09150-520-0	01	1	9505-
81	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	9505-
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE	1-21112-546-0	01	1	9204-9212
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE	1-21114-594-0	01	1	9301-9504
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-594-0	01	1	9505-
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE 6HE1 STD ENG(46L)	1-21114-561-0	01	1	9505-
125	CONNECTOR; P/S PUMP	1-21122-019-2	01	1	9204-9504
125	CONNECTOR; P/S PUMP 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21122-019-2	01	1	9505-
125	CONNECTOR; P/S PUMP 6HE1 STD ENG(46L)	8-94394-614-0	01	1	9505-
130	ADAPTER; P/S PUMP 6HE1 STD ENG(46L)	8-94396-340-1	01	1	9505-
131	HOSE; RUBBER,P/S 6HE1 STD ENG(46L)	8-94396-331-1	01	1	9505-
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9204-9504
155	BOLT; CONNECTOR 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	9505-
155	BOLT; CONNECTOR 6HE1 STD ENG(46L) M8X16 FLANGE	0-28080-816-0	02	1	9505-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 STD ENG(46L)	8-94396-678-0	01	1	9505-
192	BRACKET; P/S OIL TANK	1-21219-080-2	01	1	9204-9504
192	BRACKET; P/S OIL TANK 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-21219-080-2	01	1	9505-
192	BRACKET; P/S OIL TANK 6HE1 STD ENG(46L)	1-21119-120-1	01	1	9505-
195	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	03	1	9204-9504
195	BOLT; BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M10X30 W/LK WASHER	0-50041-030-0	03	1	9505-
195	BOLT; BRKT 6HE1 STD ENG(46L) M10X35 W/LK WASHER	0-50041-035-0	02	1	9505-
202	BOLT; EYE,OIL PIPE M18X36	1-09675-059-0	01	1	9204-9310
202	BOLT; EYE,OIL PIPE M18X36	1-09675-205-0	01	1	9311-9504
202	BOLT; EYE,OIL PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M18X36	1-09675-205-0	01	1	9505-
202	BOLT; EYE,OIL PIPE 6HE1 STD ENG(46L) M18X36	1-09675-174-0	01	1	9505-
203	GASKET; EYE BOLT ID=18	9-09571-418-0	02	1	9204-
232	NUT; BRKT 6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9505-
239	BRACKET; FLEX HOSE	1-21119-071-2	01	1	9204-9504
239	BRACKET; FLEX HOSE 6HE1 STD ENG(46L)	1-21119-131-0	01	1	9505-
239	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21119-071-2	01	1	9505-
263	BRACKET; P/S PIPE	1-47475-599-0	01	1	9204-9504
263	BRACKET; P/S PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47475-599-0	01	1	9505-
263	BRACKET; P/S PIPE 6HE1 STD ENG(46L)	8-94393-981-0	01	1	9505-
280	HOSE; P/S OIL PUMP,INL	1-21112-613-0	01	1	9204-9403
280	HOSE; P/S OIL PUMP,INL	1-21114-908-0	01	1	9404-9504
280	HOSE; P/S OIL PUMP,INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-21114-908-0	01	1	9505-
280	HOSE; P/S OIL PUMP,INL 6HE1 STD ENG(46L)	1-21114-048-1	01	1	9505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
