◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51251 - NLR/NMR(EU)-RHD EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#76690) — 71 parça

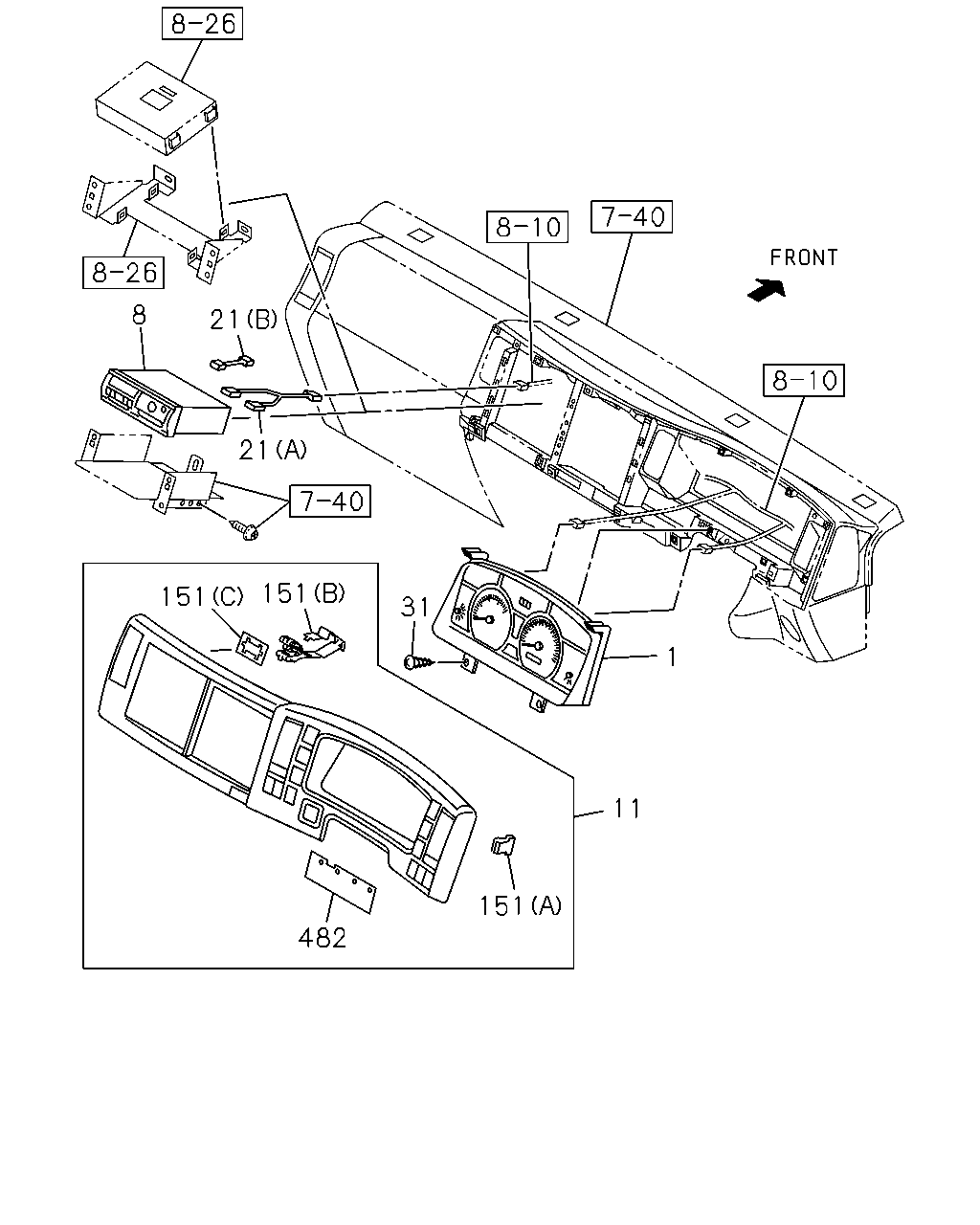

çizim 137323
8 21 21 151 151 31 1 11 151 482
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98126-677-3 01 1 0907- ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98126-676-2 01 1 0907-1004 ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98126-675-3 01 1 1005- ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98096-899-2 01 1 0907-1004 ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98021-251-4 01 1 1005- ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEEDOMETER MILE<UC1> 		8-98096-900-3 01 1 0907-1004 ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEEDOMETER MILE<UC1> 		8-98021-249-4 01 1 1005- ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98204-004-0 01 1 1112- ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98113-385-0 01 1 0907-1008 ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
IDENTIFICATION LABEL FOR KD<6UT> 		8-98113-385-0 01 1 0907-1008 ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98178-334-0 01 1 1009-1107 ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
IDENTIFICATION LABEL FOR KD<6UT> 		8-98178-334-0 01 1 1009-1107 ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98197-455-0 01 1 1108-1111 ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
IDENTIFICATION LABEL FOR KD<6UT> 		8-98197-455-0 01 1 1108-1111 ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98197-455-0 01 1 1112- ● ● ●
11 09.743 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97414-681-1 01 1 0907-0909 ● ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97414-681-1 01 1 0907-0909 ●
11 09.743 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97418-530-0 01 1 0910-0911 ● ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-530-0 01 1 0910-0911 ●
11 09.743 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97414-681-2 01 1 0912-1001 ● ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97414-681-2 01 1 0912-1001 ●
11 09.743 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97418-530-1 01 1 1002-1111 ● ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-530-1 01 1 1002-1111 ●
11 09.743 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> DARK GRAY 		8-97418-530-1 01 1 1112- ● ● ●
11 09.743 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97405-350-4 01 1 0907-0909 ● ●
11 09.743 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97418-532-0 01 1 0910-0911 ● ●
11 09.743 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97405-350-5 01 1 0912-1001 ● ●
11 09.743 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97418-532-1 01 1 1002-1111 ● ●
11 09.743 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> DARK GRAY 		8-97418-532-1 01 1 1112- ● ● ●
21 09.743 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD<8PG> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) 		8-98204-880-1 01 1 1112- ● ● ●
21 09.743 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD<8PG> EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) 		8-98204-881-1 01 1 1112- ● ● ●
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> EXC. CAN INTERFACE FMS STD<8PG> (A) 		8-98204-878-0 01 1 1112- ● ● ●
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> (A) 		8-98099-111-0 01 1 0907-1111 ● ●
21 09.743 HARNESS; TACHOGRAPH
(A) 		8-98099-111-0 01 1 0907-1111 ●
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> EXC. CAN INTERFACE FMS STD<8PG> (A) 		8-98099-111-0 01 1 1112-1204 ● ● ●
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> EXC. CAN INTERFACE FMS STD<8PG> (B) 		8-98201-155-0 01 1 1205- ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0907-1101 ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1002- ● ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1002- ● ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 0910-0911 ● ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 0910-0911 ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 13 1 0907-0909 ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 0910-0911 ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 13 1 0912-1001 ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1002- ● ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 0907- ● ● ●

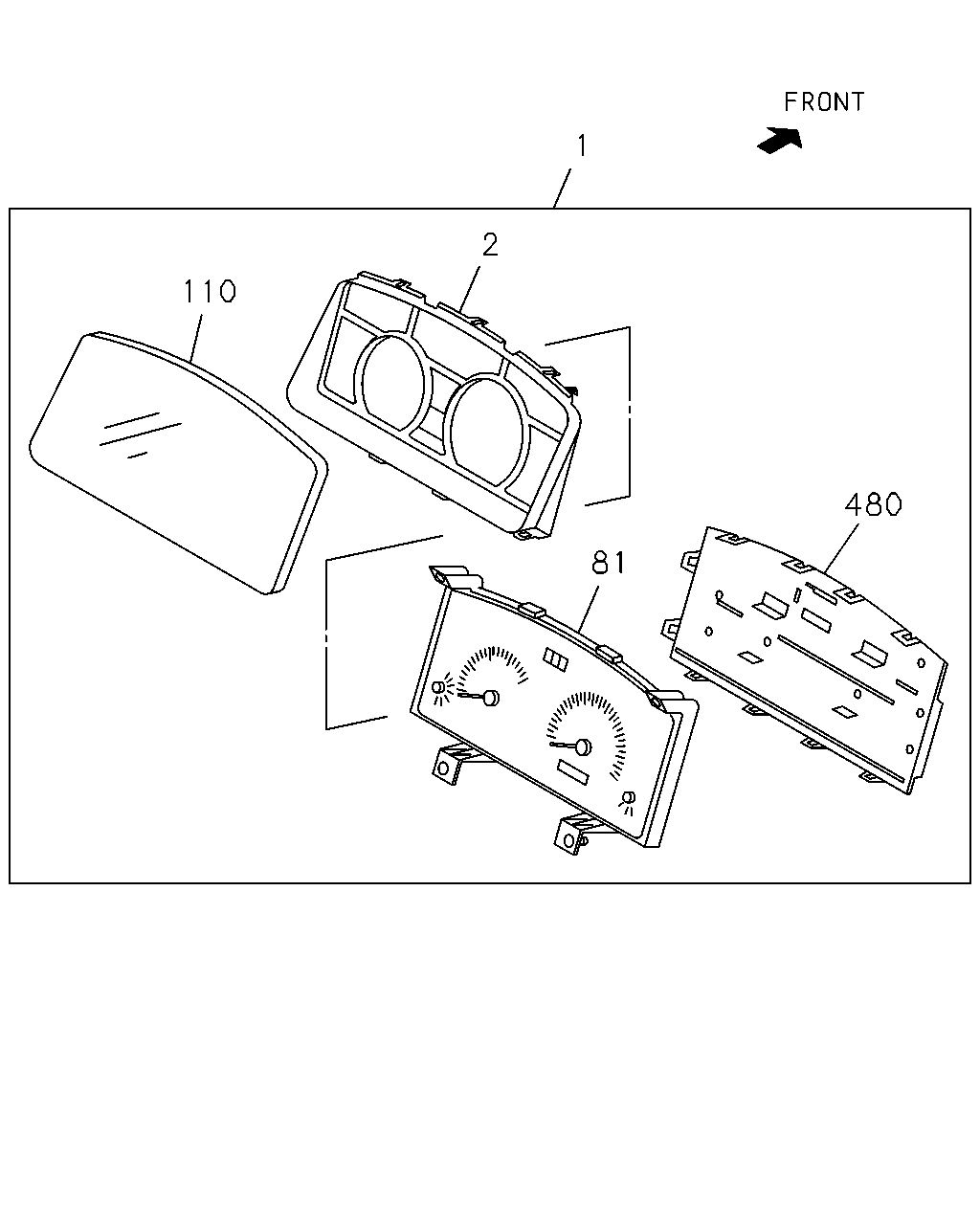

çizim 137807
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98126-677-3 01 1 0907- ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98126-676-2 01 1 0907-1004 ● ● ●
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98126-675-3 01 1 1005- ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98096-899-2 01 1 0907-1004 ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98021-251-4 01 1 1005- ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEEDOMETER MILE<UC1> 		8-98096-900-3 01 1 0907-1004 ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEEDOMETER MILE<UC1> 		8-98021-249-4 01 1 1005- ● ● ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 0907- ● ● ●
81 09.735 METER SUB ASM
SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98126-834-0 01 1 0907- ● ● ●
81 09.735 METER SUB ASM
SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98126-833-0 01 1 0907-1004 ● ● ●
81 09.735 METER SUB ASM
SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98126-832-0 01 1 1005- ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98096-964-0 01 1 0907-1004 ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98073-680-0 01 1 1005- ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEEDOMETER MILE<UC1> 		8-98096-965-0 01 1 0907-1004 ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEEDOMETER MILE<UC1> 		8-98073-677-0 01 1 1005- ● ● ●
110 09.748 GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEEDOMETER MILE<UC1> 		8-98054-431-0 01 1 0907-1004 ● ● ●
110 09.748 GLASS; CLUSTER METER
SPEEDOMETER MILE<UC1> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-431-0 01 1 0907-1004 ● ● ●
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1005- ● ● ●
110 09.748 GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> 		8-98054-642-0 01 1 0907-1004 ● ● ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 0907- ● ● ●
480 09.748 COVER; METER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEEDOMETER MILE<UC1> BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0907-1004 ● ● ●

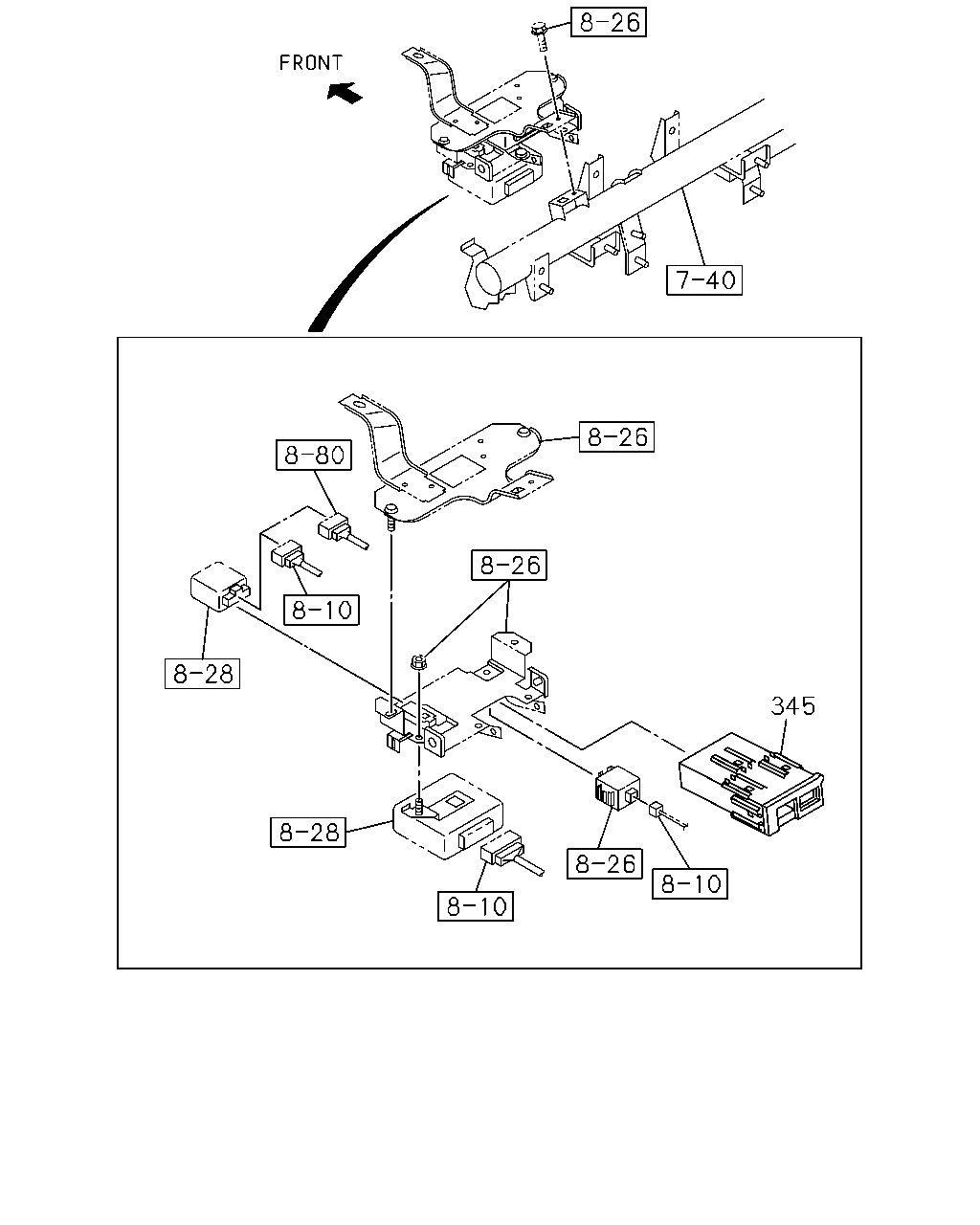

çizim 186718
345
BalonParca AdiParca NoAdetTipApplied Date A B C
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98088-848-0 01 1 0907-1111 ● ●
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98088-848-0 01 1 1112- ● ● ●
