◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37A - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#7669) — 79 parça
çizim 9136
24 22 25 112 15 25 22 25 15 28 22 24 25 28 32 30 35 5 32 30 35 45 49 36 44 47 47 49 38 8 44 38 36 6 45
BalonParca AdiParca NoAdetTipApplied Date A B
5 ROD; LINK,3RD SHIFT
L=1120 		1-33652-603-0 01 1 9902-0003 ●
5 ROD; LINK,3RD SHIFT
L=1120 		1-33652-603-0 01 1 0004- ● ●
6 ROD; LINK,3RD SELECT
L=1642 		1-33652-728-0 01 1 9902-9904 ●
6 ROD; LINK,3RD SELECT
L=1642 		1-33652-728-0 01 1 9905- ● ●
8 ROD; LINK,4TH SHIFT
L=370 		1-33652-654-1 01 1 9902-9904 ●
8 ROD; LINK,4TH SHIFT
L=370 		1-33652-654-1 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 9902-0003 ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 0004- ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (B) L=474 		1-33652-803-0 01 1 9902-0003 ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (B) L=474 		1-33652-803-0 01 1 0004- ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (A) L=423 		1-33652-804-1 01 1 9902-0003 ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (A) L=423 		1-33652-804-1 01 1 0004- ● ●
22 JOINT; BALL,SCREW,LINK ROD
CAB UP +110MM<TGG> (A) 		1-09760-109-0 02 1 9902-0003 ● ●
22 JOINT; BALL,SCREW,LINK ROD
CAB UP +110MM<TGG> (A) 		1-09760-109-0 02 1 0004- ● ●
22 JOINT; BALL,SCREW,LINK ROD
CAB UP +110MM<TGG> (B) 		1-09760-125-0 01 1 9902-0003 ● ●
22 JOINT; BALL,SCREW,LINK ROD
CAB UP +110MM<TGG> (B) 		1-09760-125-0 01 1 0004- ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9902-0003 ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0004- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CAB UP +110MM<TGG> (A) M10 		9-09111-410-0 02 1 9902-0003 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CAB UP +110MM<TGG> (A) M10 		9-09111-410-0 02 1 0004- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CAB UP +110MM<TGG> (B) M12 		9-99111-412-0 02 1 9902-0003 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
CAB UP +110MM<TGG> (B) M12 		9-99111-412-0 02 1 0004- ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9902-0003 ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0004- ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9902-0003 ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 0004- ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9902-0003 ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 0004- ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9902-0003 ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0004- ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-109-0 02 1 9902-9904 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-109-0 02 1 9905-9912 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-109-0 02 1 0001-0003 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-109-0 02 1 0004- ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9902-9912 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0001- ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9902-9904 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9905-9912 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0001-0003 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0004- ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9902-0003 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 0004- ● ●
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 9902-0003 ●
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 0004- ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9902-0003 ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0004- ● ●
112 JOINT; RUBBER
CAB UP +110MM<TGG> 		1-33670-413-1 01 1 9902-0003 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9902-0003 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 0004- ● ●
112 JOINT; RUBBER
CAB UP +110MM<TGG> 		1-33670-413-1 01 1 0004- ● ●

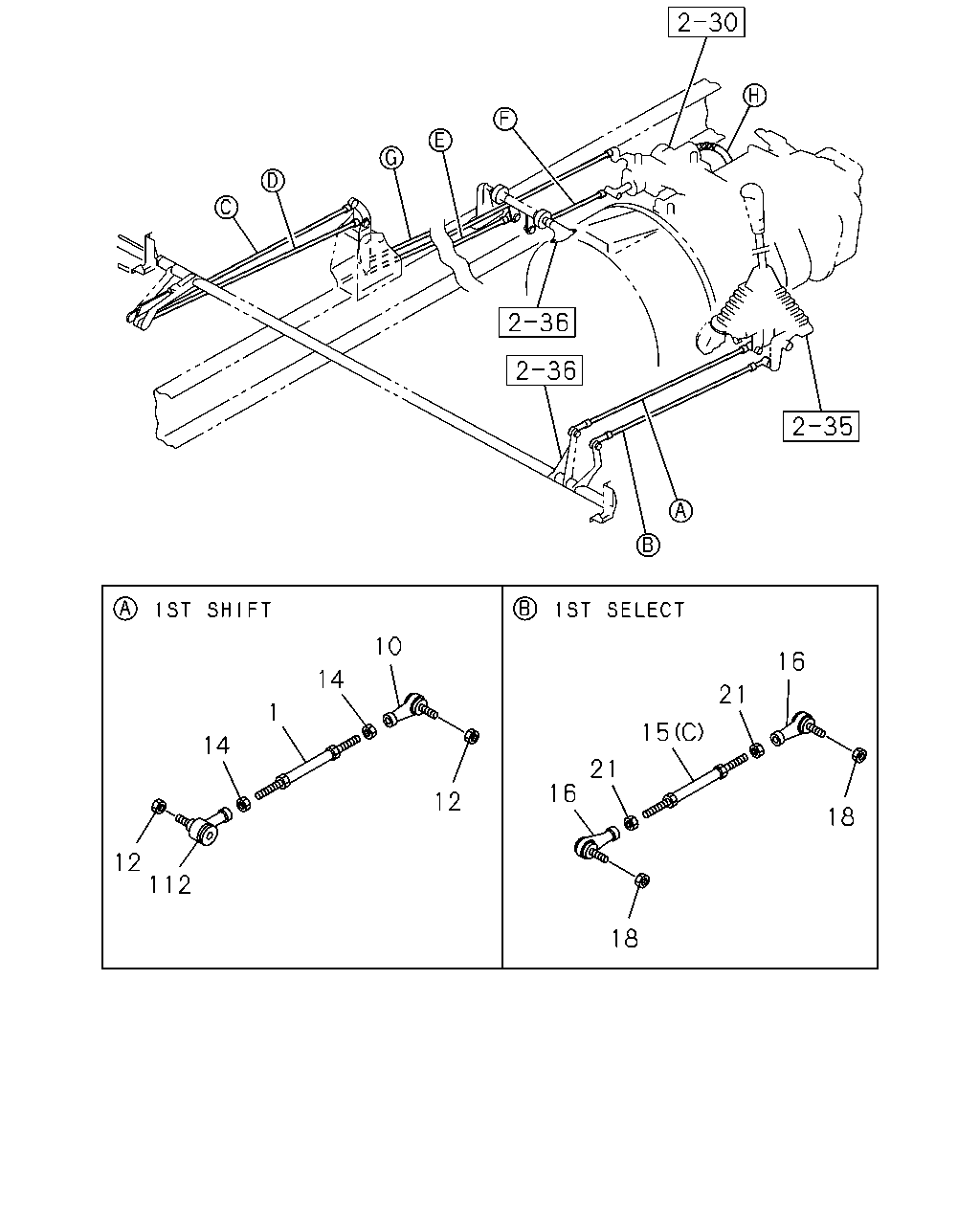

çizim 10144
10 16 14 21 1 15 14 21 16 12 18 12 112 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9902-0003 ●
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 0004- ● ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9902-0003 ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 0004- ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9902-0003 ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 0004- ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9902-0003 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0004- ● ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 9902-0003 ●
15 ROD; LINK 1ST SHIFT
(C) L=556 		1-33652-744-0 01 1 0004- ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (B) L=474 		1-33652-803-0 01 1 9902-0003 ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (B) L=474 		1-33652-803-0 01 1 0004- ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (A) L=423 		1-33652-804-1 01 1 9902-0003 ● ●
15 ROD; LINK 1ST SHIFT
CAB UP +110MM<TGG> (A) L=423 		1-33652-804-1 01 1 0004- ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9902-0003 ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 0004- ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9902-0003 ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0004- ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9902-0003 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 0004- ● ●
112 JOINT; RUBBER
CAB UP +110MM<TGG> 		1-33670-413-1 01 1 9902-0003 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 9902-0003 ● ●
112 JOINT; RUBBER 1-33670-413-1 01 1 0004- ● ●
112 JOINT; RUBBER
CAB UP +110MM<TGG> 		1-33670-413-1 01 1 0004- ● ●
çizim 44992
57 39 58 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 9902-0003 ●
39 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 0004- ● ●
57 NIPPLE; POWER ASSISTOR
M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9902-0003 ●
57 NIPPLE; POWER ASSISTOR
M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 0004- ● ●
58 HOSE; FLEX,POWER ASSISTOR
L=360 		0-07150-360-0 01 1 9902- ● ●
