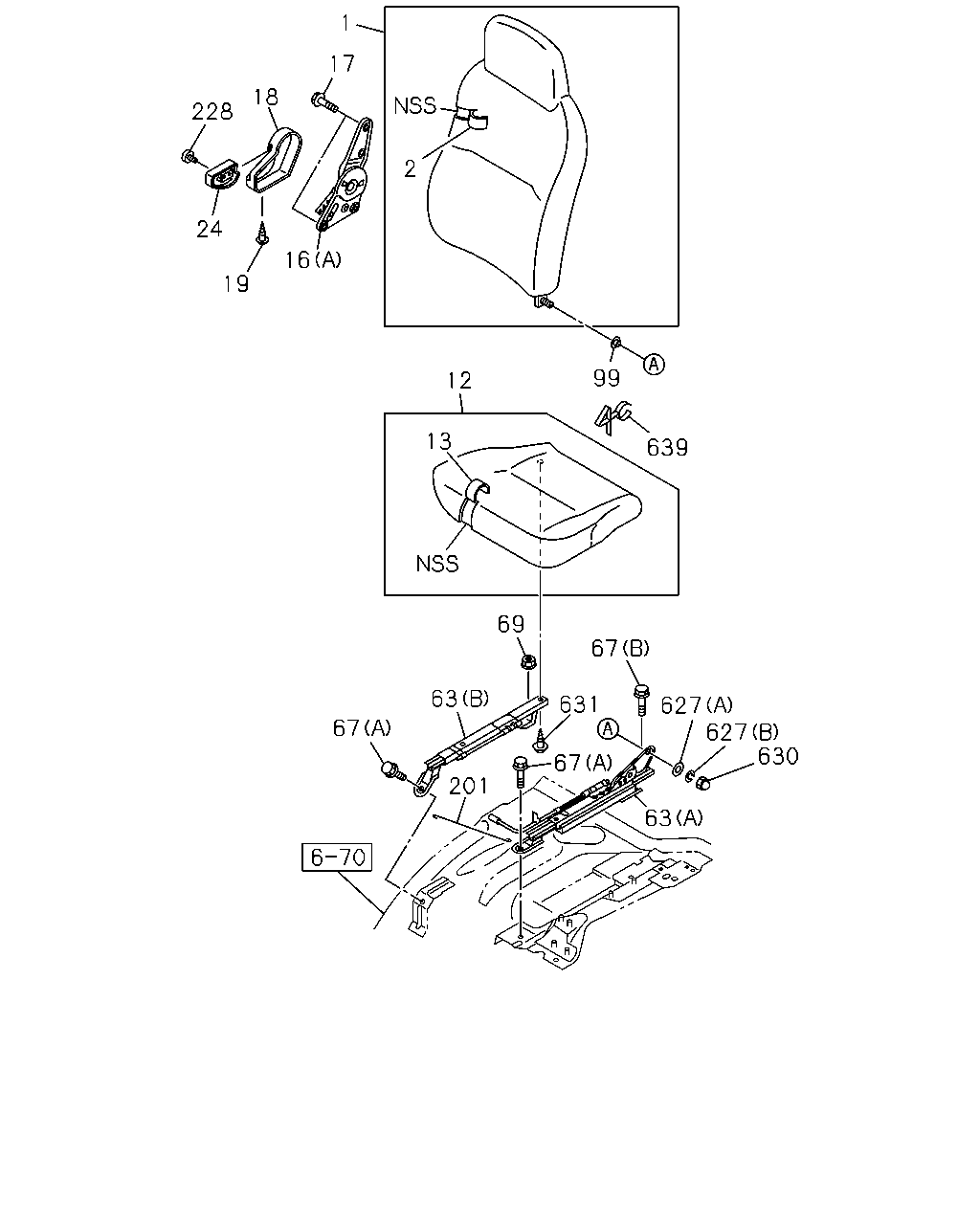

7-50 — FRONT SEAT (#76682) — 74 parça

1 17 18 228 2 24 16 19 99 12 13 639 69 67 63 631 627 627 630 67 67 201 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.720 BACK ASM; SEAT DARK GRAY	8-97414-145-5	01	1	0907-1009	●	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97421-235-1	01	1	1010-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97414-146-1	01	1	0907-1009	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97421-254-0	01	1	1010-	●	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-150-1	01	1	0907-1009	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97414-150-1	01	1	0907-1009			●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-248-1	01	1	1010-	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97421-248-1	01	1	1010-			●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-252-1	01	1	0907-1009	●	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-1	01	1	1010-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-151-1	01	1	0907-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97414-151-1	01	1	0907-1009			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-268-1	01	1	1010-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97421-268-1	01	1	1010-			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-260-0	01	1	0907-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-1	01	1	1010-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-273-3	01	1	0907-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0907-	●	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0907-	●	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-332-0	01	1	0907-	●	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0907-	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	0907-	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-97382-800-2	01	1	0907-	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-97382-801-1	01	1	0907-	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0907-	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0907-	●	●	●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0907-	●	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0907-	●	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0907-	●	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0907-	●	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0907-	●	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0907-	●	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0907-	●	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0907-	●	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0907-	●	●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	0907-	●	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0907-			●

460 139 114 16 478 361 126 368 115 139 116 480 479

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-273-3	01	1	0907-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98003-087-1	01	1	0907-	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-719-0	01	1	1001-1009	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-289-1	01	1	1010-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97409-280-1	01	1	0907-0912	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-280-1	01	1	1001-1009	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97409-280-1	01	1	1001-1009			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-288-1	01	1	1010-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-288-1	01	1	1010-			●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-271-0	01	1	0907-1009	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-271-0	01	1	0907-1009			●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-317-2	01	1	1010-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-317-2	01	1	1010-			●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-270-0	01	1	0907-0912	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-704-0	01	1	1001-1009	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-316-1	01	1	1010-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-286-0	01	1	0907-1009	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97416-286-0	01	1	0907-1009			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-337-1	01	1	1010-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97421-337-1	01	1	1010-			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-285-0	01	1	0907-0912	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-733-0	01	1	1001-1009	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-336-1	01	1	1010-	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	0907-	●	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	03	1	0907-	●	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0907-	●	●	●
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0907-	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-690-0	01	1	1001-1009	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-276-2	01	1	1010-	●	●
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97406-335-5	01	1	0907-0912	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97406-335-5	01	1	1001-1009	●	●
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97406-335-5	01	1	1001-1009			●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-275-2	01	1	1010-	●	●
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97421-275-2	01	1	1010-			●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-97868-186-0	01	1	0907-	●	●	●
479	16.716 PLUG; HINGE 16.165 OD=25 BLACK	1-76798-019-0	02	1	0907-	●	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	0907-	●	●	●
