Sayfa 2-36B - Isuzu EPC

2-36B — MANUAL TRANSMISSION CONT LINK AND CABLE (#7668) — 362 parça

496 465 192 509 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
192	COVER SHORT CHASSIS&RHD(EXR5MC)	1-79907-090-0	01	1	0004-	●
465	BRACKET; CONNECTOR SHORT CHASSIS&RHD(EXR5MC)	1-47477-823-2	01	1	0004-	●
468	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0002-0003		●
468	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●
468	NUT; BRKT SHORT CHASSIS&LHD(EXR6MC) M8 FLANGE	0-91150-108-0	01	1	0004-	●
468	NUT; BRKT SHORT CHASSIS&RHD(EXR5MC) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0004-	●
496	FASTENER SHORT CHASSIS&RHD(EXR5MC) D8X13.5	1-09987-248-1	02	1	0004-	●
509	SEAL; BRKT SHORT CHASSIS&RHD(EXR5MC)	1-47477-825-2	01	1	0004-	●

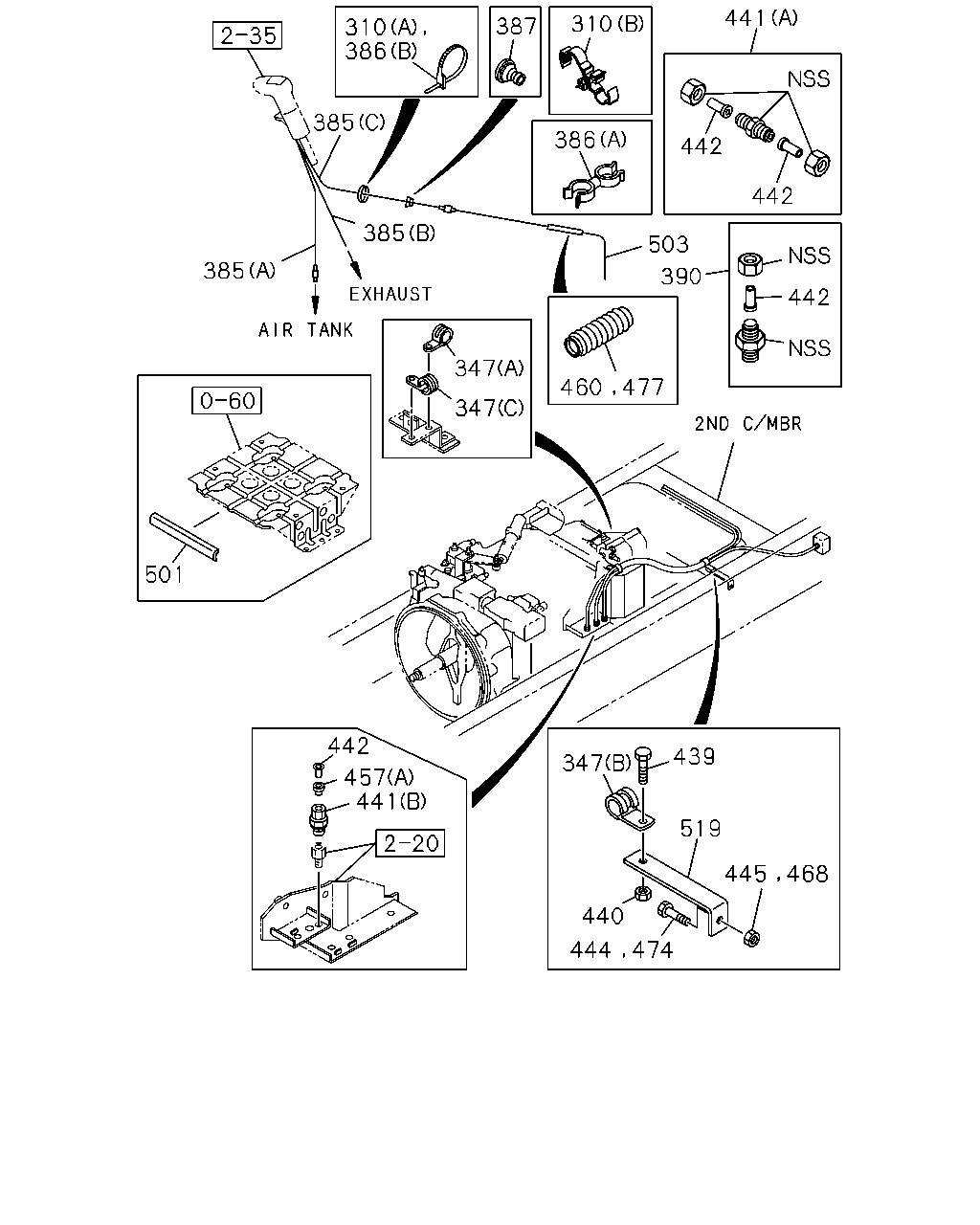

441 310 387 310 386 385 386 442 442 385 503 385 390 442 347 460 477 347 501 442 439 347 457 441 519 445 468 440 474 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
310	CLIP; TUBE (A) L=250	1-09707-126-0	07	1	9902-9909		●
310	CLIP; TUBE (A) L=250	1-09707-126-0	07	1	9910-9910		●
310	CLIP; TUBE SHORT CHASSIS&LHD(EXR6MC) (A) L=250	1-09707-126-0	07	1	9910-9910	●
310	CLIP; TUBE (A) L=250	1-09707-126-0	17	1	9911-		●
310	CLIP; TUBE SHORT CHASSIS&LHD(EXR6MC) (A) L=250	1-09707-126-0	17	1	9911-	●
310	CLIP; TUBE (A) L=140	5-09707-031-1	11	1	9902-9909		●
310	CLIP; TUBE (A) L=140	5-09707-031-1	11	1	9910-9910		●
310	CLIP; TUBE SHORT CHASSIS&LHD(EXR6MC) (A) L=140	5-09707-031-1	11	1	9910-9910	●
310	CLIP; TUBE (A) L=140	5-09707-031-1	04	1	9911-		●
310	CLIP; TUBE SHORT CHASSIS&LHD(EXR6MC) (A) L=140	5-09707-031-1	04	1	9911-	●
310	CLIP; TUBE SHORT CHASSIS&RHD(EXR5MC) (A)	1-09707-030-0	02	1	0004-0006	●
310	CLIP; TUBE SHORT CHASSIS&RHD(EXR5MC) (A) L=250	5-09707-030-1	02	1	0007-	●
310	CLIP; TUBE SHORT CHASSIS&RHD(EXR5MC) (A) L=250	1-09707-126-0	16	1	0004-	●
310	CLIP; TUBE SHORT CHASSIS&RHD(EXR5MC) (A) L=140	5-09707-031-1	01	1	0004-	●
347	CLIP; AIR PIPE (C) ID=24 L=27	1-09700-809-0	02	1	9902-9905		●
347	CLIP; AIR PIPE (C) ID=24 L=27	1-09700-809-0	01	1	9906-0003		●	●
347	CLIP; AIR PIPE EXC. PTO ZF TRANS RR(BDM) (C) ID=24 L=27	1-09700-809-0	01	1	9906-0003		●
347	CLIP; AIR PIPE (C) ID=24 L=27	1-09700-809-0	01	1	9906-0003			●
347	CLIP; AIR PIPE (C) ID=24 L=27	1-09700-809-0	01	1	0004-	●	●	●
347	CLIP; AIR PIPE EXC. PTO ZF TRANS RR(BDM) (C) ID=24 L=27	1-09700-809-0	01	1	0004-		●
347	CLIP; AIR PIPE (C) ID=24 L=27	1-09700-809-0	01	1	0004-			●
347	CLIP; AIR PIPE PTO ZF TRANS RR(BDM) (B) ID=28 L=40	1-09701-261-0	01	1	9906-		●
347	CLIP; AIR PIPE PTO ZF TRANS RR(BDM) (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	9906-0003		●	●
347	CLIP; AIR PIPE PTO ZF TRANS RR(BDM) (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0004-	●	●	●
347	CLIP; AIR PIPE SHORT CHASSIS&LHD(EXR6MC) (C) ID=18 L=28	1-09701-067-0	01	1	9910-0003	●
347	CLIP; AIR PIPE (C) ID=18 L=28	1-09701-067-0	01	1	0004-	●
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	9902-9909		●
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	9910-0003		●
385	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	9910-0003	●
385	TUBE; NYLON (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0004-		●
385	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0004-	●
385	TUBE; NYLON (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9902-9904		●
385	TUBE; NYLON EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9905-9909		●
385	TUBE; NYLON EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-0003		●
385	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-0003	●
385	TUBE; NYLON EXC. AIR BAG(TFQ) (C) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0004-	●	●
385	TUBE; NYLON AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9905-9909		●
385	TUBE; NYLON AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-0003		●
385	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-0003	●
385	TUBE; NYLON AIR BAG(TFQ) (C) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0004-	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9902-9909		●
385	TUBE; NYLON CAB UP +110MM<TGG> (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-		●
385	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) CAB UP +110MM<TGG> (A) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (A) L=1420 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9902-9909		●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (A) L=1420 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-		●
385	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) EXC. CAB UP +110MM<TGG> (A) L=1420 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-	●
385	TUBE; NYLON SHORT CHASSIS&RHD(EXR5MC) (B) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0004-	●
385	TUBE; NYLON (B) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0004-	●
386	CLIP; CONT CABLE & TUBE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	9902-9909		●
386	CLIP; CONT CABLE & TUBE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	9910-0003		●
386	CLIP; CONT CABLE & TUBE SHORT CHASSIS&LHD(EXR6MC) (A) ID=8.3 & 8.3	8-94426-175-0	01	1	9910-0003	●
386	CLIP; CONT CABLE & TUBE (A) ID=8.3 & 8.3	8-94426-175-0	01	1	0004-		●
386	CLIP; CONT CABLE & TUBE SHORT CHASSIS&LHD(EXR6MC) (A) ID=8.3 & 8.3	8-94426-175-0	01	1	0004-	●
386	CLIP; CONT CABLE & TUBE SHORT CHASSIS&RHD(EXR5MC) (B) L=250	5-09707-030-1	02	1	0004-	●
386	CLIP; CONT CABLE & TUBE SHORT CHASSIS&RHD(EXR5MC) (B) L=140	5-09707-031-1	01	1	0004-	●
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9902-9909		●
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	9910-0003	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-102-0	01	1	0004-		●
387	GROMMET; CONT TUBE,FULLER SHORT CHASSIS&LHD(EXR6MC)	1-09332-102-0	01	1	0004-	●
390	CONNECTOR; STRAIGHT,TRANS SIDE DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	9902-9904		●
390	CONNECTOR; STRAIGHT,TRANS SIDE EXC. AIR BAG(TFQ) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	9905-9909		●
390	CONNECTOR; STRAIGHT,TRANS SIDE EXC. AIR BAG(TFQ) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	9910-	●	●
390	CONNECTOR; STRAIGHT,TRANS SIDE AIR BAG(TFQ)	1-09661-174-0	01	1	9905-9909		●
390	CONNECTOR; STRAIGHT,TRANS SIDE AIR BAG(TFQ)	1-09661-174-0	01	1	9910-	●	●
439	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	02	1	9902-9905		●
439	BOLT; CLIP,AIR PIPE PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	03	1	9906-0003		●	●
439	BOLT; CLIP,AIR PIPE PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	03	1	0004-	●	●	●
439	BOLT; CLIP,AIR PIPE EXC. PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	02	1	9906-0003		●	●
439	BOLT; CLIP,AIR PIPE EXC. PTO ZF TRANS RR(BDM) M8X25 FLANGE	0-28680-825-0	02	1	0004-	●	●	●
440	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	9902-9905		●
440	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	9906-0003		●
440	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	9902-9909		●
441	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	9910-0003	●	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-466-0	01	1	0004-		●
441	CONNECTOR; NYLON TUBE SHORT CHASSIS&LHD(EXR6MC) (B)	1-09660-466-0	01	1	0004-	●
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	9902-9909		●
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	9910-0003	●	●
441	CONNECTOR; NYLON TUBE (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0004-		●
441	CONNECTOR; NYLON TUBE SHORT CHASSIS&LHD(EXR6MC) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0004-	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	04	1	9902-9909		●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	04	1	9910-9910		●
442	INSERT; NYLON TUBE SHORT CHASSIS&LHD(EXR6MC) ID=1.4 OD=2.0 L=18	1-09669-100-0	04	1	9910-9910	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	9911-0003		●
442	INSERT; NYLON TUBE SHORT CHASSIS&LHD(EXR6MC) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	9911-0003	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0004-	●	●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9902-9904		●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9902-9904		●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9905-9909		●
442	INSERT; NYLON TUBE EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9905-9909		●
442	INSERT; NYLON TUBE EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9910-9910		●
442	INSERT; NYLON TUBE ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9910-9910		●
442	INSERT; NYLON TUBE SHORT CHASSIS&LHD(EXR6MC) EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9910-9910	●
442	INSERT; NYLON TUBE SHORT CHASSIS&LHD(EXR6MC) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9910-9910	●
442	INSERT; NYLON TUBE EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9911-0003		●
442	INSERT; NYLON TUBE SHORT CHASSIS&LHD(EXR6MC) EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	9911-0003	●
442	INSERT; NYLON TUBE EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0004-	●	●
444	BOLT; BRKT,NIPPLE M8X30 FLANGE	0-28680-830-0	01	1	9902-0001		●
444	BOLT; BRKT,NIPPLE SHORT CHASSIS&RHD(EXR5MC) M8X30 FLANGE	0-28680-830-0	01	1	0004-	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9902-0001		●
445	NUT; BRKT,NIPPLE SHORT CHASSIS&RHD(EXR5MC) M8 FLANGE	0-91150-108-0	01	1	0004-	●
457	GASKET CAB UP +110MM<TGG> (B)	1-09623-594-0	04	1	9902-0003		●	●
457	GASKET CAB UP +110MM<TGG> (B)	1-09623-594-0	04	1	0004-	●	●	●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9902-9909		●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9910-0003		●
457	GASKET SHORT CHASSIS&LHD(EXR6MC) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9910-0003	●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0004-		●
457	GASKET SHORT CHASSIS&LHD(EXR6MC) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0004-	●
460	TUBE; CORRUGATE	1-83129-031-1	01	1	9902-9909		●
460	TUBE; CORRUGATE	1-83129-031-1	01	1	9910-0003		●
460	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC)	1-83129-031-1	01	1	9910-0003	●
460	TUBE; CORRUGATE	1-83129-031-1	01	1	0004-		●
460	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC)	1-83129-031-1	01	1	0004-	●
460	TUBE; CORRUGATE L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9902-9909		●
460	TUBE; CORRUGATE L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9910-0003		●
460	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9910-0003	●
460	TUBE; CORRUGATE L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0004-		●
460	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0004-	●
460	TUBE; CORRUGATE L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9902-9909		●
460	TUBE; CORRUGATE L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9910-0003		●
460	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9910-0003	●
460	TUBE; CORRUGATE L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0004-		●
460	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0004-	●
468	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0002-0003		●
468	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0004-	●	●	●
468	NUT; BRKT SHORT CHASSIS&LHD(EXR6MC) M8 FLANGE	0-91150-108-0	01	1	0004-	●
468	NUT; BRKT SHORT CHASSIS&RHD(EXR5MC) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0004-	●
474	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0002-0003		●
474	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0004-	●	●	●
474	BOLT; BRKT SHORT CHASSIS&LHD(EXR6MC) M8X30 FLANGE	0-28680-830-0	01	1	0004-	●
477	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9902-9909		●
477	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9910-0003		●
477	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC) SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9910-0003	●
477	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	0004-	●	●
477	TUBE; CORRUGATE SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	9902-9909		●
477	TUBE; CORRUGATE SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	9910-0003		●
477	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC) SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	9910-0003	●
477	TUBE; CORRUGATE SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	0004-		●
477	TUBE; CORRUGATE SHORT CHASSIS&LHD(EXR6MC) SERVICED BY L=6000 ID=7	1-87410-087-0	01	1	0004-	●
477	TUBE; CORRUGATE SHORT CHASSIS&RHD(EXR5MC) SERVICED BY L=4000 ID=7	1-87410-086-0	01	1	0004-	●
501	SEAL; HARNESS PROTECTOR 100X30	1-72498-014-1	04	1	9902-9903		●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9904-9909		●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9910-0003		●
501	SEAL; HARNESS PROTECTOR SHORT CHASSIS&LHD(EXR6MC) 100X40	1-72498-022-0	04	1	9910-0003	●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	0004-		●
501	SEAL; HARNESS PROTECTOR SHORT CHASSIS&LHD(EXR6MC) 100X40	1-72498-022-0	04	1	0004-	●
503	TUBE; NYLON SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9902-9909		●
503	TUBE; NYLON SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-0003		●
503	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	9910-0003	●
503	TUBE; NYLON SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	0004-	●	●
503	TUBE; NYLON SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	9902-9909		●
503	TUBE; NYLON SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	9910-0003		●
503	TUBE; NYLON SHORT CHASSIS&LHD(EXR6MC) SERVICED BY L=6000 OD=4	1-87410-079-0	01	1	9910-0003	●
503	TUBE; NYLON SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0004-	●	●
519	BRACKET; FRAME L=125	1-47475-897-0	01	1	9902-0001		●
519	BRACKET; FRAME L=125	1-47475-897-0	01	1	0002-0003		●
519	BRACKET; FRAME L=125	1-47475-897-0	01	1	0004-	●	●	●
519	BRACKET; FRAME SHORT CHASSIS&LHD(EXR6MC) L=125	1-47475-897-0	01	1	0004-	●

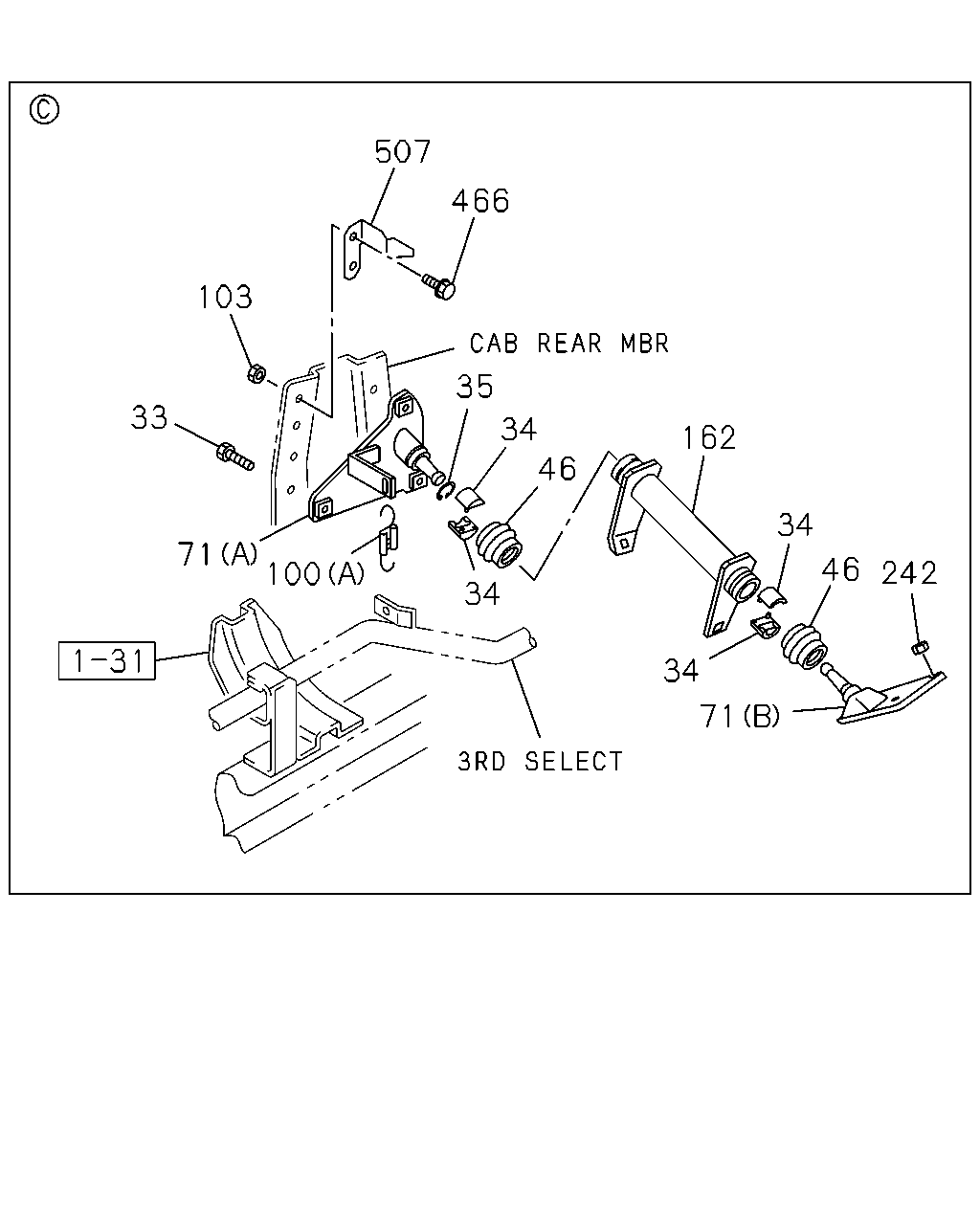

507 466 103 35 33 34 162 46 34 71 100 46 242 34 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	9902-0003		●
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	0004-	●	●	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9902-0003		●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	0004-	●	●	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9902-0003		●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	0004-	●	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9902-0003		●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	0004-	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9902-0003		●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	0004-	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-584-0	01	1	9902-0003		●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-584-0	01	1	0004-	●	●	●
100	SPRING (A)	1-09583-319-0	01	1	9902-0003		●
100	SPRING (A)	1-09583-319-0	01	1	0004-	●	●	●
100	SPRING (B)	1-09583-351-0	01	1	9902-0003		●
100	SPRING (B)	1-09583-351-0	01	1	0004-	●	●	●
103	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	9902-0003		●	●
103	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	0004-	●	●	●
162	LEVER; RELAY	1-33651-679-0	01	1	9902-0003		●
162	LEVER; RELAY	1-33651-679-0	01	1	0004-	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	9902-0003		●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	0004-	●	●	●
466	BOLT; FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9902-0003		●	●
466	BOLT; FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●	●
507	PROTECTOR; HEAT CAB UP +110MM<TGG>	1-14181-313-0	01	1	9902-0003		●	●
507	PROTECTOR; HEAT CAB UP +110MM<TGG>	1-14181-313-0	01	1	0004-	●	●	●

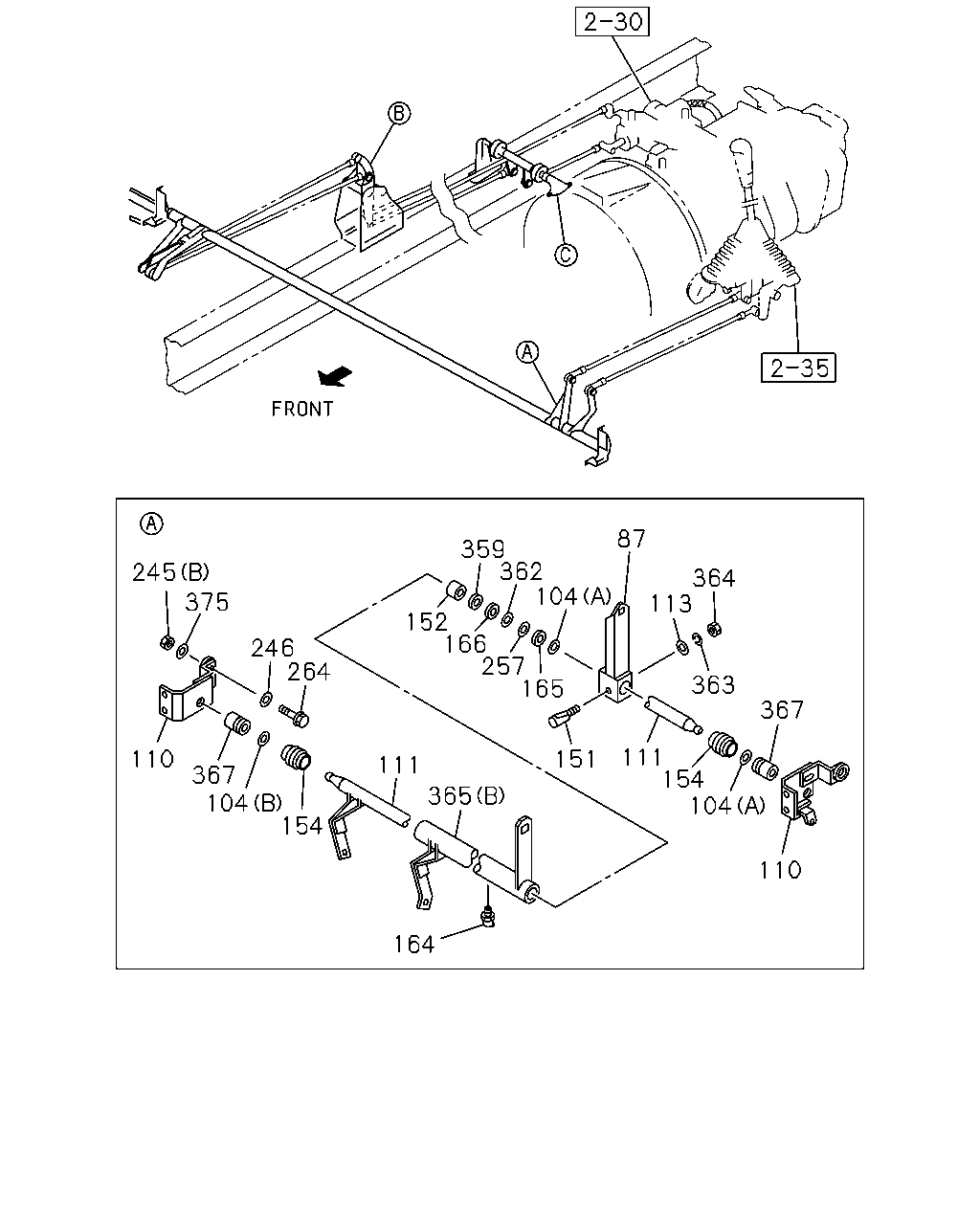

87 359 362 104 245 375 364 113 152 166 257 165 246 264 363 367 111 154 104 110 151 111 367 104 154 365 110 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	9902-0003		●
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	0004-		●	●
87	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXR6MC)	1-33651-666-0	01	1	0004-	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	9902-0003		●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	0004-		●	●
104	RING; SNAP SHORT CHASSIS&LHD(EXR6MC) (A) ID=32.2	9-09180-035-0	02	1	0004-	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	9902-0003		●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	0004-		●	●
104	RING; SNAP SHORT CHASSIS&LHD(EXR6MC) (B) OD=23.5	9-09180-122-0	01	1	0004-	●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	9902-0003		●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	0004-		●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXR6MC)	1-33657-617-0	01	1	0004-	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	9902-0003		●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	0004-		●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXR6MC)	1-33657-618-0	01	1	0004-	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXR5MC)	1-33657-598-0	01	1	0004-	●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	9902-0003		●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	0004-		●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXR6MC)	1-33659-200-0	01	1	0004-	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXR5MC)	1-33619-468-0	01	1	0004-	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9902-0003		●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	0004-		●	●
113	WASHER; RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) ID=10.5 OD=26	9-09160-710-0	01	1	0004-	●
113	WASHER; RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) ID=17	9-09160-516-0	01	1	0004-	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	9902-0003		●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	0004-		●	●
151	BOLT; KEY,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC)	1-33659-063-0	01	1	0004-	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	9902-0003		●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	0004-		●	●
152	BEARING; NEEDLE,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC)	1-09811-328-0	02	1	0004-	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	9902-0003		●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	0004-		●	●
154	COVER; DUST,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC)	1-33659-068-0	02	1	0004-	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9902-0003		●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0004-		●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD SHORT CHASSIS&LHD(EXR6MC) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0004-	●
165	WASHER; RELAY LEVER T=3.2	1-09503-148-0	AR	1	9902-0003		●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	0004-		●	●
165	WASHER; RELAY LEVER SHORT CHASSIS&LHD(EXR6MC)	1-09503-148-0	AR	1	0004-	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	9902-0003		●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	0004-		●	●
166	WASHER; NYLON,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC)	1-09509-040-0	02	1	0004-	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	02	1	9902-0003		●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	02	1	0004-		●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) (B) M10	1-09984-142-0	02	1	0004-	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) (A) M10 FLANGE	0-91150-210-0	02	1	0004-	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) (B) M10	1-09984-142-0	01	1	0004-	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	9902-0003		●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	0004-		●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) ID=10	1-09985-185-0	02	1	0004-	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) ID=10	1-09985-185-0	01	1	0004-	●
257	PIECE; DIST,RELAY LEVER T=1.0	1-09503-198-0	AR	1	9902-0003		●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	0004-		●	●
257	PIECE; DIST,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC)	1-09503-198-0	AR	1	0004-	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	9902-0003		●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	0004-		●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) M10X30 FLANGE	0-28681-030-0	02	1	0004-	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	9902-0003		●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	0004-		●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) M10X100	1-09980-547-0	02	1	0004-	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) M10X100	1-09980-547-0	01	1	0004-	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	9902-0003		●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	0004-		●	●
359	SEAL; RUBBER,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC)	1-09625-005-1	02	1	0004-	●
362	SHIM	1-09503-172-0	AR	1	9902-0003		●
362	SHIM	1-09503-172-0	AR	1	0004-		●	●
362	SHIM SHORT CHASSIS&LHD(EXR6MC)	1-09503-172-0	AR	1	0004-	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	9902-0003		●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	0004-		●	●
363	WASHER; LK,KEY BOLT SHORT CHASSIS&LHD(EXR6MC) ID=10.2	9-09150-510-0	01	1	0004-	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	9902-0003		●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	0004-		●	●
364	NUT; KEY BOLT SHORT CHASSIS&LHD(EXR6MC) M10	9-09111-410-0	01	1	0004-	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9902-0003		●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0004-		●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXR6MC) (B)	1-33651-665-0	01	1	0004-	●
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-628-1	01	1	9902-0003		●	●
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-628-1	01	1	0004-	●	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXR5MC) (B)	1-33651-638-0	01	1	0004-	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXR5MC) (C)	1-33651-649-0	01	1	0004-	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	9902-0003		●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	0004-		●	●
367	SEAT; BALL,CONT SHAFT SHORT CHASSIS&LHD(EXR6MC)	1-33659-053-0	04	1	0004-	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9902-0003		●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0004-		●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0004-	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0004-	●

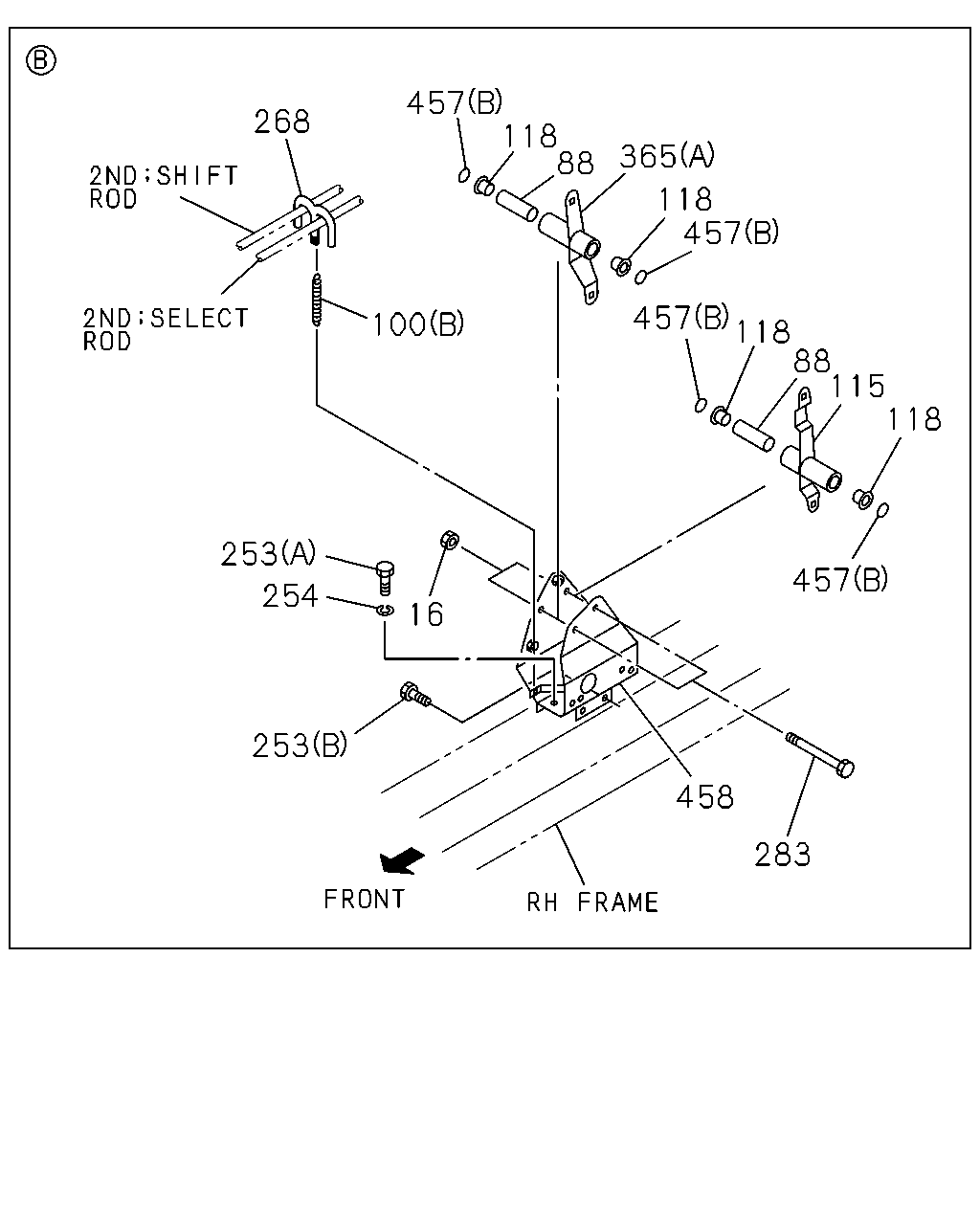

457 118 88 268 365 118 457 457 100 118 88 115 118 253 457 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	NUT; RELAY LEVER CAB UP +110MM<TGG> M10 FLANGE	0-91150-110-0	02	1	9902-0003		●	●
16	NUT; RELAY LEVER CAB UP +110MM<TGG> M10 FLANGE	0-91150-110-0	02	1	0004-	●	●	●
88	COLLAR; RELAY LEVER CAB UP +110MM<TGG>	1-33659-191-1	02	1	9902-0003		●	●
88	COLLAR; RELAY LEVER CAB UP +110MM<TGG>	1-33659-191-1	02	1	0004-	●	●	●
100	SPRING (A)	1-09583-319-0	01	1	9902-0003		●
100	SPRING (A)	1-09583-319-0	01	1	0004-	●	●	●
100	SPRING (B)	1-09583-351-0	01	1	9902-0003		●
100	SPRING (B)	1-09583-351-0	01	1	0004-	●	●	●
115	LEVER; RELAY,2ND SHIFT CAB UP +110MM<TGG>	1-33651-626-0	01	1	9902-0003		●	●
115	LEVER; RELAY,2ND SHIFT CAB UP +110MM<TGG>	1-33651-626-0	01	1	0004-	●	●	●
118	BUSHING; RELAY LEVER CAB UP +110MM<TGG>	1-09330-119-0	04	1	9902-0003		●	●
118	BUSHING; RELAY LEVER CAB UP +110MM<TGG>	1-09330-119-0	04	1	0004-	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9902-0003		●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0004-	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9902-0003		●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	0004-	●	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9902-0003		●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0004-	●	●	●
268	BRACKET; LINK ROD	1-33657-216-0	01	1	9902-0003		●
268	BRACKET; LINK ROD	1-33657-216-0	01	1	0004-	●	●	●
283	BOLT; RELAY LEVER CAB UP +110MM<TGG> M10X110	9-09801-316-1	02	1	9902-0003		●	●
283	BOLT; RELAY LEVER CAB UP +110MM<TGG> M10X110	9-09801-316-1	02	1	0004-	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9902-0003		●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0004-		●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXR6MC) (B)	1-33651-665-0	01	1	0004-	●
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-628-1	01	1	9902-0003		●	●
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-628-1	01	1	0004-	●	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXR5MC) (B)	1-33651-638-0	01	1	0004-	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXR5MC) (C)	1-33651-649-0	01	1	0004-	●
457	GASKET CAB UP +110MM<TGG> (B)	1-09623-594-0	04	1	9902-0003		●	●
457	GASKET CAB UP +110MM<TGG> (B)	1-09623-594-0	04	1	0004-	●	●	●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9902-9909		●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9910-0003		●
457	GASKET SHORT CHASSIS&LHD(EXR6MC) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	9910-0003	●
457	GASKET (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0004-		●
457	GASKET SHORT CHASSIS&LHD(EXR6MC) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0004-	●
458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG>	1-33657-664-1	01	1	9902-0003		●	●
458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG>	1-33657-664-1	01	1	0004-	●	●	●

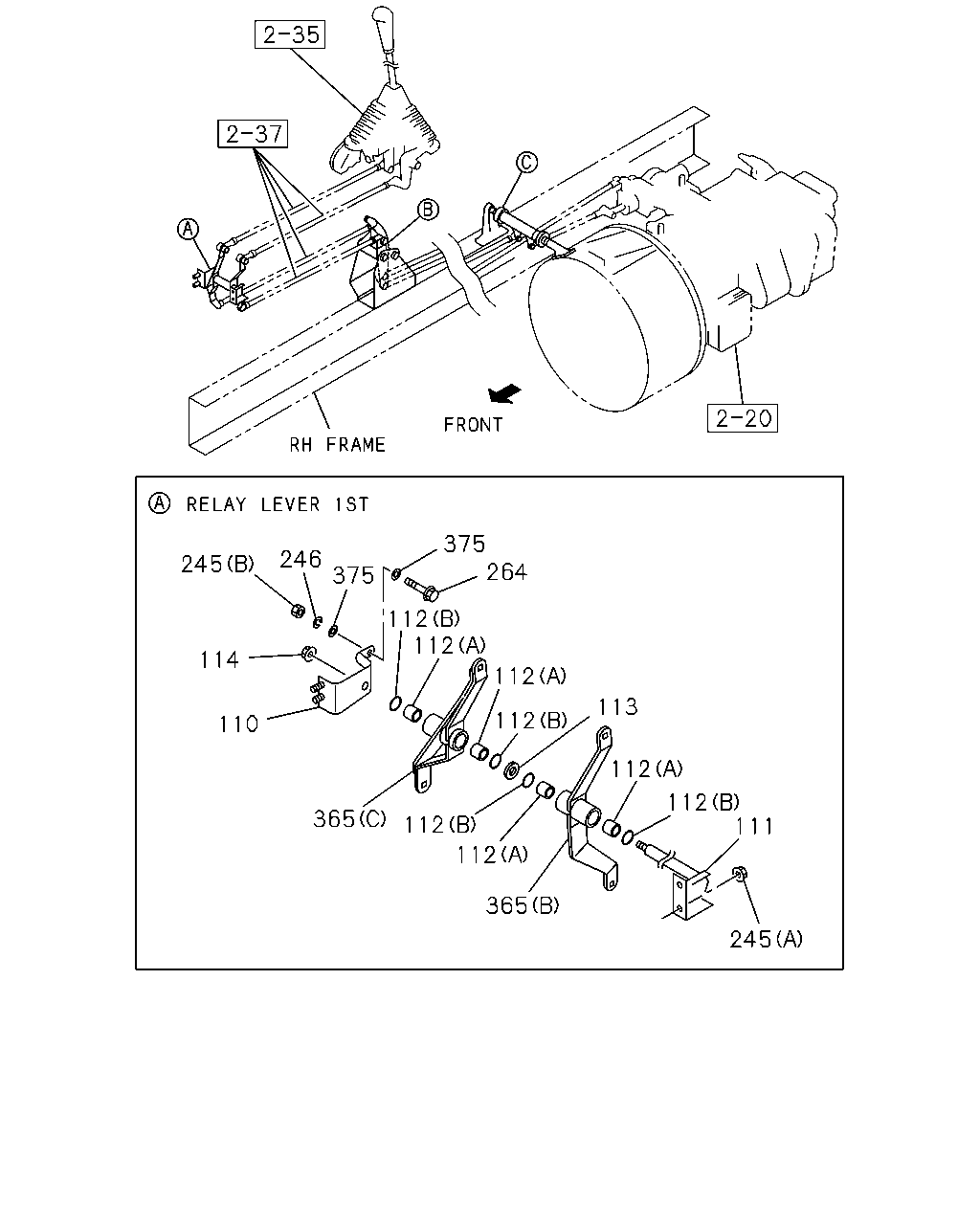

375 264 246 245 375 112 112 114 112 113 112 110 112 112 111 365 112 112 365 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	9902-0003		●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	0004-		●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXR6MC)	1-33657-617-0	01	1	0004-	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	9902-0003		●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	0004-		●	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXR6MC)	1-33657-618-0	01	1	0004-	●
110	BRACKET; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXR5MC)	1-33657-598-0	01	1	0004-	●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	9902-0003		●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	0004-		●	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&LHD(EXR6MC)	1-33659-200-0	01	1	0004-	●
111	SHAFT; RELAY LEVER,1ST SHORT CHASSIS&RHD(EXR5MC)	1-33619-468-0	01	1	0004-	●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) (A)	1-09330-119-0	04	1	0004-	●
112	BUSHING; RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) (B)	1-09623-594-0	04	1	0004-	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9902-0003		●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	0004-		●	●
113	WASHER; RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) ID=10.5 OD=26	9-09160-710-0	01	1	0004-	●
113	WASHER; RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) ID=17	9-09160-516-0	01	1	0004-	●
114	NUT; RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) M10 FLANGE	0-91150-110-0	01	1	0004-	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	02	1	9902-0003		●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	02	1	0004-		●	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) (B) M10	1-09984-142-0	02	1	0004-	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) (A) M10 FLANGE	0-91150-210-0	02	1	0004-	●
245	NUT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) (B) M10	1-09984-142-0	01	1	0004-	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	9902-0003		●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	0004-		●	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) ID=10	1-09985-185-0	02	1	0004-	●
246	WASHER; LK,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) ID=10	1-09985-185-0	01	1	0004-	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	9902-0003		●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	0004-		●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) M10X30 FLANGE	0-28681-030-0	02	1	0004-	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	9902-0003		●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	0004-		●	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) M10X100	1-09980-547-0	02	1	0004-	●
264	BOLT; BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) M10X100	1-09980-547-0	01	1	0004-	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9902-0003		●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0004-		●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&LHD(EXR6MC) (B)	1-33651-665-0	01	1	0004-	●
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-628-1	01	1	9902-0003		●	●
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-628-1	01	1	0004-	●	●	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXR5MC) (B)	1-33651-638-0	01	1	0004-	●
365	LEVER; RELAY,SELECT SHORT CHASSIS&RHD(EXR5MC) (C)	1-33651-649-0	01	1	0004-	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9902-0003		●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0004-		●	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&LHD(EXR6MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0004-	●
375	WASHER; PL,BRKT,RELAY LEVER SHORT CHASSIS&RHD(EXR5MC) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0004-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
