2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#7667) — 108 parça

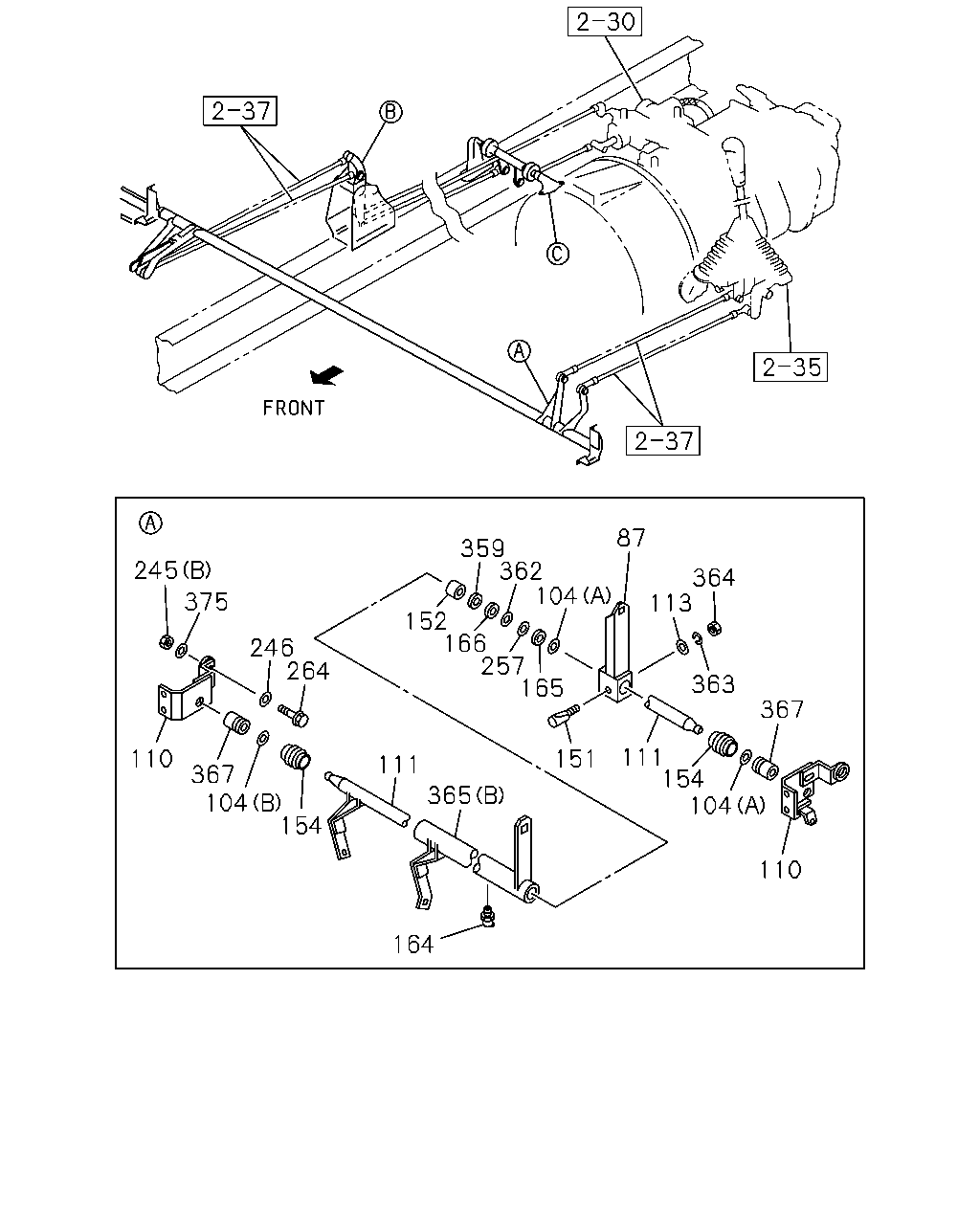

87 359 362 104 245 364 113 375 152 166 257 165 246 264 363 367 111 154 104 110 151 111 367 104 154 365 110 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	9902-0003	●
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	0004-	●	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	9902-0003	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	0004-	●	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	9902-0003	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	0004-	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	9902-0003	●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	0004-	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	9902-0003	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	0004-	●	●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	9902-0003	●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	0004-	●	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	9902-0003	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	0004-	●	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	9902-0003	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	0004-	●	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	9902-0003	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	0004-	●	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	9902-0003	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	0004-	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9902-0003	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0004-	●	●
165	WASHER; RELAY LEVER T=3.2	1-09503-148-0	AR	1	9902-0003	●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	0004-	●	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	9902-0003	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	0004-	●	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	02	1	9902-0003	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	02	1	0004-	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	9902-0003	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	0004-	●	●
257	PIECE; DIST,RELAY LEVER T=1.0	1-09503-198-0	AR	1	9902-0003	●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	0004-	●	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	9902-0003	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	0004-	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	9902-0003	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	0004-	●	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	9902-0003	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	0004-	●	●
362	SHIM	1-09503-172-0	AR	1	9902-0003	●
362	SHIM	1-09503-172-0	AR	1	0004-	●	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	9902-0003	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	0004-	●	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	9902-0003	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	0004-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9902-0003	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0004-	●	●
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-628-1	01	1	9902-0003	●	●
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-628-1	01	1	0004-	●	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	9902-0003	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	0004-	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9902-0003	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0004-	●	●

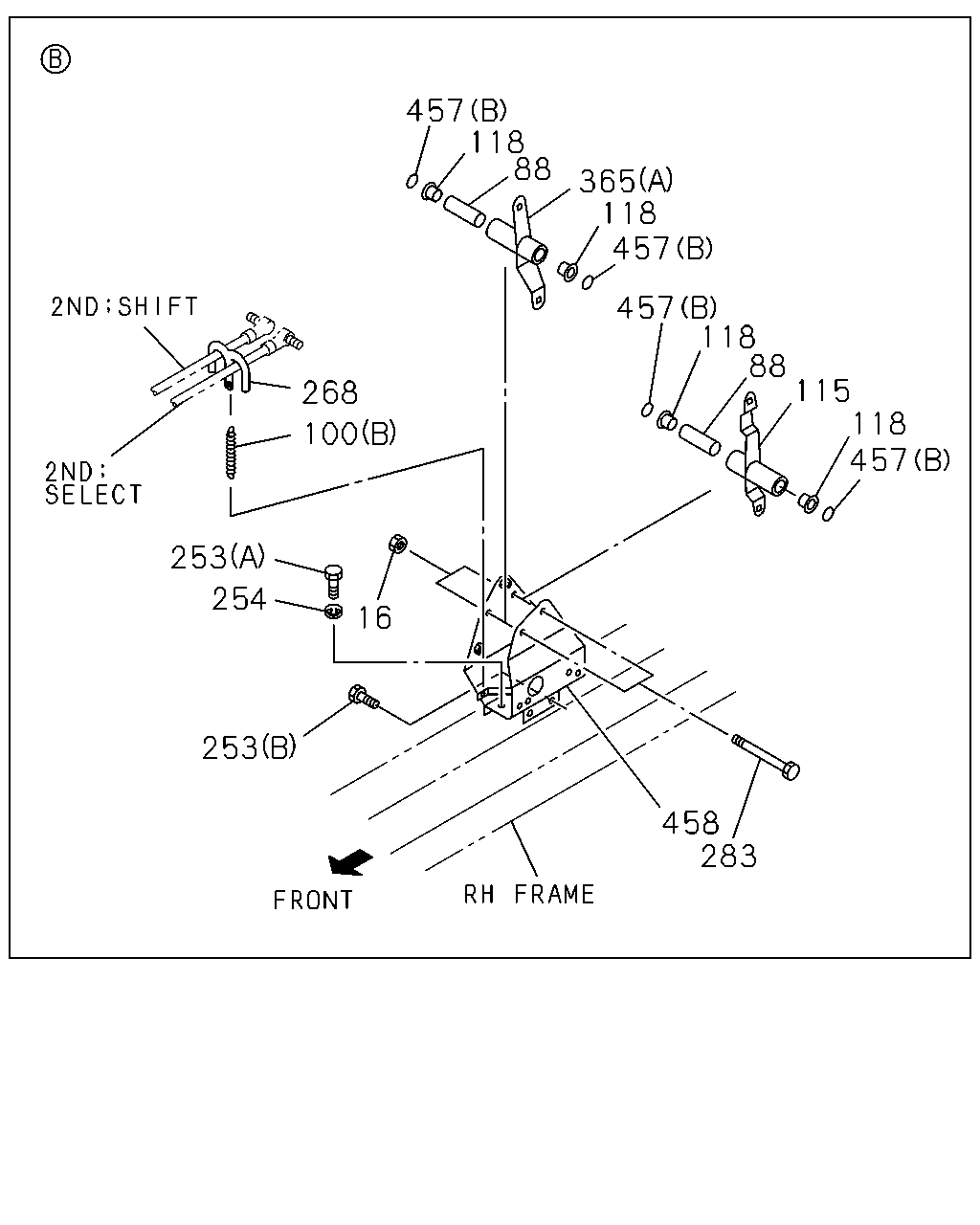

457 118 88 365 118 457 457 118 88 115 118 457 268 100 253 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER CAB UP +110MM<TGG> M10 FLANGE	0-91150-110-0	02	1	9902-0003	●	●
16	NUT; RELAY LEVER CAB UP +110MM<TGG> M10 FLANGE	0-91150-110-0	02	1	0004-	●	●
88	COLLAR; RELAY LEVER CAB UP +110MM<TGG>	1-33659-191-1	02	1	9902-0003	●	●
88	COLLAR; RELAY LEVER CAB UP +110MM<TGG>	1-33659-191-1	02	1	0004-	●	●
100	SPRING (A)	1-09583-319-0	01	1	9902-0003	●
100	SPRING (A)	1-09583-319-0	01	1	0004-	●	●
100	SPRING (B)	1-09583-351-0	01	1	9902-0003	●
100	SPRING (B)	1-09583-351-0	01	1	0004-	●	●
115	LEVER; RELAY,2ND SHIFT CAB UP +110MM<TGG>	1-33651-626-0	01	1	9902-0003	●	●
115	LEVER; RELAY,2ND SHIFT CAB UP +110MM<TGG>	1-33651-626-0	01	1	0004-	●	●
118	BUSHING; RELAY LEVER CAB UP +110MM<TGG>	1-09330-119-0	04	1	9902-0003	●	●
118	BUSHING; RELAY LEVER CAB UP +110MM<TGG>	1-09330-119-0	04	1	0004-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9902-0003	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0004-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9902-0003	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	0004-	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9902-0003	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0004-	●	●
268	BRACKET; LINK ROD	1-33657-216-0	01	1	9902-0003	●
268	BRACKET; LINK ROD	1-33657-216-0	01	1	0004-	●	●
283	BOLT; RELAY LEVER CAB UP +110MM<TGG> M10X110	9-09801-316-1	02	1	9902-0003	●	●
283	BOLT; RELAY LEVER CAB UP +110MM<TGG> M10X110	9-09801-316-1	02	1	0004-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	9902-0003	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0004-	●	●
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-628-1	01	1	9902-0003	●	●
365	LEVER; RELAY,SELECT CAB UP +110MM<TGG> (A)	1-33651-628-1	01	1	0004-	●	●
457	GASKET CAB UP +110MM<TGG> (B)	1-09623-594-0	04	1	9902-0003	●	●
457	GASKET CAB UP +110MM<TGG> (B)	1-09623-594-0	04	1	0004-	●	●
458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG>	1-33657-664-1	01	1	9902-0003	●	●
458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG>	1-33657-664-1	01	1	0004-	●	●

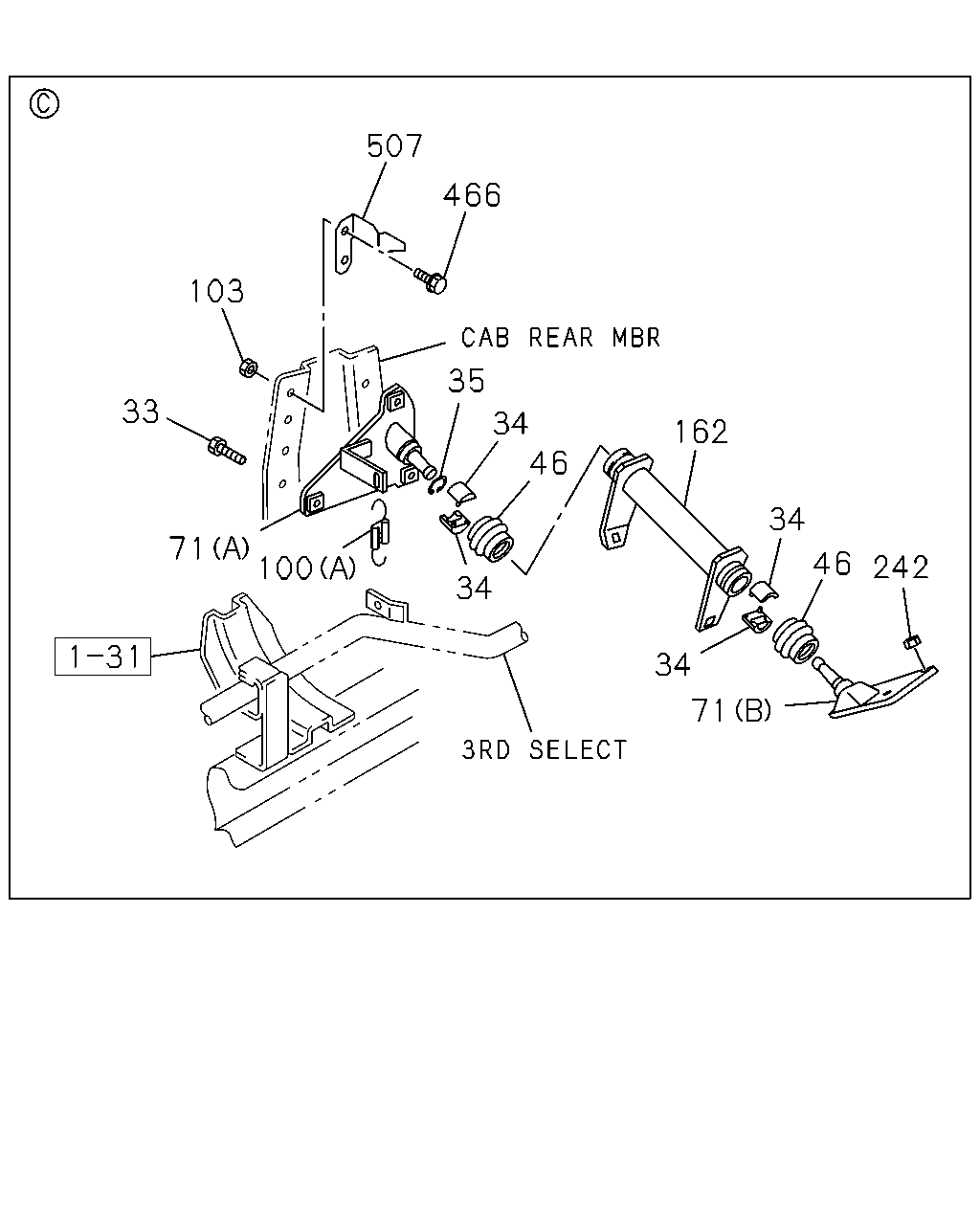

507 466 103 35 33 34 162 46 34 71 100 46 242 34 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	9902-0003	●
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	0004-	●	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9902-0003	●	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	0004-	●	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9902-0003	●	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	0004-	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9902-0003	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	0004-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9902-0003	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	0004-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-584-0	01	1	9902-0003	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-584-0	01	1	0004-	●	●
100	SPRING (A)	1-09583-319-0	01	1	9902-0003	●
100	SPRING (A)	1-09583-319-0	01	1	0004-	●	●
100	SPRING (B)	1-09583-351-0	01	1	9902-0003	●
100	SPRING (B)	1-09583-351-0	01	1	0004-	●	●
103	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	9902-0003	●	●
103	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	0004-	●	●
162	LEVER; RELAY	1-33651-625-0	01	1	9902-0003	●
162	LEVER; RELAY	1-33651-625-0	01	1	0004-	●	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	9902-0003	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	0004-	●	●
466	BOLT; FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9902-0003	●	●
466	BOLT; FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	0004-	●	●
507	PROTECTOR; HEAT CAB UP +110MM<TGG>	1-14181-313-0	01	1	9902-0003	●	●
507	PROTECTOR; HEAT CAB UP +110MM<TGG>	1-14181-313-0	01	1	0004-	●	●
