6-66 — HEAD LINING AND TRIM (#76666) — 120 parça

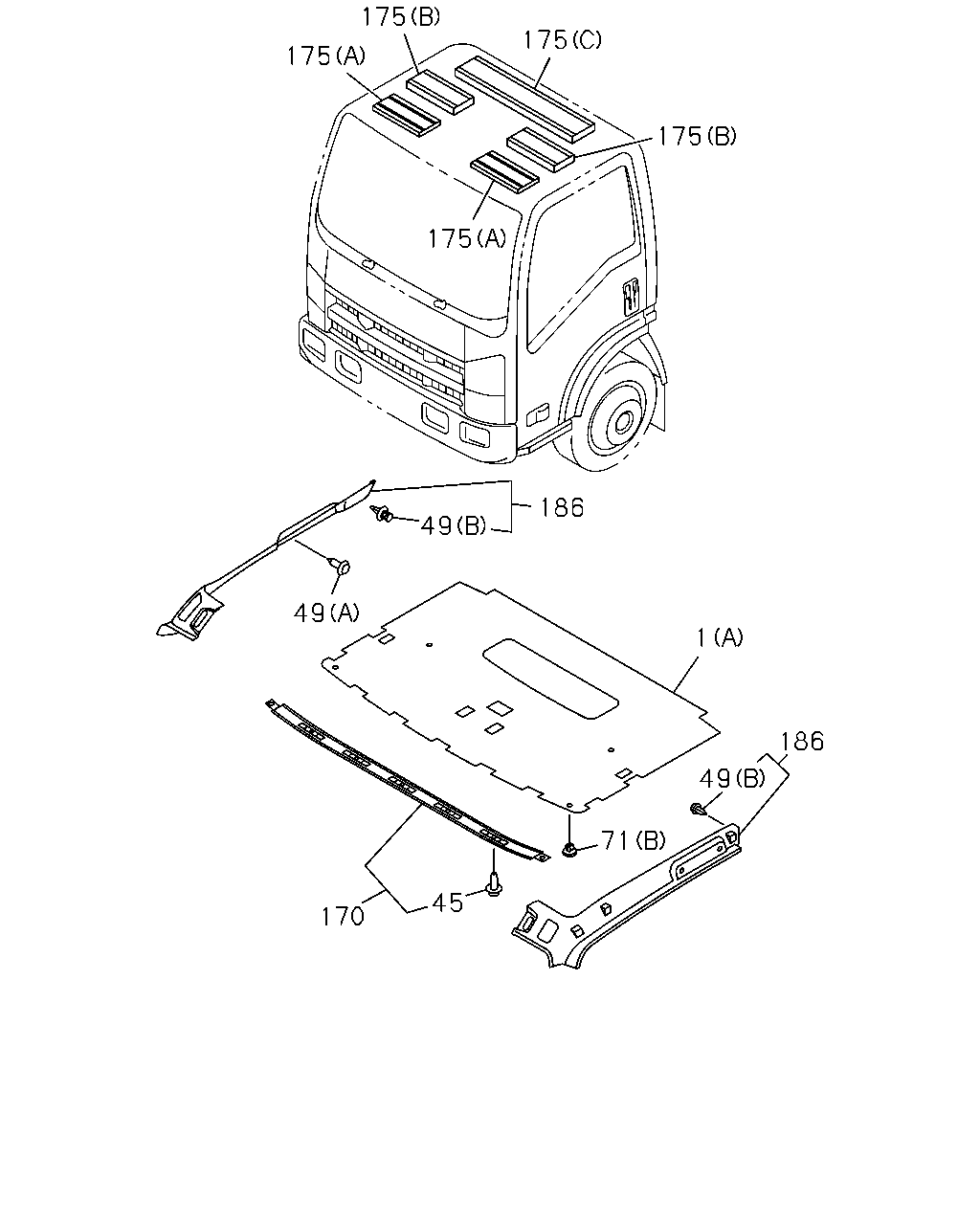

175 175 175 175 175 186 49 49 1 186 49 71 45 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-280-6	01	1	0907-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-282-6	01	1	0907-	●	●
1	16.742 LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) DARK GRAY	8-97406-277-5	01	1	0907-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97409-859-1	01	1	0907-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97425-050-0	01	1	1212-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97406-284-4	01	1	0907-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97425-043-0	01	1	1212-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (C) DARK GRAY	8-97406-290-4	01	1	0907-			●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97406-291-4	01	1	0907-			●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97406-289-3	01	1	0907-			●
45	16.742 CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	05	1	0907-0911	●	●
45	16.742 CLIP; FINISHER	8-98035-592-1	05	1	0907-0911			●
45	16.742 CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	03	1	0912-	●	●
45	16.742 CLIP; FINISHER	8-98035-592-1	03	1	0912-			●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	02	1	0907-	●	●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	0907-			●
49	16.742 CLIP; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5>, INTERIORTRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	04	1	0907-	●	●
49	16.742 CLIP; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	04	1	0907-			●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	0907-1410	●	●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	0907-1410	●	●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	03	1	0907-1410			●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	02	1	1411-	●	●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	02	1	1411-	●	●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	02	1	1411-			●
71	16.742 FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	0907-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0907-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> (B) D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0907-	●	●
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	0907-	●	●
71	16.742 FASTENER; HD LINING (B) D=8.7X16.5 DARK GRAY	8-97405-282-0	34	1	0907-			●
71	16.742 FASTENER; HD LINING (A) DARK GRAY	8-97411-797-0	01	1	0907-			●
170	16.742 FINISHER; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97406-296-4	01	1	0907-	●	●
170	16.742 FINISHER; HEAD LINING DARK GRAY	8-97406-296-4	01	1	0907-			●
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (D)	8-98051-799-2	01	1	0907-	●	●
175	16.742 CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0907-	●	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-299-3	02	1	0907-	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C)	8-98037-300-3	01	1	0907-	●	●
175	16.742 CUSHION; HEAD LINING (E)	8-98053-866-2	02	1	0907-			●
175	16.742 CUSHION; HEAD LINING (A)	8-98082-685-1	04	1	0907-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-250-3	01	1	0907-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	0907-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-252-3	01	1	0907-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	0907-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	0907-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	0907-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	0907-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	0907-			●

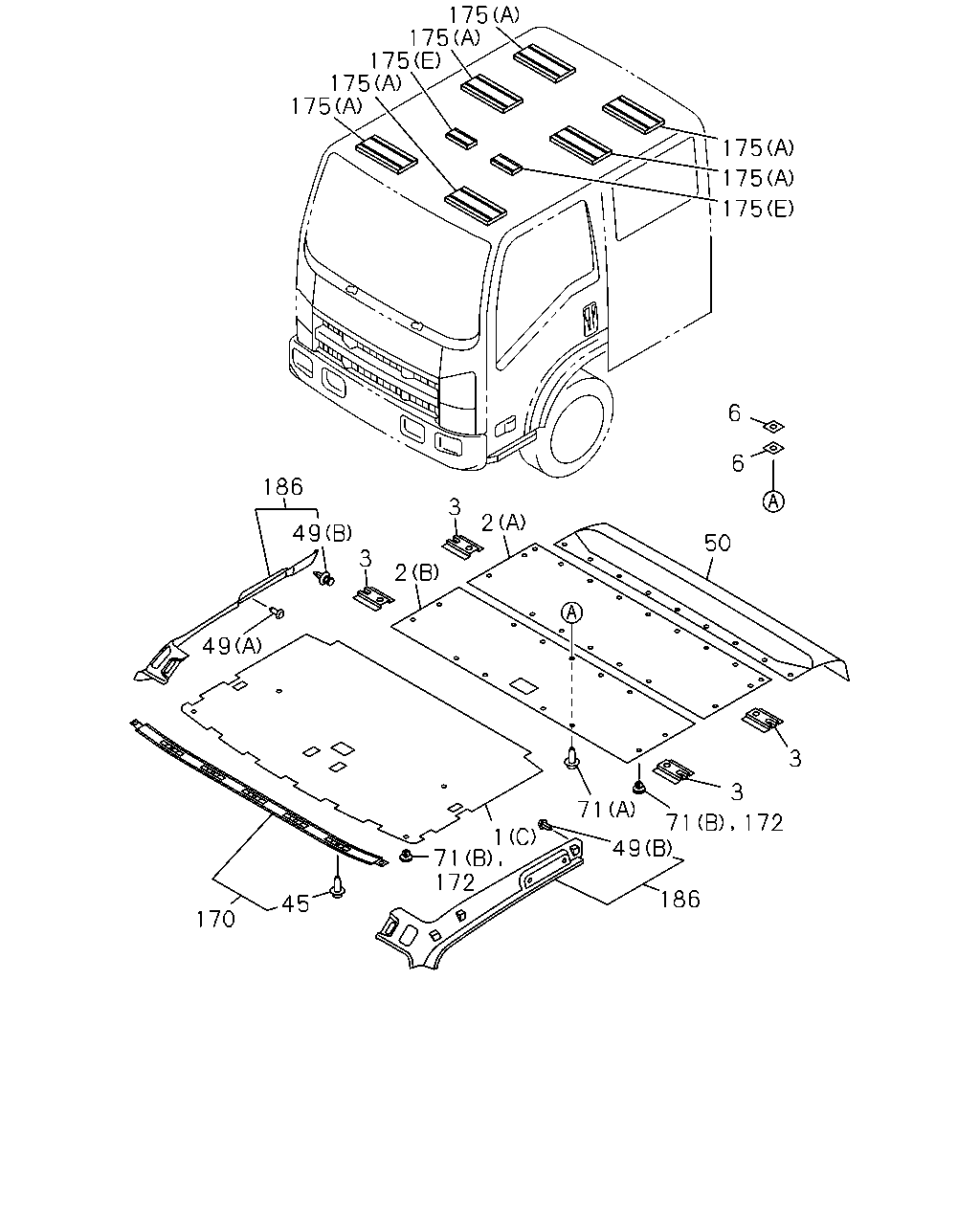

175 175 175 175 175 175 175 175 6 6 186 3 2 49 3 50 2 49 3 3 71 71 49 172 1 71 172 186 45 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-280-6	01	1	0907-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-282-6	01	1	0907-	●	●
1	16.742 LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) DARK GRAY	8-97406-277-5	01	1	0907-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97409-859-1	01	1	0907-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97425-050-0	01	1	1212-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97406-284-4	01	1	0907-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97425-043-0	01	1	1212-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (C) DARK GRAY	8-97406-290-4	01	1	0907-			●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97406-291-4	01	1	0907-			●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97406-289-3	01	1	0907-			●
2	16.742 LINING; HD,ROOF RR (A) DARK GRAY	8-97406-292-2	01	1	0907-			●
2	16.742 LINING; HD,ROOF RR (B) DARK GRAY	8-97407-331-3	01	1	0907-			●
3	16.575 COVER; TRIM,ROOF SIDE DARK GRAY	8-97407-365-0	04	1	0907-			●
6	16.742 SPACER; HD LINING 1 SET=20 PIECE	8-98100-429-0	01	1	0907-			●
45	16.742 CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	05	1	0907-0911	●	●
45	16.742 CLIP; FINISHER	8-98035-592-1	05	1	0907-0911			●
45	16.742 CLIP; FINISHER EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98035-592-1	03	1	0912-	●	●
45	16.742 CLIP; FINISHER	8-98035-592-1	03	1	0912-			●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	02	1	0907-	●	●
49	16.742 CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	0907-			●
49	16.742 CLIP; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5>, INTERIORTRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97407-768-0	04	1	0907-	●	●
49	16.742 CLIP; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	04	1	0907-			●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	0907-1410	●	●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	03	1	0907-1410	●	●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	03	1	0907-1410			●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	02	1	1411-	●	●
49	16.742 CLIP; TRIM COVER EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.578 (B)	8-98059-610-0	02	1	1411-	●	●
49	16.742 CLIP; TRIM COVER 16.578 (B)	8-98059-610-0	02	1	1411-			●
50	16.742 TRIM; ROOF BACK DARK GRAY	8-97406-295-2	01	1	0907-			●
71	16.742 FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	0907-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0907-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> (B) D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0907-	●	●
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	0907-	●	●
71	16.742 FASTENER; HD LINING (B) D=8.7X16.5 DARK GRAY	8-97405-282-0	34	1	0907-			●
71	16.742 FASTENER; HD LINING (A) DARK GRAY	8-97411-797-0	01	1	0907-			●
170	16.742 FINISHER; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97406-296-4	01	1	0907-	●	●
170	16.742 FINISHER; HEAD LINING DARK GRAY	8-97406-296-4	01	1	0907-			●
172	16.742 RETAINER; HEAD LINING DARK GRAY	8-97405-282-0	19	1	0907-			●
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (D)	8-98051-799-2	01	1	0907-	●	●
175	16.742 CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0907-	●	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-299-3	02	1	0907-	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C)	8-98037-300-3	01	1	0907-	●	●
175	16.742 CUSHION; HEAD LINING (E)	8-98053-866-2	02	1	0907-			●
175	16.742 CUSHION; HEAD LINING (A)	8-98082-685-1	04	1	0907-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-250-3	01	1	0907-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	0907-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97405-252-3	01	1	0907-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	0907-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	0907-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	0907-			●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	0907-	●	●
186	16.742 TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	0907-			●

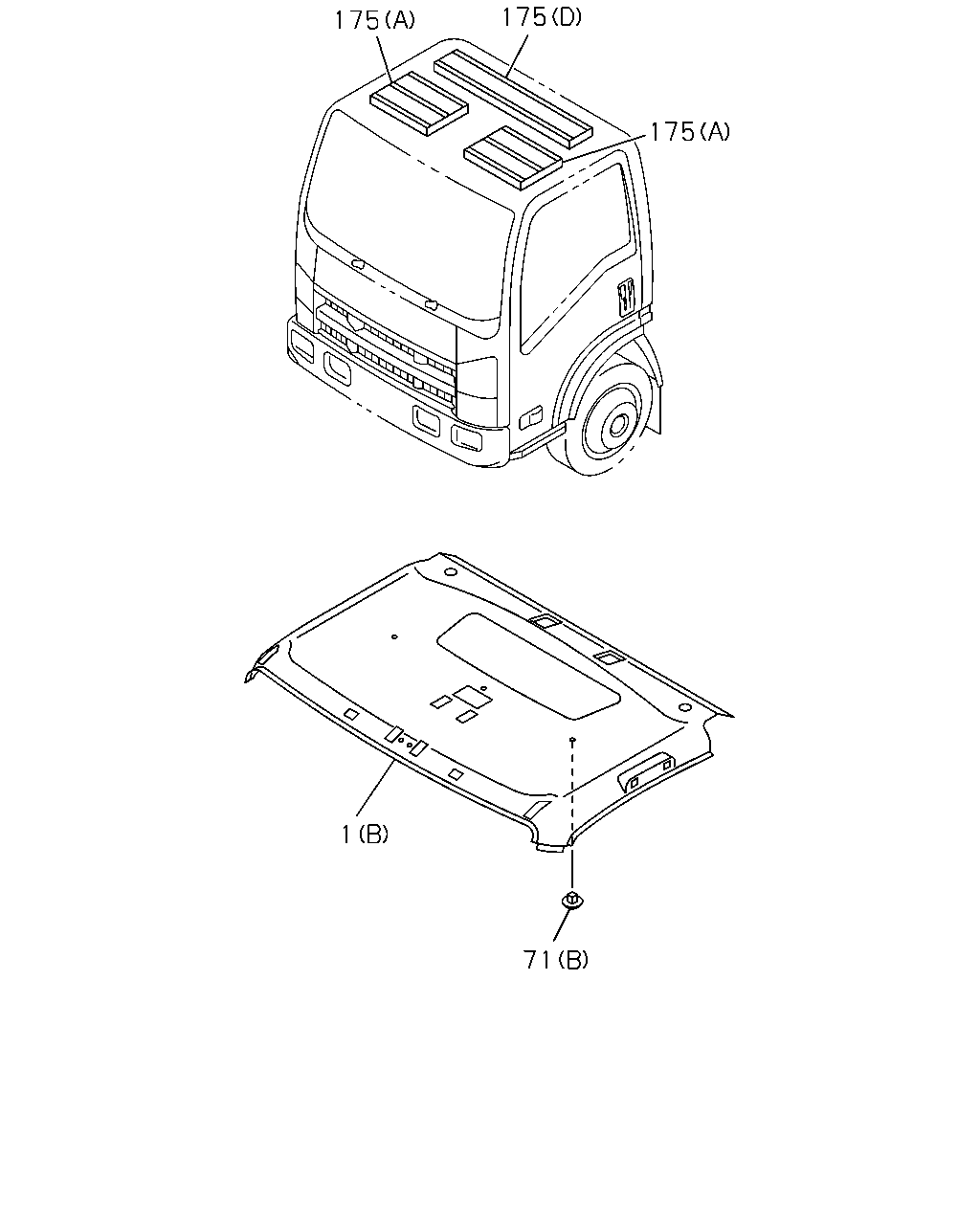

175 175 175 1 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-280-6	01	1	0907-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY	8-97406-282-6	01	1	0907-	●	●
1	16.742 LINING; HD EXC. INTERIOR TRIM-FULL TRIMMING<WM3>, HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) DARK GRAY	8-97406-277-5	01	1	0907-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97409-859-1	01	1	0907-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97425-050-0	01	1	1212-	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97406-284-4	01	1	0907-1211	●	●
1	16.742 LINING; HD INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97425-043-0	01	1	1212-	●	●
1	16.742 LINING; HD HEADER TRAY DRIVER<W56> (C) DARK GRAY	8-97406-290-4	01	1	0907-			●
1	16.742 LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97406-291-4	01	1	0907-			●
1	16.742 LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAYDRIVER & PASSENGER<8LY> (C) DARK GRAY	8-97406-289-3	01	1	0907-			●
71	16.742 FASTENER; HD LINING COAT HOOK<S9M> INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=11.6X13.6 DARK GRAY	8-97405-301-2	03	1	0907-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY	8-97405-282-0	02	1	0907-	●	●
71	16.742 FASTENER; HD LINING INTERIOR TRIM-FULL TRIMMING<WM3> EXC. COAT HOOK<S9M> (B) D=11.6X13.6 DARK GRAY	8-97405-301-2	04	1	0907-	●	●
71	16.742 FASTENER; HD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) D=8.7X16.5 DARK GRAY	8-97405-282-0	06	1	0907-	●	●
71	16.742 FASTENER; HD LINING (B) D=8.7X16.5 DARK GRAY	8-97405-282-0	34	1	0907-			●
71	16.742 FASTENER; HD LINING (A) DARK GRAY	8-97411-797-0	01	1	0907-			●
175	16.742 CUSHION; HEAD LINING INTERIOR TRIM-FULL TRIMMING<WM3> (D)	8-98051-799-2	01	1	0907-	●	●
175	16.742 CUSHION; HEAD LINING (A)	8-98082-685-1	02	1	0907-	●	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B)	8-98037-299-3	02	1	0907-	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (C)	8-98037-300-3	01	1	0907-	●	●
175	16.742 CUSHION; HEAD LINING (E)	8-98053-866-2	02	1	0907-			●
175	16.742 CUSHION; HEAD LINING (A)	8-98082-685-1	04	1	0907-			●
